M10 4 Post Heavy Duty 12-48V 600 Amp Bus Bar

$97.95 AUD
Colour

Delivering Outside Australia or New Zealand? Delivery is free. Import duty, customs charges and any tax on arrival are set by your country and are payable by you — we can’t collect them for you.

Ask About This Product

Tracking

Keep an Eye on your Gear

Simply enter the tracking number sent to your email to see exactly where your package is and when it is estimated to arrive.

Note: It may take 24-48 hours for tracking information to update after your order has been dispatched.

Track my Order

One Clean Landing Point for Four Heavy Cables.

Every 12V, 24V or 48V build reaches the same moment. The controller, the inverter, the battery bank and a couple of loads all want to meet in one place, so they end up stacked on a battery post — three lugs under one nut, none of them torqued properly. It works until a corrugated road shakes one loose. Then you are on your back under the canopy with a torch, chasing a joint that has gone warm.

This is a four-post bus bar with M10 studs, rated by the supplier at 600A continuous DC and up to 48V DC, under a removable cover. Four heavy cables land on their own stud, each one done up properly, with the cover back on so a dropped spanner cannot bridge two of them.

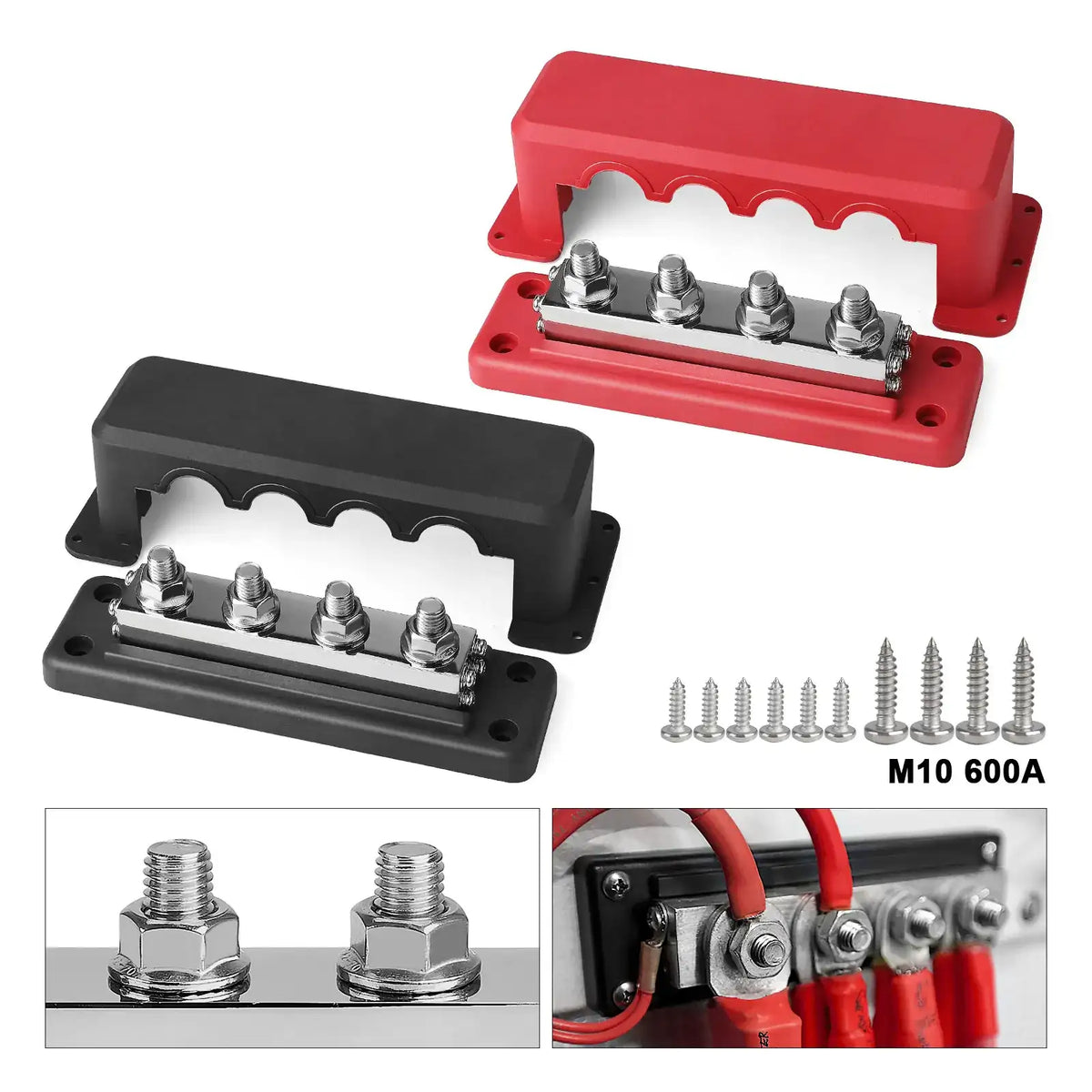

Single Bars or a Red + Black Pair. Pick Red or Black for one bus bar, or the Red + Black Pair for one of each — the usual positive and negative. The pair is two separate bars and may arrive in two parcels.

Rated to 48V DC, So it Suits 12V, 24V and 48V Systems. One bar for whichever battery bank you run. Just size your cable for your voltage (see below).

What it Solves
  • No More Stacked Lugs on a Battery Post: three heavy cables under one nut is how you get a hot joint. Land them here and the battery post carries one clean connection.
  • One Bar for Any Common Battery Bank: rated to 48V DC, so the same bar suits a 12V ute, a 24V truck or a 48V off-grid bank.
  • Nothing Shorts Across the Studs: the cover clips over the terminals, which matters in a battery box or an engine bay where tools get put down in odd places.
  • Find a Fault in Minutes: when every heavy cable meets in one place you lift a cover and look, instead of tracing wire through a canopy.
  • Room for the Load you Add Next: four posts means the next inverter or winch circuit has somewhere to go without rebuilding the run.
Key Features
  • 600A Continuous DC: the supplier's rating. Read the honest note on conductor thickness in the Q & A before you size a system around it.
  • Four M10 Studs: four heavy ring lugs, each on its own stud.
  • Rated to 48V DC: supplier stated, so it suits 12V, 24V and 48V systems.
  • Tin-Plated Pure Copper Bar: supplier stated. Plating is what keeps a joint from going green and then going hot.

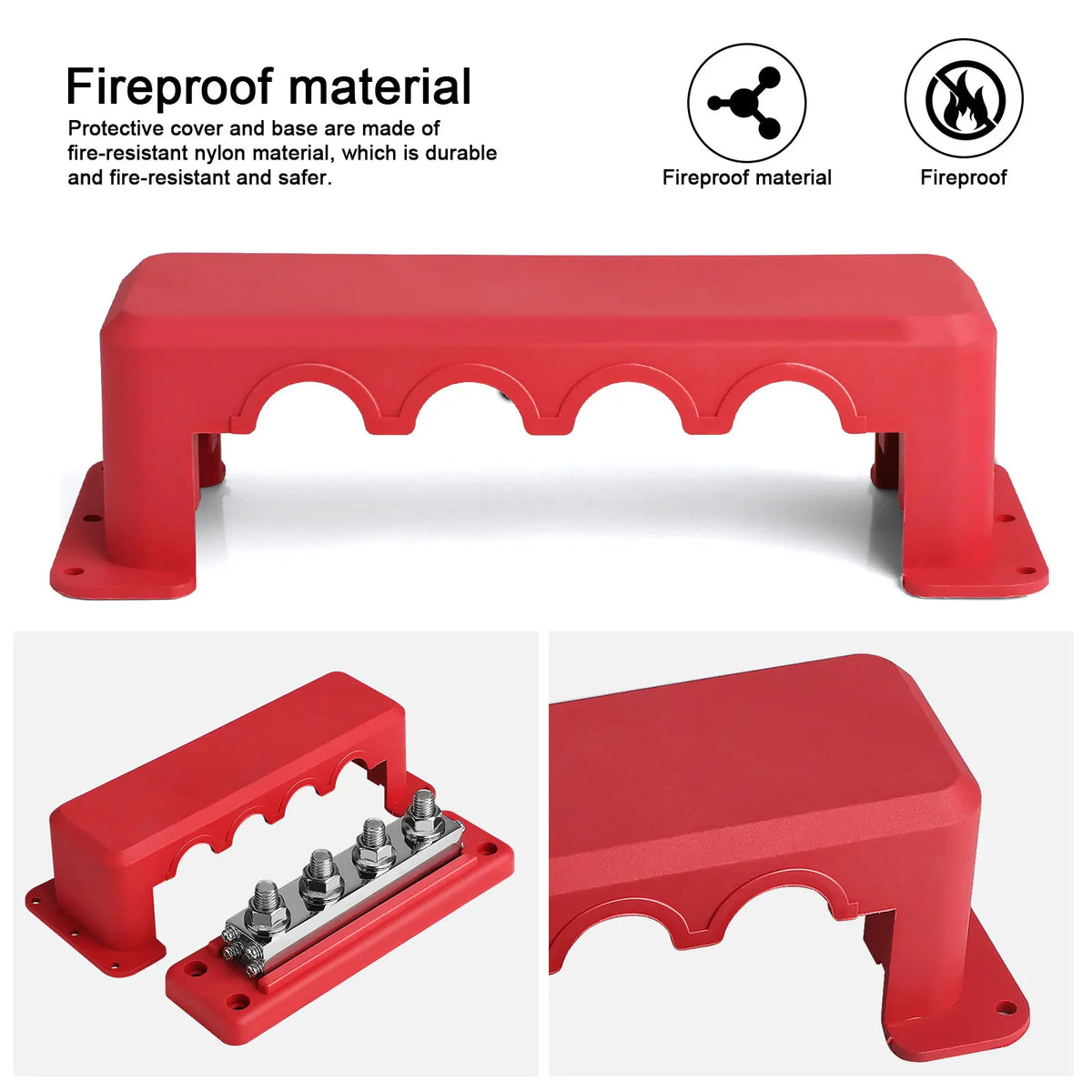

  • Polycarbonate Base, ABS Cover: supplier stated. The seller calls the cover fireproof but publishes no flammability class, so we do not quote one.

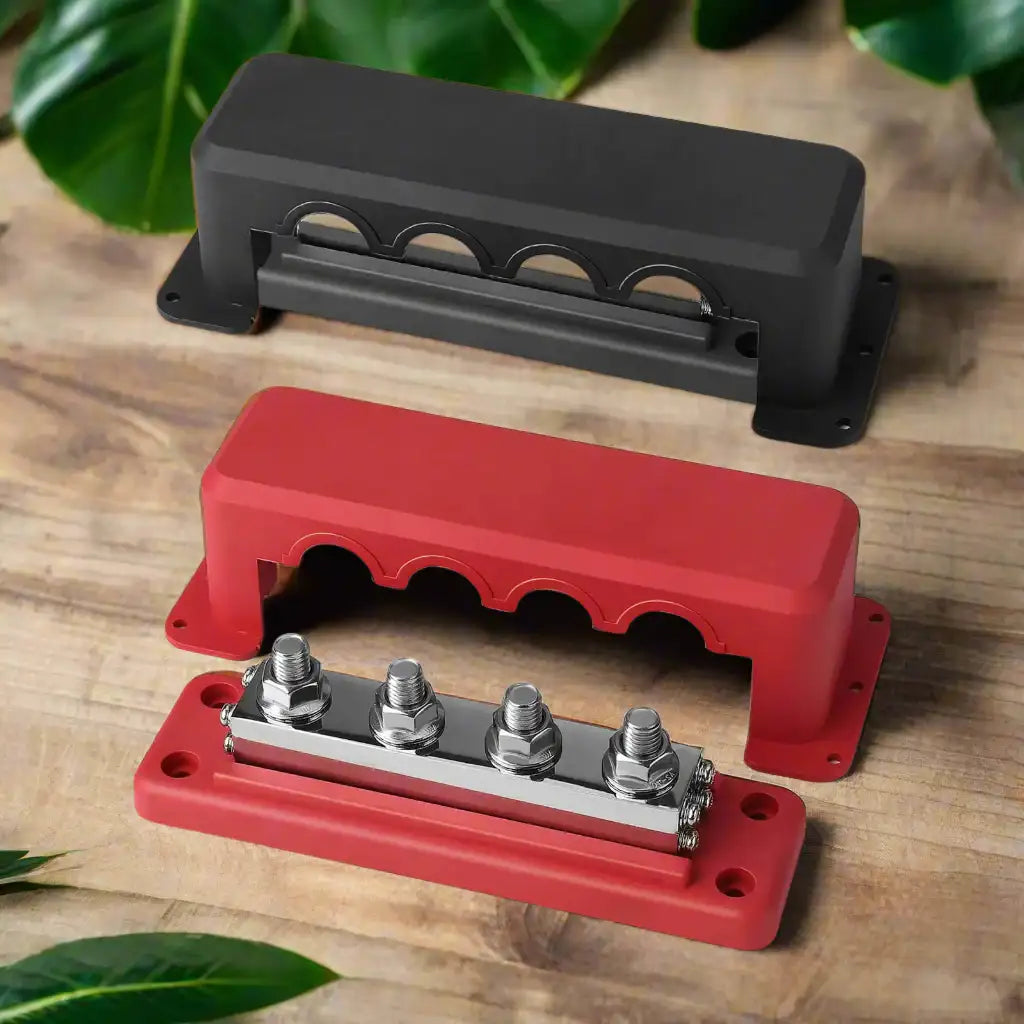

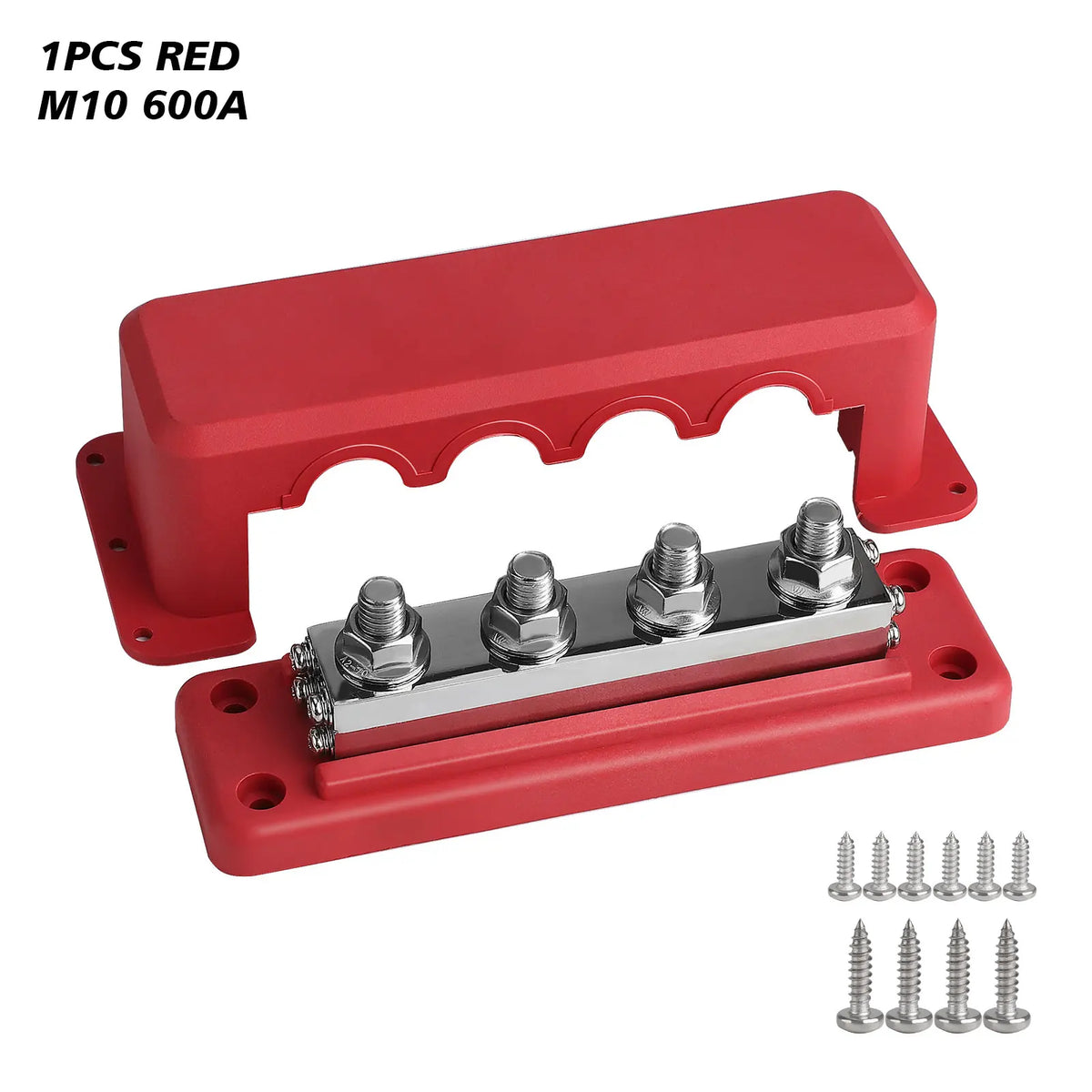

  • Removable Cover: moulded cut-outs let the cables out the front while the terminals stay covered.
  • Compact Footprint: 179 x 51 mm base, 55 mm tall with the cover on, so it fits a battery box lid or a bulkhead.

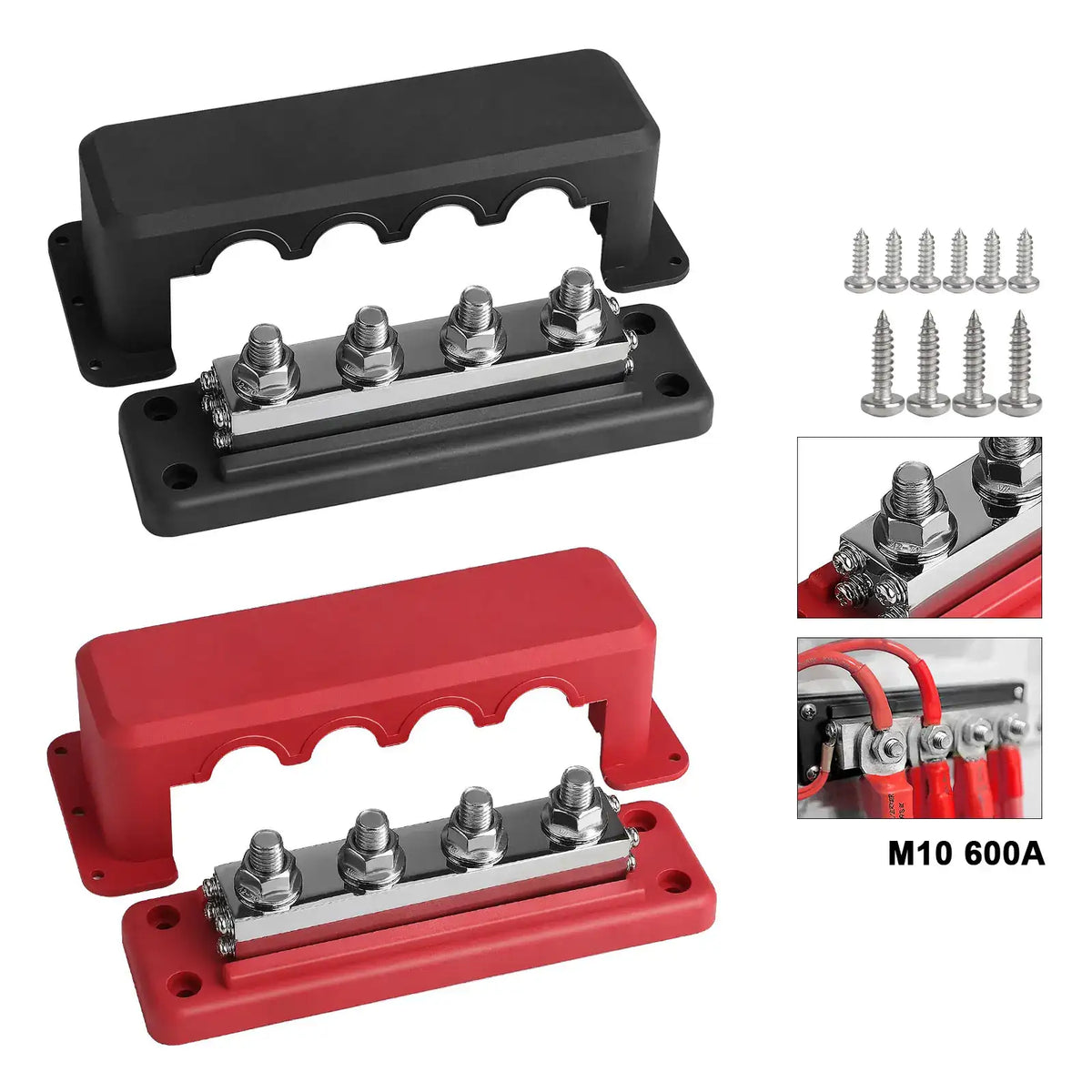

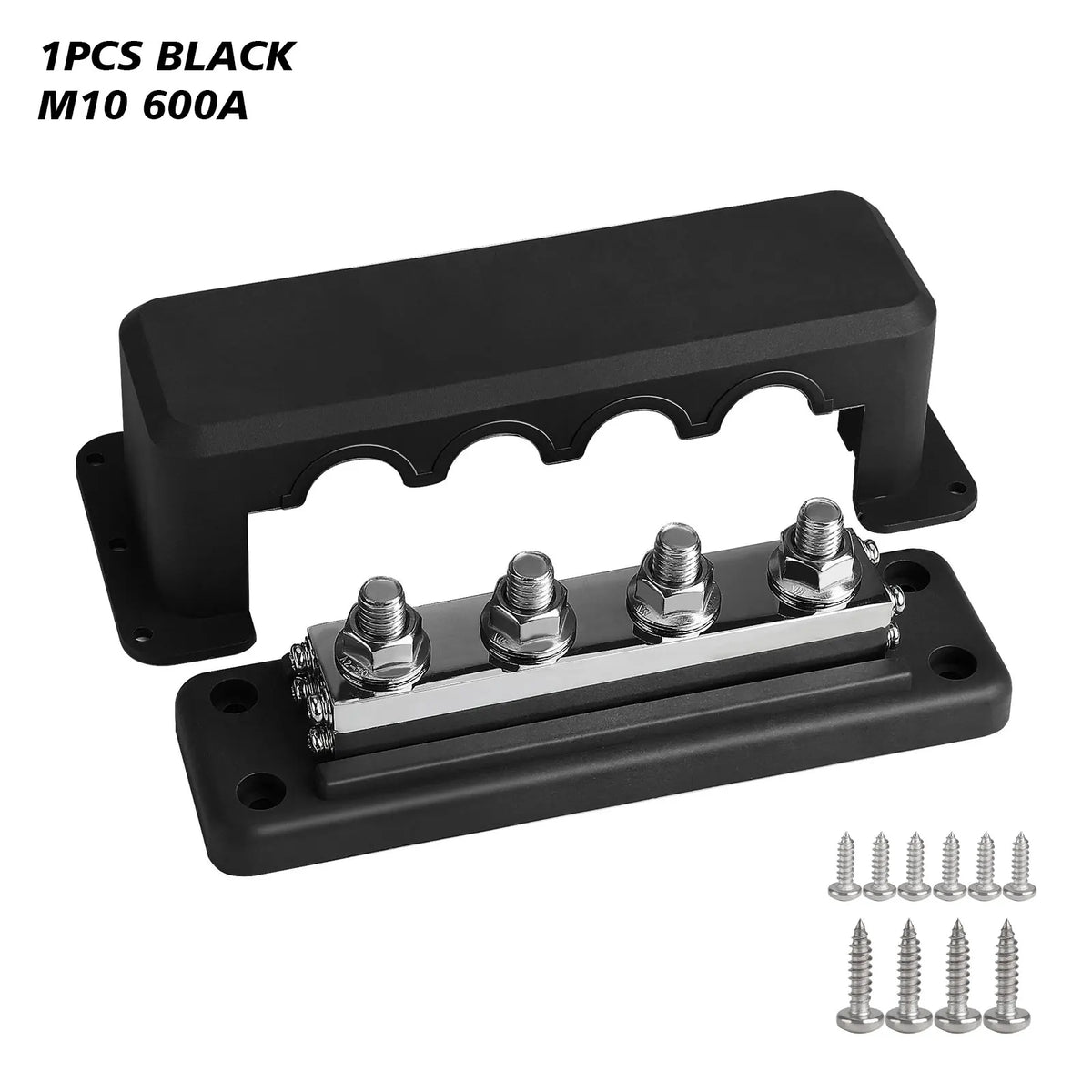

  • Mounting Screws in the Box: ten self-tapping screws are shown supplied with each unit, four base holes to fix it down.
  • Red, Black or a Pair: pick the colour that matches the side you are wiring, or take the Red + Black Pair for both sides.
  • Delivery: Free Standard Delivery, 5 to 10 working days from the day you order. Allow 1–2 days for fulfilment. Regional and remote addresses can take longer.
What Else you'll Need

A bus bar distributes power. It does not protect anything, and on its own it is half a job. Here is what usually goes around it:

What we do Not Cover for you: cable sizing. It depends on your run length, your voltage and your actual current draw, and nobody can size it for you from a product page. Work it out against your own run or ask your sparky. If you are building 12V or 24V, the current is higher for the same power, so the cable sizing changes again.

Technical electrical equipment — turbines, controllers and distribution gear like this — should be installed by a qualified person. Keep the electrician's invoice: our returns position on electrical goods asks for proof of professional installation.

Q & A

Do I Get One Bus Bar or Two?
One if you pick Red or Black. Two if you pick the Red + Black Pair: one red and one black bar, the usual positive and negative. The pair may arrive in two parcels.

What Torque do the M10 Studs Take?
Not specified by supplier. Do not lean on it with a long spanner. A stud that has been over-tightened either strips or distorts the bar, and neither shows up until the joint gets hot under load. If your ring lug or nut maker publishes a torque, work to that.

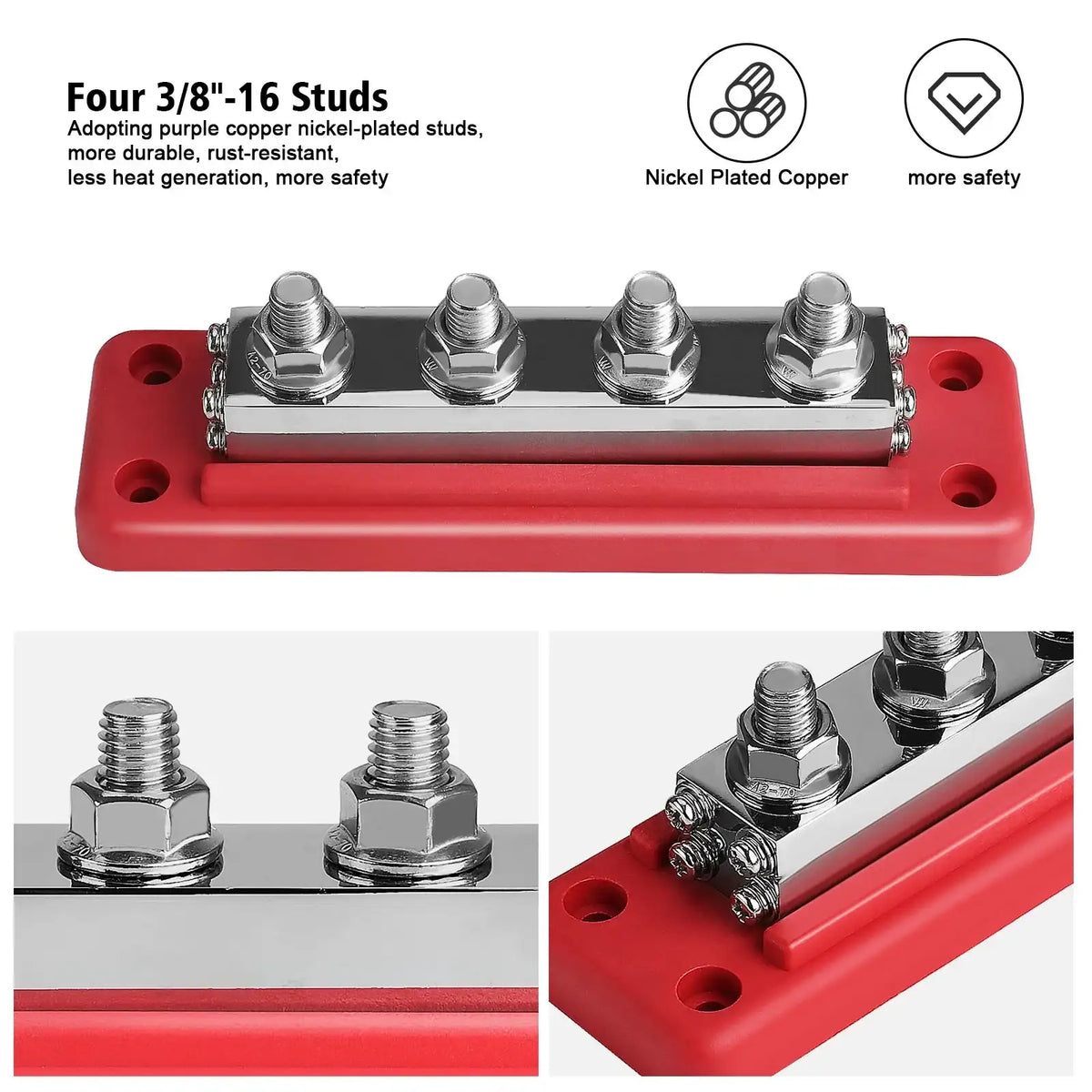

The Studs are Marked M10 and Also 3/8-16. Which is it?
The seller's listing says M10 in its title and 3/8 inch in its description, and they are not the same thread — 3/8 inch is 9.5 mm, M10 is 10 mm. The store sells it as M10 and the option list says M10. Either will pass through a 10 mm ring lug hole, so for lugs it makes no practical difference. If you intend to run your own nut onto a stud, check the thread on arrival before you buy hardware for it.

How Thick is the Conductor Bar, and is 600A Real?
Not specified by supplier. That is the honest answer and it matters, because conductor cross-section is what actually sets a current rating — not the number printed on the box. 600A continuous DC is the supplier's figure and we have not seen a conductor size behind it. Our 400A bus bar publishes 8 mm tinned copper and the 500A publishes 6 mm pure copper; this one says tin-plated pure copper but gives no thickness. Size your system on your cable and your breakers, and treat the 600A as headroom rather than a design limit.

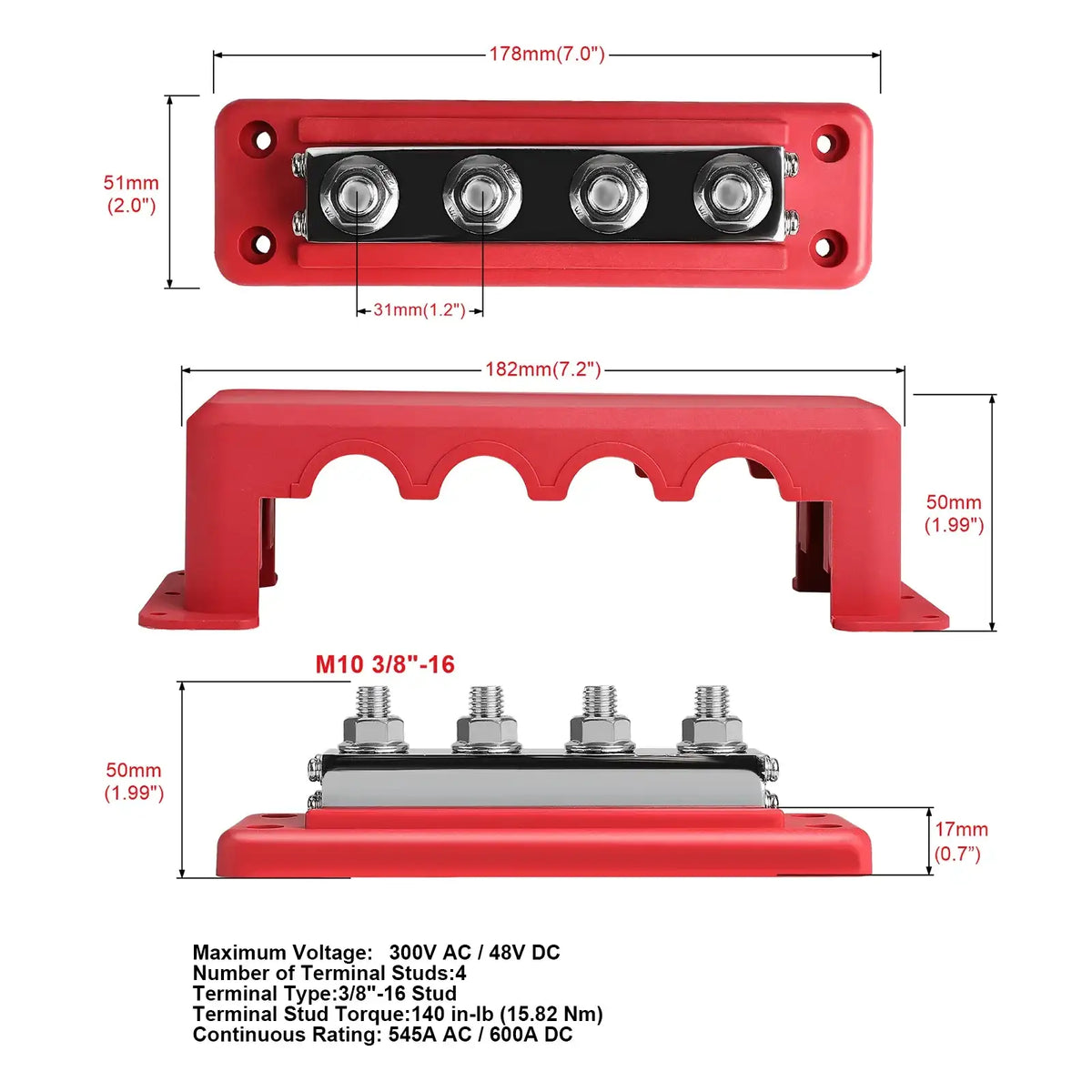

The Supplier's Drawing Also Shows AC Figures. Do they Apply?
The supplier lists 300V AC and 545A AC alongside the DC ratings. We sell this as a DC part for 12V to 48V systems, and no certificate has been sighted for the AC figures. If you need a mains-voltage AC rating, this is not the part.

Can I Use it on a 12V or 24V System?
Yes. The supplier rates it to 48V DC, and 12V and 24V sit inside that, so it suits all three. Check your cable sizing for your voltage: at 12V the current is four times what it is at 48V for the same power, so the cable has to be heavier.

Does it Come with a Fuse or Breaker, and is it Waterproof?
No to both. A bus bar distributes, it does not protect — you still need a breaker or isolator on each circuit and a main battery breaker. No ingress rating is specified by supplier. The cover keeps fingers, spanners and falling debris off the terminals; do not treat it as sealed, and do not mount it where it will sit in water.

Specs

Some of the photos show the original maker's drawing and captions. The figures in this table are our current supplier's, and where the two differ, this table is the one we go by.

Product Type DC Power Distribution Bus Bar, Four Post
Supplied as Red or Black: One Bus Bar. Red + Black Pair: Two Bus Bars (one of each)
Max Continuous Current 600A DC (Supplier Stated)
System Voltage 12V, 24V or 48V DC (Rated to 48V DC Max, Supplier Stated)
AC Figures Listed by the Supplier 300V AC / 545A AC also listed by the supplier. Sold here as a DC part for 12V to 48V — no certificate sighted for the AC figures
Terminal Studs 4 x M10
Stud Thread Marking Seller lists both "M10" and "3/8 in" (9.5 mm). Check the thread before buying loose nuts
Stud Spacing Not Specified by Supplier
Stud Torque Not Specified by Supplier
Stud Material Not Specified by Supplier
Conductor Bar Material Pure Copper (Supplier Stated)
Conductor Thickness / Cross-Section Not specified by supplier — this is what sets a real current rating, so treat the 600A figure accordingly
Conductor Plating Tin-Plated (Supplier Stated)
Cable Size Compatibility Not specified by supplier — set by the M10 ring lug that fits
Base & Cover Material Polycarbonate base, ABS cover (supplier stated). The seller calls it fireproof; no flammability class specified by supplier
Cover Removable, with Moulded Cable Cut-Outs Over the Studs
Base Footprint 179 x 51 mm
Cover Length 182 mm
Overall Height 55 mm
Base Thickness 13 mm

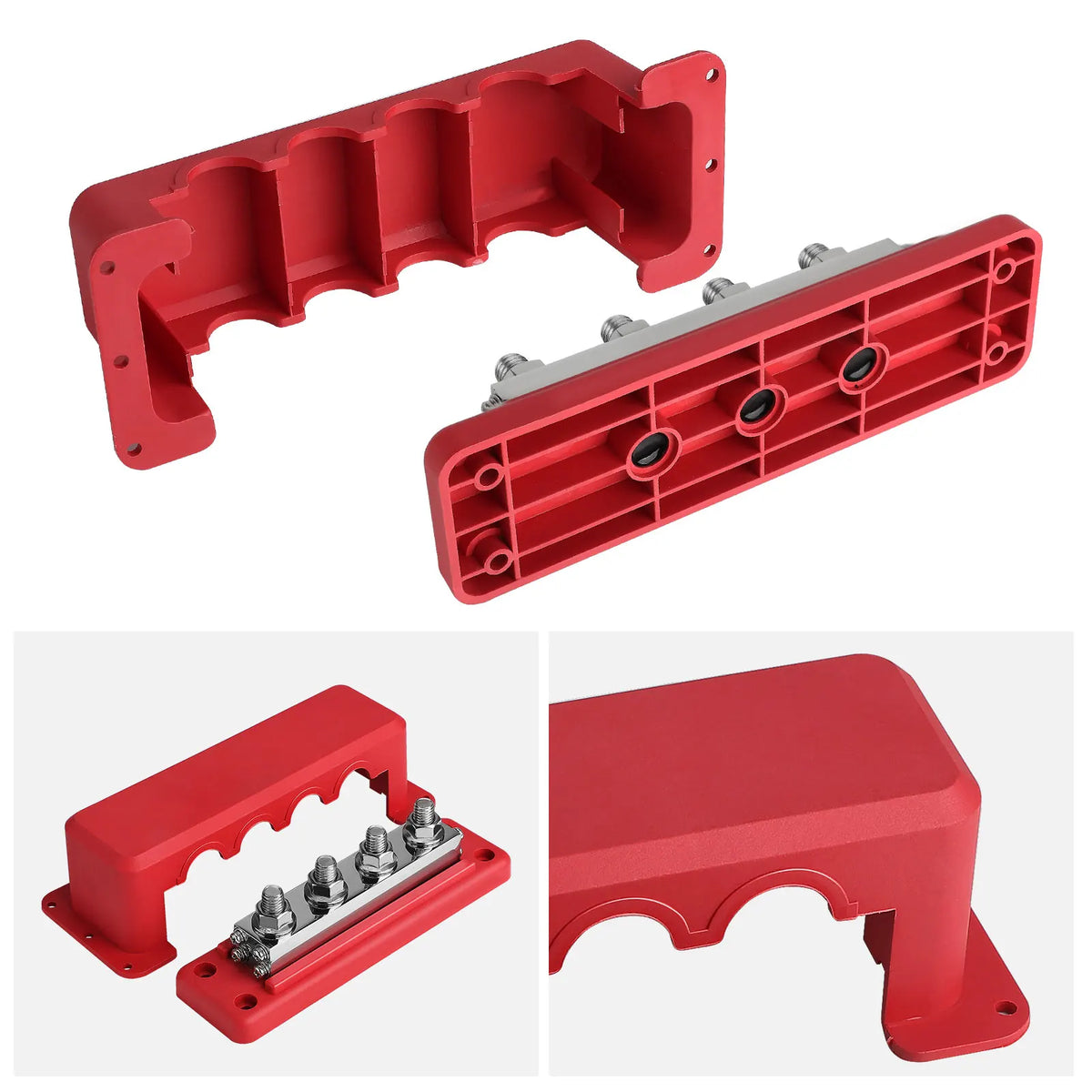

Mounting Four base holes for 1/4 in (6.35 mm) screws; ten self-tapping screws shown supplied with each unit

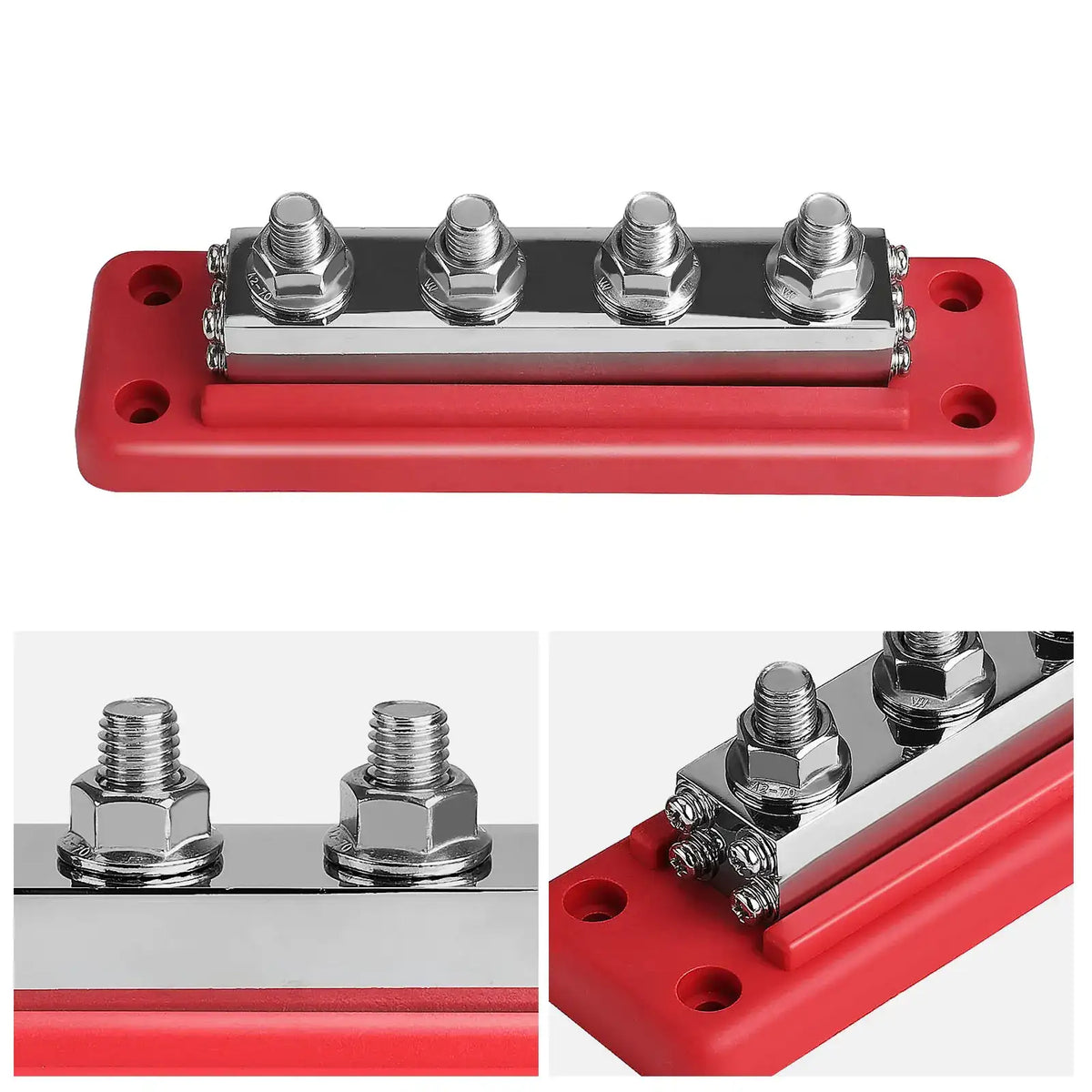

Auxiliary Screw Terminals Small screw terminals sit at the ends of the bar. Count and rating not specified by supplier
Colours Red, Black, or a Red + Black Pair
Ingress Rating Not Specified by Supplier
Weight 716 g (Supplier Stated)
Circuit Protection None Included — Fit your Own Breakers & Isolators

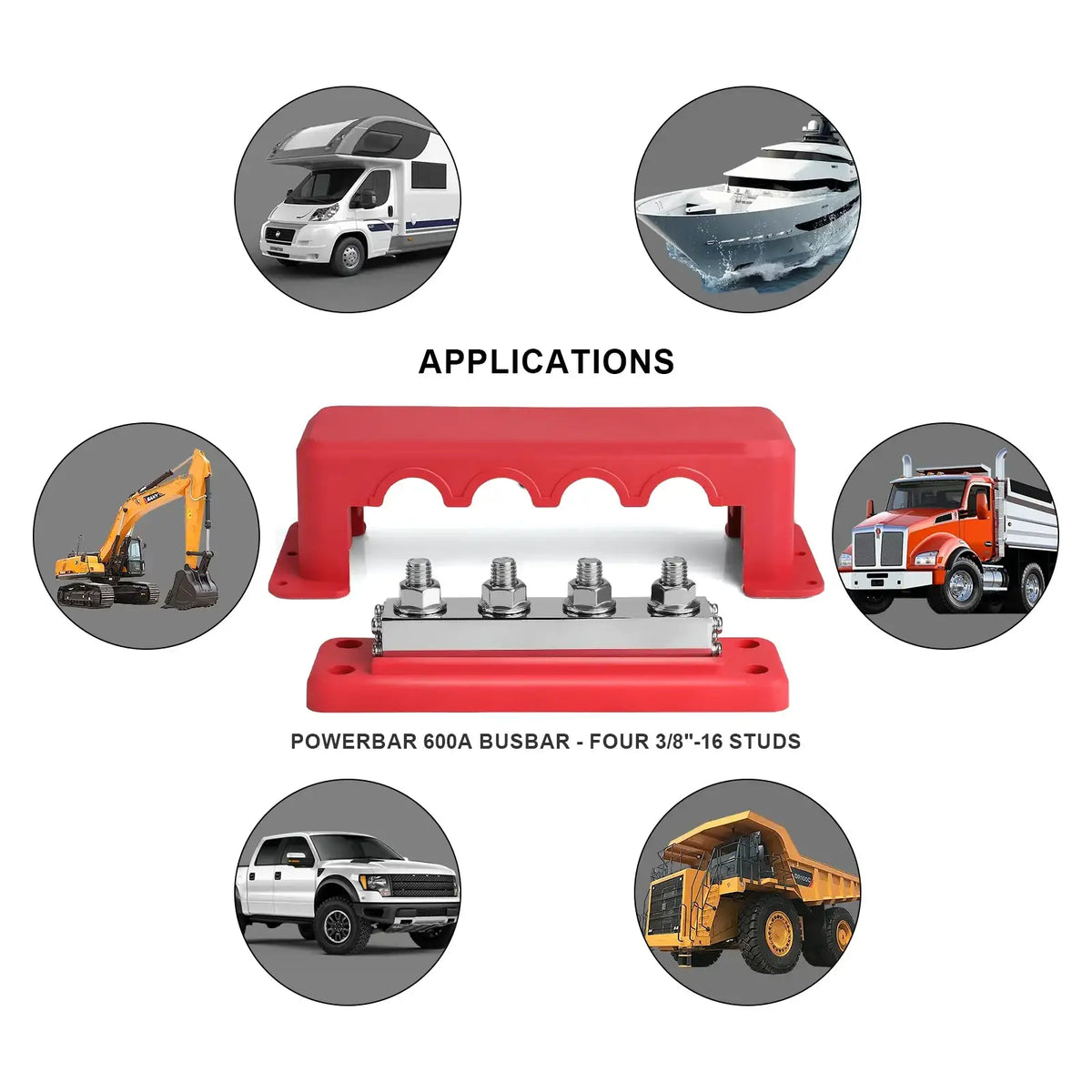

Applications 12V, 24V and 48V off-grid solar and wind, battery banks, marine, RV, truck, 4x4

Watch Me

The short video in the photo gallery shows the bar with its cover lifted off. If you are wiring an off-grid system, these two guides cover the sequence and the hazards:
