Pure Copper Electrical Terminal Connectors
Delivering Outside Australia or New Zealand? Delivery is free. Import duty, customs charges and any tax on arrival are set by your country and are payable by you — we can’t collect them for you.
Tracking
Tracking
Keep an Eye on your Gear
Simply enter the tracking number sent to your email to see exactly where your package is and when it is estimated to arrive.
Note: It may take 24-48 hours for tracking information to update after your order has been dispatched.

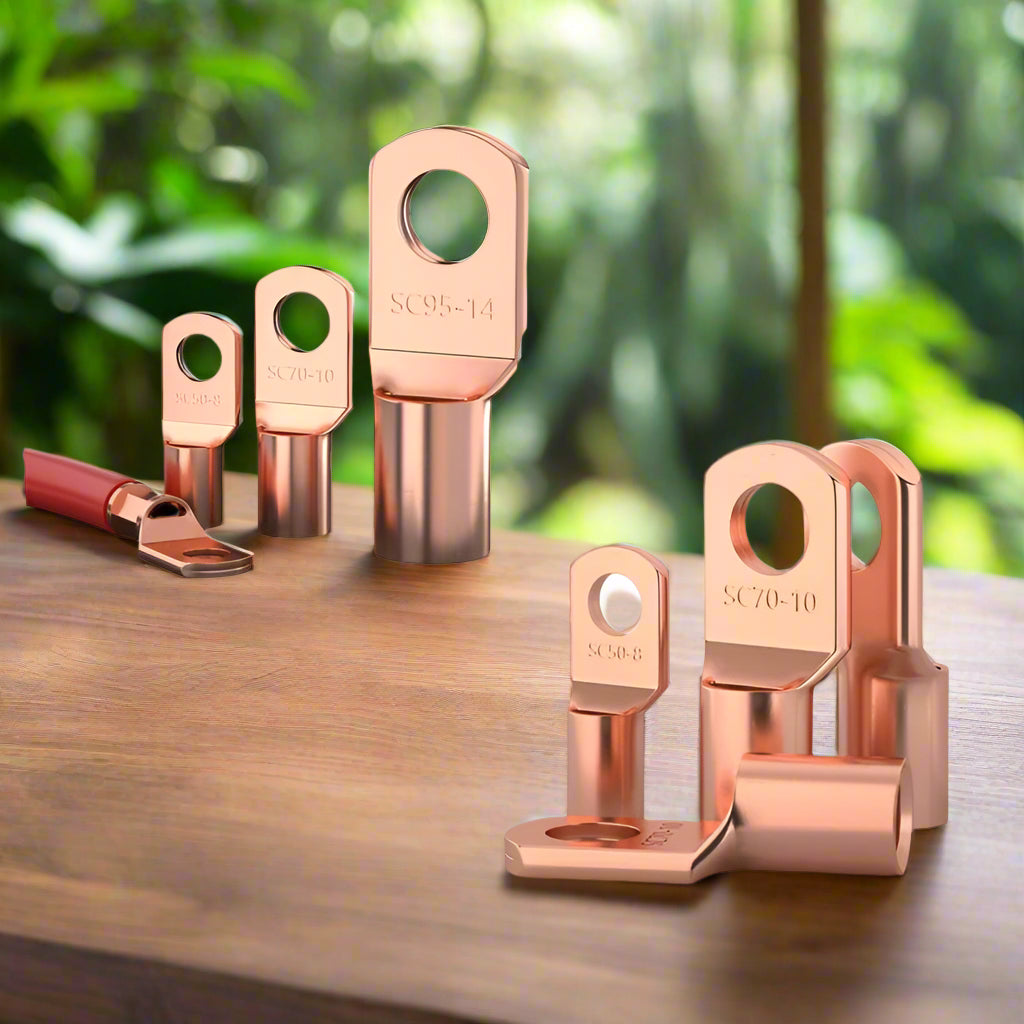

Pure Copper Electrical Terminal Connectors
A Lug is Only as Good as the Crimp Behind it.
Bare cable clamped straight under a bolt head is the joint that gives trouble later. The strands spread, only a few of them carry the load, the bolt loosens with vibration, and the connection starts running warmer than the cable either side of it. On a battery bank that joint is carrying every amp your inverter draws.
A copper tube lug fixes that by turning the cable end into a solid, flat ring. You strip the insulation, seat the conductor in the barrel, crimp it, and bolt the ring flat against the bus bar, breaker post or battery terminal. Full contact area, one fastener, nothing to spread. These are SC-type lugs in pure copper, cold-pressed for crimping, in seven conductor sizes from SC4 to SC50 with stud holes from 4mm to 12mm.
Two honest limits. First, the crimp does the work — a hex or indent crimper matched to the barrel is the difference between a joint that lasts twenty years and one you replace next summer. Bolt cutters and hammers do not count. Second, we sell SC4 up to SC50 and nothing above it. If you are running 70mm² or 95mm² cable to an inverter, these will not suit you, so do not order the biggest one and hope.
What it Solves
- Battery Bank Leads: making up 25mm² or 35mm² interconnects between cells and the main isolator, with a flat ring that sits properly on the post.
- Bus Bar Terminations: a shed or workshop DC bus bar where six or eight circuits land on one bar and every one of them needs a matching stud hole.
- Farm & Site Plant: repairing chewed or corroded cable ends on pumps, gensets and machinery without waiting on a made-up lead.
- Van & 4WD Builds: running 16mm² from the DC-DC charger to the auxiliary battery and needing an 8mm stud hole at one end and a 6mm at the other.
- Boat & Shack Rewires: stripping out old bolted-and-taped joints and putting proper terminations on every cable end in one go.
Key Features
- Pure Copper Barrel: copper conductor into a copper lug, so you are not introducing a second metal into the joint.
- Seven Conductor Sizes: SC4, SC6, SC10, SC16, SC25, SC35 and SC50 — matched to 4mm² through to 50mm² cable.
- Stud Holes 4mm to 12mm: nineteen size combinations in total, so you can match the bolt already in your bus bar rather than drilling it out.
- Three Holes on Most Sizes: SC10, SC25 and SC35 each come with a 6mm, 8mm or 10mm hole, which covers most bus bars and breaker posts.
- Closed Tube Barrel: the conductor seats inside a tube rather than a split ferrule, so nothing sticks out past the crimp.
- Cold-Pressed for Crimping: designed to be compressed with a crimper, not soldered — a soldered lug goes stiff where the solder wicks up the strands.
- Packs of 10 or 20: SC4 to SC16 come 20 to a pack, SC25 to SC50 come 10 to a pack. Enough to do both ends of several runs and keep spares.
- Flat Bolting Face: the ring lies flat against the bar so the contact area is the whole palm of the lug, not the edge of a strand.
- Takes Standard Heatshrink: the barrel gives you something to shrink over, which keeps moisture and stray tools off the joint.
- Delivery: Free Standard Delivery, 5 to 10 working days from the day you order. Allow 1–2 days for fulfilment. Regional and remote addresses can take longer.
Where This Fits
Wiring an off-grid system means making up your own cable ends. This is one of the tools for that job — here's the rest of the picture:
- Wind Turbines: vertical and horizontal turbines from 300 W to 5 kW (rated) — and they can charge overnight, when your solar can't.
- Hybrid MPPT Controllers: you can't wire a turbine straight to a battery. The controller rectifies the output, manages the charge, and brakes the turbine when the bank is full.
- The Rest of the Electrical Range: bus bars, breakers, isolators, cable, lugs and Anderson plugs.
Cable sizing depends on your run length, voltage and current, and a bad crimp is the connection that heats up later — check the sizing against your own run or ask your sparky before you make up anything you can't undo.
Q & A
What does a Name Like SC10-8 Actually Mean?
Under the standard naming convention for copper tube terminals, the first number is the conductor cross-section in mm² and the second is the stud hole diameter in mm. So SC10-8 takes 10mm² cable and bolts onto an 8mm stud. That is the industry convention rather than a figure the supplier publishes, so measure your cable and your bolt before you order a full pack.
Which Lug do I Need for my Cable?
Match the lug to the cross-section of the conductor, not the outside diameter of the insulation. Common off-grid runs land on 6mm² and 10mm² for lighting and small loads, 16mm² and 25mm² for charger and solar feeds, and 35mm² or 50mm² for inverter and battery leads. If your cable is marked in AWG, convert it to mm² first — 4 AWG is roughly 25mm², 1/0 AWG is roughly 50mm². If you are not certain, take an offcut to your sparky.
How do I Pick the Stud Hole Size?
The hole has to match the bolt already in your bus bar, breaker post or battery terminal — not the other way around. Drilling a lug out to fit a bigger bolt removes copper from the part of the lug carrying current, and a hole that is too big lets the ring shift under the washer. Measure the stud first, then choose the second number.
Can I Solder These Instead of Crimping?
We would not. Solder wicks up the strands above the barrel and creates a stiff section that fatigues where it flexes, and it does not hold up to vibration in a vehicle or on plant. Use a hex or indent crimper sized to the barrel. If you only have a hammer-style crimper, it will make a joint, but it will not be as consistent as a proper die.
Do you Sell SC70 or SC95?
No. This listing runs SC4 to SC50 and stops there. Anything above 50mm² is not stocked here, so if your inverter leads are 70mm² or 95mm² you will need to source those elsewhere.
Are they Tinned, and What Current will they Carry?
Neither is specified by the supplier. The listing states pure copper construction, but plating, current rating and barrel dimensions are not published, so we are not going to put a number on them. In practice a lug is sized to the cable, and the cable rating is what limits the circuit — size the cable properly and the lug follows.
Specs
| Specifications | Details |
|---|---|
| Type | SC-Type Copper Tube Cable Lug (Ring Terminal) |
| Material | Pure Copper |
| Termination Method | Cold-Pressed Crimp |
| Sizes Offered | SC4, SC6, SC10, SC16, SC25, SC35, SC50 — 19 size and stud combinations |
| SC4 Options | SC4-4, SC4-5, SC4-6 — 20 per Pack |

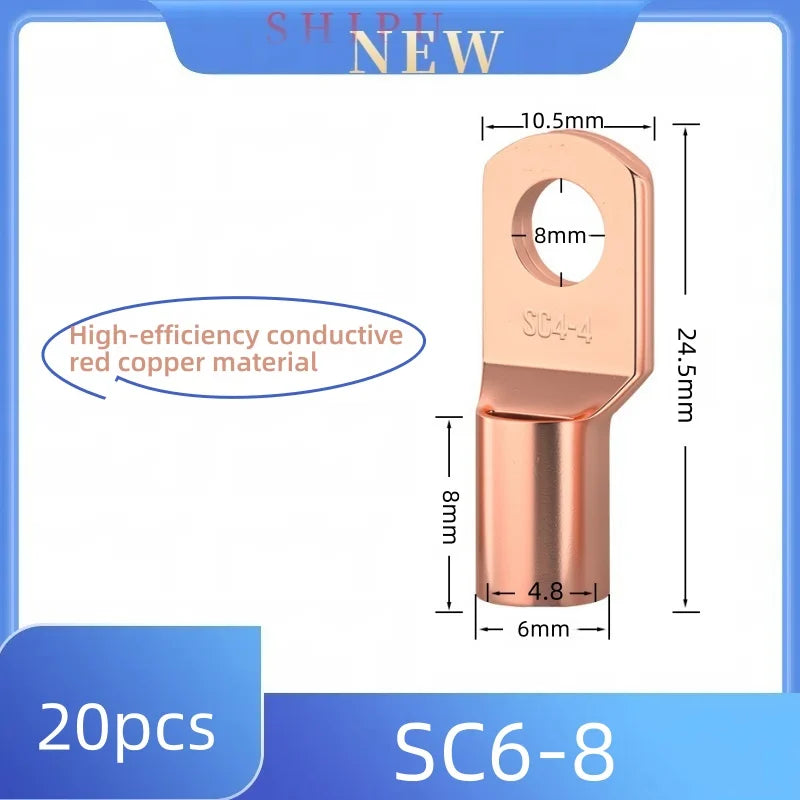

| SC6 Options | SC6-6, SC6-8 — 20 per Pack |
| SC10 Options | SC10-6, SC10-8, SC10-10 — 20 per Pack |
| SC16 Options | SC16-6, SC16-8 — 20 per Pack |
| SC25 Options | SC25-6, SC25-8, SC25-10 — 10 per Pack |

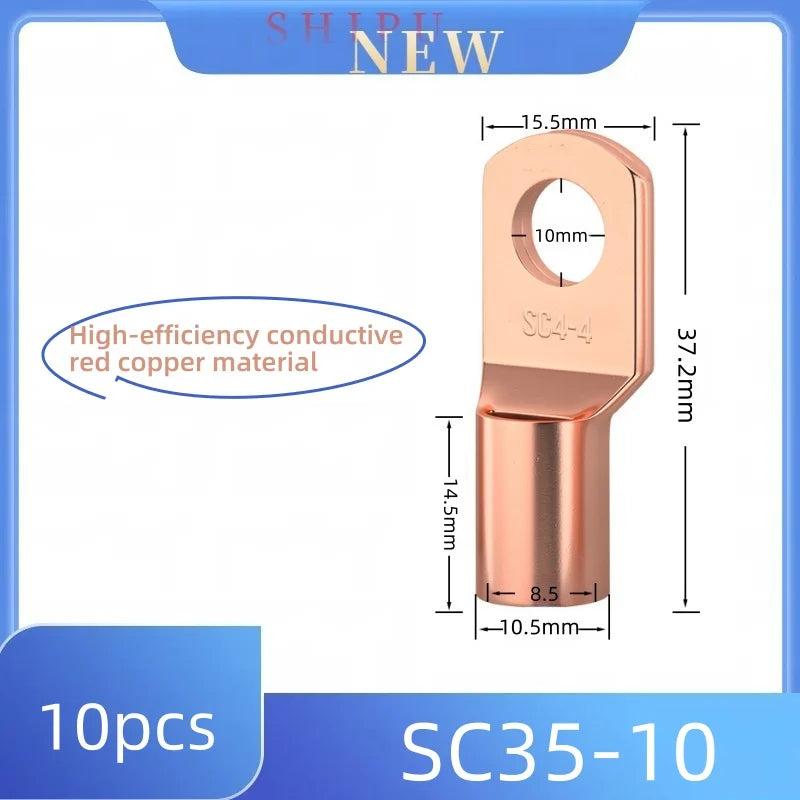

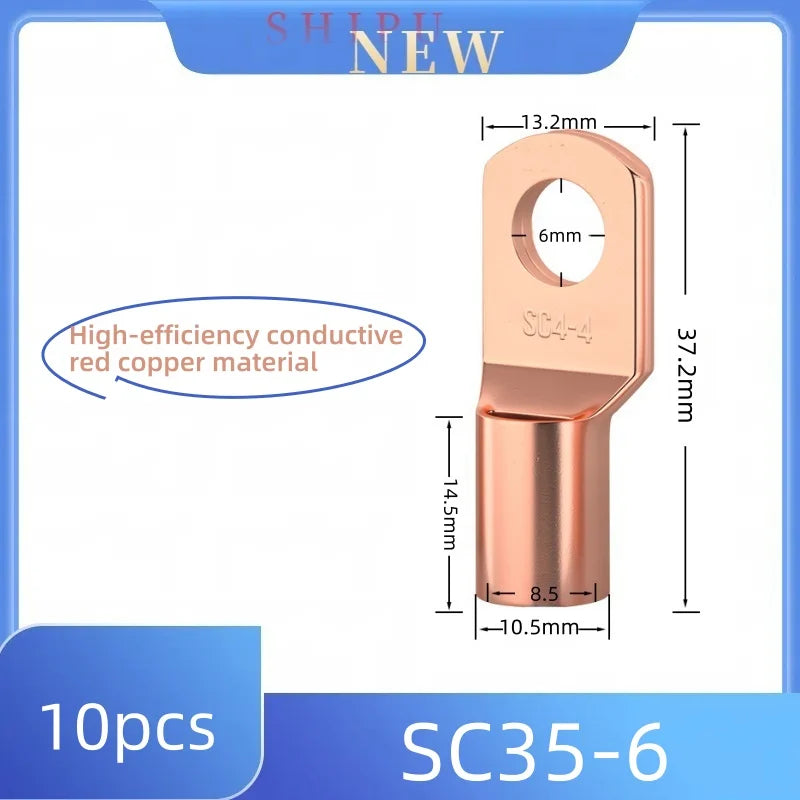

| SC35 Options | SC35-6, SC35-8, SC35-10 — 10 per Pack |
| SC50 Options | SC50-8, SC50-10, SC50-12 — 10 per Pack |
| Pack Quantity | 20 per pack for SC4 to SC16; 10 per pack for SC25 to SC50 |
| Stud Hole Range | 4mm to 12mm, Depending on the Size Chosen |
| Naming Convention | Standard copper tube terminal convention: first number is conductor cross-section in mm², second is stud hole diameter in mm. Industry convention, not a supplier statement |
| Current Rating | Not Specified by Supplier |
| Barrel Length & Overall Dimensions | Not Specified by Supplier |
| Plating or Surface Finish | Not Specified by Supplier |
| Recommended Crimp Die | Not Specified by Supplier |
| Temperature Rating | Not Specified by Supplier |
| Certification | Not Specified by Supplier |
| Country of Origin | Not Specified by Supplier |
Watch Me
Everything we know about this one is written down: the Specs for the supplier's published figures, and the Q & A for the questions buyers ask before they order.
