500A Marine Bus Bar 48V Power Distribution Block
One tidy join instead of a nest behind the panel.
Every 48V build reaches the same point. The controller, the inverter, the battery bank and a couple of loads all want to meet, and you end up with heavy cable stacked on a battery terminal or joined wherever there was room. It works, until a corrugated road shakes something loose and you are lying in the dirt with a torch trying to find which lug let go.
A bus bar gives all of it one place to land. This one is built on a 6 mm pure copper plate rated for 500A continuous, in a modular box with rubber-gasketed entries to keep dust and water off the connections. Positive and ground blocks both come in the kit.
This is a 48V DC product. BushLine stocks 48V bus bars deliberately — the cheap 12V and 24V blocks are easy to find anywhere and we do not sell them.
What It Solves
- No more stacked lugs on a battery post: three heavy cables on one terminal is how you get a hot joint. Land them on the bar and the battery post carries one clean connection.
- Find the fault in a minute, not an hour: when everything meets in one labelled box, checking a connection means opening a lid instead of tracing cable through a canopy.

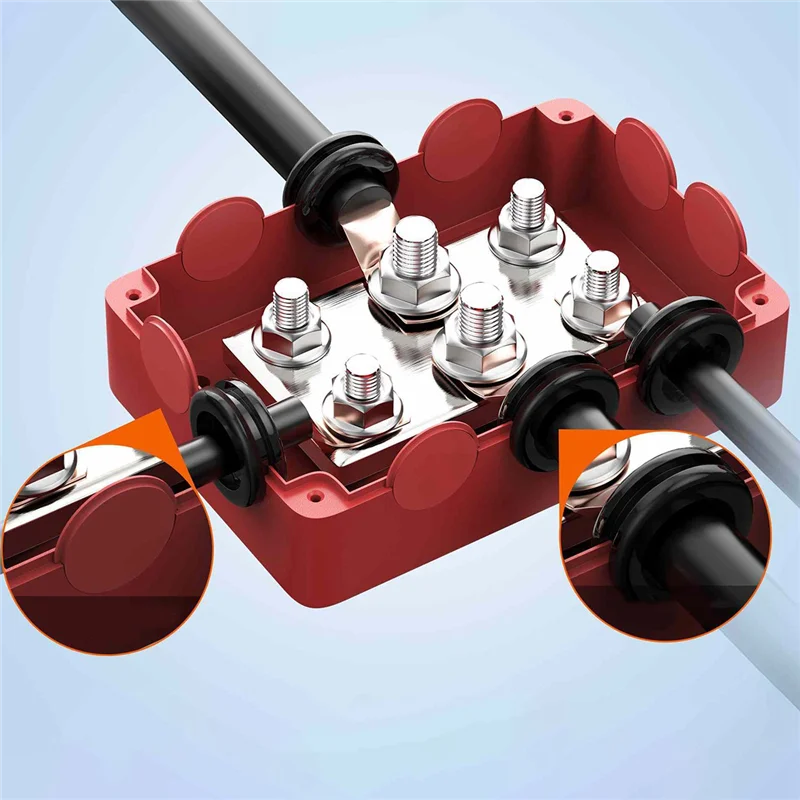

- Keep the weather off the joins: rubber grommets at the entries and exits keep dust and water out, which is what actually kills connections on a marine or touring rig.
- Room to add gear later: six studs means the next inverter or load has somewhere to go without rebuilding the whole run.
- Positive and ground in one kit: both sides of the system get the same treatment rather than a tidy positive and a messy earth.
Key Features
- 500A continuous rating: on a 6 mm thick pure copper plate, which is where the current capacity actually comes from.

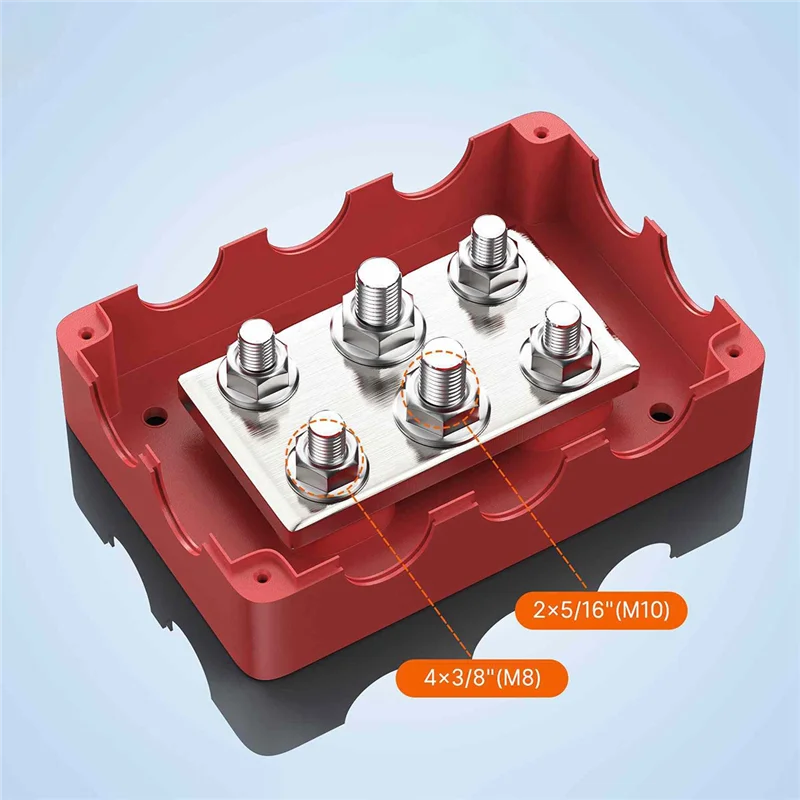

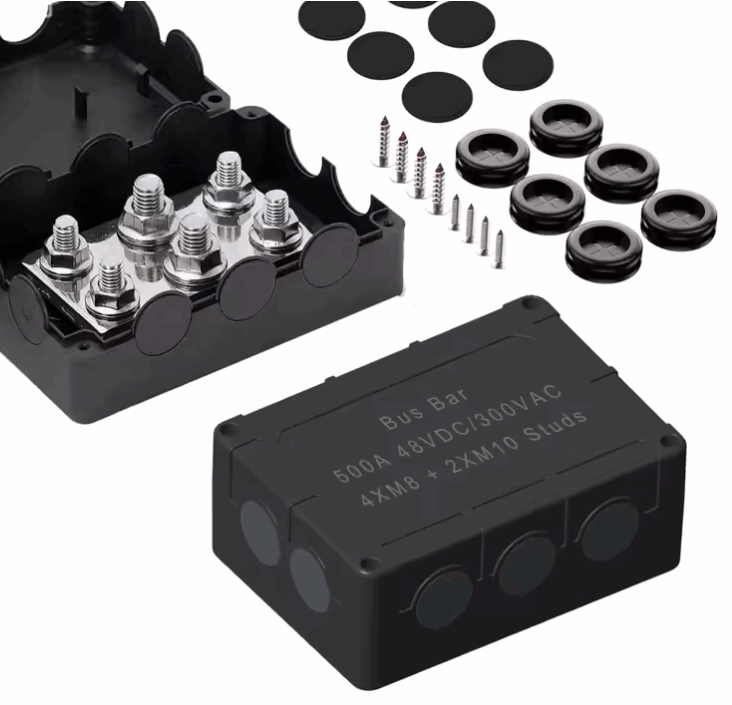

- Six studs, two sizes: four M8 and two M10, so heavy lugs and lighter ones both land properly.
- 48V DC: sized for 48V lithium banks, marine systems and off-grid solar.

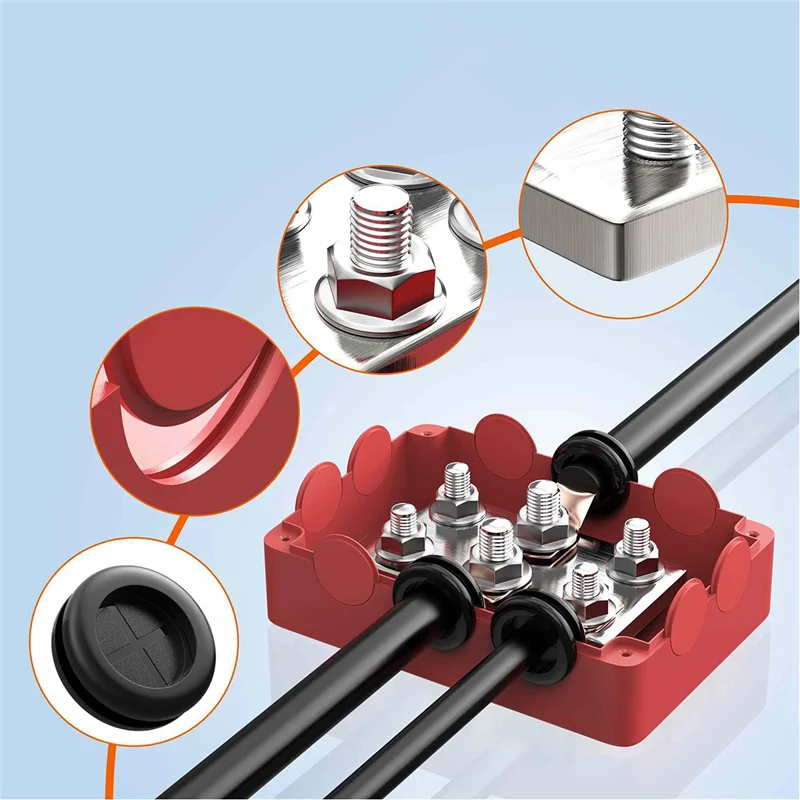

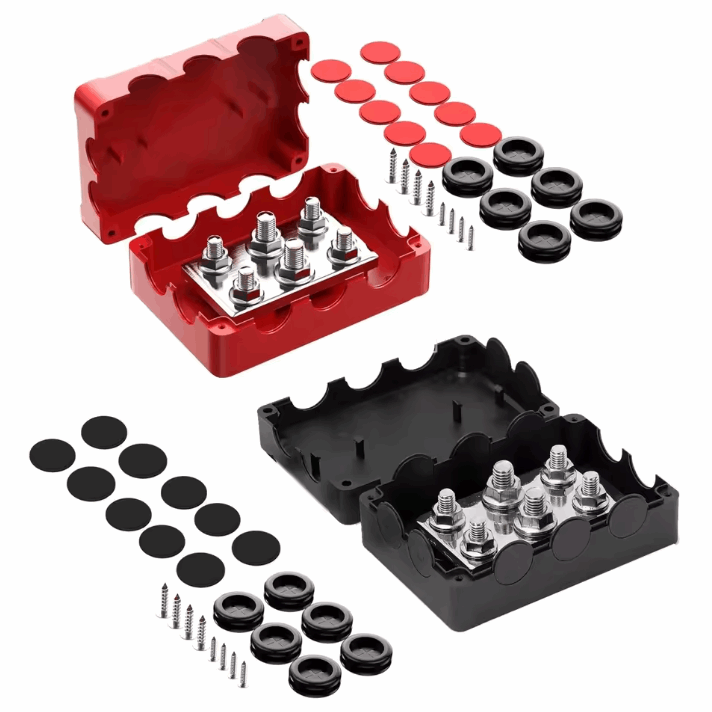

- Sealed modular housing: rubber gaskets at every wire entry and exit.
- Covered terminals: the box stops a dropped spanner shorting across the studs.
- Positive and negative both supplied: one kit does the whole distribution job.
- Screw and ring terminal connection: standard lugs, no proprietary fittings.
Where This Fits
A bus bar is one part of the gear that sits between a wind turbine and your battery bank. Here is the whole picture:
- Wind turbines: vertical axis turbines from 1kW to 10kW — quiet enough to put near the house, and they charge overnight when your solar cannot.
- Hybrid MPPT controllers: you cannot wire a turbine straight to a battery. The controller rectifies the output, manages the charge, and brakes the turbine when the bank is full.
- The rest of the electrical range: breakers, isolators, cable, lugs and Anderson plugs.
Every input and output wants a breaker or isolator on it, so you can safely shut down and isolate the turbine before you touch anything. That protects you, and it stops a surge damaging your new turbine or the rest of your power system. Cable sizing depends on run length, voltage and current — check it against your own run or ask your sparky, and keep the invoice, because our warranty on electrical items asks for proof of professional installation.
Q & A
Can I use this on a 12V or 24V system?
Electrically a bus bar does not care about system voltage below its rating, so it will physically work. But we stock 48V blocks on purpose — the cheap 12V and 24V ones are available anywhere, and this is priced as a 48V part. If you are building 12V, buy accordingly.
What does "48V DC / 300V AC" mean on the voltage row?
That is the supplier's wording and we print it as given. Treat this as a 48V DC product. A 300V AC figure on a DC distribution block is not a rating we would design around, and we have not seen a certificate behind it. If you need a mains-voltage AC rating, this is not the part.
What size cable will the studs take?
Not specified by supplier — it is set by what fits an M8 or M10 ring lug, which is a wide range. Size your cable to your current and run length first, then buy the lug that suits the stud.
Is 500A continuous or peak?
The supplier states 500A continuous DC. As always, the weakest part of a run sets the real limit — usually the cable or a breaker, not the bar.
Does it come with a fuse or breaker?
No. A bus bar distributes, it does not protect. You still need a breaker or isolator on each circuit, and a main battery breaker.
Is it fully waterproof?
No IP rating is specified by supplier. It has rubber gaskets at the wire entries and a closed box, which is good protection from dust and splash. Do not treat it as submersible or mount it where it will sit in water.
Specs
| Product type | High current DC power distribution terminal block. Positive and ground set included |
| Max continuous current | 500A DC |
| System voltage | 48V DC |
| Voltage row as supplied | Supplier states "48V DC / 300V AC". Treat as a 48V DC product — no certificate sighted for the AC figure |
| Conductor | 6 mm thick pure copper plate |

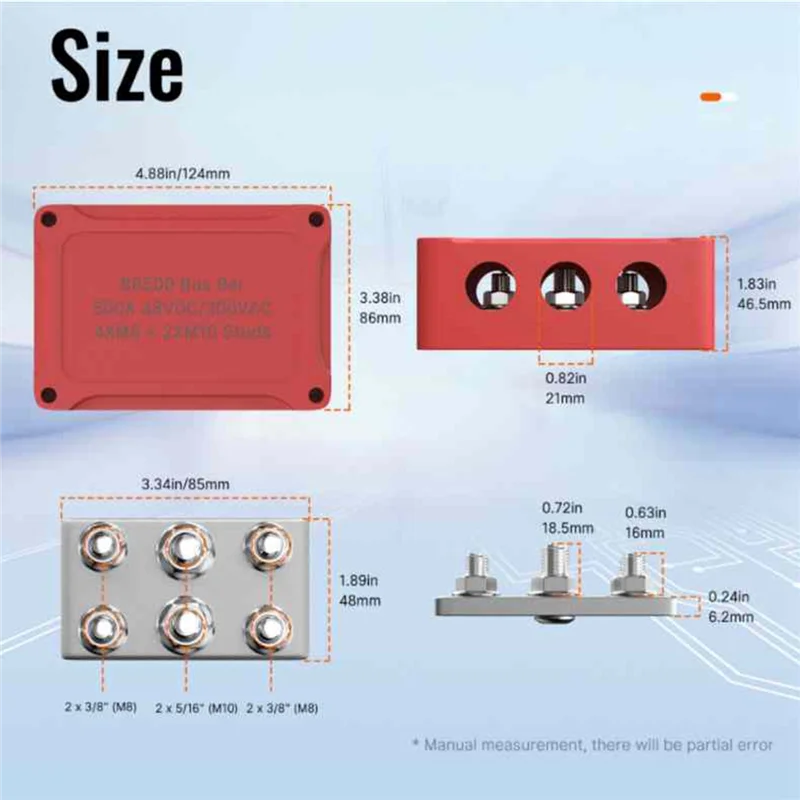

| Terminal studs | 4 x M8 and 2 x M10 |
| Connection type | Screw / ring terminal |

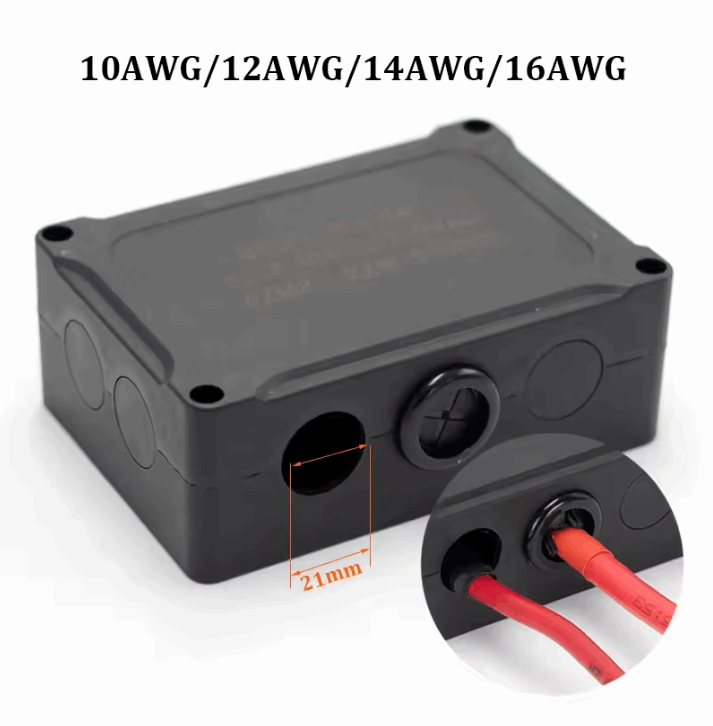

| Cable size compatibility | Not specified by supplier — set by the M8 / M10 lug that fits |

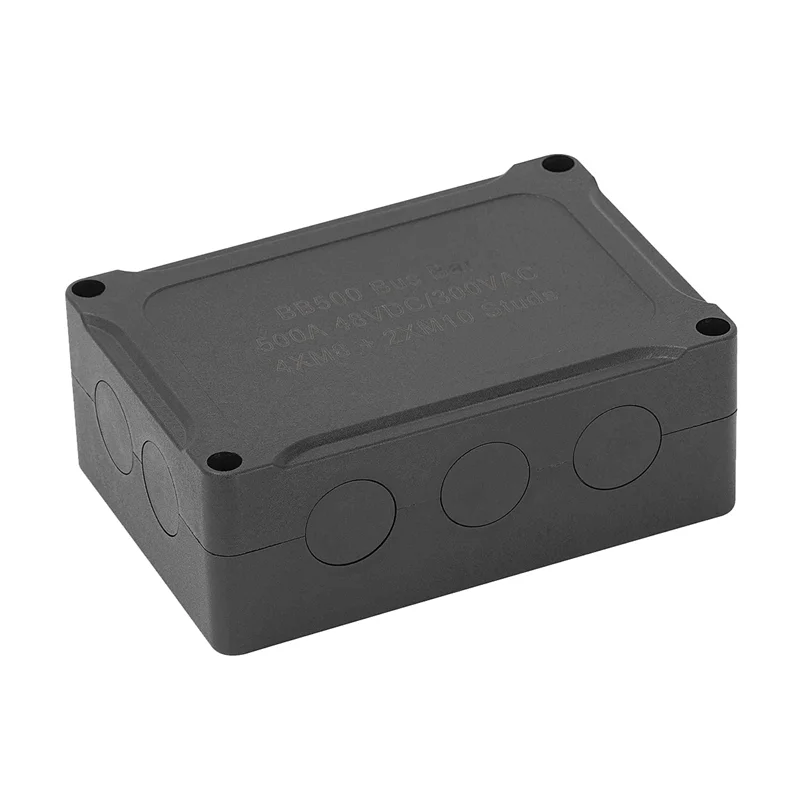

| Housing | Modular box with rubber gaskets at wire entries and exits |
| Ingress rating | Not specified by supplier |

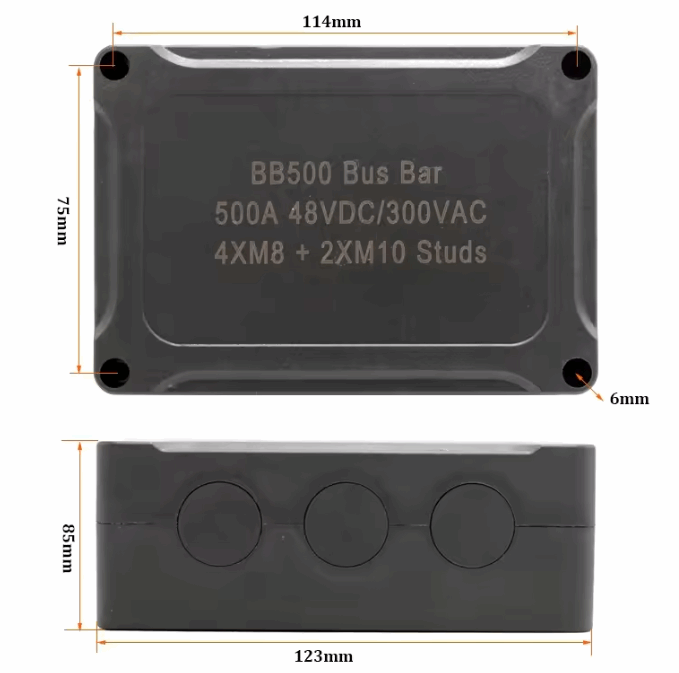

| Dimensions | Not specified by supplier |
| Weight | Not specified by supplier |

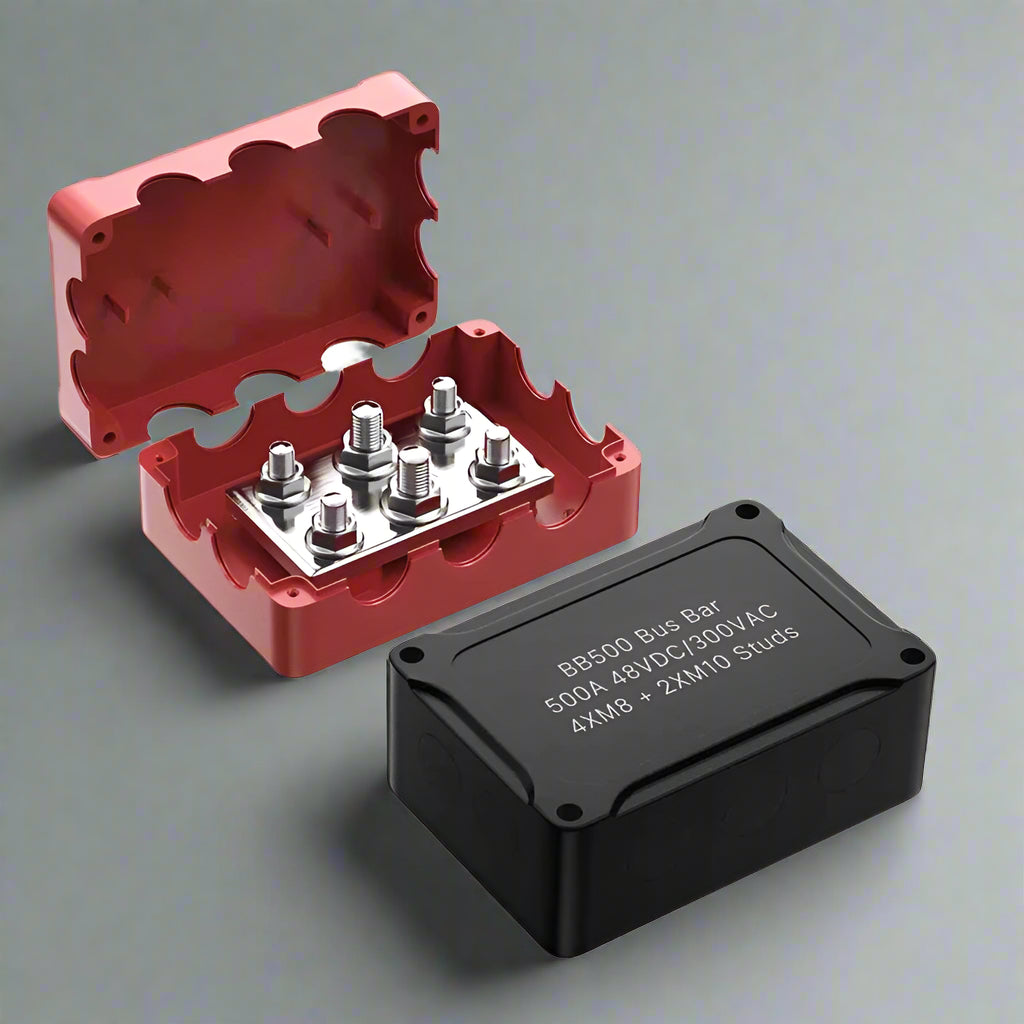

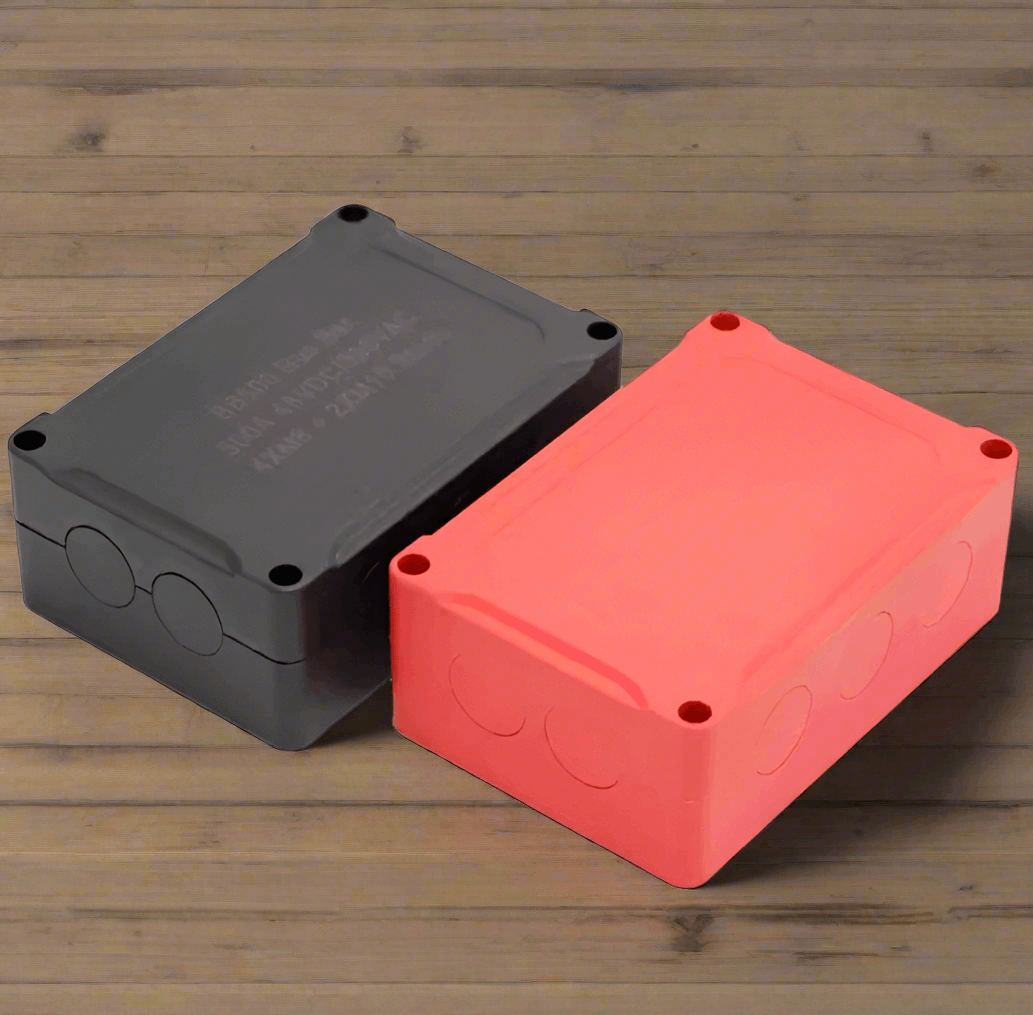

| Supplied as | Positive and negative (ground) blocks |
| Circuit protection | None included — fit your own breakers and isolators |
| Applications | 48V off-grid solar, marine, boat, yacht, RV, UTV, ATV, 4x4 |
