Crimper Cable Cutter Wire Stripper 0.2-6mm²
D1, D2, D3 — a model code, not a colour.
Making up your own cable ends off-grid means three separate jobs on every run: cut the cable square, strip the insulation without nicking the strands, then crimp the terminal on tight enough that it never heats up. Doing that with side cutters and a pair of pliers is how you end up with a joint that reads fine on a multimeter and gets warm under load six months later.

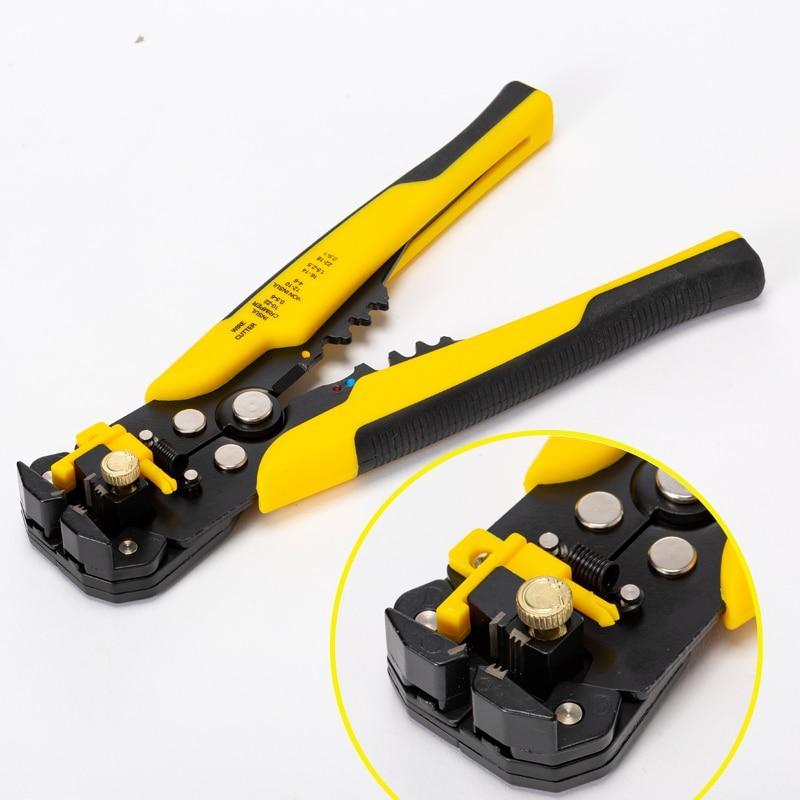

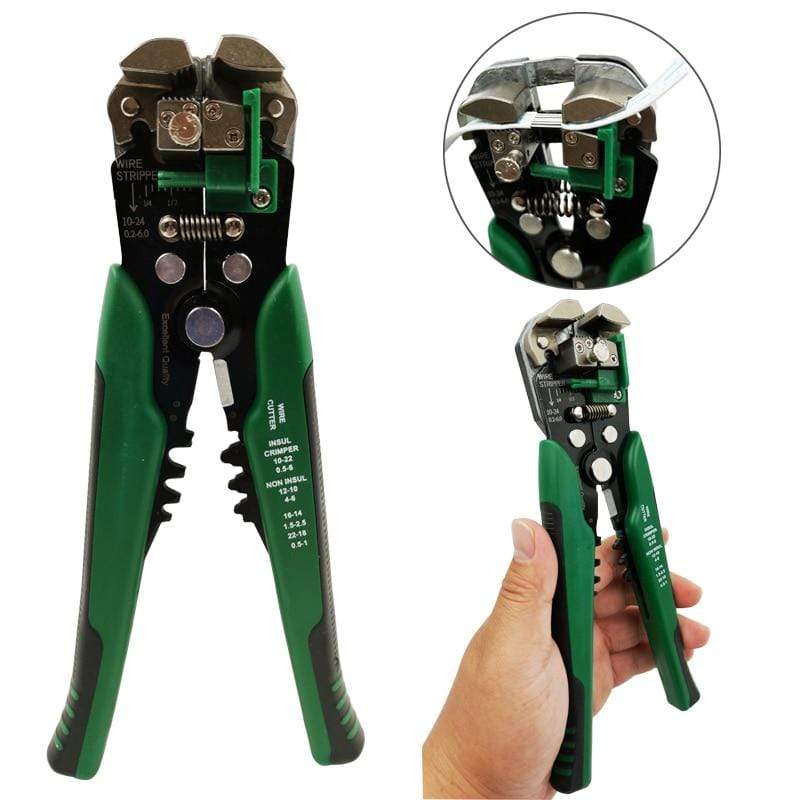

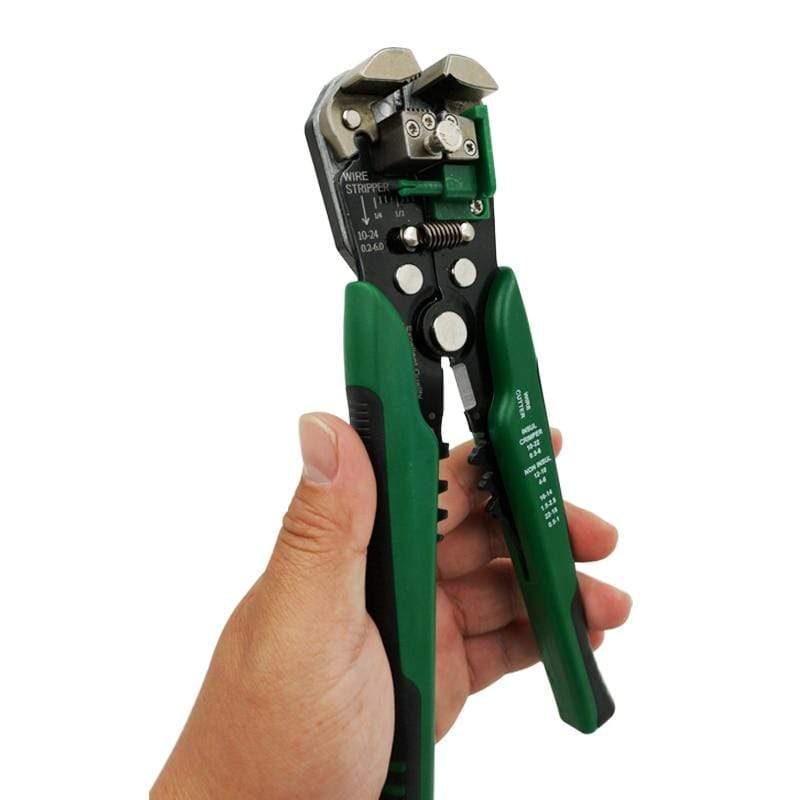

This is a 205mm combination tool that does all three. The cutter head is Cr12MoV at HRC55-60, the plier body is A3 heat-treated steel, the head is zinc alloy and the handle is PP+TPR. There is an adjusting screw on the stripping jaw so you can dial the blade bite up for tough insulation or back it off for thin conductors — turn it clockwise for more bite, counter-clockwise for less.
Be clear on what it is: it is a hand tool for small and mid-size conductors, 0.2-6mm². It is not a hydraulic lug crimper. If you are terminating 16mm² or heavier battery cable onto copper SC lugs, this tool will not reach that size — you want a proper lug crimper for those.
What It Solves
- Van and camper wiring: running 12V lighting, fridge and USB circuits in 1-2.5mm² where every joint has to survive corrugations.
- Farm shed and pump work: re-terminating control and sensor wiring in the shed without dragging the full toolbox out.
- Solar and turbine sensor runs: the thin stuff — anemometer leads, shunt sense wires, temperature probes — that a big crimper mangles.
- Trailer and boat repairs: a broken tail-light lead or bilge pump feed fixed properly at the ramp instead of taped up.
- One tool in the glovebox: cut, strip and crimp in a single 205mm tool when you cannot carry three.

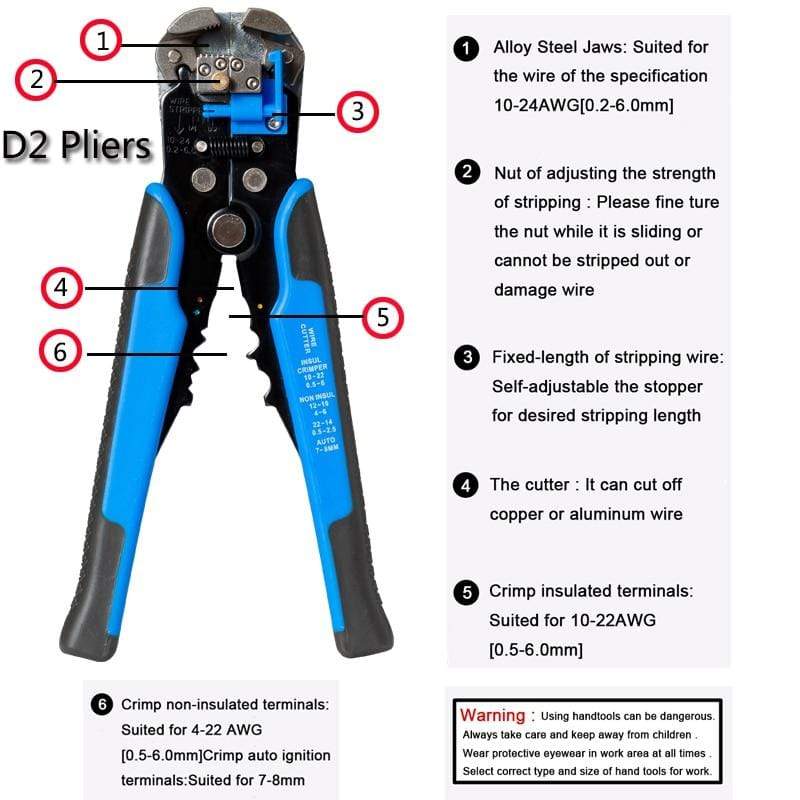

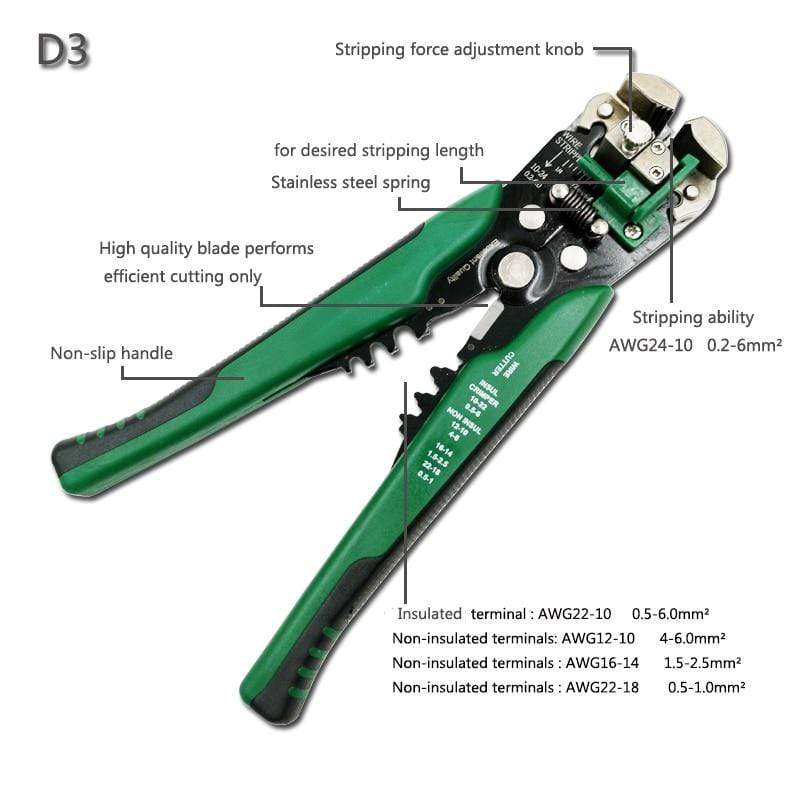

Key Features
- Stripping range: 0.2-6mm² (24-10AWG), supplier-stated.
- Insulated terminal crimping: 0.5-6mm² (22-10AWG), supplier-stated.
- Non-insulated terminal dies: three separate supplier-stated ranges — 4-6mm² (12-10AWG), 1.5-2.5mm² (16-14AWG) and 0.5-1mm² (22-18AWG).

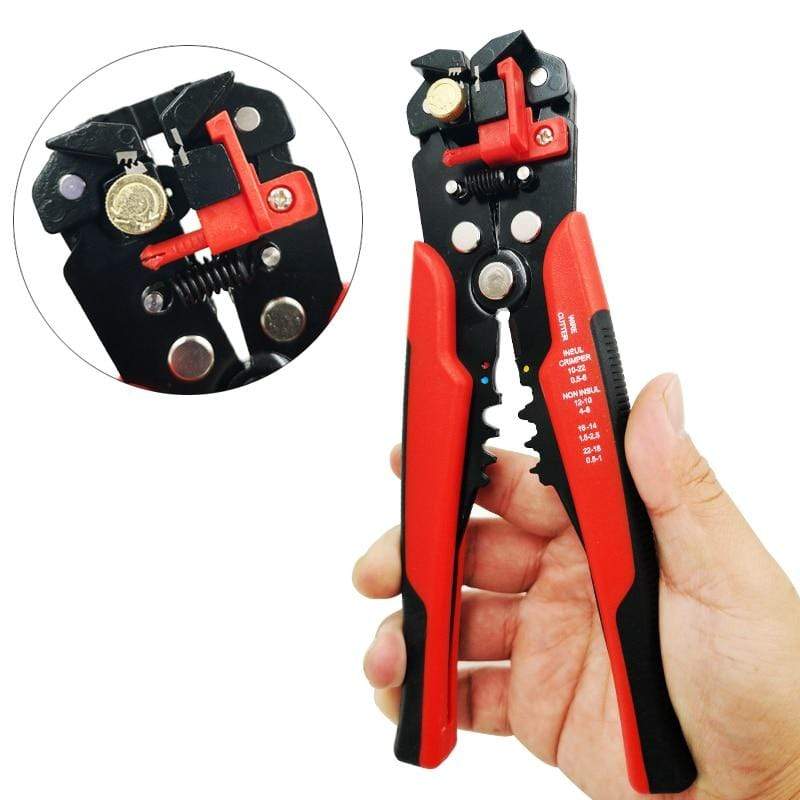

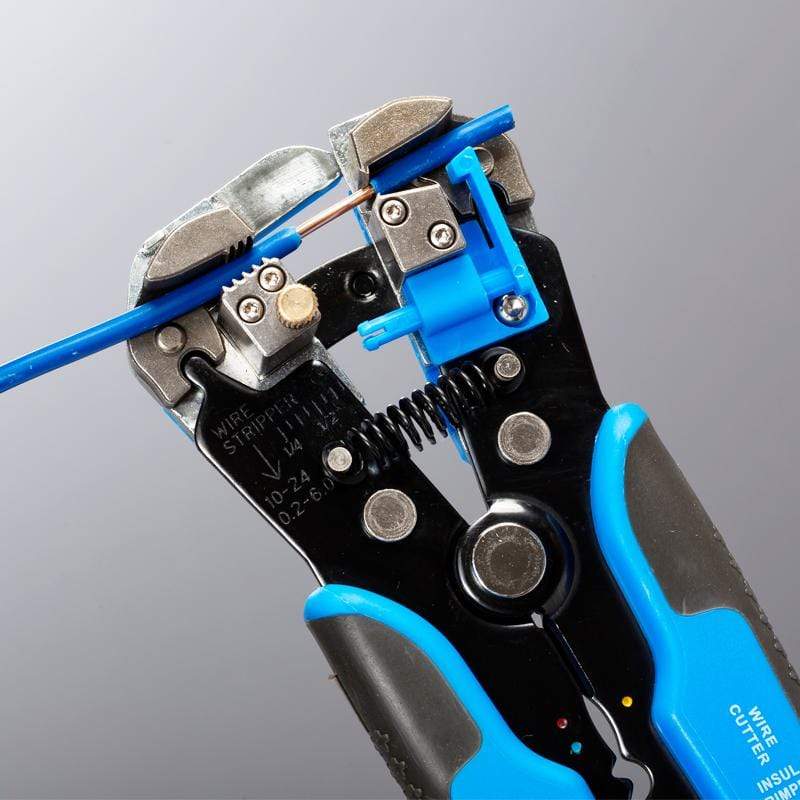

- Adjustable blade tension: a screw sets how hard the stripping blades bite — clockwise for more, counter-clockwise for less.
- Cutter head: Cr12MoV tool steel, hardness HRC55-60, wire-cut finished.
- Plier body: A3 steel, heat treated, with a zinc alloy head.
- Handle: PP with a TPR over-mould, so it is not bare plastic in the palm.
- Overall length: 205mm — fits a tool pouch, not a drawer.

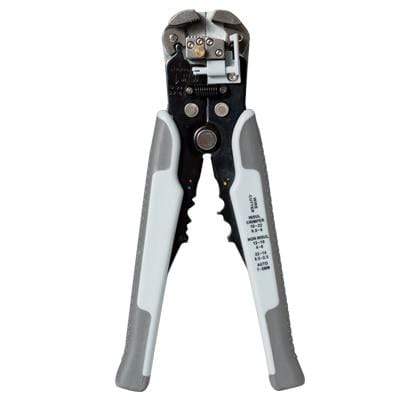

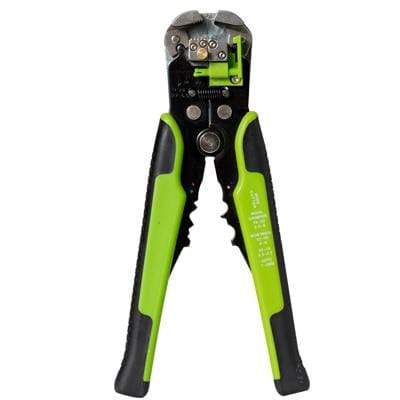

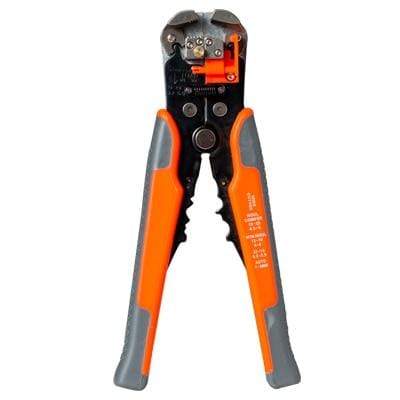

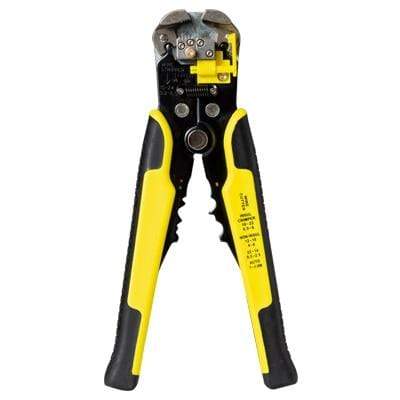

- Nine listed options: the D1, D2 and D3 prefix is the supplier's model code and the colour follows it. The supplier gives one spec sheet for all nine.
Where This Fits
Wiring an off-grid system means making up your own cable ends. This is one of the tools for that job — here's the rest of the picture:
- Wind turbines: vertical axis turbines from 1kW to 10kW — quiet enough to put near the house, and they charge overnight when your solar can't.
- Hybrid MPPT controllers: you can't wire a turbine straight to a battery. The controller rectifies the output, manages the charge, and brakes the turbine when the bank is full.
- The rest of the electrical range: bus bars, breakers, isolators, cable, lugs and Anderson plugs.
Cable sizing depends on your run length, voltage and current, and a bad crimp is the connection that heats up later — check the sizing against your own run or ask your sparky before you make up anything you can't undo.
Q & A
What's the difference between D1, D2 and D3?
The supplier does not say. D1, D2 and D3 are its model codes and the colour name follows the code — "D2 Blue" is model D2 in blue. The one spec block supplied covers all nine options: same 205mm length, same head and handle materials, same stripping and crimping ranges. We have asked for the difference and will put it here when we have it.
Will it crimp 16mm² battery cable onto a lug?
No. The largest supplier-stated crimp is 6mm² (10AWG) on insulated terminals. Heavy battery cable and copper SC lugs need a hydraulic or long-handle lug crimper.
Why are there four different crimping ranges listed?
Because there are separate dies in the jaw. The supplier lists insulated terminals at 0.5-6mm² (22-10AWG), and three non-insulated ranges at 4-6mm² (12-10AWG), 1.5-2.5mm² (16-14AWG) and 0.5-1mm² (22-18AWG). The supplier does not label which nest on the tool corresponds to which range, so match your terminal to the die by trial on an offcut before you commit to a real joint.
It's cutting into the strands when I strip — can I fix that?
Yes. That is what the adjusting screw is for. Turn it counter-clockwise to reduce the blade bite, a little at a time, and test on an offcut. If it is slipping and not stripping at all, go clockwise instead.
Does it come with terminals?
Not specified by supplier. Assume tool only and order terminals separately.
Is it certified to any standard?
No standard is stated by the supplier — no VDE, CE or AS/NZS claim. It is a general-purpose hand tool. If your work needs a certified insulated tool, this is not it.
Specs
| Specification | Detail |
| Overall length | 205mm |
| Stripping range | 0.2-6mm² (24-10AWG) |
| Crimping — insulated terminals | 0.5-6mm² (22-10AWG) |
| Crimping — non-insulated terminals | Three supplier-stated ranges: 4-6mm² (12-10AWG), 1.5-2.5mm² (16-14AWG), 0.5-1mm² (22-18AWG) |
| Cutting capacity | Not specified by supplier |
| Blade tension adjustment | Screw adjustable — clockwise increases bite, counter-clockwise reduces it |
| Cutter head material | Cr12MoV tool steel, wire-cut |
| Cutter head hardness | HRC55-60 |
| Head material | Zinc alloy |
| Plier body | A3 steel, heat treated |
| Handle material | PP + TPR |

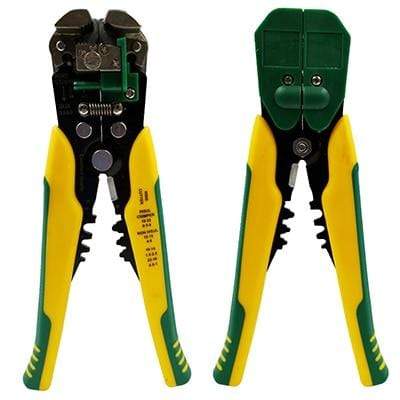

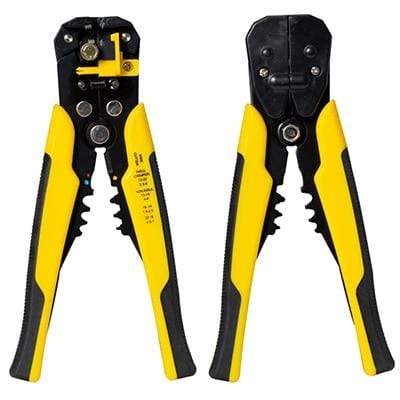

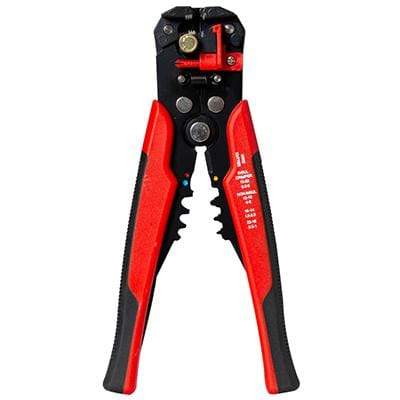

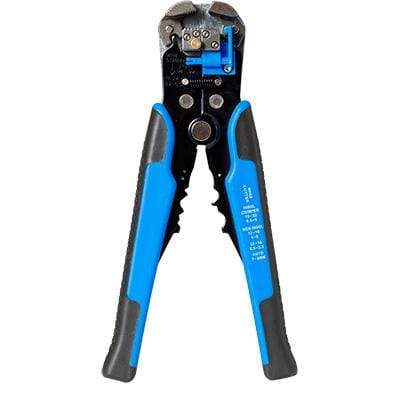

| Model and colour options | Nine: D1 yellow, D1 red, D2 blue, D2 yellow, D2 orange-red, D2 green, D2 grey, D3 dark green, D3 green and yellow |
| Difference between D1, D2 and D3 | Not specified by supplier |
| Insulated / VDE rated | Not specified by supplier — do not treat as a live-work tool |
| Weight | Not specified by supplier |
| Certification | Not specified by supplier |
| Country of origin | Not specified by supplier |
| In the box | Not specified by supplier — assume tool only |
Watch Me
Everything we know about this one is written down: the Specs for the supplier's published figures, and the Q & A for the questions buyers ask before they order.
