Insulated Electrical Screwdriver Set
Insulated is not the same as certified.
You are kneeling in front of an open battery box with a torch in your teeth, backing off a terminal screw on a live bus bar. The bank behind that screw will happily push a few thousand amps into a dead short. A bare shaft that slips and bridges two terminals does not give you a shock at 48V — it gives you a flash, a welded screwdriver and a set of burns down your forearm. That is a fault current problem, not a voltage problem, and it is why every sparky who works on batteries owns insulated drivers.
This is a set of insulated-shaft screwdrivers for exactly that work: dressing terminals, tightening bus bar bolts, backing off breaker screws and doing up controller terminal blocks without leaving bare steel anywhere near the tip. The shaft is sleeved right down to the last few millimetres, the tip is magnetised so the screw stays put when you are working one-handed, and the handle is moulded for grip rather than speed. You choose either a 4-piece pack in one head type, or an 8-piece set covering both, with or without a roll bag.
Here is the honest limit, and read it before you buy. The supplier states 1000V insulation. There is no VDE certificate, no IEC 60900 or EN 60900 test reference and no issuing body cited anywhere on this product. Insulated hand tools that are legally fit for live work carry a certificate you can look up by number. This set does not come with one that we have sighted. Treat it as a sensible short-circuit guard for isolated DC work in a battery box, not as certified live-line equipment. If you are working on live conductors — mains, or anything you cannot isolate — buy a tool with a certificate you can check, and check it.
What It Solves
- Battery bank terminals: tightening lugs on a 48V lithium bank where a slipped bare shaft would bridge two posts and arc.
- Controller and inverter blocks: doing up small terminal screws inside an MPPT controller or inverter without shorting to the case.
- Farm shed switchboards: pulling covers and adjusting isolators in a pump shed board, where you cannot always see what is behind the screw.
- Van and boat 12V work: fuse blocks and bus bars under a bunk, in the dark, at an angle you would not choose.
- Roadside repairs: a compact set you can throw in the door pocket for a breaker or fuse holder that has worked loose.
Key Features
- Sleeved shafts: insulation runs down the shaft to near the tip, so there is very little exposed steel to bridge across a bus bar.
- Supplier-stated 1000V: the supplier states the insulation is rated to 1000V. No certificate number or issuing body has been supplied — see the Q & A before you use these live.
- Magnetic tips: the screw stays on the driver when you are reaching into a box one-handed with a torch in the other.

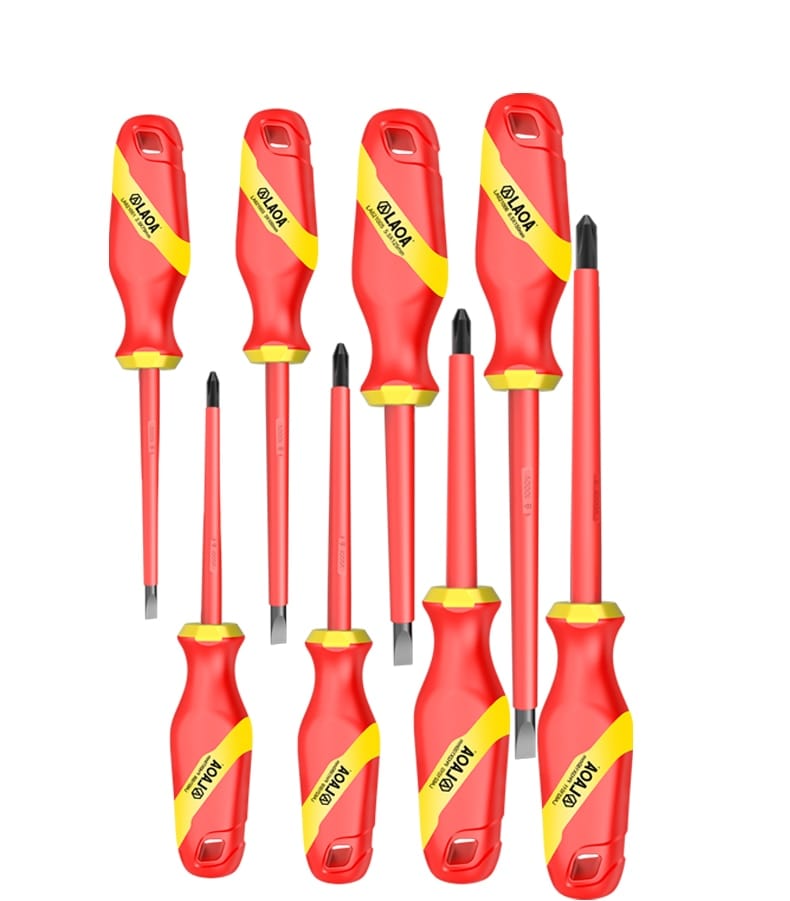

- Two head types: slotted and Phillips. The 8-piece sets cover both; the 4-piece packs are one head type only.
- Four pack choices: 4 pieces slotted, 4 pieces Phillips, 8 pieces without a bag, or 8 pieces with a roll bag.

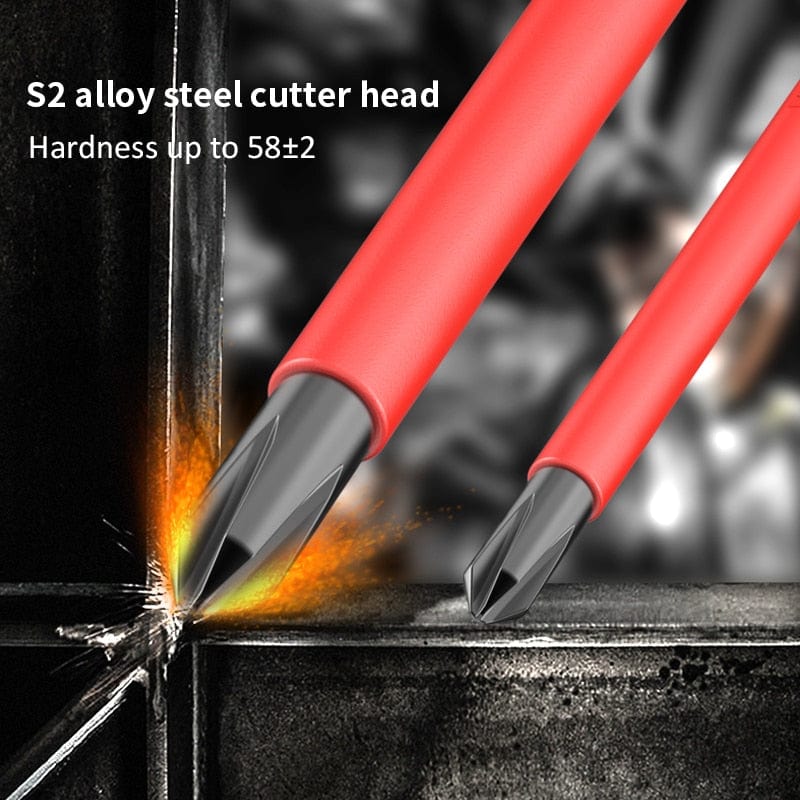

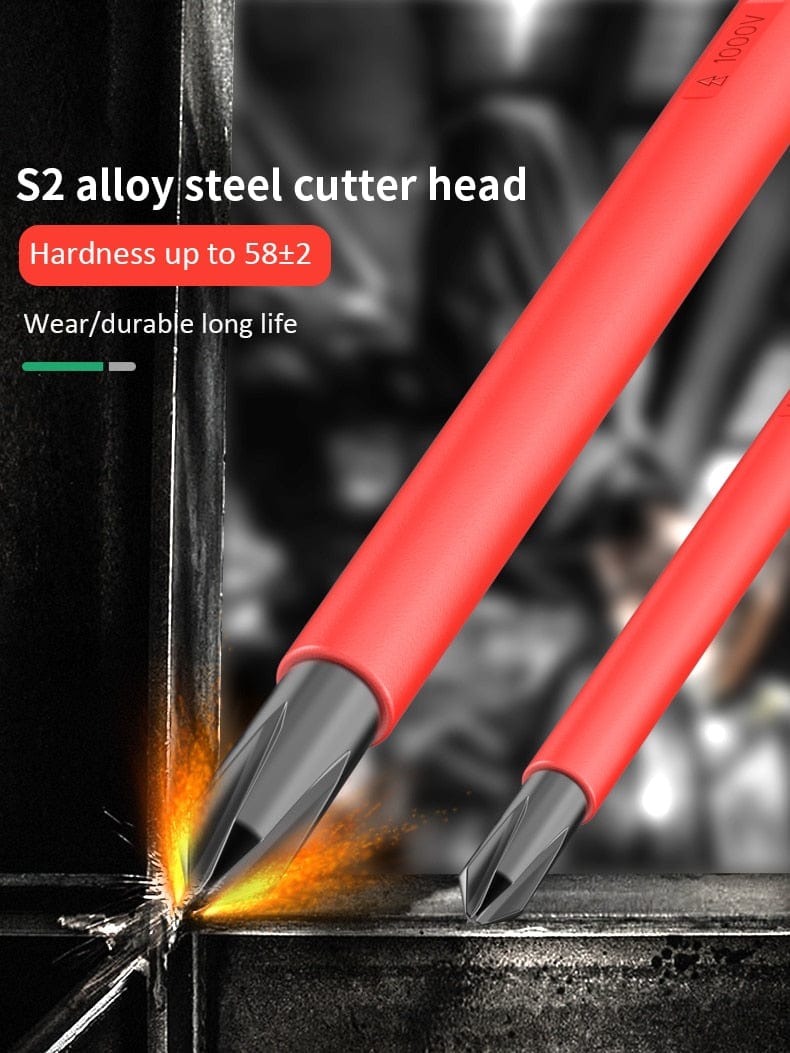

- Alloy steel blades: the supplier states hardened alloy steel. The exact grade is not stated.

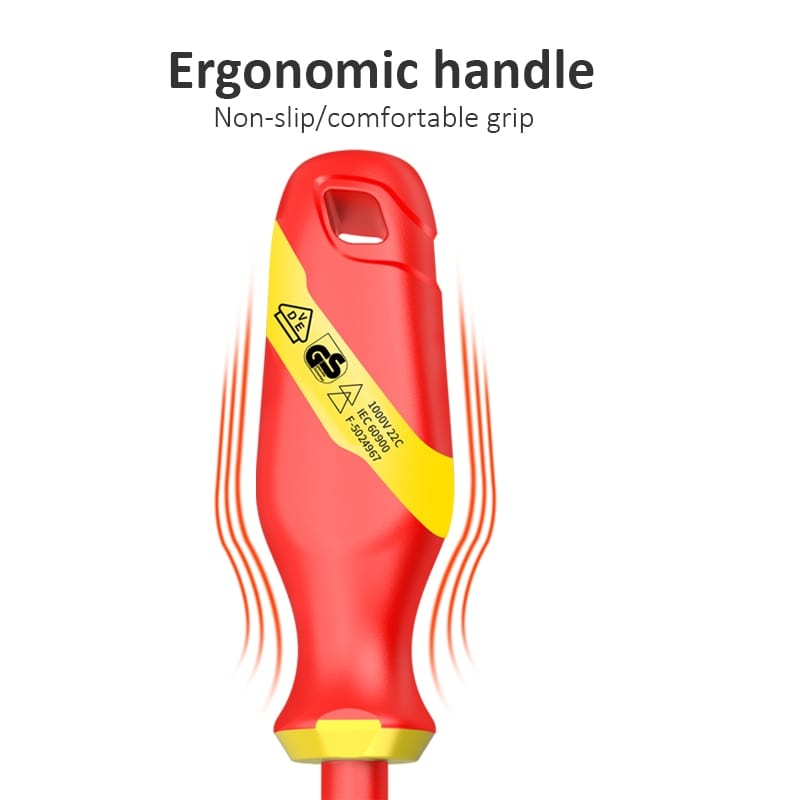

- Textured handles: moulded grip so you can hold torque with oily or wet hands.

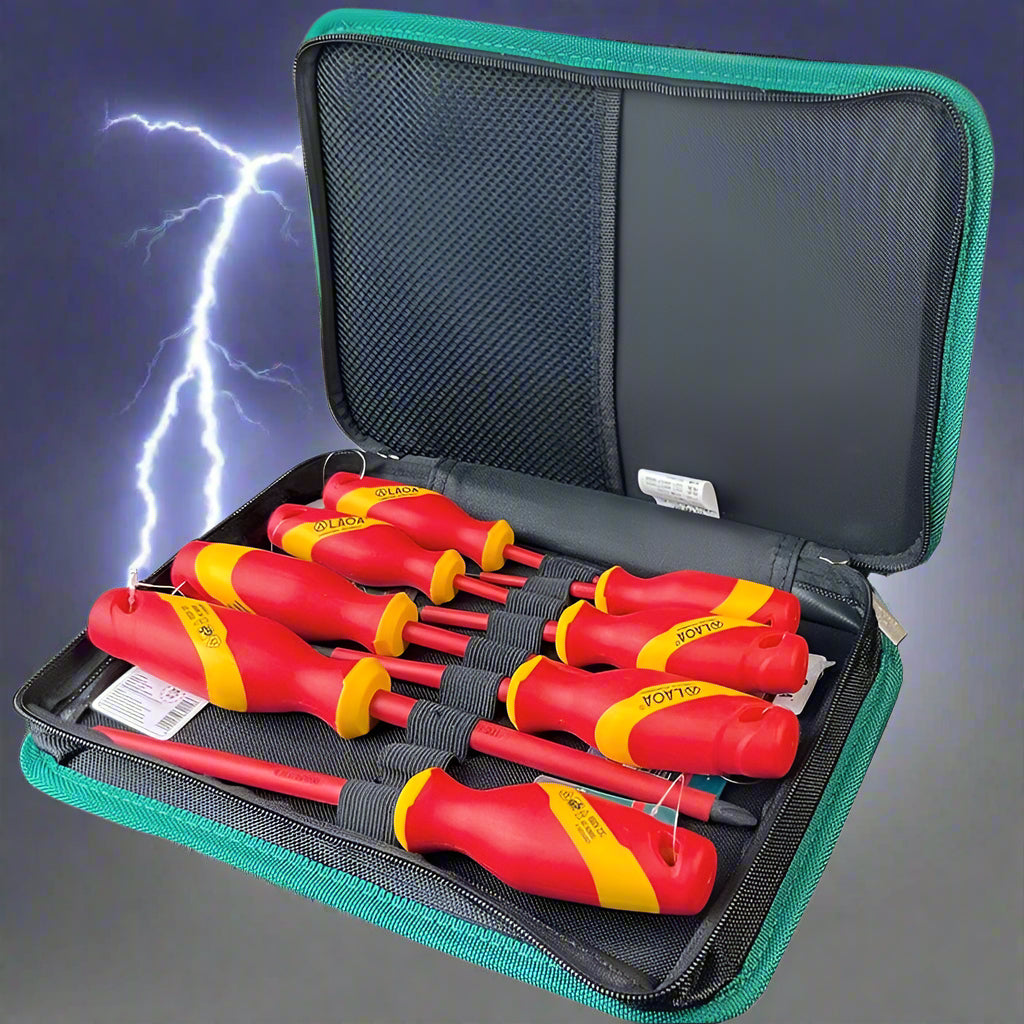

- Roll bag option: the 8-piece with bag keeps them together in a toolbox instead of loose in the bottom of it.
Where This Fits
Wiring an off-grid system means making up your own cable ends. This is one of the tools for that job — here's the rest of the picture:
- Wind turbines: vertical axis turbines from 1kW to 10kW — quiet enough to put near the house, and they charge overnight when your solar can't.
- Hybrid MPPT controllers: you can't wire a turbine straight to a battery. The controller rectifies the output, manages the charge, and brakes the turbine when the bank is full.
- The rest of the electrical range: bus bars, breakers, isolators, cable, lugs and Anderson plugs.
Cable sizing depends on your run length, voltage and current, and a bad crimp is the connection that heats up later — check the sizing against your own run or ask your sparky before you make up anything you can't undo.
Q & A
Are these VDE certified to 1000V?
No certificate has been sighted, so we are not going to say they are. The supplier states 1000V insulation, but there is no VDE mark reference, no IEC 60900 or EN 60900 test standard cited and no issuing body named. Insulated hand tools that are approved for live work carry a certificate with a number you can look up. If you are working on live conductors, buy a tool with a certificate you can check. For isolated DC work in a battery box — where the risk you are managing is a slipped shaft shorting two terminals — these do that job.
Why bother with insulated drivers on a 48V system? That's not enough to shock me.
Correct, and that is not the risk. The risk is available fault current. A lithium bank or a bank of lead-acid cells can deliver thousands of amps into a short, and it does not care that the voltage is low. Bridge two terminals with a bare shaft and you get an arc flash, molten metal and a welded tool. Sleeving the shaft removes the easiest way for that to happen.
The title says "set" — do the 4-piece options include both head types?

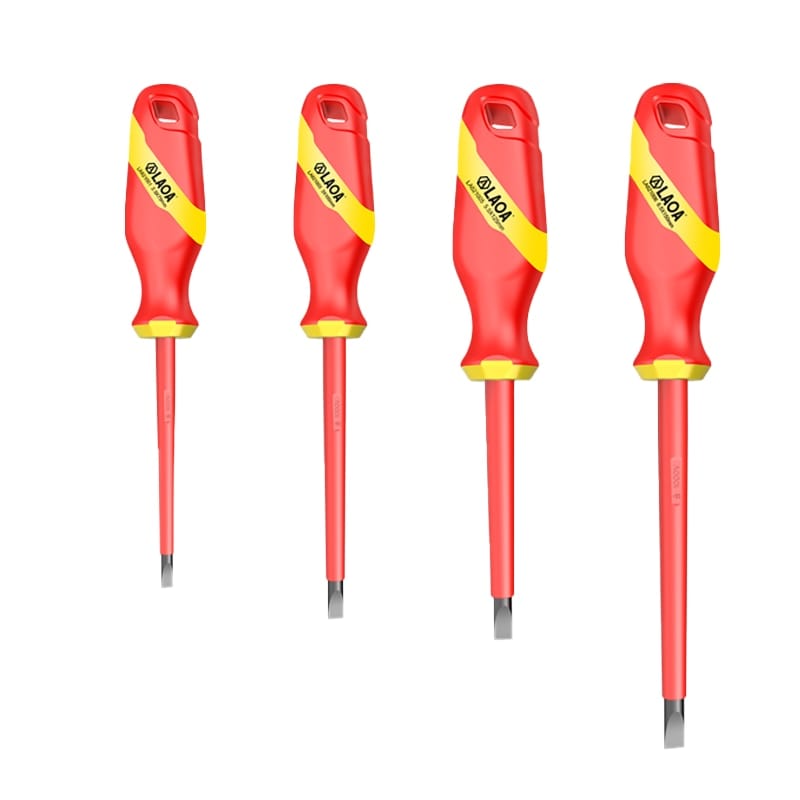

No. The 4-piece options are single head type: one is 4 pieces slotted, the other is 4 pieces Phillips. If you want both types, choose one of the 8-piece options. The naming here comes from the supplier and it is not as clear as it should be.
What sizes are the tips?
Not specified by supplier. We have no blade widths, no Phillips numbers and no shaft lengths in the supplier data.
Is the bag included?
Only on the "8Pcs and bag" option. The "8Pcs no bag" option is the same eight drivers loose. The two 4-piece options do not include a bag.
Can I use these on mains work in Australia?
Mains work is licensed work — that is a job for a licensed electrician regardless of what tools you own. And for live mains, a certificated insulated tool is what you want, not this one. Ask your sparky.
Specs
| Specification | Detail |
| Tool type | Insulated-shaft electrical screwdrivers |
| Pack options | 4 pieces slotted; 4 pieces Phillips; 8 pieces without bag; 8 pieces with bag |
| Head types | Slotted and Phillips. 4-piece packs are one head type only; 8-piece sets cover both |
| Insulation rating | Supplier states 1000V insulation; no VDE or IEC 60900 certificate sighted |
| Certification | No certificate number or issuing body supplied. Not verified as certified live-line equipment |
| Blade sizes | Not specified by supplier |
| Shaft length | Not specified by supplier |
| Overall length | Not specified by supplier |
| Blade material | Supplier states hardened alloy steel; grade not specified |
| Handle material | Not specified by supplier |
| Magnetic tip | Supplier states magnetic tips |
| Storage bag | Included on the 8-piece with bag option only |
| Country of origin | Not specified by supplier |
| Weight | Not specified by supplier |
| Delivery | Free delivery to Australia and New Zealand, no minimum spend. 10 to 14 days from order date, allow up to 3 weeks |
