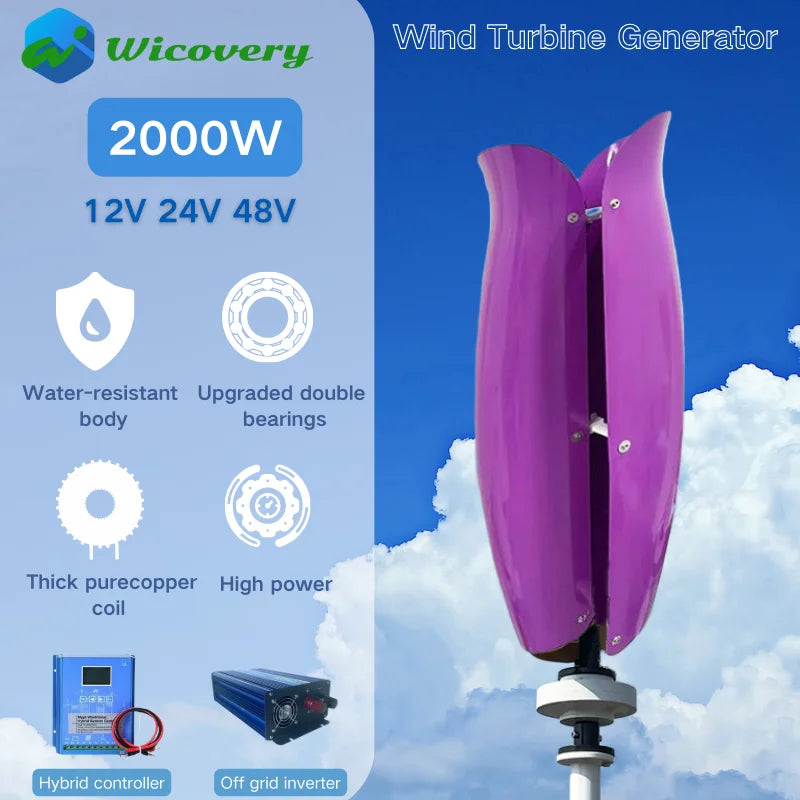

ST-2000 2kW Vertical Tulip Wind Turbine | Off-Grid Power Generator
Turbine only? You'll still need a controller.
Worth saying before anything else, because it's the mistake we see. You cannot wire a wind turbine straight to a battery. The raw output is wild AC that swings with the wind, and without a controller in between it will overcharge and damage your bank, or the turbine will overspeed and damage itself when the batteries are full.
So the turbine only option at $1,299 is for people who already have a wind or hybrid controller sized for 2kW. Everyone else wants with hybrid control at $1,549 — that's the turbine plus a controller that runs wind and solar together and includes the dump load.
With that out of the way: the ST-2000 is the mid-size tulip. 15 kg, 600 mm wheel, two curved 1.1 metre blades on a vertical axis with a permanent magnet maglev generator. It starts turning at 1.2 m/s, charges from 3.5 m/s, and peaks at 2200W. Available in white, violet, orange or yellow.
Straight up about the numbers: rated 2000W needs 12 m/s, about 43 km/h. Below that you're getting a share of it — real charging, day and night, in the weather that stops solar, but not 2kW around the clock. It assists your panels, it doesn't replace them.
Problem Solving / Benefits
- Charges overnight: solar clocks off at sunset, wind doesn't. That's the difference between waking to a full bank or reaching for the generator.
- Quiet near the house: low tip speed means no propeller roar, so it can go by the shed, the van or the boat without starting an argument with the neighbours.
- Keeps the genny off: every hour the diesel isn't running is fuel you haven't hauled and a service you haven't done.
- Two people and a pole: 15 kg on a 600 mm wheel, mounting from 2 metres. No crane, no mast, no concrete pad.
- Pick a colour that suits: white, violet, orange or yellow — useful if it's going somewhere visible, or if you want it seen.
Key Features
- Rated 2000W: peaking at 2200W at around 12.5 m/s per the supplier's power curve.
- 12V, 24V and 48V: match your existing bank, controller and inverter.
- Starts at 1.2 m/s: cut-in for useful charging is 3.5 m/s (12.6 km/h), rated output at 12 m/s (43.2 km/h).
- Two curved blades: 1.1 metres long on a 600 mm wheel. Vertical axis, takes wind from any direction, no tail vane.
- Maglev generator: 3-phase permanent magnet synchronous, magnetically levitated to cut torque so it keeps turning in lighter wind.
- 15 kg: mounting between 2 and 10 metres.
- Survives 36 m/s: roughly 130 km/h. More than the ST-1200W, less than the ST-3000 and ST-10kW at 162 km/h.
- Works −25°C to +45°C: humidity below 90%. Generator protection IP54.
- Electromagnetic braking: handles both overspeed and overload, with a load dump unit.
- Four colours: white, violet, orange and yellow. Approximately 20 year design life.
Q & A
Do I really need the controller?
Yes, unless you already own one. A turbine cannot be connected directly to a battery — the output is unregulated AC that varies with wind speed. The controller rectifies it to DC, manages the charge, and brakes the turbine when the bank is full. Buying "turbine only" without a controller leaves you with a machine you can't safely connect to anything.
Which controller comes with it, and do I have to choose a size?
No choosing required — it's matched to the turbine. Pick "with hybrid control" and you get a controller rated 2000W wind and 2000W solar, sized to this turbine on both sides. You don't need to work anything out.
It's the Standard hybrid controller: a blue finned aluminium case, single MPPT tracker handling wind and solar, passively cooled with no fans, mono LCD, and the external dump load resistor supplied with it.
The Controller Supplied
- Terminals: D+ B+ B− S+ S− U V W L+ L− D− — wind on U/V/W, solar on S+/S−, dump load on D+/D−. Give this to your sparky.
- Protections: reversed solar charging, reverse battery polarity, battery open circuit, over-voltage, over-current and over-load with automatic braking.
- Mount it indoors or in a sealed enclosure — it has no water rating. The turbine lives outside, the controller doesn't.
- Lightning protection isn't included, and we don't supply it — if you're somewhere lightning-prone, have your electrician fit lightning protection as part of the install. It's the last line of defence for the whole system, not just this controller.
Need a different wind-to-solar ratio? If your panel array is much bigger or smaller than the turbine, our standalone MPPT hybrid controllers come in thirteen mixed combinations.
Can I use my existing solar controller?
Not for the turbine. Solar controllers expect steady DC from panels, not variable AC from a generator, and they have no dump load or braking. You need a wind or hybrid controller. A hybrid one runs both on the one unit, which is what the "with hybrid control" option gives you.
Can I use this in the tropics or cyclone country?
It survives 36 m/s, roughly 130 km/h, and works to +45°C. That's better than the ST-1200W but short of the ST-3000 and ST-10kW at 45 m/s (162 km/h) and +80°C. If you're in a cyclone region, buy up the range.
Is it noisy?
No. Vertical axis turbines run at low tip speed and don't produce the mechanical roar horizontal turbines are known for. Fine near houses and in built-up areas.
Can I run it with solar panels?
Yes, and you should. Solar carries summer and daylight, wind carries winter and overnight. Neither covers the year on its own.
Will one run my house?
No. It's the same question as asking whether one solar panel will run a house. For most people this is battery charging, lighting, pumps, a shed or a van. Grouped turbines produce more than the sum of their parts — the bouquet effect — so plan for several if you're powering a property.
How long will it last?
Design life is around 20 years with proper maintenance. There's very little to go wrong.
Do I need an electrician?
Yes. All wind turbines and charge controllers must be installed by a qualified specialist. Damage from DIY installation or improper wiring isn't covered — see our Return Policy.
Specs
| Model | ST-2000 |
| Turbine type | Tulip (Flower) vertical axis |
| Rated power | 2000W (2kW) |
| Maximum power | 2200W |
| Rated voltage | 12V, 24V or 48V |
| Controller supplied | Standard hybrid MPPT, matched to the turbine — 2000W wind / 2000W solar, with external dump load resistor. Only on the "with hybrid control" options |
| Start-up wind speed | 1.2 m/s (4.3 km/h) |
| Cut-in wind speed | 3.5 m/s (12.6 km/h) |
| Rated wind speed | 12 m/s (43.2 km/h) |
| Survival wind speed | 36 m/s (approx. 130 km/h) |
| Blade length | 1.1 metres |
| Wind wheel diameter | Approx. 600 mm |
| Number of blades | 2 |
| Blade material | ABS plastic, fibre reinforced |
| Weight | 15 kg |
| Generator type | 3-phase permanent magnet synchronous maglev |
| Generator protection grade | IP54 |
| Control system | Electromagnetic |
| Overspeed protection | Electromagnetic brake |
| Overload protection | Electromagnetic brake and load dump unit |
| Working temperature | −25°C to +45°C |
| Working humidity | Below 90% |
| Mount height | 2 to 10 metres. Mast or pole not included |
| Colours | White, violet, orange, yellow |
| Design life | Approx. 20 years |
Turbine Spinning But Showing 0W?
It is almost never a faulty turbine or controller. Read the 0W troubleshooting & correct installation guide before you assume something is broken.
Typical Off-Grid Wiring Layout
What Else You'll Need
A turbine on a pole is only half a system. This is the gear that goes between it and your batteries, and why it matters.
- 3-pin Anderson plug: wire one in between the turbine and the controller and you can unplug the whole turbine — drop it for maintenance, swap it out, or take it off the van before you travel. Five minutes' work and you'll thank yourself later.
- Bus bars: where everything lands before it reaches the battery. Properly rated 48V bus bars are genuinely hard to find — most of what's sold online is light-duty gear. There's also a 500A marine version.
- Breakers and isolators: one on every input and output, so you can safely shut down and isolate the turbine before you touch anything. That protects you, and it stops a surge damaging your new turbine or the rest of your power system. Also a DIN-rail mini breaker and a 100A–300A rotary isolator.
- Cable and lugs: flexible copper cable, shielded 2 and 3 core, and a lug crimper if you're making up your own runs.
Straight up on cable sizing: it depends on your run length, your system voltage and your current, and every setup is a bit different. What we stock covers 48V systems and the shorter runs on smaller turbines well. If you're building 12V or 24V, check the sizing against your own run and talk to your sparky — we'd rather you fitted the right cable than the one we happen to have on the shelf.
