Portable Wireless Fish Finder 120m Range

Casting blind wastes a whole morning.

You pull up at a spot you have not fished before. Bank, kayak, or a hire tinny with nothing wired into it. The surface tells you nothing — not how deep it is, not whether the bottom drops away, not whether there is anything sitting down there at all. So you cast, and you keep casting, and two hours later you still do not know whether the hole was ever worth a bait.

That is the whole cost of it: a wasted session, a spot you write off that might have been fine twenty metres left, and in a kayak the occasional bump over a sandbar you never saw coming.

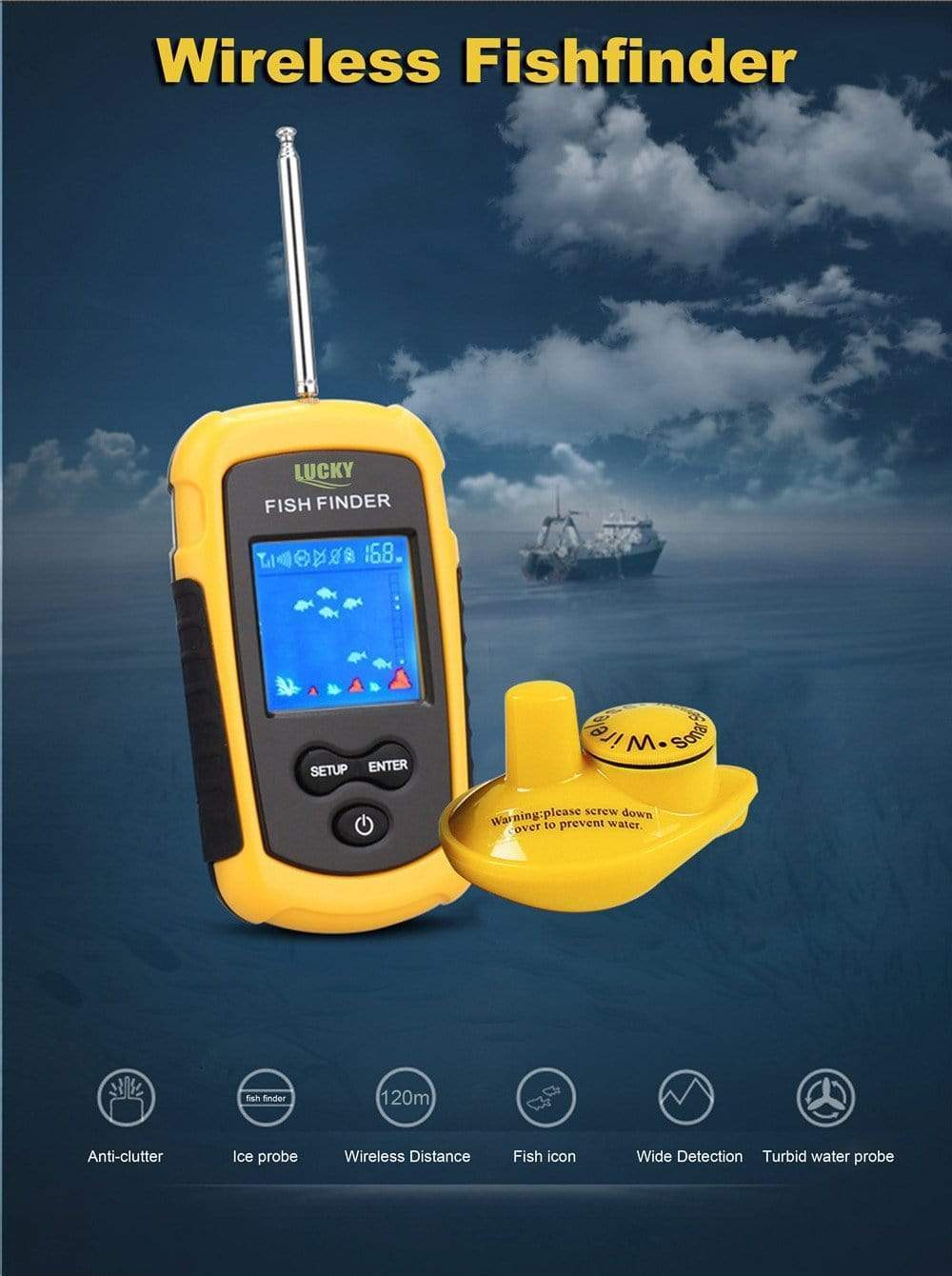

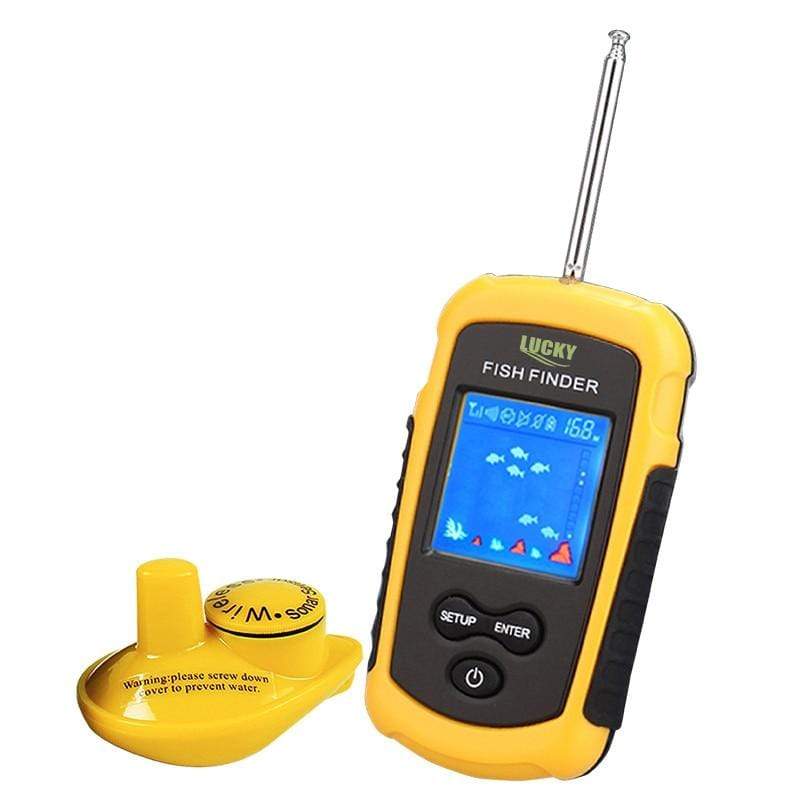

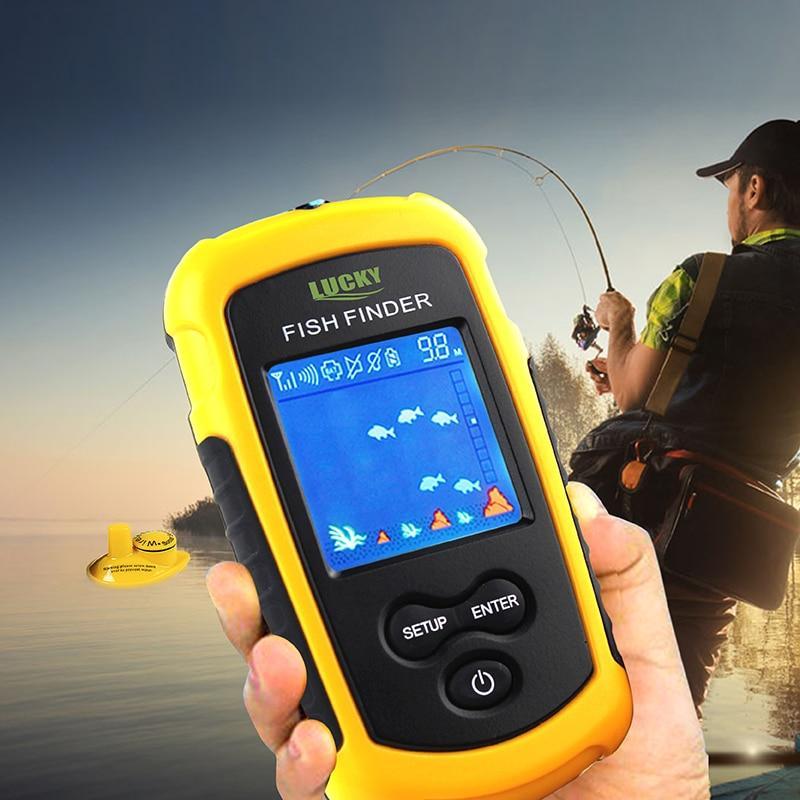

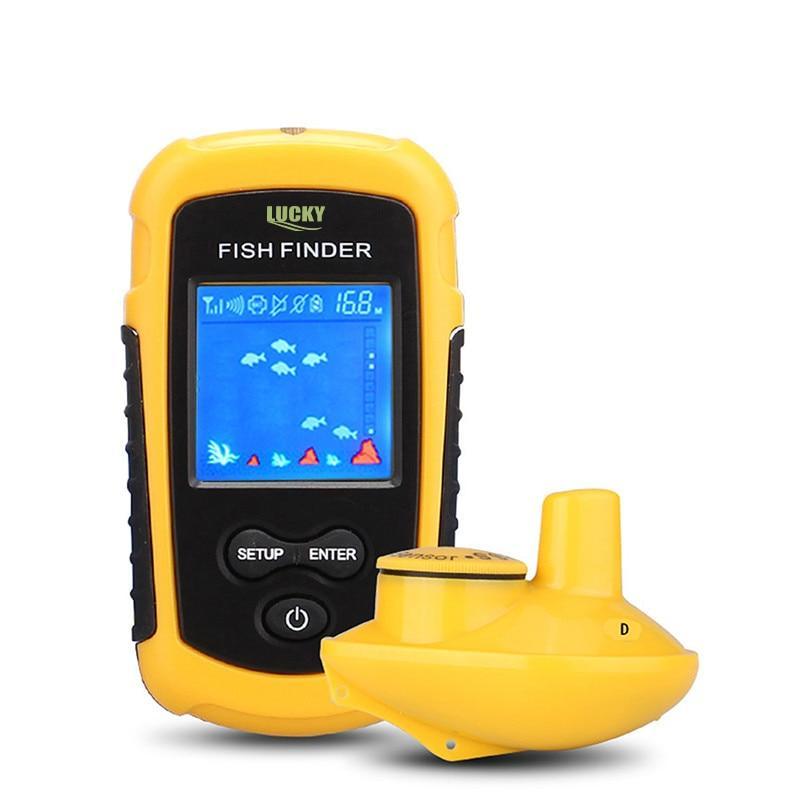

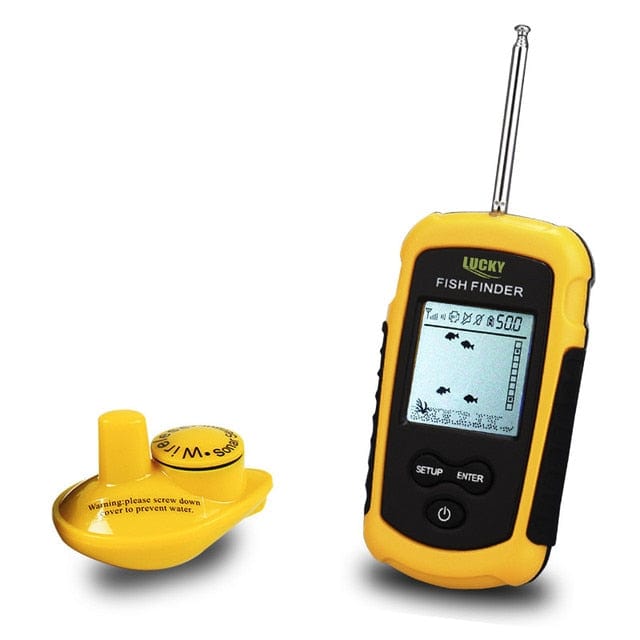

This is a LUCKY handheld sonar. A sealed sensor ties to your line through a moulded hole in its tail, you cast it out or hang it over the side, and it sends a reading back to the handheld screen in your other hand: the depth under the sensor, the shape of the bottom, and a mark for anything solid sitting between the two.

It shows you returns. It does not tell you what they are — that part is still your job, and the Limits tab is honest about it.

What It Does

• Reads the depth: the handheld shows the depth of water directly under the sensor, top left of the screen.
• Draws the bottom: a bottom contour trace, so a flat sand floor looks different from a rocky drop-off before you commit to it.
• Marks what is between: solid returns between the sensor and the bottom are drawn as fish icons with a depth figure beside them.

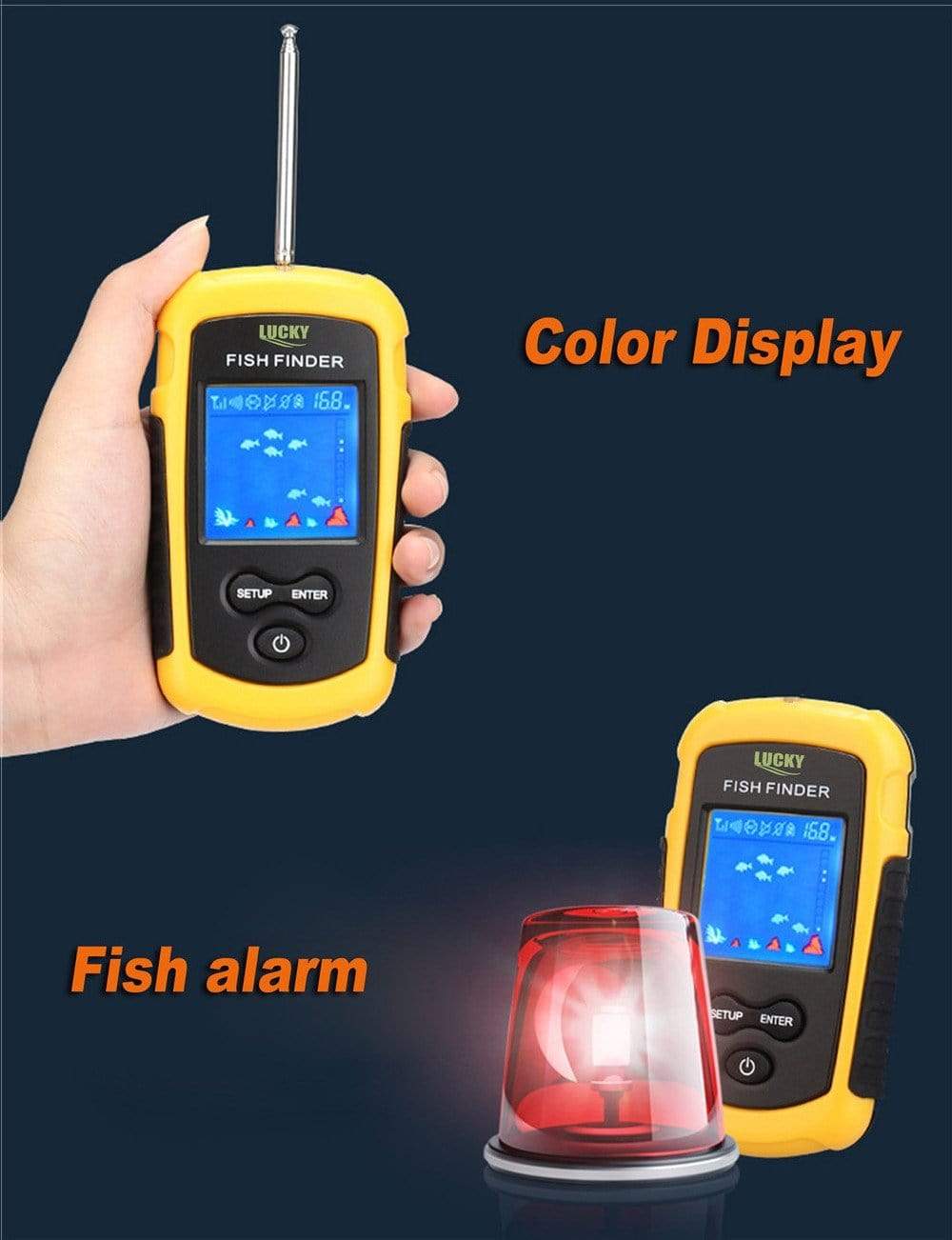

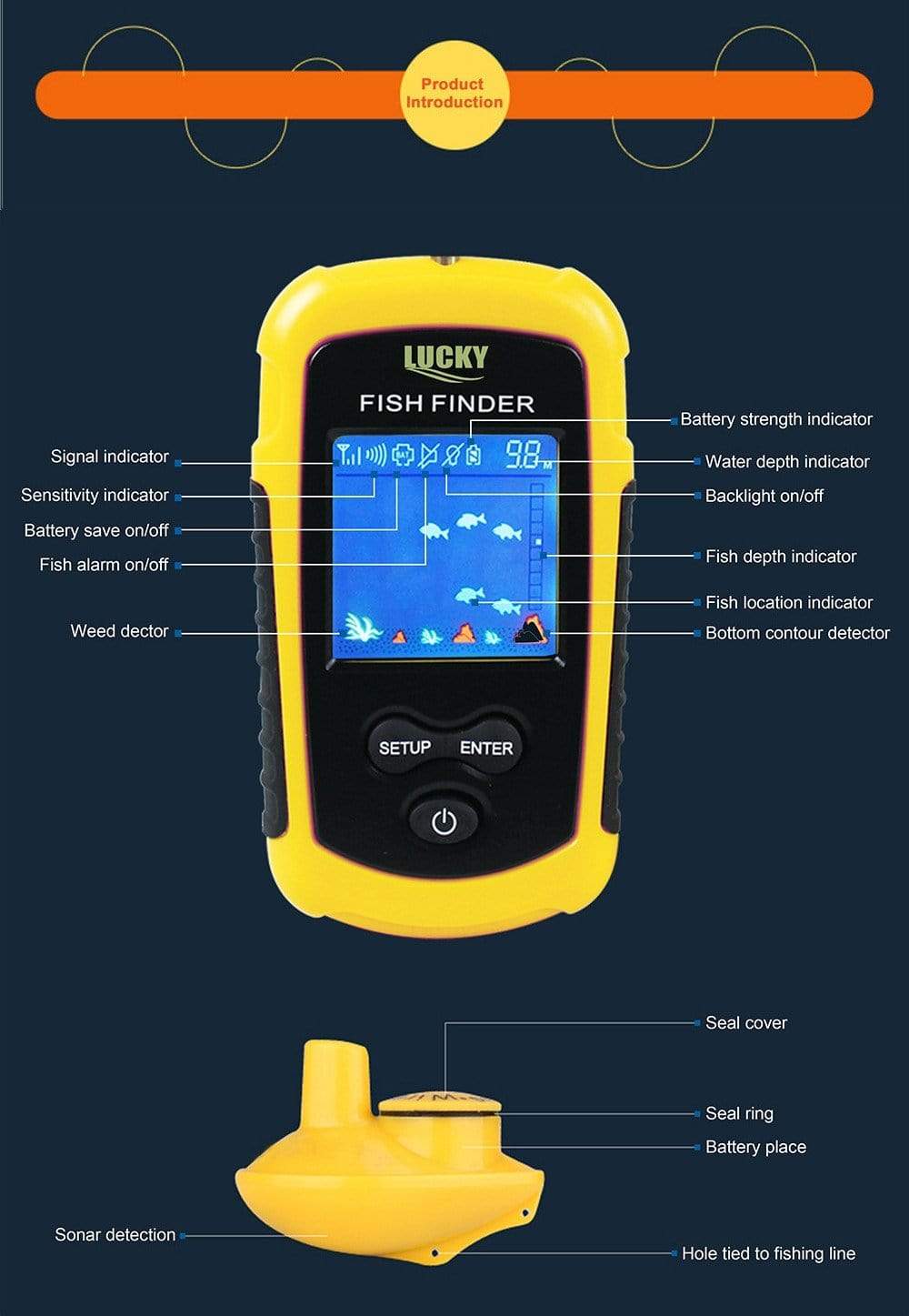

• Sounds off when it sees something: a switchable fish alarm, plus a shallow-water alarm, both labelled on the supplier's display legend.
• Works from the bank: tie it on, cast it, wind it back. No hull fitting, no drilling, no 12V feed.

Key Features

• 40 m of depth: the supplier's spec panel gives depth capability as 40 metres. That is how deep the water under the sensor may be.
• 120 m of wireless: the same panel gives wireless operating range as 120 metres. That is how far the sensor may sit from the handheld, not how deep it reads.

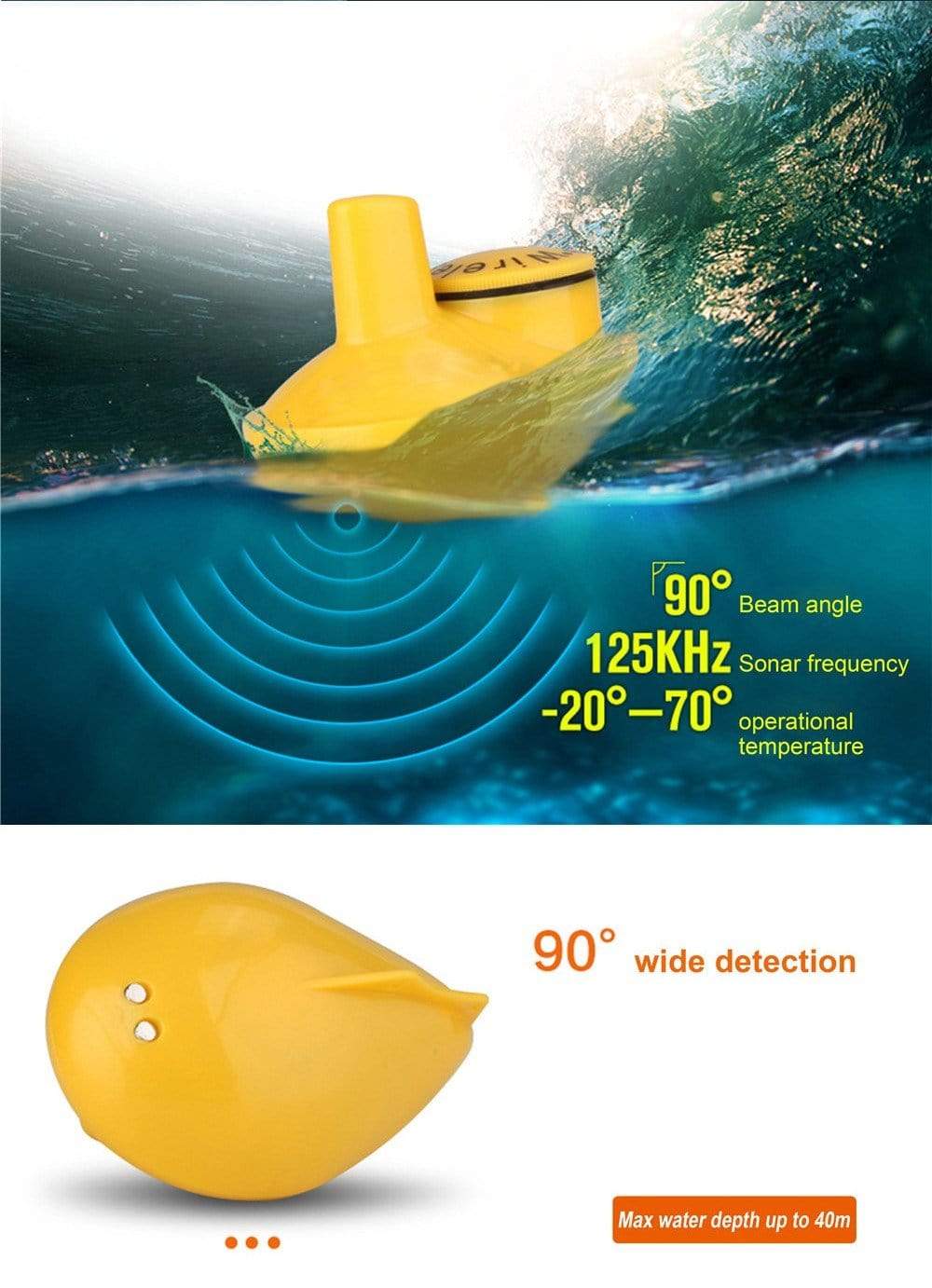

• 125 kHz, 90 degrees: single sonar frequency and beam angle, both printed on the supplier's specification panel.

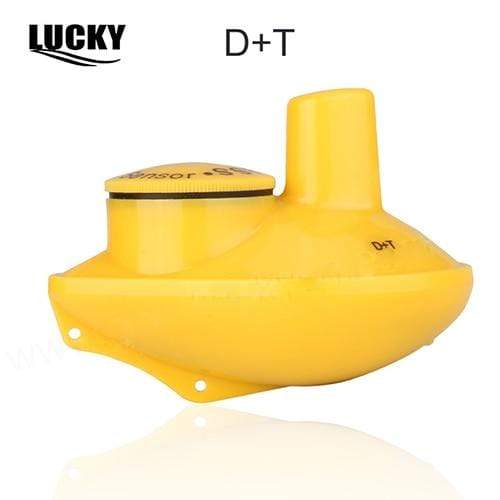

• Coin cell in the sensor: a CR2032 sits under a screw-down cover with a seal ring, and one cell is on the supplier's packing list.
• Four AAA in the handheld: standard cells, so a flat unit is a two-minute fix out bush. They are not on the packing list, so pack your own.
• Moulded line hole: a cast point moulded into the tail of the sensor, so it goes on the line without a clip or a knot through the body.

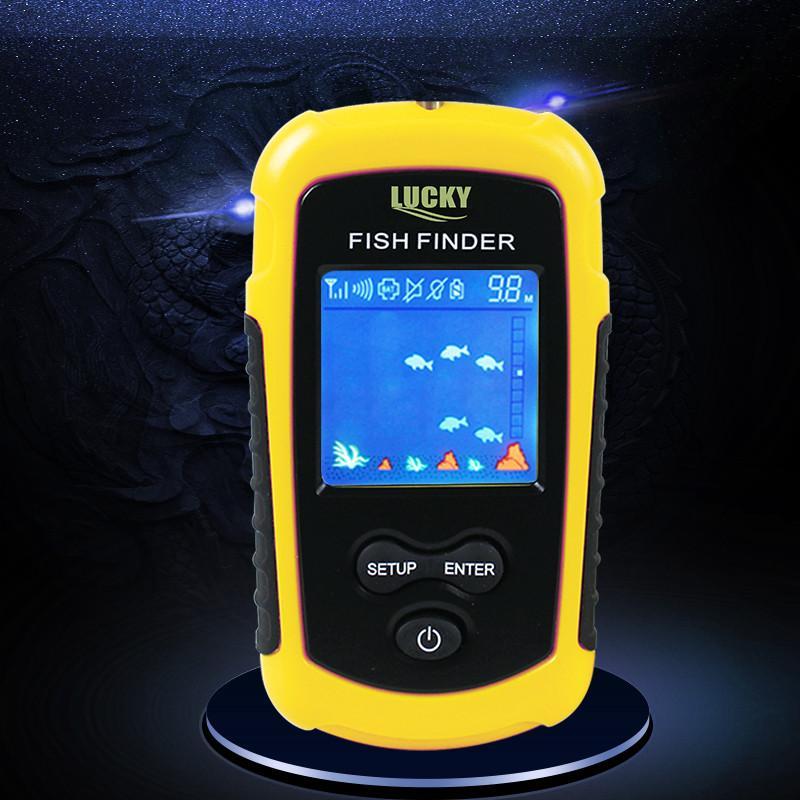

• Backlit screen: the supplier's panel labels the display a colour LCD, with a backlight you can switch off to save cells.
• Adjustable sensitivity: sensitivity, anti-clutter and a weed indicator are all marked on the supplier's own display legend.
• ABS housings: the material given on the specification panel for both the handheld and the sensor.

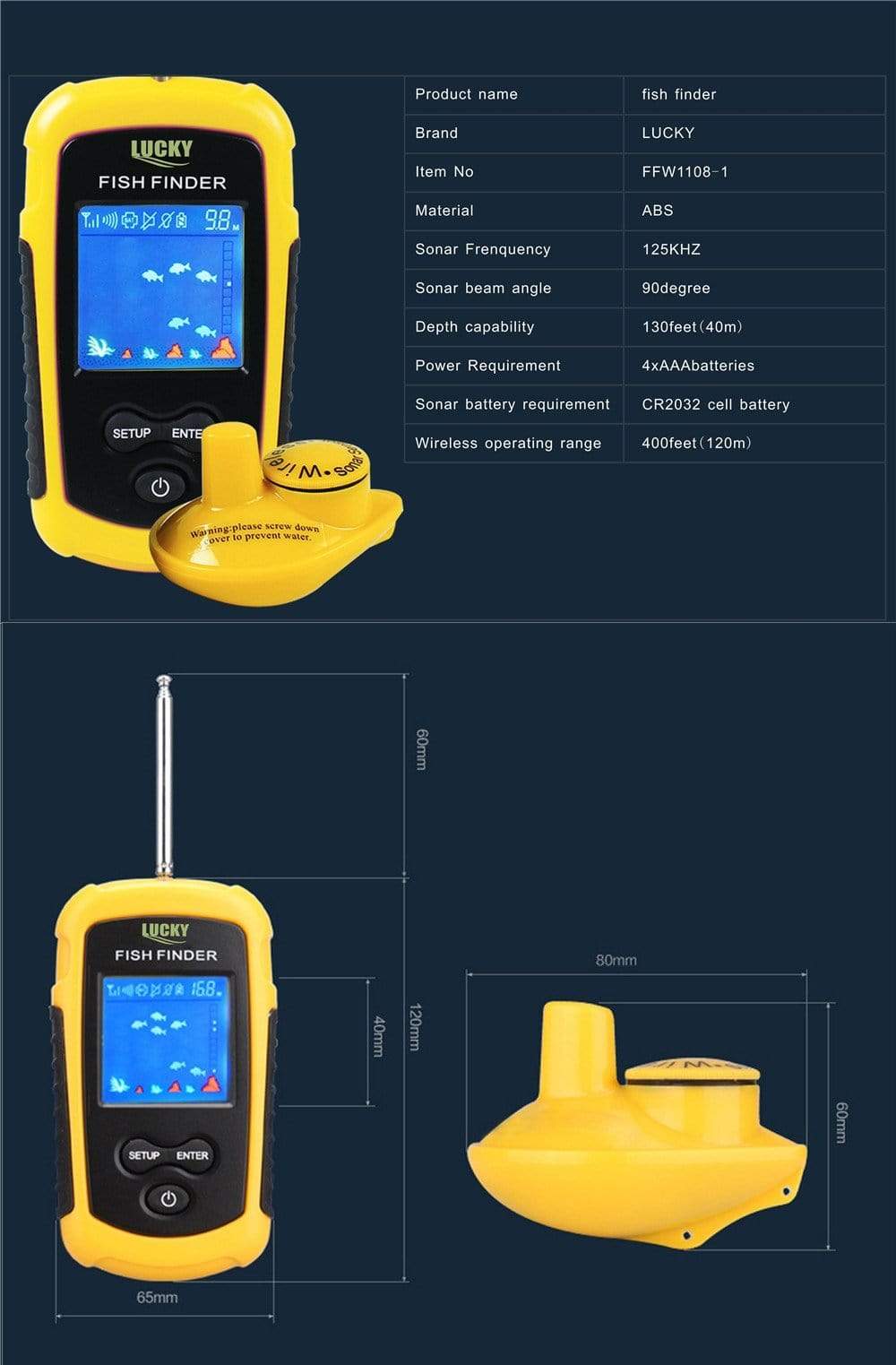

• Pocket sized: the handheld measures 120 x 65 mm on the supplier's dimension drawing, the sensor 80 x 60 mm.

Watch It Work

An owner's unboxing of a LUCKY portable colour fish finder, filmed by a third party. It is not our footage and not the supplier's, so we do not control what is said in it — but it shows the unit coming out of the box and switching on, which is worth more than another studio photograph.

Limits

It will not find fish for you. Sonar sends a pulse down and draws whatever bounces back. Whether a return is a bream, a bait ball, a submerged branch or a plastic bag is a judgement you make, not a thing the unit knows. The little fish icons are the unit's own guess at what a return means, and they are wrong often enough that experienced users switch them off and read the raw trace instead. If you have never read a sounder before, expect a learning curve. That is the single most common complaint about this whole category and we would rather you heard it here.

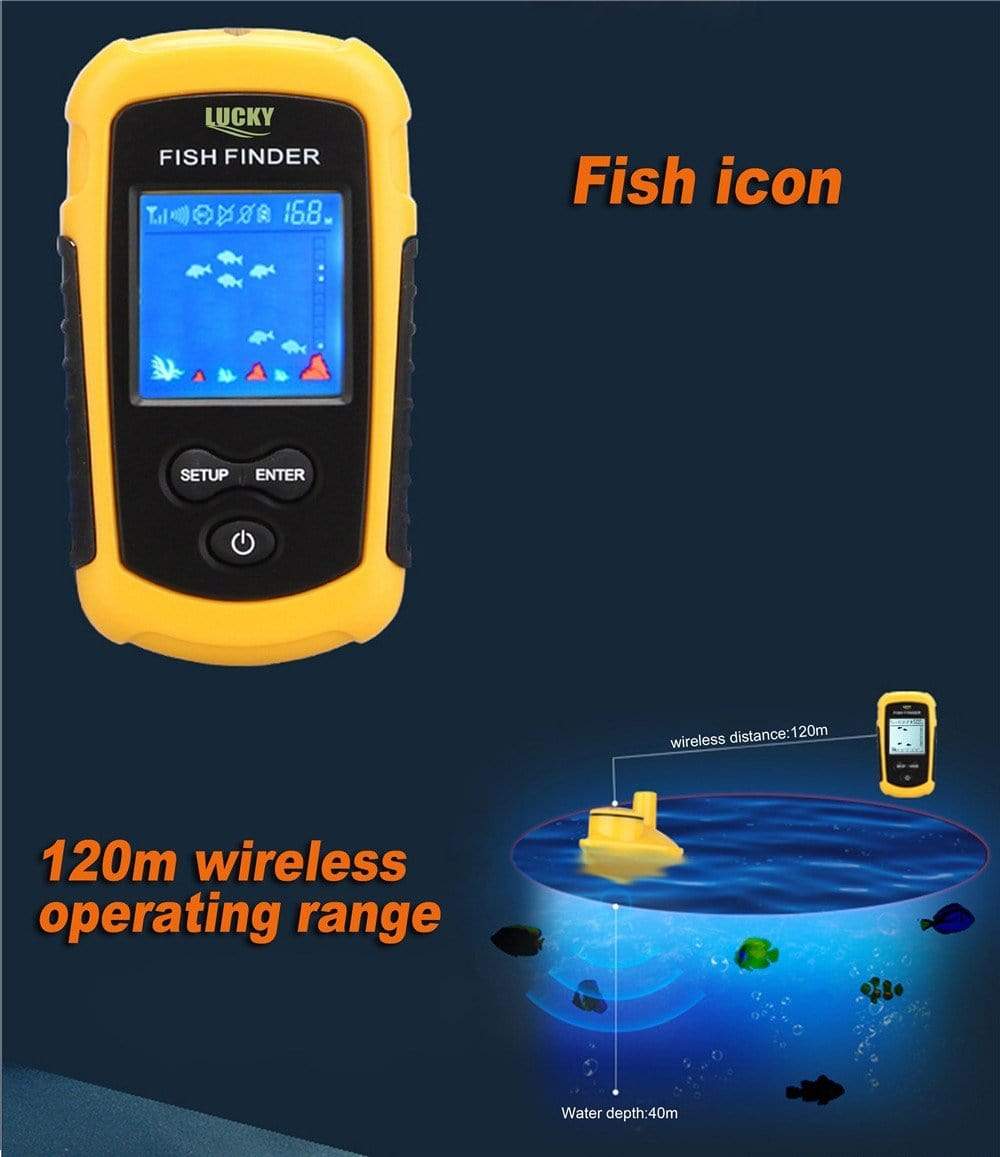

40 m and 120 m are two different measurements. This is the one that catches people out. 40 m is depth — the deepest water the supplier says it will read under the sensor. 120 m is wireless range — how far the floating sensor may sit from the handheld before the link drops. It does not read 120 metres down. If you are buying it for deep water, 40 m is your number.

Your rod sets the casting distance, not the radio. The sensor is a solid lump of ABS 80 mm across. The 120 m radio link is meaningless if you cannot throw the thing that far, and most people will not on a light outfit.

There is no water rating printed anywhere. The sensor seals with a screw-down cover and an O-ring, and the supplier moulds a warning into it telling you to screw that cover down. No IP figure and no ATM figure is printed on either part, and no certificate was sighted. The handheld in particular carries no water rating at all in any of the supplier's material — it is an electronic unit with an AAA battery door, so treat it as a dry-hands device and keep it out of the bilge.

Battery life is not stated. Nothing on the specification panel, the box or any supplier image gives a run time for the handheld or the sensor. We are not going to invent one.

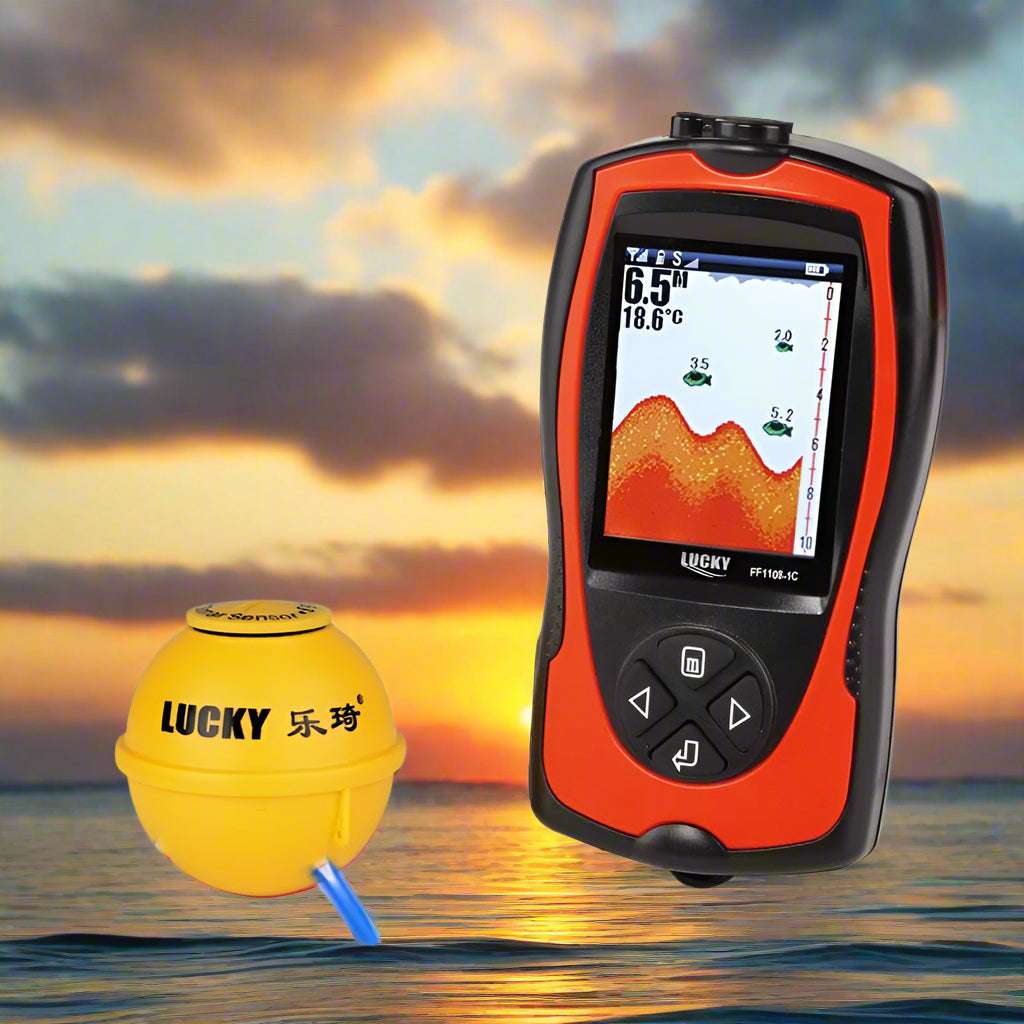

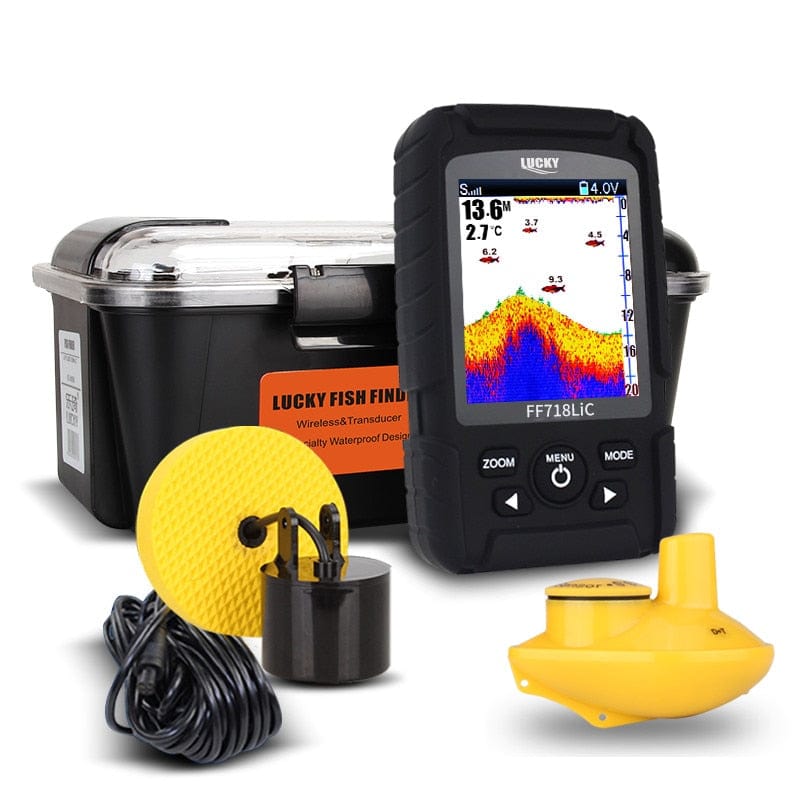

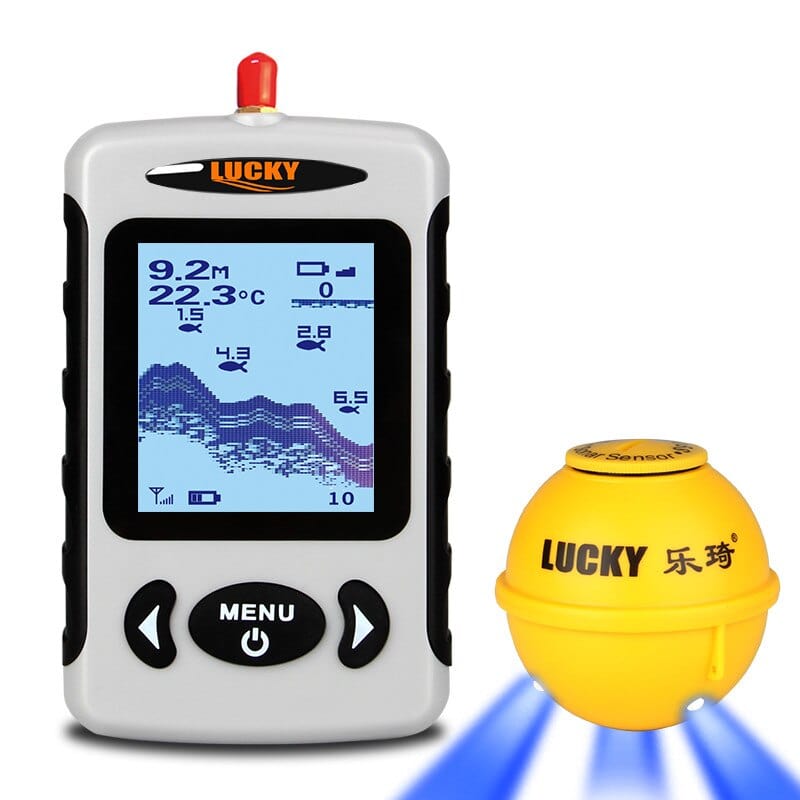

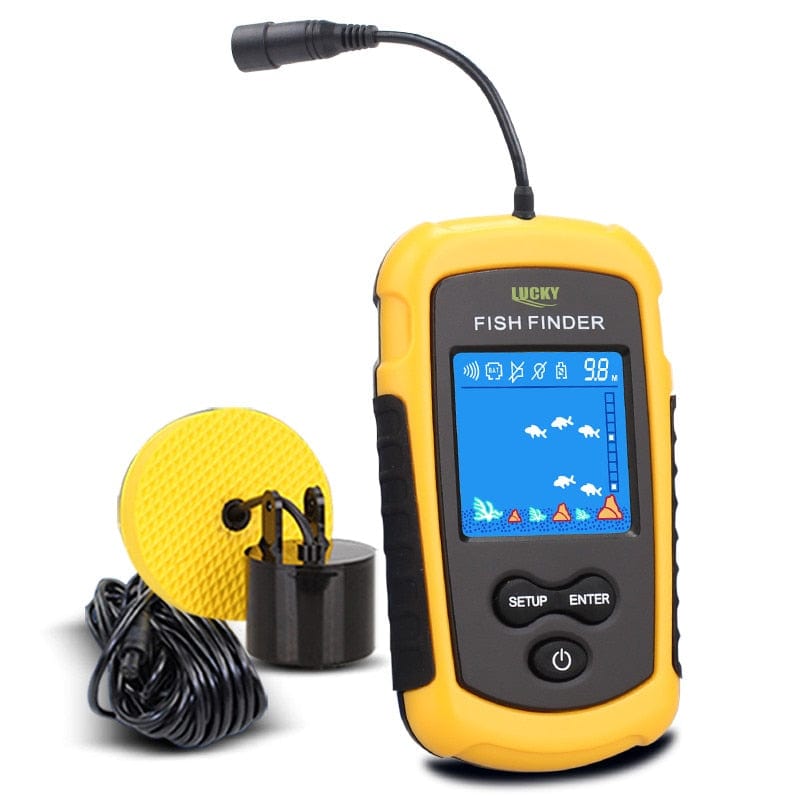

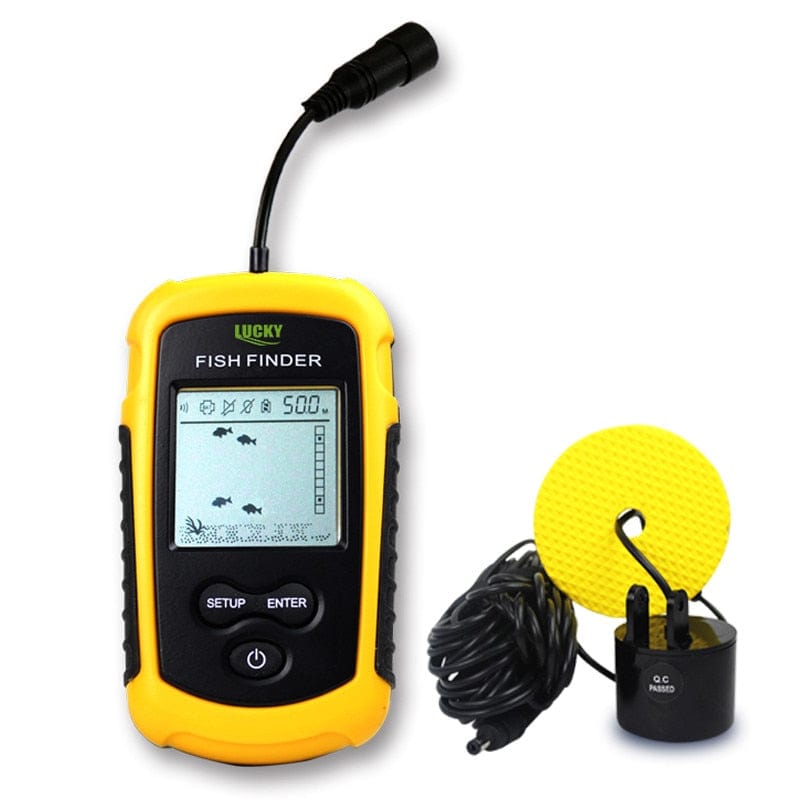

The Model option is four different item codes. Not four colours. The specification panel supplied with this listing is headed item FFW1108-1 and covers the yellow antenna unit with the boat-shaped floating sensor. The gallery also shows an FF718LiC, which is a physically different unit with a larger colour screen, a hard carry case and a corded transducer alongside the wireless sensor, and it carries no printed specification panel of its own. Some gallery images show corded transducers on a cable rather than a castable float. The figures in the Specs table below are the ones printed for FFW1108-1.

We are not repeating the 98 per cent. One of the supplier's own marketing images prints "Accuracy up to 98%" beside a green circle. There is no test behind it, no method, no water conditions and no definition of what is being measured to that accuracy. It is a number with a decimal point of confidence on it and nothing underneath, so it appears nowhere in our copy and it is not a specification.

It is not a navigation instrument. This is a scouting tool for finding depth and structure before you cast. It is not a marine depth sounder for keeping a hull off the bottom, it is not tested or marked to any marine electronics standard, and nothing about it should be used to work out whether water is safe to run a boat through.

Q & A

Does it need a phone or an app?

No. The handheld unit in the box is the display, and it is what the sensor talks to. There is no phone app involved, no pairing step, no QR code and no account — nothing in any of the supplier's material shows one. That also means there is no app to stop being supported down the track.

Is the 120 m how deep it reads?

No, and this is worth getting straight before you order. 120 m is the wireless link — the distance between the floating sensor and the handheld in your hand. Depth is 40 m. A lot of listings in this category blur the two, and someone who buys it expecting 120 metres of depth has bought the wrong thing.

Are the batteries included?

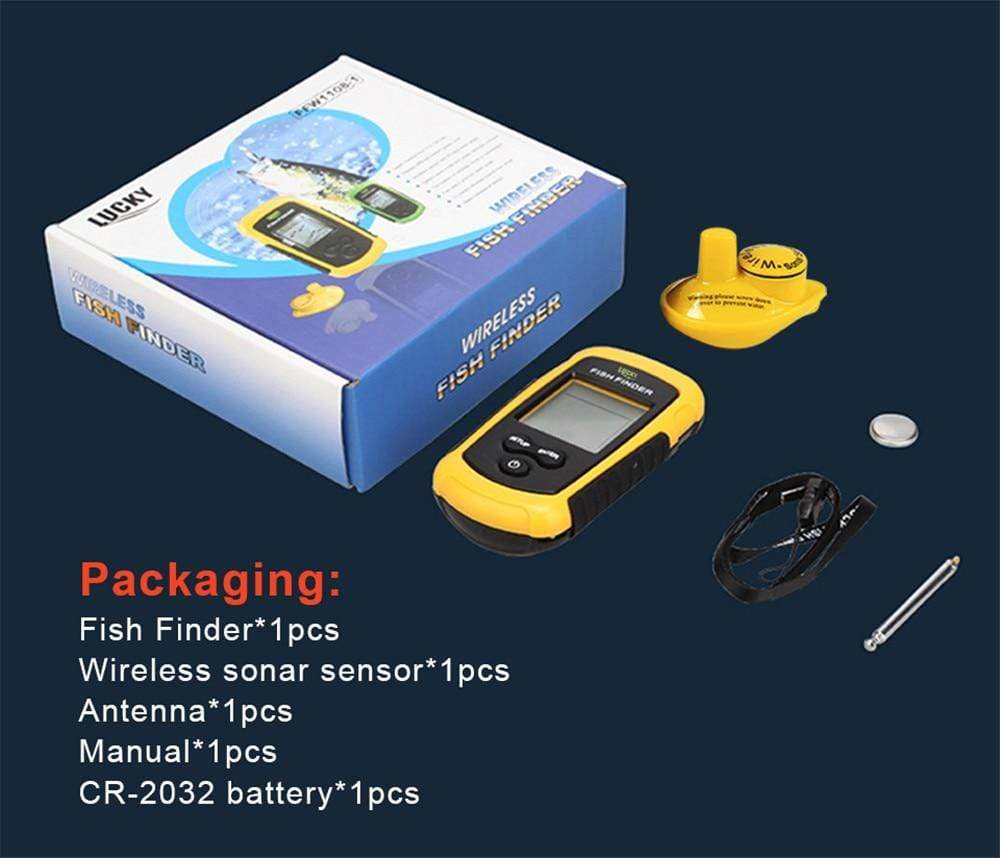

Partly. The supplier's packing list includes one CR2032 coin cell, which is what the floating sensor runs on. The handheld takes four AAA cells and those are not on the packing list, so assume you are supplying them.

Can I use it off the bank, or does it need a boat?

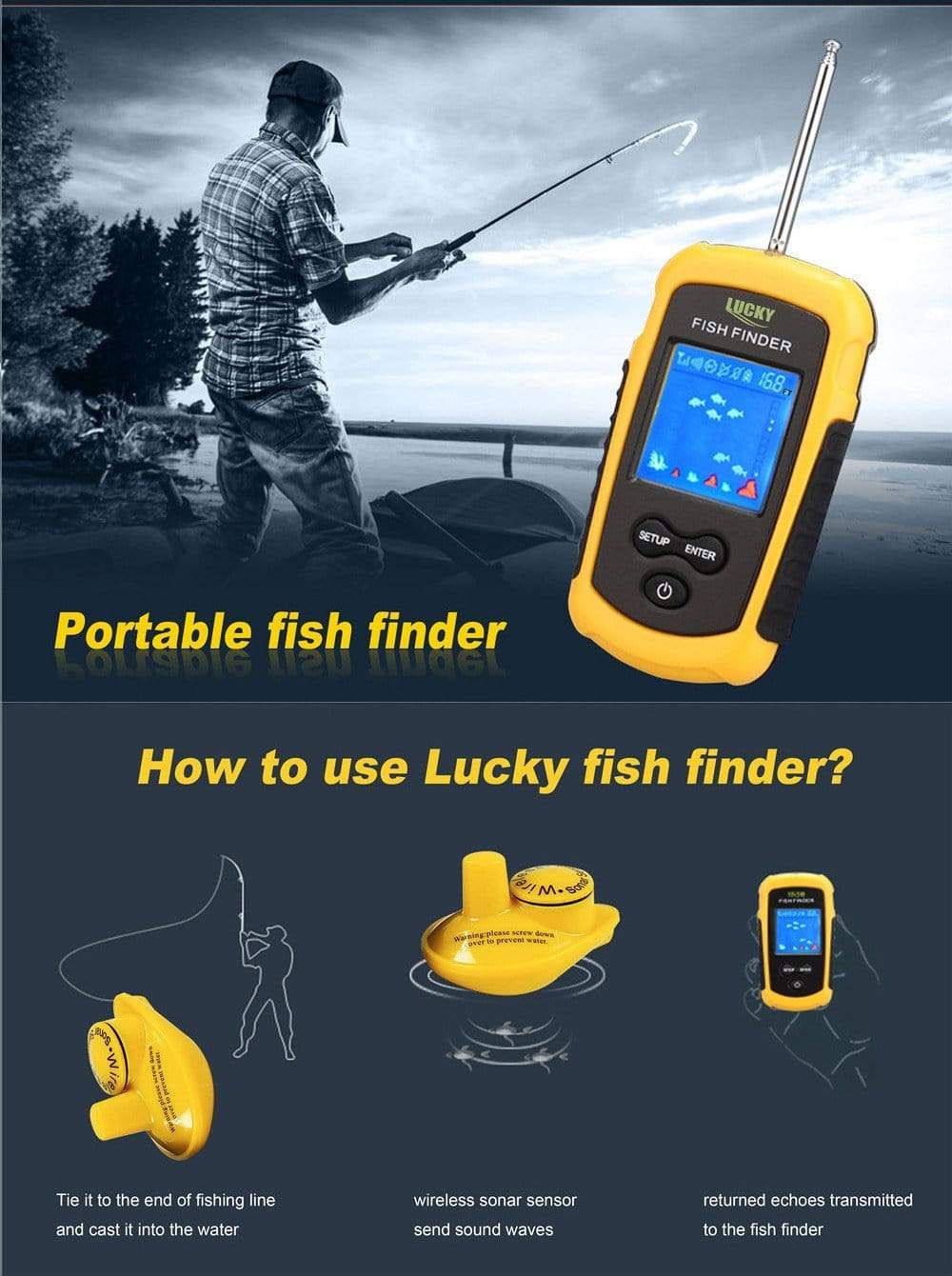

Off the bank is what the castable sensor is for — the supplier's own how-to panel shows it tied to the end of a fishing line and thrown out. It will equally hang over the side of a kayak, a tinny or a jetty. There is nothing to mount and nothing to wire in.

Will it tell me what species is down there?

No. It shows you that something solid is between the sensor and the bottom, and roughly how deep it is sitting. Working out what it is comes down to where you are, what time of year it is and what you already know about the water.

How long does delivery take?

Allow 10 to 14 days from the day you place the order, and up to three weeks to be safe. Regional and remote addresses run longer again. Delivery is free to Australia and New Zealand.
