V-500W Tulip Vertical Wind Turbine — 500W at 14 m/s, 24/48V
A turbine that looks good on purpose.
Most wind gear is bought in spite of how it looks. Put a propeller on a pole in a garden, a resort forecourt or a streetscape and someone will object to it — too industrial, too spinny, too much like a farm. So the pole never goes up, and the site that could have made its own power doesn't.

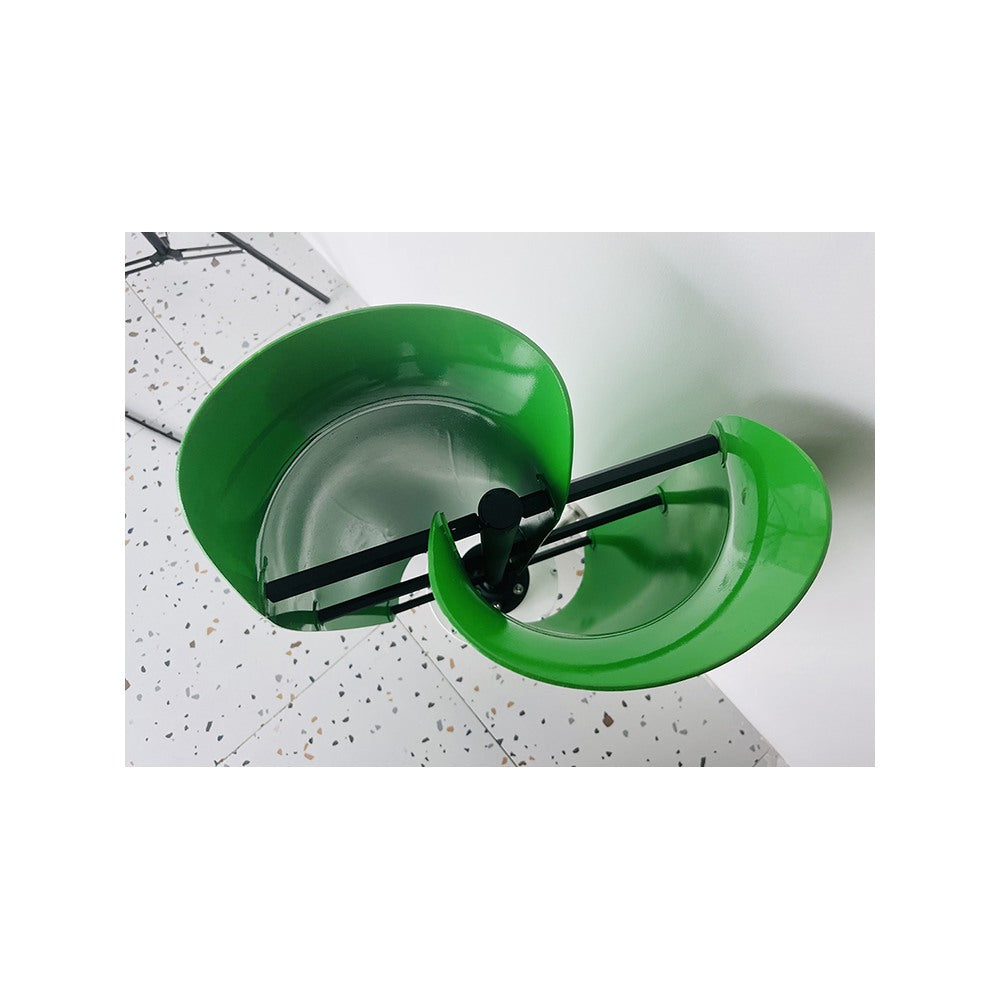

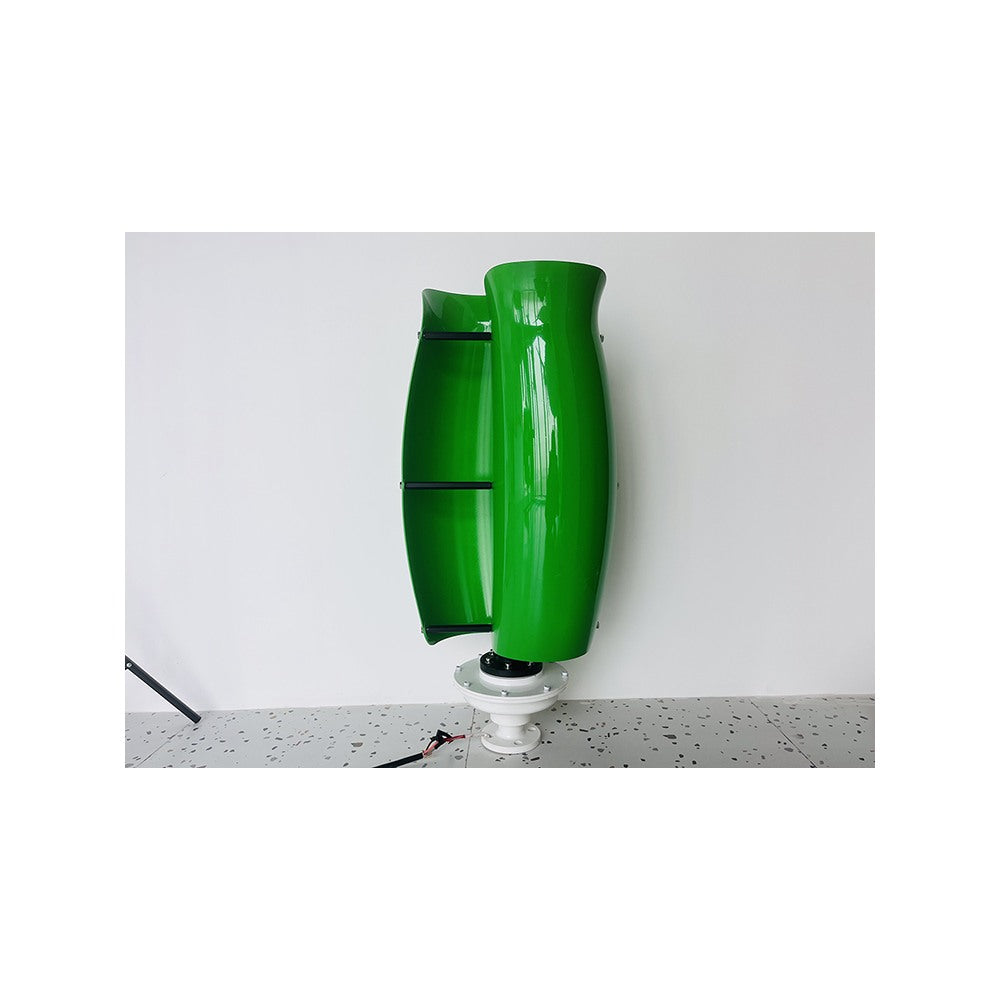

The V-500W is a tulip-form vertical turbine: three curved petals around a short mast, 1.12 m tall, turning slowly and quietly, in white, purple or green. It is designed for the places where appearance is part of the engineering brief — gardens, villas, scenic areas, entries and streetscapes — and it takes wind from any direction without a tail or a yaw hunt.
Straight up about the numbers: the 500 W rating is measured at 14 m/s — a 50 km/h blow — and maximum output is 520 W. In everyday breezes you will see a small fraction of that. You are buying a working sculpture that trickle-charges a battery bank, not a power station, and we would rather say that plainly than sell you a number.
Where The Power Curve Should Be
The manufacturer has never supplied a measured power curve for this model, so we cannot show output against wind speed the way we do on our horizontal turbines. We could calculate a plausible-looking curve and present it as measured — plenty of sellers do — but we would rather tell you it is missing and keep asking the factory for the real one.
What It Solves
- The objection problem: a turbine that reads as landscaping gets approved — by councils, partners and neighbours — where a propeller on a mast gets vetoed.
- The showcase site: resorts, wineries, visitor centres and entry statements that want their sustainability visible and tidy.
- Garden and streetscape power: feature lighting, irrigation controllers and gate gear fed from a bank the turbine keeps topped up.
- The swirly courtyard: wind between buildings changes direction constantly — a vertical takes it from all sides without hunting.
- The night-time top-up: panels stop at dusk; a breeze keeps trickling amp hours into the bank until morning.
Key Features

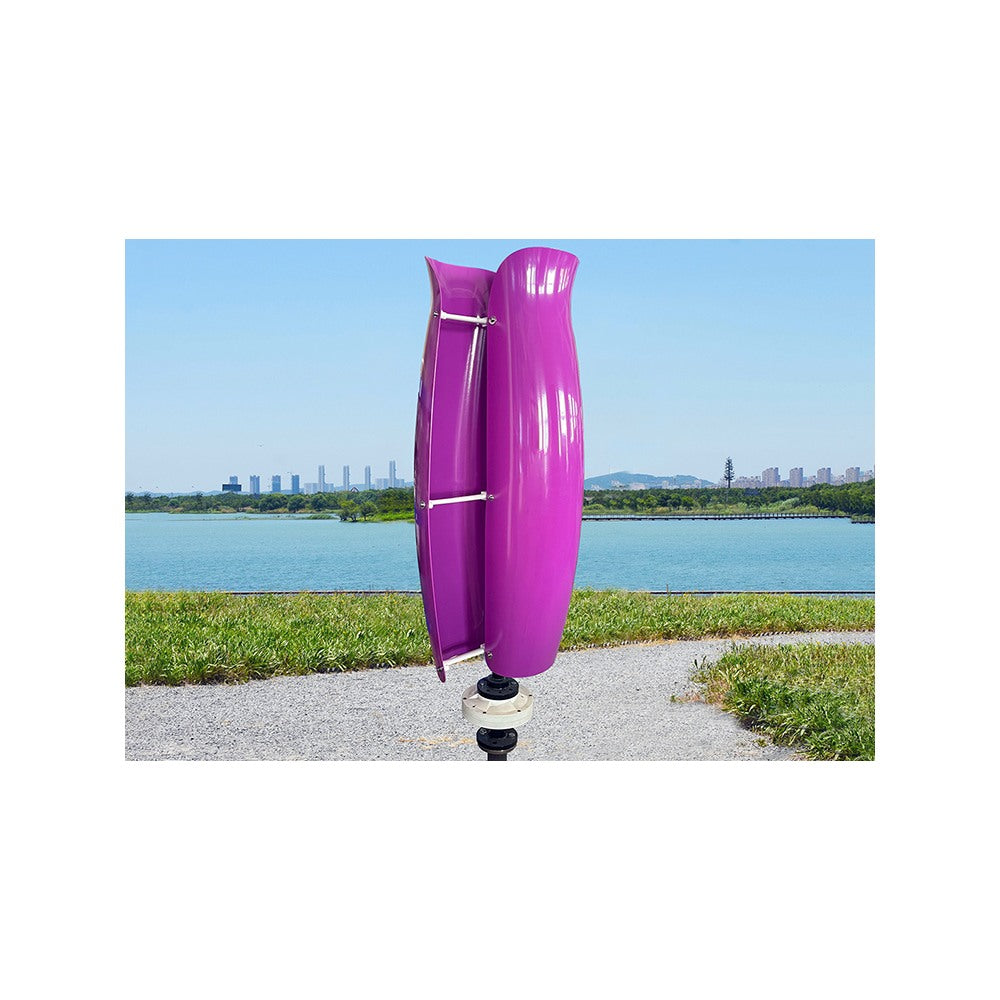

- Three colours: white, purple or green — pick the one that suits the site instead of hiding the machine.
- Takes wind from any direction: 360-degree auto windward, no tail vane, no yaw mechanism.
- Starts at 2 m/s: a 7 km/h breath gets the petals moving.
- 24V or 48V: matches the battery bank behind it.
- Compact form: 520 mm rotor, 1.12 m blade height — garden-scale, not farm-scale.
- Permanent magnet generator: 3-phase AC synchronous, NdFeB magnets, IP54, rated to 4500 m altitude.
- Two layers of protection: electromagnetic brake for overspeed and overload, with dump load.
- Two controller choices: the HECR wind-solar hybrid (runs panels too) or the pure-wind WCMD MPPT — pick either as a kit, or take the turbine only.
Kit, Or Turbine Only
The kit pairs the turbine with the manufacturer's own listed controller for your voltage — LHECR0824 on 24V, LHECR1248 on 48V — plus the dump-load resistor. The hybrid part matters: the same box takes a solar array on a PWM input (up to 1000 W of PV on the 24V unit, 1200 W on the 48V), so one controller runs the turbine and panels together. Never going to run solar? Pick With Pure-Wind Controller for the manufacturer's pure-wind unit instead — LWCMD800W-24V on 24V, LWCMD800W-48V on 48V, no PV input at all. Already sorted for control? Pick Turbine only.
What Else You'll Need
A mounting the site deserves, cable sized for the run, breakers and an isolator, and a battery bank to feed. Cable sizing depends on run length, voltage and current — that is your electrician's call. Browse bus bars, breakers and wiring in the Electrical Supplies collection, and the full controller range here.

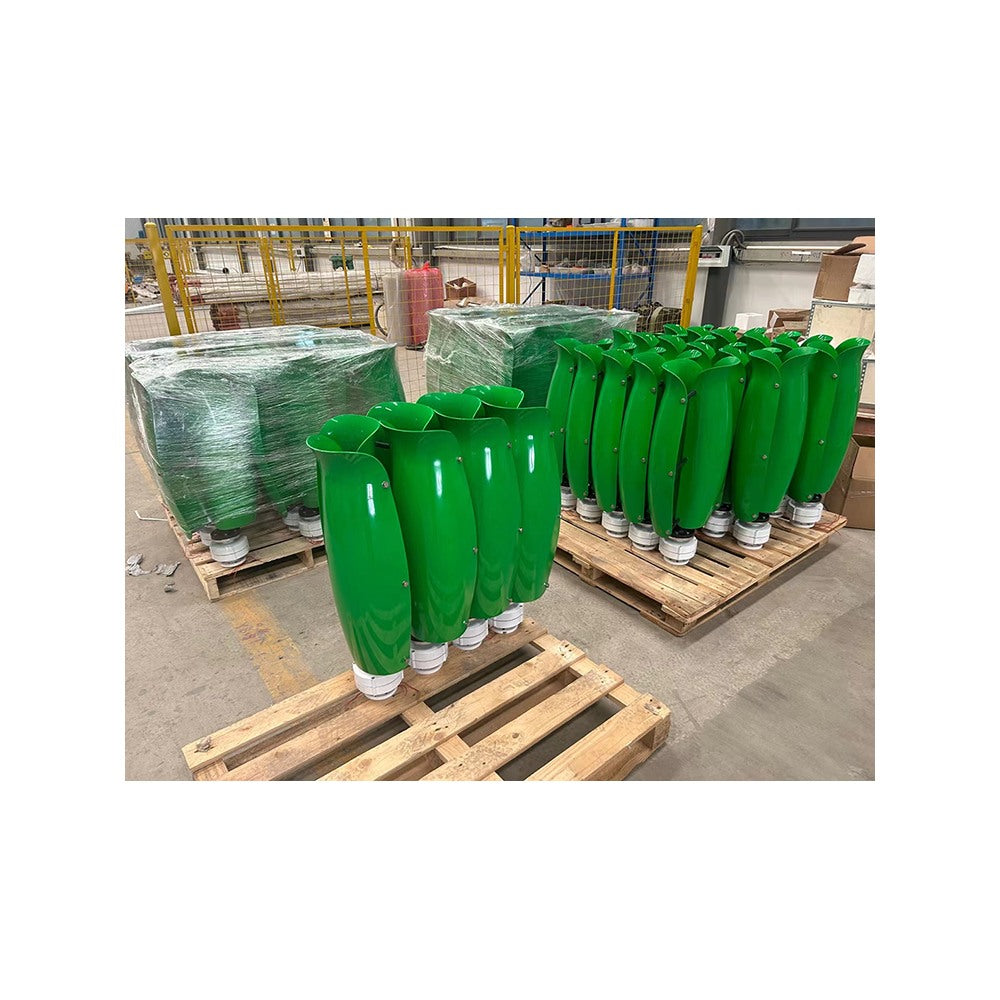

Representative photos: the manufacturer supplies one set of photographs per turbine family, not per model, and the units shown include larger tulips from the same family. The V-500W you receive is this design at the sizes in the spec table — 520 mm across the rotor and 1.12 m tall.
Q & A
Will it really make 500 watts?
At 14 m/s — a 50 km/h blow — that is the manufacturer's rating, with a 520 W maximum. In ordinary garden breezes expect a small fraction of that, trickling in around the clock. No measured curve exists for this model and we will not fake one.
Is this the right turbine for maximum power?
No — and that is not its job. Watt for watt, a horizontal turbine in clean air makes more power for less money; look at our horizontal range if output per dollar is the brief. The V-500W is for sites where a machine that looks industrial would never be approved in the first place.
How windy a site can it live on?
Its survival rating is 35 m/s — 126 km/h. That is genuinely strong wind, but it is a lower ceiling than our horizontal turbines carry, and it is not a cyclone-coast figure. If your site can see more than 126 km/h, this is the wrong machine for it, full stop.
Does the kit controller take solar panels?
Yes. The HECR series is a wind-solar hybrid: wind charges through MPPT and a solar array connects to the same unit on PWM — up to 1000 W of PV on the 24V model, 1200 W on the 48V. Never running panels? Pick With Pure-Wind Controller — the WCMD units have no PV input at all.
Is the cable from the turbine AC or DC?
AC. The turbine generates 3-phase AC; the rectifier inside the controller converts it to DC, and the DC charges the battery. The voltage on the cable rises with rotor speed — which is why the controller is built to take far more than the nominal battery voltage on its input. Cable selection and protection are your electrician's job.
Why are there no weights in the spec table?
Because the manufacturer has not stated them for this model, and we do not fill gaps with guesses. The rows read "Not specified by supplier" until the factory gives us the figures — we have asked.
What is the warranty position?
Twelve months. Professional installation by a licensed electrician is a condition of it — keep the electrician's invoice. The manufacturer treats blade damage from consistently extreme wind, and motor burnout after prolonged high-speed running, as case-by-case assessments rather than automatic cover.
How long until it arrives?
Built to order and sea-freighted — allow 6 to 8 weeks. Delivery is free to Australia and New Zealand. The kit arrives as separate boxes: the turbine, and the controller with its dump load.
Specs
| Specification | Detail | ||
|---|---|---|---|
| Rated power | 500 W at 14 m/s (50.4 km/h) | ||
| Maximum power output | 520 W | ||
| Rated voltage | 24 V / 48 V | ||
| Maximum voltage output | 26.4 / 52.8 V | ||
| Start-up / cut-in wind speed | 2 m/s (7.2 km/h) | ||
| Rated wind speed | 14 m/s (50.4 km/h) | ||
| Survival / safe wind speed | Up to 35 m/s (126 km/h) — lower than our horizontal turbines; see Q & A | ||
| Rotor diameter | 0.52 m (520 mm) | ||
| Blade height | 1.12 m (1120 mm) | ||
| Number of blades | 3 | ||
| Blade material | Mixed material | ||
| Body material | Composite material | ||
| Magnet material | NdFeB | ||
| Generator type | 3-phase AC permanent magnet synchronous generator | ||
| Generator model | SHF260-1-500w-360rpm | ||
| Over-speed protection | Electromagnetic brake | ||
| Overload protection | Electromagnetic brake or dump load | ||
| Wind direction adjustment | 360° auto windward | ||
| Generator protection grade | IP54 | ||
| Working temperature | -25°C to +80°C | ||
| Working humidity | 0-90% RH (non-condensing) | ||
| Mount height | Ground: 6-10 m; rooftop: 3-6 m above the roofline | ||
| Altitude | Up to 4500 m (rated at 1000 m) | ||
| Design life | 20+ years | ||
| Warranty | 1 year | ||
| Colour | White / Purple / Green | ||
| Net weight | Not specified by supplier | ||
| Gross weight | Not specified by supplier | ||
| Packing size | Not specified by supplier | ||
| Certification | CE marked by the manufacturer to the Low Voltage Directive 2014/35/EU. CE is a European mark and carries no legal standing in Australia. | ||
The Kit Controller
| Specification | LHECR0824 (24V kit) | LHECR1248 (48V kit) |
|---|---|---|
| Controller type | Wind-solar hybrid (wind MPPT + PV PWM) | |
| Rated wind power | Up to 800 W | |
| Rated PV power | Up to 1000 W total system | Up to 1200 W total system |
| Battery voltage | 24 V | 48 V |
| Max wind input voltage | 80 V | |
| Max PV input voltage | 55 V | 95 V |
| Maximum battery charging current | Not specified by supplier — do not size cable or breakers from the wattage in the product title | |
| Wind protection | Reverse-current, over-voltage, over-current, over-speed and manual dump | |
| Display | LCD | |
| Communications | Bluetooth built in | |
| Installation | Wall-mounted, natural cooling | |
| Controller size | 162 × 145 × 61.8 mm | |
| Net weight | 1.9 kg | |
Wire the system this way — follow this diagram, not the drawing in the supplier datasheet:
The Pure-Wind Controller Option
| Specification | LWCMD800W-24V (24V kit) | LWCMD800W-48V (48V kit) |
|---|---|---|
| Controller type | Pure-wind MPPT (no PV input at all) | |
| Battery voltage | 24 V | 48 V |
| Max wind power | 800 W | |
| Max wind input voltage | 80 V | 180 V |
| Wind charging method | Boost / buck / boost-buck MPPT | |
| Unloading | External unloading — dump-load resistor included with the controller; an enclosed resistance box is available as an optional extra | |
| Load output | None | |
| Protection | Over-voltage, over-current, reverse connection, over-speed and dump-load protection | |
| Display | Built-in LCD | |
| Working temperature | -20°C to +55°C | |
| Static loss | 1.8 W or less | |
| Warranty | 1 year | |
| Maximum battery charging current | Not specified by supplier — do not size cable or breakers from the wattage in the product title | |
The pure-wind kit wires this way — wind only, no solar input:
Turbine Spinning But Showing 0W?
It is almost never a faulty turbine or controller. Read the 0W troubleshooting and correct installation guide before you assume something is broken.
Watch Me
Payment & Security
Payment Methods
Your payment information is processed securely.
We do not store credit card details or have access to your credit card information.
Wind Turbine FAQs
-
Start with two questions: how much wind does your site actually get, and how much room do you have.
Vertical turbines (X-300, T-500W, and the H12 and HPRO series) start turning in about 2 m/s and take wind from any direction, so they suit rooftops, suburban blocks and anywhere the wind swirls and shifts. They run from 300 W up to 2000 W.
Horizontal turbines (S-400W, M-600W, M-800W, and the L1, L2 and G series) want cleaner, steadier wind and a clear run at it. They scale further — 400 W up to 5000 W — and most of them survive heavier weather.
Match the turbine to your battery bank, not to the biggest number. 12 V suits a camper, 4WD or tinnie; 24 V a van, cabin or boat; 48 V a shed or remote block. The largest models run at 220 V, and the L2-3000, G-3000 and G-5000 are ground-mount only — they need a 10–15 m mast and are not rooftop units.
Rated power is measured at 10–12 m/s. What you get at your place depends on your wind, your mast height and the season — not on a number on our website.
-
No.Wind turbines generate "wild" 3-phase AC power that changes voltage constantly with the wind speed. Connecting it directly to a battery or a standard solar inverter will instantly destroy your equipment. Youmustwire the turbine into a dedicatedWind/Solar Hybrid MPPT Controller with an integrated Dump Load Resistor. The controller converts the power to stable DC to charge your batteries safely.
-
You must match the turbine and its hybrid controller to the exact voltage of your existing battery bank:
- 12V: Best for compact mobile setups like caravans, 4WDs, and camper trailers.
- 24V: Great for medium-sized setups like off-grid sheds, cabins, and motorhomes.
- 48V: The gold standard for full off-grid home systems. Higher voltage means less energy loss through your wires and allows you to use thinner, safer cables.
-
When your battery bank becomes 100% fully charged, it stops accepting power. If a heavy wind storm hits at night when your batteries are full, a turbine with nowhere to send its power will "free-spin" out of control and physically fly apart. A hybrid controller fixes this by automatically diverting that excess power into the dump load resistor, which burns it off safely as heat and acts as an electronic brake to slow the turbine down.
-
No,that is the main benefit of the vertical design. Traditional horizontal "propeller" turbines create a high-pitched, annoying "chopping" noise. Our ST Tulip and Flower series utilise advanced omnidirectional maglev-style bearings, making them virtually silent and completely vibration-free, all you will hear is the wind. They are perfect for suburban blocks, tight caravan parks, and areas close to neighbours.
-
It will turn, but turning is not charging. The blades start rotating at about 1.5 m/s — a light breeze. Charging starts once the wind clears the cut-in speed of about 3.5 m/s, and output climbs from there — the rated figure is measured at 13 m/s (about 47 km/h). A gentle breeze keeps the turbine ticking over; it takes real wind to push real power into your batteries.
-
You should connect the wind turbine to a battery bank first, via a dedicated charge controller, rather than directly to an inverter. Connecting a wind turbine directly to a standard inverter will damage the equipment or cause the system to fail.
🔋 The Correct Wiring SequenceTo safely capture and use the power, your setup must follow this exact order:
- Wind Turbine: Generates wild, fluctuating 3-phase AC power as wind speeds change.
- Hybrid/Wind Charge Controller: Converts the unstable AC power into steady DC power. It also protects the turbine from over-speeding by applying an electronic brake during high winds.
- Battery Bank (12V/24V/48V): Acts as a buffer to store the energy. It absorbs sudden power spikes from wind gusts and provides a steady source of energy.
- Off-Grid Inverter: Connects to the battery, converting the stored DC battery power into standard AC power for your household appliances.
⚠️ Why You Cannot Skip the Battery
- Unstable Voltage: Wind speeds change second by second. Without a battery to absorb and smooth out these massive fluctuations, a direct-connect inverter would constantly turn off and error out.
- Turbine Destruction: When a battery is full or disconnected, a wind turbine loses its "load" (resistance). Without that resistance, the blades can spin out of control in high winds and physically destroy the unit. The charge controller uses the battery connection to safely dump excess power and slow the turbine down.
-
Wiring & Installation Requirement:This wind turbine generates 3-phase AC power andcannotbe connected directly to a battery, solar controller, or home inverter. To operate safely, it must run through a dedicatedWind/Solar Hybrid MPPT Controller with an integrated Dump Load Resistor. The dump load prevents the turbine from over-speeding and destroying itself in high winds once your batteries are fully charged.
-
It is almost always one of three common installation issues. Check them in order:
1. Your multimeter is set to DC (the most common mistake).
- The issue: measuring the three turbine wires with the meter set to DC volts.
- The reality: wind turbines generate 3-phase AC power directly from the stator.
- The fix: switch your multimeter to AC volts (V~). Testing these wires on a DC setting gives a false reading near zero.
2. The turbine is stalling because of a short.
- The issue: the blades turn heavily and slowly, or lock up.
- The reality: if any of the three AC output wires touch each other, or the controller’s internal braking diodes have short-circuited, it acts as a magnetic brake — the turbine can never spin fast enough to build voltage.
- The fix: completely disconnect the turbine from the controller. If it suddenly frees up and spins much faster, the problem is a short in the wiring or a faulty controller.
3. Voltage drop from thin cables.
- The issue: thin wire run a long way from the tower to the battery shed.
- The reality: thin solar or automotive cable over a long run (20 metres or more) loses the power as heat in the wire before it reaches the controller.
- The fix: use heavy cable between the mast and the controller on long runs — minimum 8 AWG, ideally 6 AWG.
-
Because the number on the box is a peak rating, not a promise. A turbine’s rated output is measured at a specific wind speed — for these models that is 13 m/s, about 47 km/h — and most sites see far less most of the time. Your display shows what the wind is delivering right now, so it will sit well below the rated figure and move second by second with the wind. That is physics, not a fault.
Where these turbines earn their keep is time: they keep charging through the night and through weather that shuts solar down. If the display shows 0 W while the blades are spinning, that is a different issue — see the 0 W question below.
-
Not necessarily — this is one of the most common questions we get, and it's rarely a faulty unit. It's usually a quick settings check, or (on a first-time install) how the wiring and start-up sequence were done. See our full Wind Turbine 0W Troubleshooting & Installation Guide for the complete walkthrough, or contact us and we'll help you sort it out.
-
Short answer: wire your bus bar and breakers before and after the controller, then power up in the right order — battery first, then solar, then wind. Getting the sequence right prevents almost all wiring issues, including the common “spinning but 0 W” problem.
Correct installation comes down to isolation and the right sequence:
- Fit a breaker before the controller (turbine/solar side) and after it (battery side), landing on a DC bus bar
- Keep the turbine-to-controller cable run to 2–10 metres to limit voltage drop
- Power up in this order: battery breaker first, then solar, then wind turbine last
See our full How to Install & Start Up guide for the complete step-by-step walkthrough and wiring diagram.
