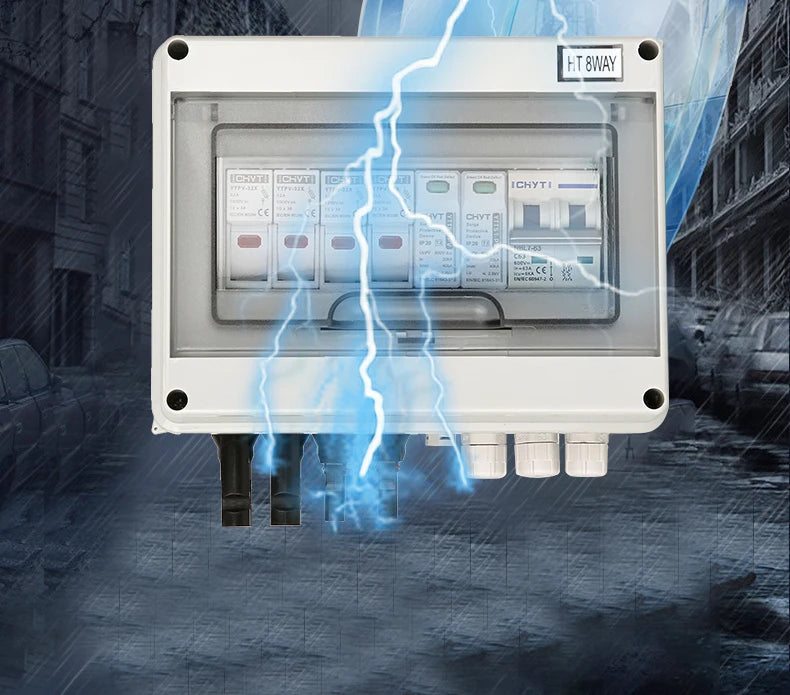

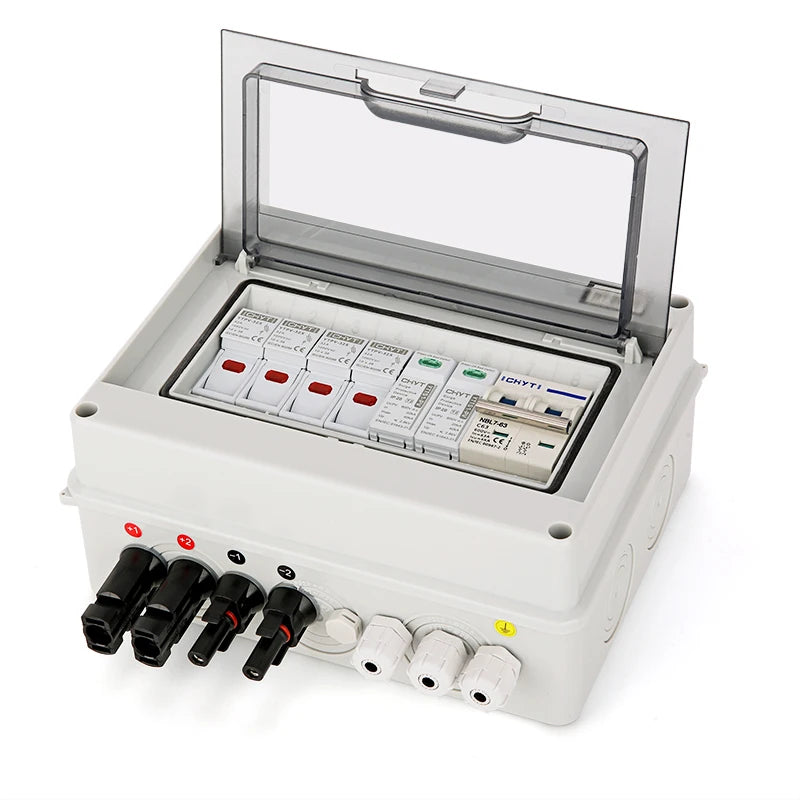

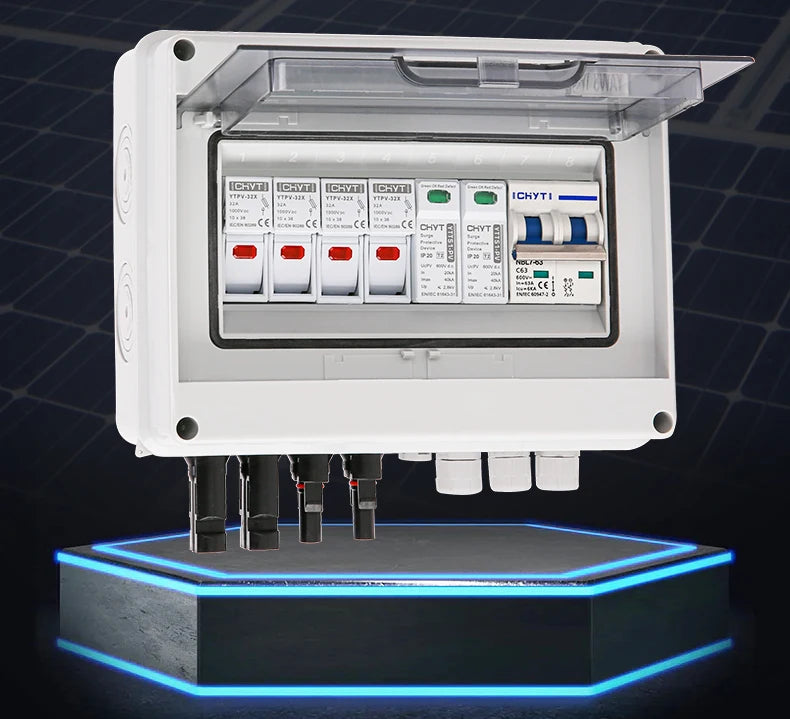

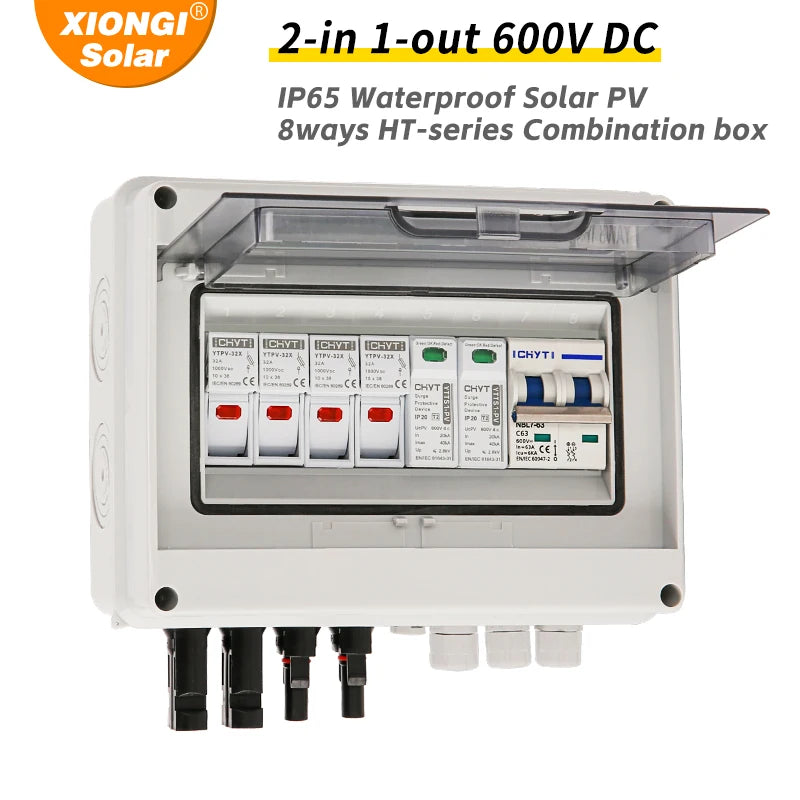

Solar photovoltaic PV Combiner Box With Lightning Protection 2 in 1...
Rated 600V at the breaker, not 1000V at the fuse.
Two strings of panels coming back to one controller means two positives and two negatives arriving at a terminal built for one pair. Most people twist them together under a lug in a plastic box and it works fine — right up until a fault in one string back-feeds down the other, or a storm drops a surge into forty metres of DC cable strung across an open paddock and pushes it straight into the controller input.
A combiner box is the fix for both. This one takes two string inputs and gives you one output. Each string gets its own fuse holder with a 15A fuse in it, so a faulty string opens its own fuse instead of drawing current back from the good one. The output side carries a 2-pole DC 600V/63A MCB, so you can isolate the whole array under load before you touch the controller. Alongside it sits a 2-pole DC 600V surge protective device, wired to shunt a lightning-induced surge to earth rather than let it travel on to your gear.
Be careful with the voltage on this one, because the supplier has not been straight about it. The fuse holder is a 1000V part, but the MCB and the SPD are both 600V DC. The lowest-rated component in the chain sets the limit for the box, so the real ceiling here is 600V DC — not 1000V. No overall system voltage figure was supplied, so we are not going to publish one. Work out your array's open-circuit voltage at the coldest morning you get, and if it lands anywhere near 600V, this is not your box. Enclosure material, external dimensions, mounting method and cable gland sizes were not specified either.
What It Solves
- Two strings, one input: your controller has one PV input pair and you have two strings to land on it.
- Long runs in open country: a bore pump array sitting 40 metres from the shed, with nothing between the panels and the controller but cable and weather.
- Storm season on a farm: a nearby strike doesn't need to hit the panels to induce a surge in the DC run — the SPD gives that energy somewhere to go.
- Isolating before you work: the 63A breaker lets you shut the array down at one handle instead of pulling connectors under load.
- Shack or remote hut arrays: ground-mount panels at a bush block where you want the fusing and the isolator in one weatherproof box, not spread across three.

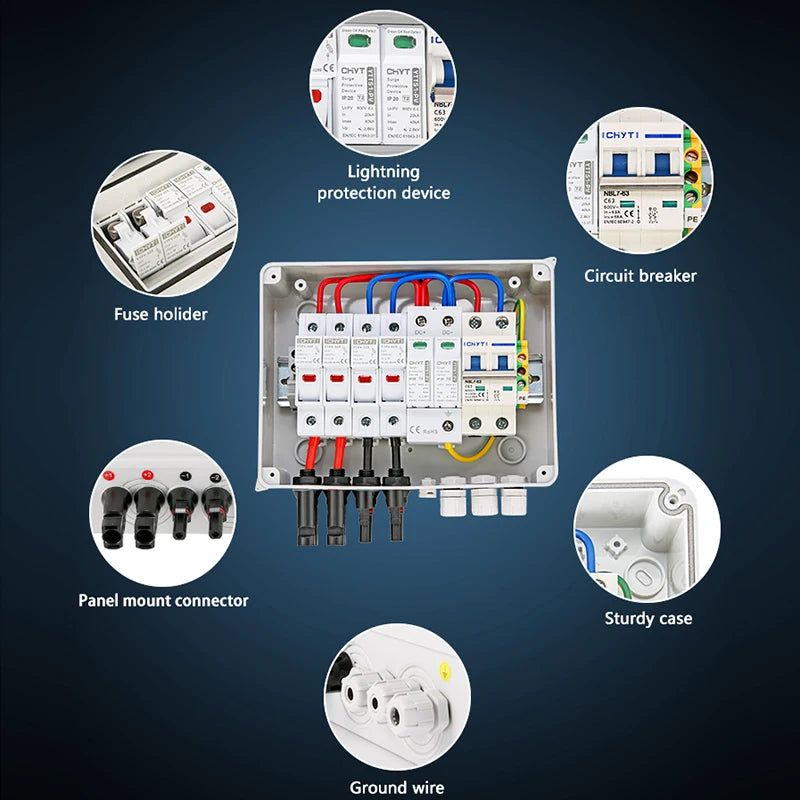

Key Features

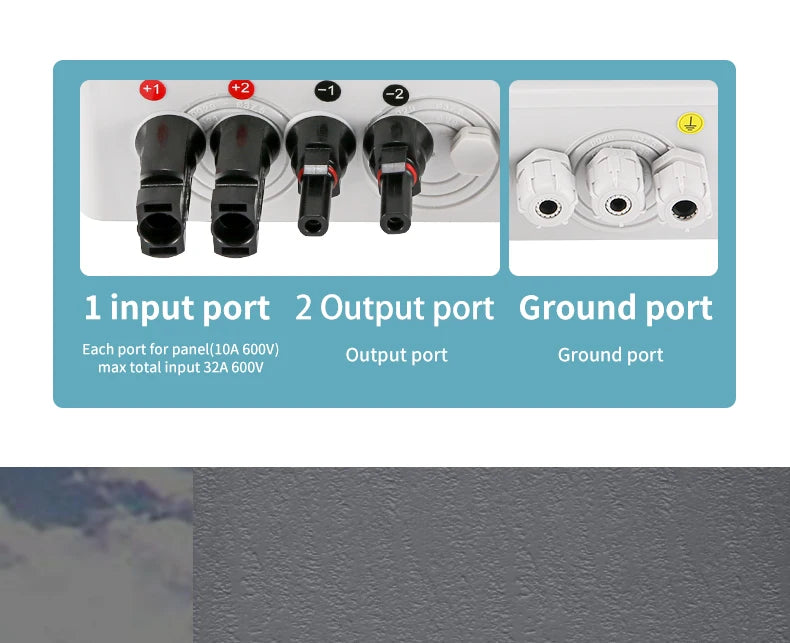

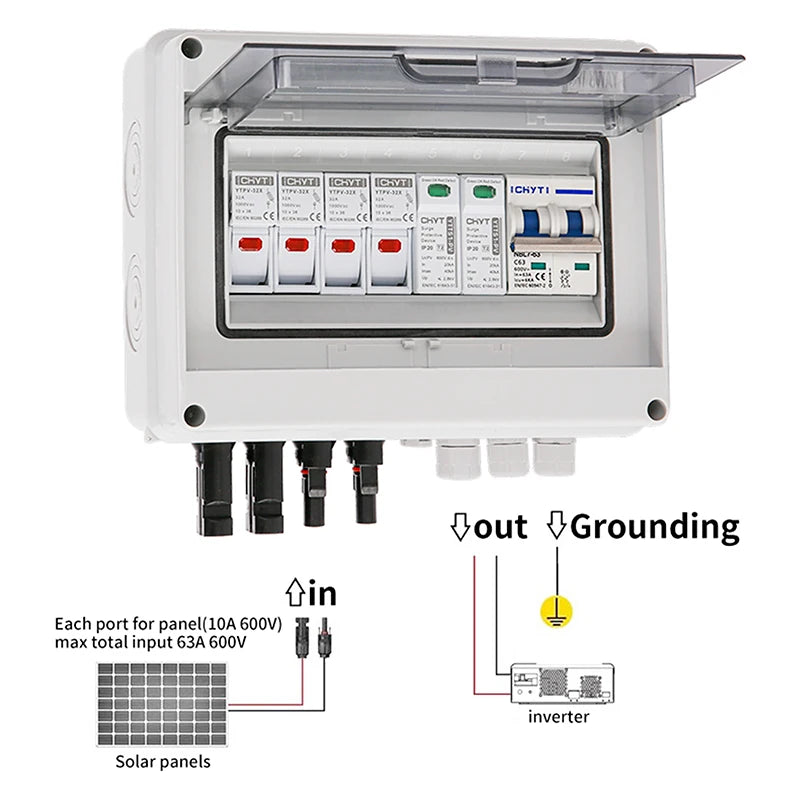

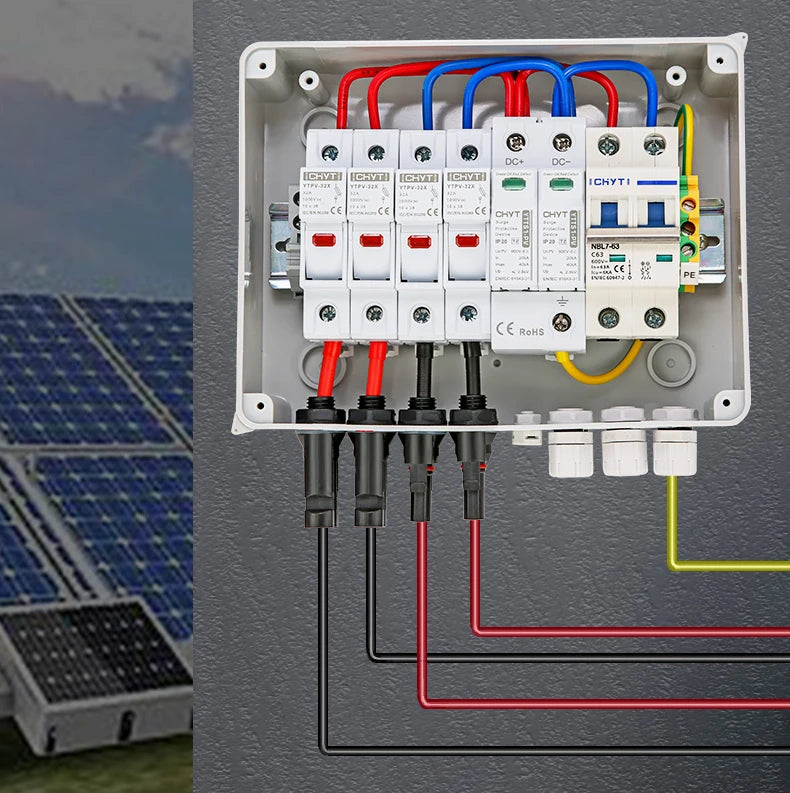

- Two in, one out: two string inputs combined to a single output pair. One configuration only — there is no larger version of this listing.

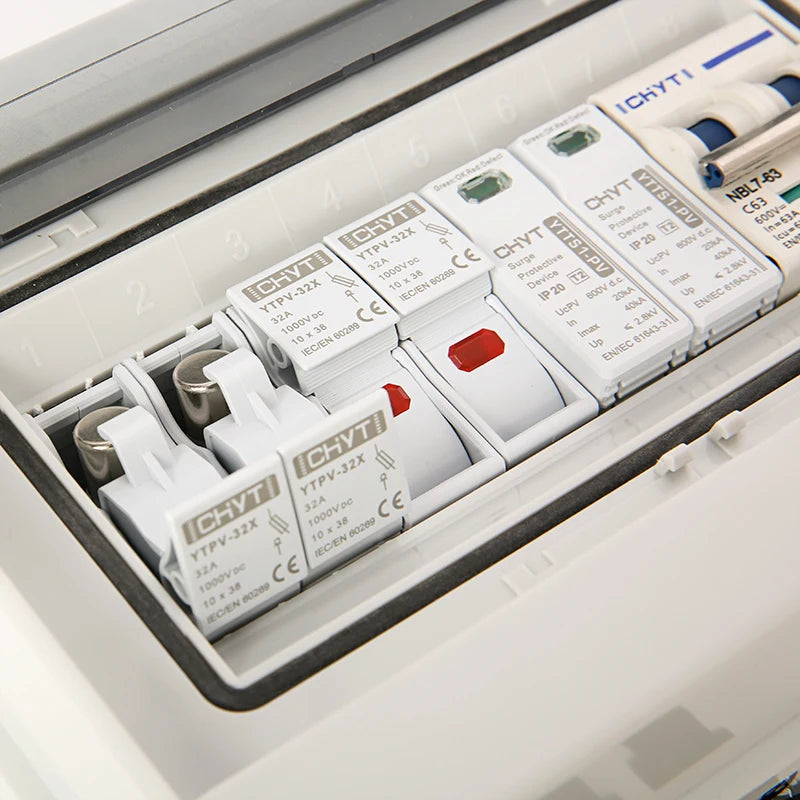

- Per-string fusing: a 1000V-rated fuse holder on each string, supplied with a 15A fuse fitted.
- DC-rated breaker: 2-pole DC 600V/63A MCB on the output, so both poles break together.
- Surge protection: 2-pole DC 600V SPD to divert lightning-induced surges away from the controller.
- 600V is the real limit: the breaker and SPD are 600V DC parts, so size your string voltage to 600V, not to the fuse holder's 1000V marking.

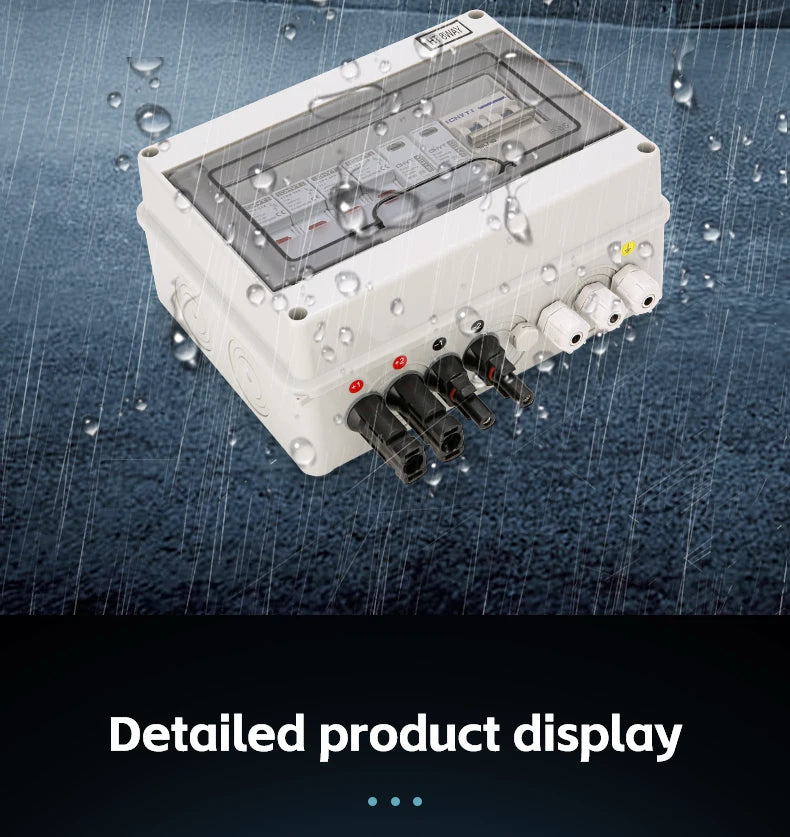

- Weatherproof enclosure: supplier copy states IP65. We have not sighted a test report, so treat it as the supplier's claim.
- DC parts, not AC parts: DC arcs don't self-extinguish the way AC does — the breaker and SPD in here are DC-rated, which an AC consumer-unit breaker is not.

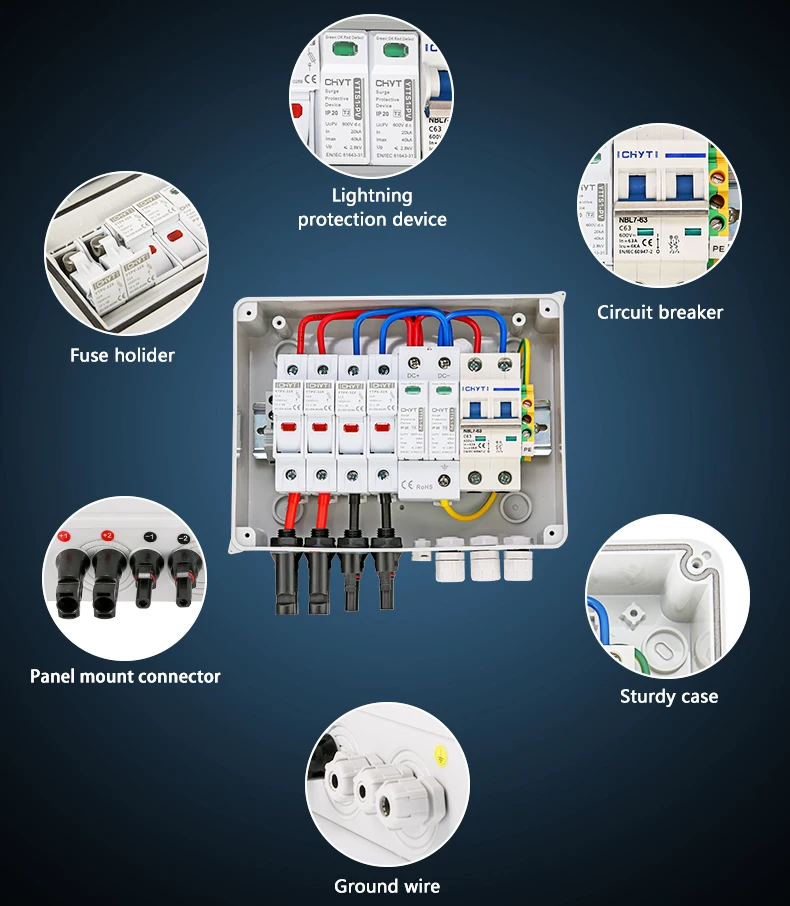

- Everything in one box: fusing, isolation and surge protection in a single enclosure instead of three separate boxes on the wall.
- SPD needs an earth: a surge protector only works if its earth terminal is bonded to a proper earth. Without that it does nothing.
Where This Fits
This is one part of the gear that sits between a wind turbine and your battery bank. Here's the whole picture:
- Wind turbines: vertical axis turbines from 1kW to 10kW — quiet enough to put near the house, and they charge overnight when your solar can't.
- Hybrid MPPT controllers: you can't wire a turbine straight to a battery. The controller rectifies the output, manages the charge, and brakes the turbine when the bank is full.
- The rest of the electrical range: bus bars, breakers, isolators, cable, lugs and Anderson plugs.
Every input and output wants a breaker or isolator on it, so you can safely shut down and isolate the turbine before you touch anything. That protects you, and it stops a surge damaging your new turbine or the rest of your power system. Cable sizing depends on your run length, voltage and current — if you're building 12V or 24V, check the sizing against your own run or ask your sparky.
Q & A
Can I run a 1000V string through this because the fuse holder says 1000V?
No. The fuse holder is a 1000V part, but the MCB and the SPD next to it are 600V DC. The lowest-rated component sets the limit for the whole box, so 600V DC is the ceiling. The supplier never published an overall system voltage rating for the box, which is why you won't find one in our spec table. Calculate your array's open-circuit voltage at your coldest expected temperature and keep it comfortably under 600V, or pick a box with a stated 1000V rating throughout.
How many panels can I put on each input?
The fusing is 15A per string, so the panel short-circuit current for one string needs to sit below that with margin — most single strings of standard panels do. The number of panels in series is limited by voltage, not current, and that's the 600V figure above. Series count and voltage is the calculation that matters here.
Does the surge protector work on its own?
No. An SPD diverts surge energy to earth, so it only does its job if the earth terminal is bonded to a real earth electrode. Wire it into a box with no earth connection and you have a component that looks like protection and isn't.
Can I mount it outside on a pole or a shed wall?
Supplier copy says IP65, which would suit an outdoor wall. We have not sighted a test report and the mounting arrangement, enclosure material and gland sizes were not specified, so if it's going somewhere exposed, check the box in hand before you drill.
Do I need a licensed electrician for this?
PV work in Australia is regulated and the rules vary by state and by whether the system is grid-connected. Talk to a licensed sparky before you wire an array, particularly around earthing the SPD. Advice above is general and not a substitute for that.
What's actually in the box when it arrives?

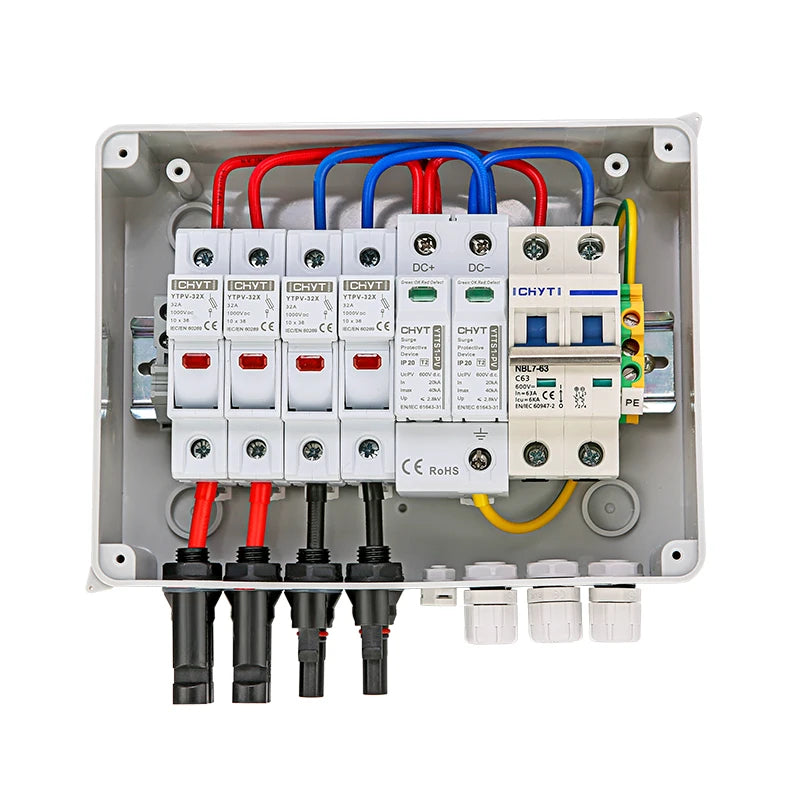

One enclosure with two fuse holders and 15A fuses fitted, a 2-pole DC 600V/63A MCB and a 2-pole DC 600V SPD. Cable, glands beyond what is fitted, connectors and the earth conductor are not listed as included.
Specs
| Specification | Detail |
|---|---|
| Configuration | 2 string inputs, 1 output (only configuration sold) |
| Maximum system voltage | Not specified by supplier — the 600V DC MCB and 600V DC SPD are the limiting components, so treat 600V DC as the ceiling |
| Fuse holder rating | 1000V rated holder (higher than the rest of the box — not the system limit) |
| Fuse fitted | 15A per string |
| Circuit breaker (MCB) | 2-pole, DC 600V, 63A |
| Surge protective device (SPD) | 2-pole, DC 600V |
| SPD class / discharge current | Not specified by supplier |
| Fuse type and size | Not specified by supplier |
| Ingress protection | IP65 stated in supplier copy; no test report sighted |
| Enclosure material | Not specified by supplier |
| Enclosure dimensions | Not specified by supplier |
| Cable gland size | Not specified by supplier |
| Terminal / conductor capacity | Not specified by supplier |
| Mounting method | Not specified by supplier |
| Weight | Not specified by supplier |
| Operating temperature range | Not specified by supplier |
| Certification | Not specified by supplier |
| Delivery | Free delivery to Australia and New Zealand, no minimum spend. 10 to 14 days from order date, allow up to 3 weeks |
Watch Me
Everything we know about this one is written down: the Specs for the supplier's published figures, and the Q & A for the questions buyers ask before they order.
