Wind Turbine FAQs
-
Start with two questions: how much wind does your site actually get, and how much room do you have.
Vertical turbines (X-300, T-500W, and the H12 and HPRO series) start turning in about 2 m/s and take wind from any direction, so they suit rooftops, suburban blocks and anywhere the wind swirls and shifts. They run from 300 W up to 2000 W.
Horizontal turbines (S-400W, M-600W, M-800W, and the L1, L2 and G series) want cleaner, steadier wind and a clear run at it. They scale further — 400 W up to 5000 W — and most of them survive heavier weather.
Match the turbine to your battery bank, not to the biggest number. 12 V suits a camper, 4WD or tinnie; 24 V a van, cabin or boat; 48 V a shed or remote block. The largest models run at 220 V, and the L2-3000, G-3000 and G-5000 are ground-mount only — they need a 10–15 m mast and are not rooftop units.
Rated power is measured at 10–12 m/s. What you get at your place depends on your wind, your mast height and the season — not on a number on our website.
-
No.Wind turbines generate "wild" 3-phase AC power that changes voltage constantly with the wind speed. Connecting it directly to a battery or a standard solar inverter will instantly destroy your equipment. Youmustwire the turbine into a dedicatedWind/Solar Hybrid MPPT Controller with an integrated Dump Load Resistor. The controller converts the power to stable DC to charge your batteries safely.
-
You must match the turbine and its hybrid controller to the exact voltage of your existing battery bank:
- 12V: Best for compact mobile setups like caravans, 4WDs, and camper trailers.
- 24V: Great for medium-sized setups like off-grid sheds, cabins, and motorhomes.
- 48V: The gold standard for full off-grid home systems. Higher voltage means less energy loss through your wires and allows you to use thinner, safer cables.
-
When your battery bank becomes 100% fully charged, it stops accepting power. If a heavy wind storm hits at night when your batteries are full, a turbine with nowhere to send its power will "free-spin" out of control and physically fly apart. A hybrid controller fixes this by automatically diverting that excess power into the dump load resistor, which burns it off safely as heat and acts as an electronic brake to slow the turbine down.
-
No,that is the main benefit of the vertical design. Traditional horizontal "propeller" turbines create a high-pitched, annoying "chopping" noise. Our ST Tulip and Flower series utilise advanced omnidirectional maglev-style bearings, making them virtually silent and completely vibration-free, all you will hear is the wind. They are perfect for suburban blocks, tight caravan parks, and areas close to neighbours.
-
It will turn, but turning is not charging. The blades start rotating at about 1.5 m/s — a light breeze. Charging starts once the wind clears the cut-in speed of about 3.5 m/s, and output climbs from there — the rated figure is measured at 13 m/s (about 47 km/h). A gentle breeze keeps the turbine ticking over; it takes real wind to push real power into your batteries.
-
You should connect the wind turbine to a battery bank first, via a dedicated charge controller, rather than directly to an inverter. Connecting a wind turbine directly to a standard inverter will damage the equipment or cause the system to fail.
🔋 The Correct Wiring SequenceTo safely capture and use the power, your setup must follow this exact order:
- Wind Turbine: Generates wild, fluctuating 3-phase AC power as wind speeds change.
- Hybrid/Wind Charge Controller: Converts the unstable AC power into steady DC power. It also protects the turbine from over-speeding by applying an electronic brake during high winds.
- Battery Bank (12V/24V/48V): Acts as a buffer to store the energy. It absorbs sudden power spikes from wind gusts and provides a steady source of energy.
- Off-Grid Inverter: Connects to the battery, converting the stored DC battery power into standard AC power for your household appliances.
⚠️ Why You Cannot Skip the Battery
- Unstable Voltage: Wind speeds change second by second. Without a battery to absorb and smooth out these massive fluctuations, a direct-connect inverter would constantly turn off and error out.
- Turbine Destruction: When a battery is full or disconnected, a wind turbine loses its "load" (resistance). Without that resistance, the blades can spin out of control in high winds and physically destroy the unit. The charge controller uses the battery connection to safely dump excess power and slow the turbine down.
-
Wiring & Installation Requirement:This wind turbine generates 3-phase AC power andcannotbe connected directly to a battery, solar controller, or home inverter. To operate safely, it must run through a dedicatedWind/Solar Hybrid MPPT Controller with an integrated Dump Load Resistor. The dump load prevents the turbine from over-speeding and destroying itself in high winds once your batteries are fully charged.
-
It is almost always one of three common installation issues. Check them in order:
1. Your multimeter is set to DC (the most common mistake).
- The issue: measuring the three turbine wires with the meter set to DC volts.
- The reality: wind turbines generate 3-phase AC power directly from the stator.
- The fix: switch your multimeter to AC volts (V~). Testing these wires on a DC setting gives a false reading near zero.
2. The turbine is stalling because of a short.
- The issue: the blades turn heavily and slowly, or lock up.
- The reality: if any of the three AC output wires touch each other, or the controller’s internal braking diodes have short-circuited, it acts as a magnetic brake — the turbine can never spin fast enough to build voltage.
- The fix: completely disconnect the turbine from the controller. If it suddenly frees up and spins much faster, the problem is a short in the wiring or a faulty controller.
3. Voltage drop from thin cables.
- The issue: thin wire run a long way from the tower to the battery shed.
- The reality: thin solar or automotive cable over a long run (20 metres or more) loses the power as heat in the wire before it reaches the controller.
- The fix: use heavy cable between the mast and the controller on long runs — minimum 8 AWG, ideally 6 AWG.
-
Because the number on the box is a peak rating, not a promise. A turbine’s rated output is measured at a specific wind speed — for these models that is 13 m/s, about 47 km/h — and most sites see far less most of the time. Your display shows what the wind is delivering right now, so it will sit well below the rated figure and move second by second with the wind. That is physics, not a fault.
Where these turbines earn their keep is time: they keep charging through the night and through weather that shuts solar down. If the display shows 0 W while the blades are spinning, that is a different issue — see the 0 W question below.
-
Not necessarily — this is one of the most common questions we get, and it's rarely a faulty unit. It's usually a quick settings check, or (on a first-time install) how the wiring and start-up sequence were done. See our full Wind Turbine 0W Troubleshooting & Installation Guide for the complete walkthrough, or contact us and we'll help you sort it out.
-
Short answer: wire your bus bar and breakers before and after the controller, then power up in the right order — battery first, then solar, then wind. Getting the sequence right prevents almost all wiring issues, including the common “spinning but 0 W” problem.
Correct installation comes down to isolation and the right sequence:
- Fit a breaker before the controller (turbine/solar side) and after it (battery side), landing on a DC bus bar
- Keep the turbine-to-controller cable run to 2–10 metres to limit voltage drop
- Power up in this order: battery breaker first, then solar, then wind turbine last
See our full How to Install & Start Up guide for the complete step-by-step walkthrough and wiring diagram.
H12-2000 Vertical Wind Turbine — 2000 W at 12 m/s, 48 V
Tracking
Tracking
Keep an eye on your gear.
Simply enter the tracking number sent to your email to see exactly where your package is and when it is estimated to arrive.
Note: It may take 24-48 hours for tracking information to update after your order has been dispatched.
H12-2000 Vertical Wind Turbine — 2000 W at 12 m/s, 48 V
Two kilowatts that don't care which way the wind blows.
On a working property the wind rarely arrives clean. Sheds, silos, tree lines and machinery all chop it into gusts that swing through every point of the compass — and a conventional turbine wastes half of that weather swinging around trying to face it. Meanwhile the battery bank behind the workshop keeps sagging, and the generator burns another jerry can.
The H12-2000 is the bigger of our two H-type vertical axis wind turbines — five aluminium alloy blades standing upright around a central generator on a die-cast aluminium body, with a printed rotor size of 1.55 m / 2.4 m. Because the rotor is vertical it takes wind from any direction, with no yaw mechanism to swing or wear: 360° auto windward, in the manufacturer's words. It starts working at 2.5 m/s and is built for properties, farms and off-grid work sites. Unlike the smaller H12-1000, this model runs a 3-phase AC external-rotor generator — a different machine inside, not just a scaled-up one.
Straight up about the numbers: the 2000 W rating is measured at 12 m/s — a 43 km/h wind, not a normal afternoon breeze. The manufacturer publishes no power curve for any of its vertical-axis machines, so we cannot show you an output table for this one. We could calculate one and present it as measured — plenty of sellers do exactly that — but we would rather tell you it is missing. What the maker does publish: 2000 W at 12 m/s, a maximum of 2,100 W, charging from 2.5 m/s. On a normal usable breeze expect a fraction of the rated figure, working around the clock. Treat it as a serious charging assist for a big battery bank, not a stand-alone power station.
What It Solves
- The chopped-up farmyard wind: sheds and tree lines gust wind from every direction. A vertical rotor takes all of it without turning to face any of it.
- The bank that never quite recovers: a 48 V shed or homestead bank that solar alone can't hold up through winter gets fed day and night, in any weather with wind in it.
- The grey winter week: the fronts that flatten your solar for days are exactly the weather this machine works hardest in.
- The diesel bill: every hour of breeze is fuel you have not hauled to the block and a generator service you have not done.
- The site nobody visits: telecom and monitoring installations that need real charging capacity without anyone there to point, adjust or maintain a yaw system.
Key Features
- Takes wind from any direction: 360° auto windward — no yaw mechanism to hunt in shifting gusts or wear out.

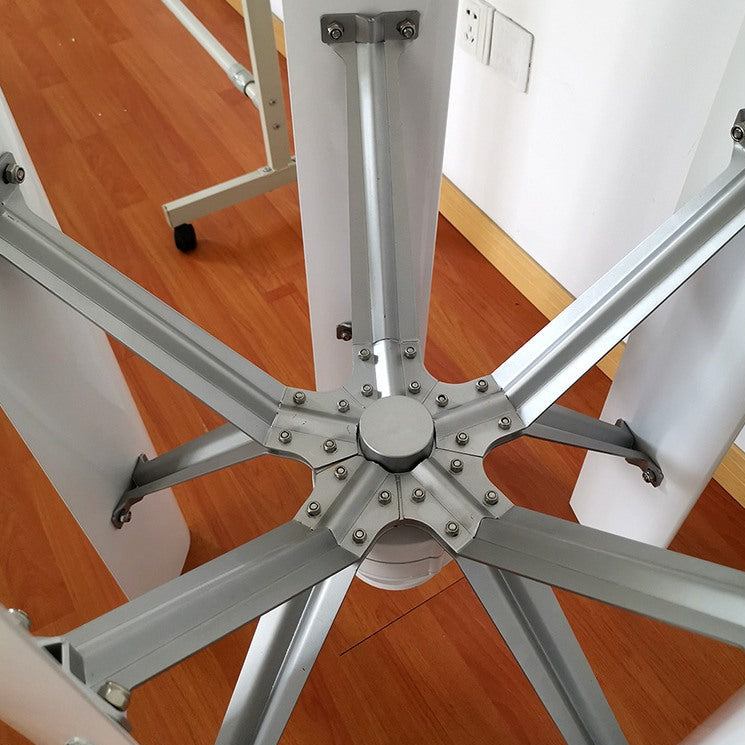

- Five-blade H-type rotor: aluminium alloy blades on a die-cast aluminium body, printed rotor size 1.55 m / 2.4 m.

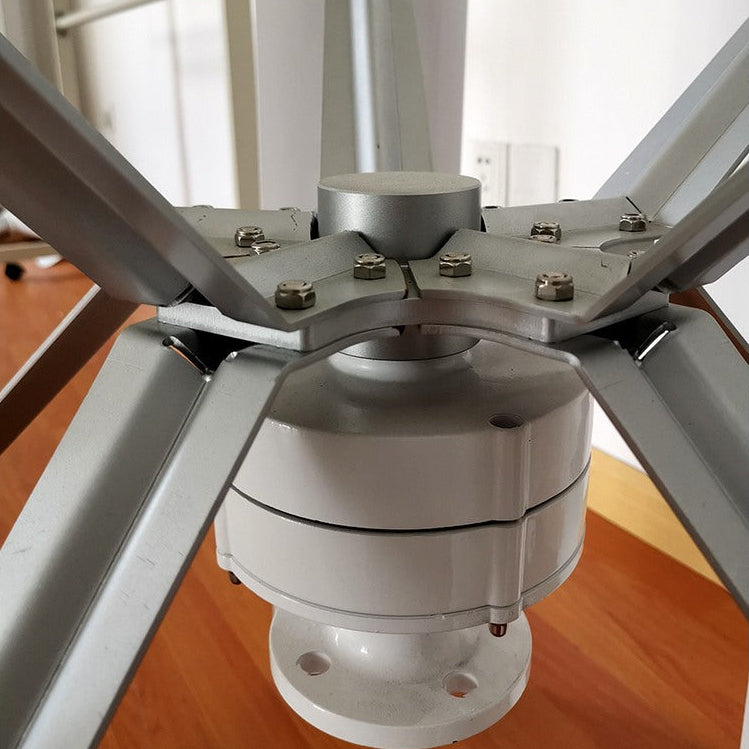

- External-rotor generator: 3-phase AC external-rotor build with NdFeB magnets, IP54 protected — a different generator from the H12-1000's synchronous unit, as the maker specifies it.
- Starts at 2.5 m/s: the maker publishes a single combined start-up / cut-in figure of 2.5 m/s (9 km/h).
- Built to survive 45 m/s: that is 162 km/h. If your site regularly sees worse, this is the wrong machine for it and we would rather say so.
- Two layers of protection: electromagnetic brake for overspeed, controller over-current protection plus dump load for overload.
- 48 V system: made for a 48 V battery bank — the voltage most serious off-grid banks now run.
- Two controller choices: the HCM wind-solar hybrid (runs panels too) or the heavy-duty pure-wind WW20-48-48 MPPT with a real, published 42 A output rating — pick either as a kit, or take the turbine only.
Kit, Or Turbine Only
The hybrid kit pairs the turbine with the manufacturer's matched wind-solar hybrid controller, the LHCM2-1/48V. The hybrid part matters: wind charges through MPPT, and the same box takes a solar array on a PWM input — one controller runs both. One honest caveat: the manufacturer publishes only series-level figures for this controller, not model-level ones — the Specs tab says so plainly rather than dressing series numbers up as measurements.
Never going to run solar? Pick With Pure-Wind Controller and the kit ships the manufacturer's heavy-duty pure-wind MPPT unit instead — the WW20-48-48, with a separate dump-load box. Wind only, no PV input at all — and it is the one controller in this range with a genuinely published current rating: 42 A maximum output. Full details in the Specs tab.
Odd but true: the manufacturer prices the pure-wind unit above the hybrid for this model. That is their pricing, published as printed — not a mistake on our page.
Already have a controller rated for this turbine? Pick Turbine only.
What Else You'll Need
A turbine on a pole is half a system. The other half is a mast in clean air, cable sized for the run, breakers and an isolator, a dump load (included with the kit controllers) and a battery bank to feed. Cable sizing depends on run length, voltage and current — that is your electrician's call, not a line on a product page. Browse bus bars, breakers and wiring in the Electrical Supplies collection, and the full controller range here.

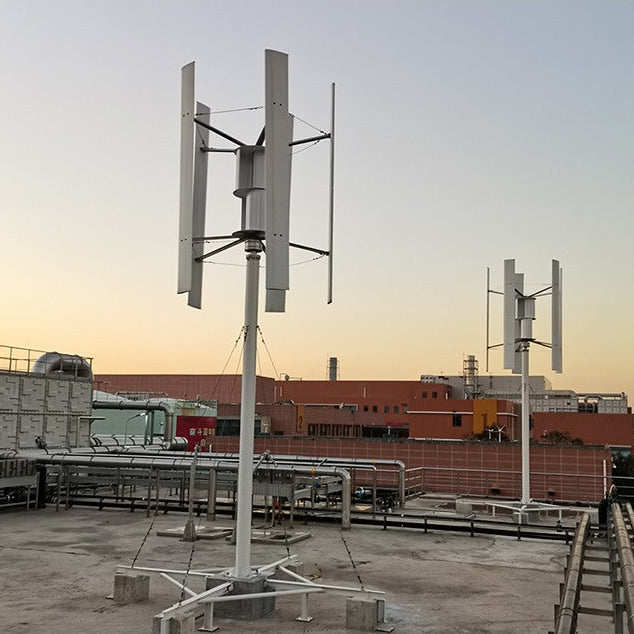

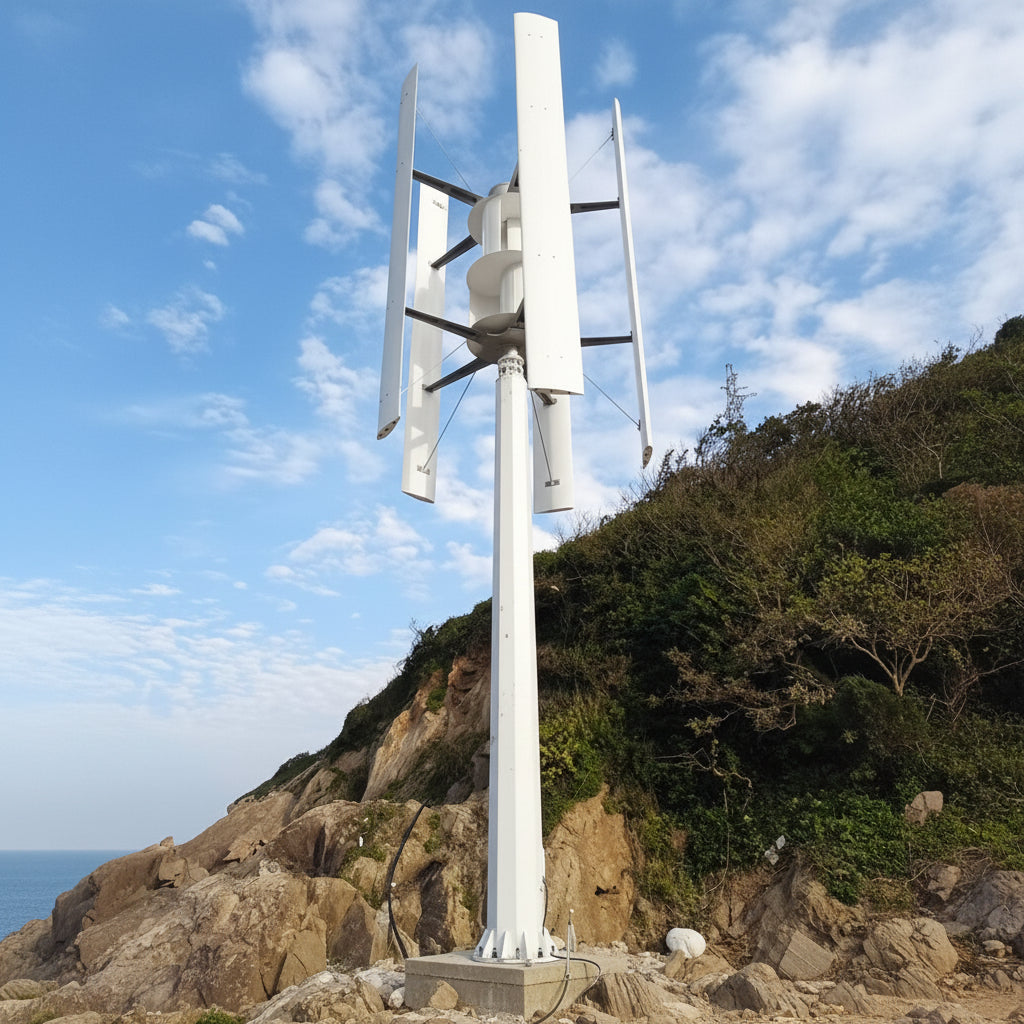

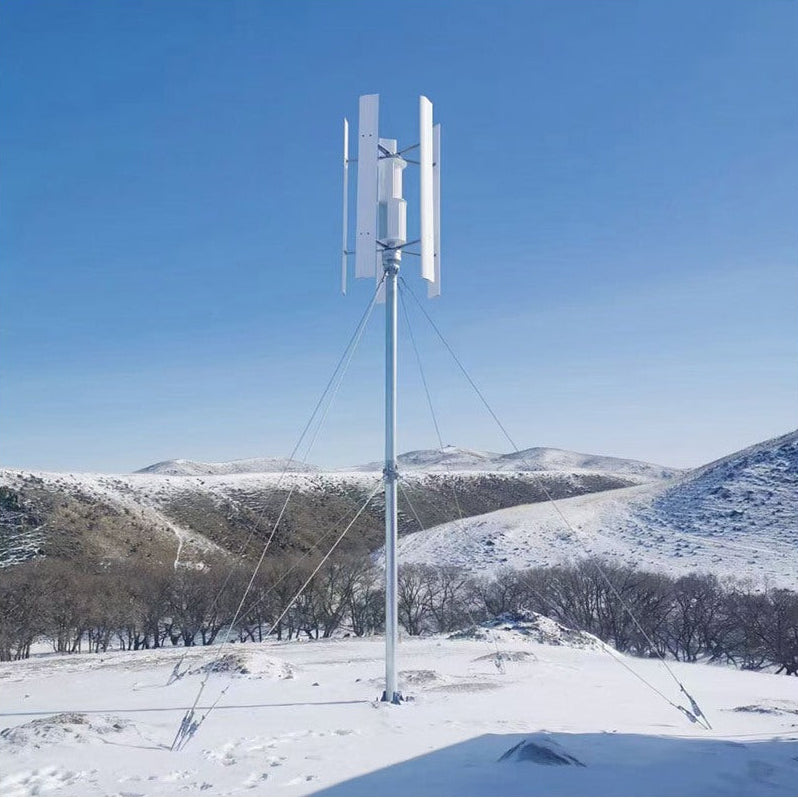

Representative photos: the manufacturer supplies one set of photographs per turbine family, not per model. The H12-2000 you receive is this five-blade design, at the sizes in the spec table.
Q & A
Will it really make 2000 watts?
At 12 m/s — a 43 km/h wind — that is the manufacturer's rating, with a published maximum of 2,100 W. On a normal usable breeze you will see a fraction of that, working day and night. The manufacturer publishes no power curve for its vertical machines, so we will not print an output table we cannot source — size your expectations conservatively and treat the machine as an around-the-clock assist for a solar bank.
Why a vertical axis turbine instead of a normal one?
A horizontal turbine must face the wind, so on a turbulent site it spends its time swinging back and forth chasing gusts. An H-type vertical rotor takes wind from any direction without moving anything — no yaw mechanism, nothing to hunt, nothing to wear. In clean, steady, open-country wind a horizontal machine of the same rating is usually the better harvester; in the chopped-up wind around sheds, trees and buildings, the vertical layout earns its keep. If your site is open and laminar, look at our L-series horizontals instead — honestly.
What charging current do the controllers handle?
The pure-wind WW20-48-48 has a genuinely published figure: 42 A maximum output current, printed by the manufacturer for this exact model. The hybrid LHCM2-1/48V does not — no charging current is published anywhere for the HCM series, and we will not calculate one by dividing watts by volts. Either way, do not size cable or breakers from the wattage in any product title — that is your electrician's job, from the real figures.
Why is the pure-wind controller dearer than the hybrid?
We noticed it too — for this turbine the manufacturer prices the WW20-48-48 pure-wind unit above the LHCM2-1/48V hybrid, the reverse of the smaller H12-1000. The WW20 is a heavier-duty box from their 2–5 kW controller series with a published 42 A rating; the hybrid buys you the solar input. We publish their prices as printed and leave the choice with you.
Is the cable from the turbine AC or DC?
AC. The turbine generates 3-phase AC, and the rectifier inside the controller converts it to DC to charge the battery. A generator is not a battery: the voltage on that cable rises with rotor speed, which is exactly why the matched controller is built to take more than the nominal battery voltage on its input. Cable selection and protection are your electrician's job.
Can I mount it on the roof?

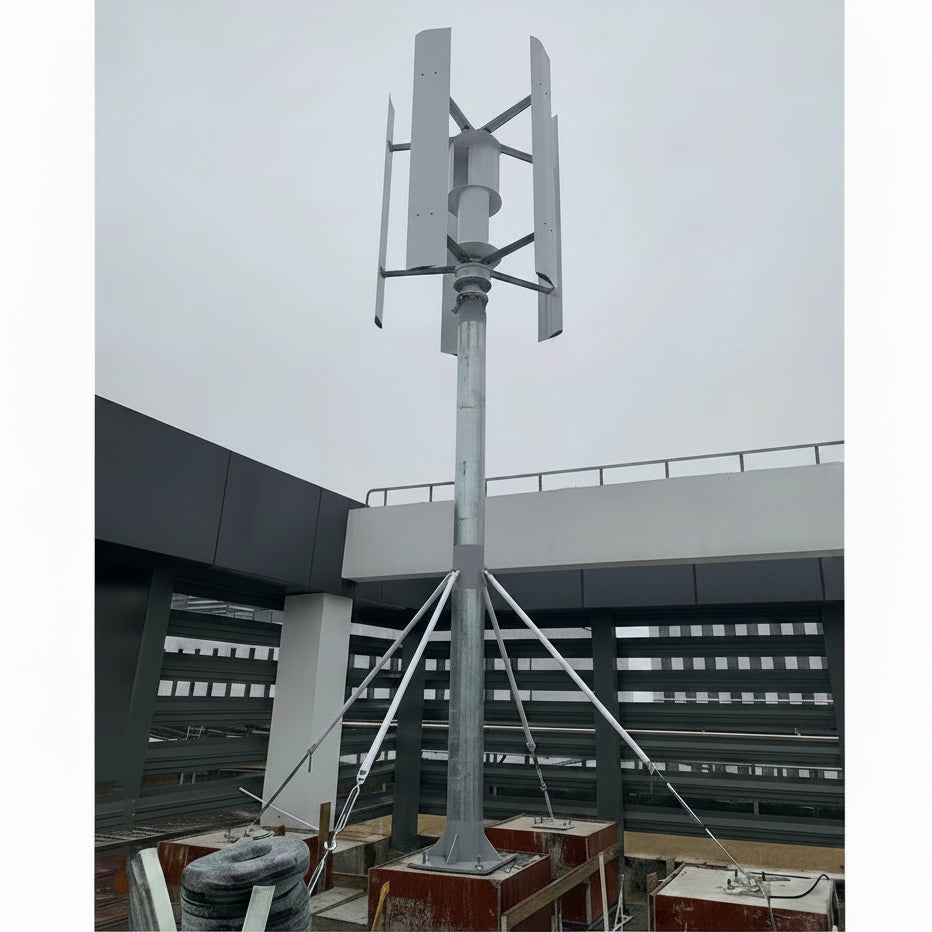

The maker rates it for 3 to 6 m above the roofline, or 6 to 10 m on a ground mast. Be aware this is a substantial machine — it ships at 170 kg gross, and the manufacturer has not published the bare net weight — so have your installer confirm the structure can carry it before committing to a rooftop mount. On a working property, a ground mast in clean air is usually the better installation anyway.
What happens to it in a storm?
The electromagnetic brake and the controller's overspeed protection wind it back, and the machine is built to survive 45 m/s (162 km/h). If your site regularly sees more than that, do not put this turbine on it.
What is the warranty position?
Twelve months. Professional installation by a licensed electrician is a condition of it — keep the electrician's invoice with your paperwork. Be aware the manufacturer treats blade damage from consistently extreme wind, and motor burnout after prolonged high-speed running, as case-by-case assessments rather than automatic cover.
How long until it arrives?
Built to order and sea-freighted — allow 6 to 8 weeks. Delivery is free to Australia and New Zealand. The turbine ships as two boxes — the longer one is 2.5 m, so plan how you will move it on site — and the kit controller adds its own packaging.
Specs
| Specification | Detail | ||
|---|---|---|---|
| Rated power | 2000 W at 12 m/s (43.2 km/h) | ||
| Maximum power output | 2,100 W | ||
| Rated voltage | 48 V | ||
| Maximum voltage output | 52.8 V | ||
| Start-up / cut-in wind speed | 2.5 m/s (9 km/h) — the manufacturer publishes one combined figure | ||
| Rated wind speed | 12 m/s (43.2 km/h) | ||
| Survival / safe wind speed | Up to 45 m/s (162 km/h) | ||
| Wind wheel / rotor diameter | Printed by the manufacturer as "1.55 m / 2.4 m" — we publish it as printed | ||
| Rotor height | 2.4 m (2400 mm) | ||
| Number of blades | 5 | ||
| Blade material | Aluminium alloy | ||
| Body material | Die-cast aluminium | ||
| Magnet material | NdFeB | ||
| Generator type | 3-phase AC external rotor generator | ||
| Over-speed protection | Electromagnetic brake | ||
| Overload protection | Controller over-current protection + dump load | ||
| Wind direction adjustment | 360° auto windward — no yaw mechanism | ||
| Generator protection grade | IP54 | ||
| Working temperature | -20°C to +50°C | ||
| Working humidity | 0-90% RH (non-condensing) | ||
| Mount height | Ground: 6-10 m; rooftop: 3-6 m above the roofline | ||
| Design life | 20+ years | ||
| Warranty | 1 year | ||
| Colour | White | ||
| Net weight | Not specified by supplier | ||
| Gross weight | 170 kg | ||
| Packing | Two boxes — 2.5 m × 300 × 300 mm and 1.2 m × 400 × 400 mm | ||
| Certification | CE marked to the Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU and Machinery Directive 2006/42/EC. Tested to EN 61400-2 (small wind turbines), EN ISO 12100 and EN 60204-1. CE is a European mark and carries no legal standing in Australia. | ||
The Hybrid Kit Controller — LHCM2-1/48V
Wind-solar hybrid: the turbine charges through MPPT and a solar array connects to the same unit on a PWM input. Honesty note: the manufacturer publishes no specification for this individual model — every figure below is an HCM series figure, and we will not dress series numbers up as model measurements.
| Specification | LHCM2-1/48V (HCM series figures) |
|---|---|
| Controller type | Wind-solar hybrid (wind MPPT + PV PWM) |
| Battery voltage | 48 V (series supports 24 / 48 / 96 / 120 / 192 V, customisable) |
| Rated wind power (series) | 1 kW – 3 kW on the series datasheet; the catalogue overview lists the series for 1–2 kW turbines — both as printed |
| Rated solar power (series) | 1 kW – 3 kW |
| Max wind input voltage | 180 V (systems below 96 V) |
| Max solar input voltage | 180 V (systems below 96 V) |
| Wind charging mode | MPPT — boost, buck or boost & buck builds exist; the manufacturer does not state which build this model is |
| Solar charging mode | PWM |
| Maximum battery charging current | Not specified by supplier — do not size cable or breakers from the wattage in the product title |
| Dump load control | Over rotate speed limiting, over voltage limiting, over current limiting, PWM |
| Protection | Battery: over-discharge, over-charge, anti-reverse connection · Wind: over rotate speed, over voltage, over current |
| Display | LCD |
| Load output | None |
| Operating temperature & humidity | -20°C to +55°C / 35-85% RH (non-condensing) |
| Quiescent power drain | 3 W or less |
| Communications | Optional RS232, RS485, GPRS or anemometer (one of four, purchased separately) |
| Controller size | 460 × 400 × 165.4 mm |
| Net weight | 14 kg |
| Warranty | 1 year |

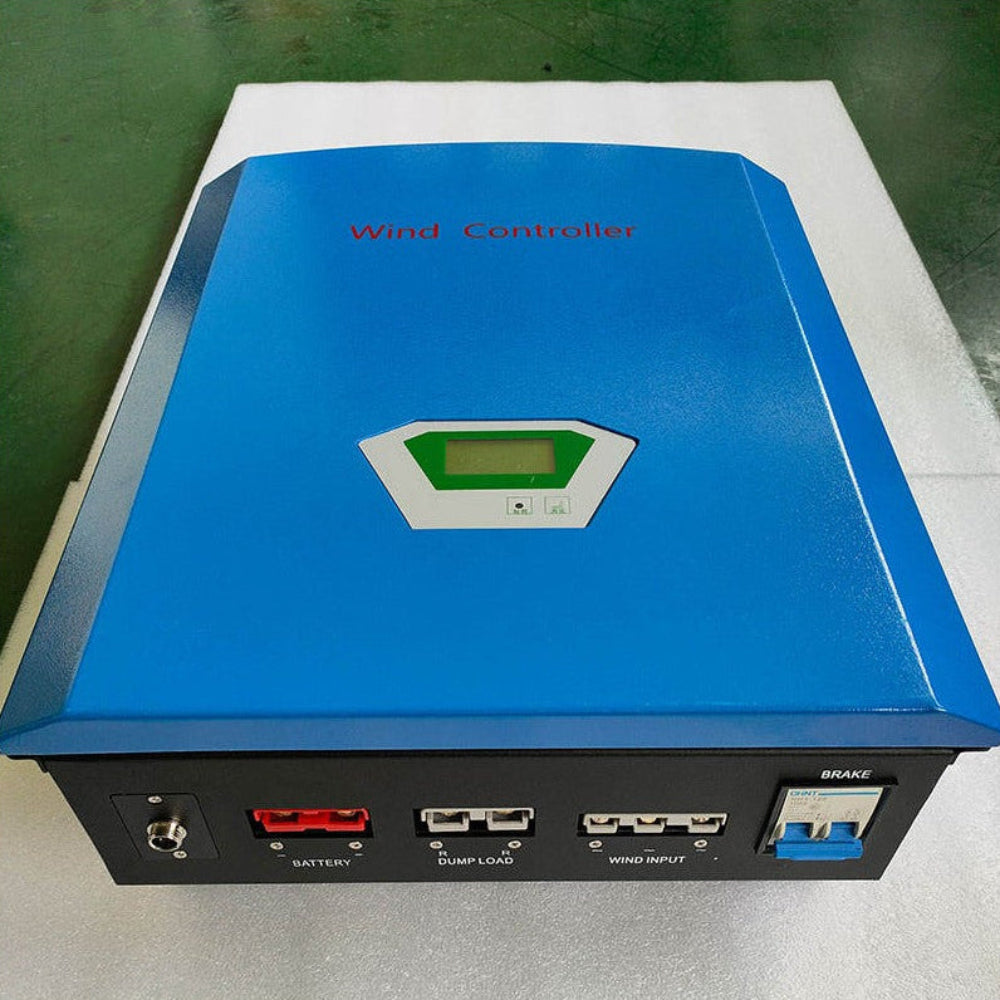

The Pure-Wind Controller Option — WW20-48-48
Heavy-duty pure-wind MPPT from the manufacturer's 2–5 kW controller series. No PV input at all — and the one controller on this page with a genuinely published current rating.
| Specification | WW20-48-48 |
|---|---|
| Controller type | Pure-wind MPPT (no PV input at all), step-up |
| Rated input power | 2 kW |
| Rated input voltage | 56 V DC |
| Wind input voltage range | 12-64 V DC; cut-in voltage 12 V DC factory setting, adjustable |
| Rated input current | 42 A |
| Max output current | 42 A — published by the manufacturer for this exact model |
| Battery voltage | 48 V DC |
| Rated output voltage | 48 V DC |
| Manual brake | Press and hold button for 5 s to fully dump; manual recovery required |
| Over-current brake | 50 A factory setting; adjustable 0-50 A; full dump and recovery after 10 min |
| Optional over-wind-speed brake | 18 m/s (64.8 km/h) factory setting; adjustable 0-30 m/s; recovery below 15 m/s after 10 min |
| Rectification | Uncontrolled rectification |
| Display | LCD |

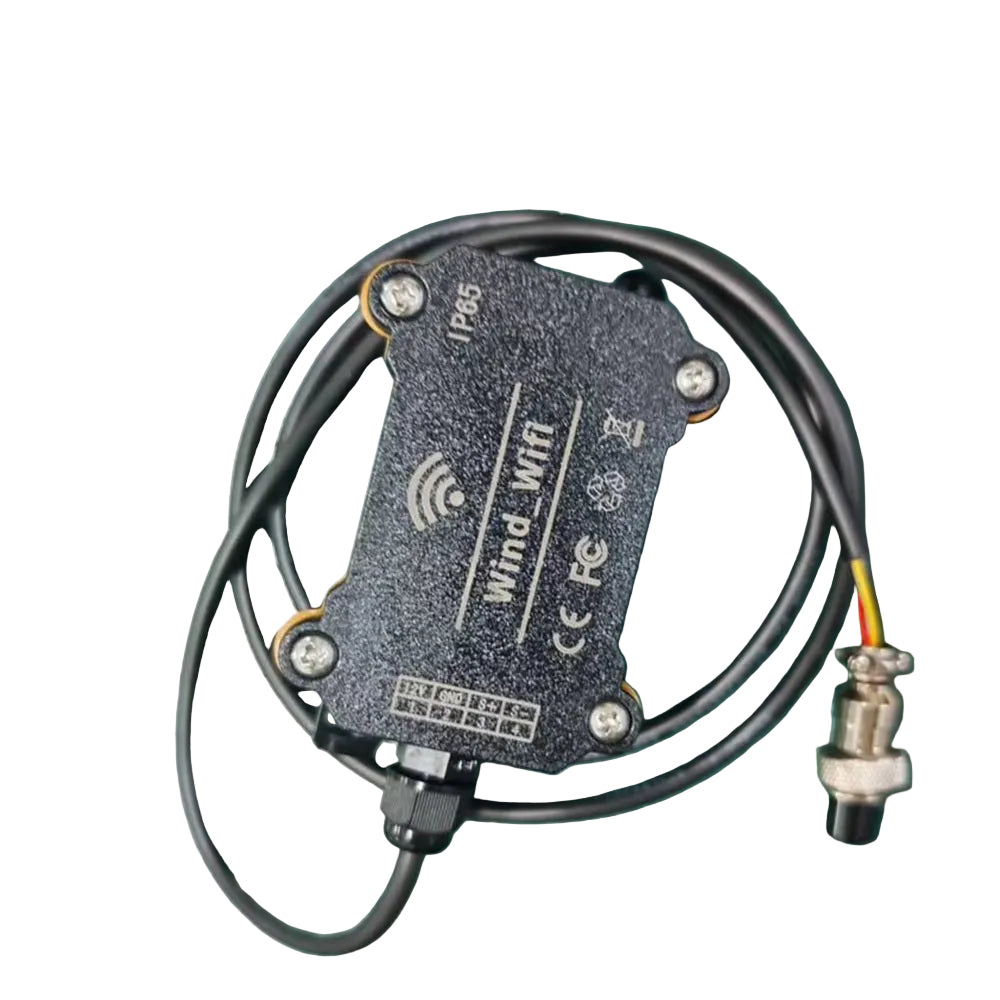

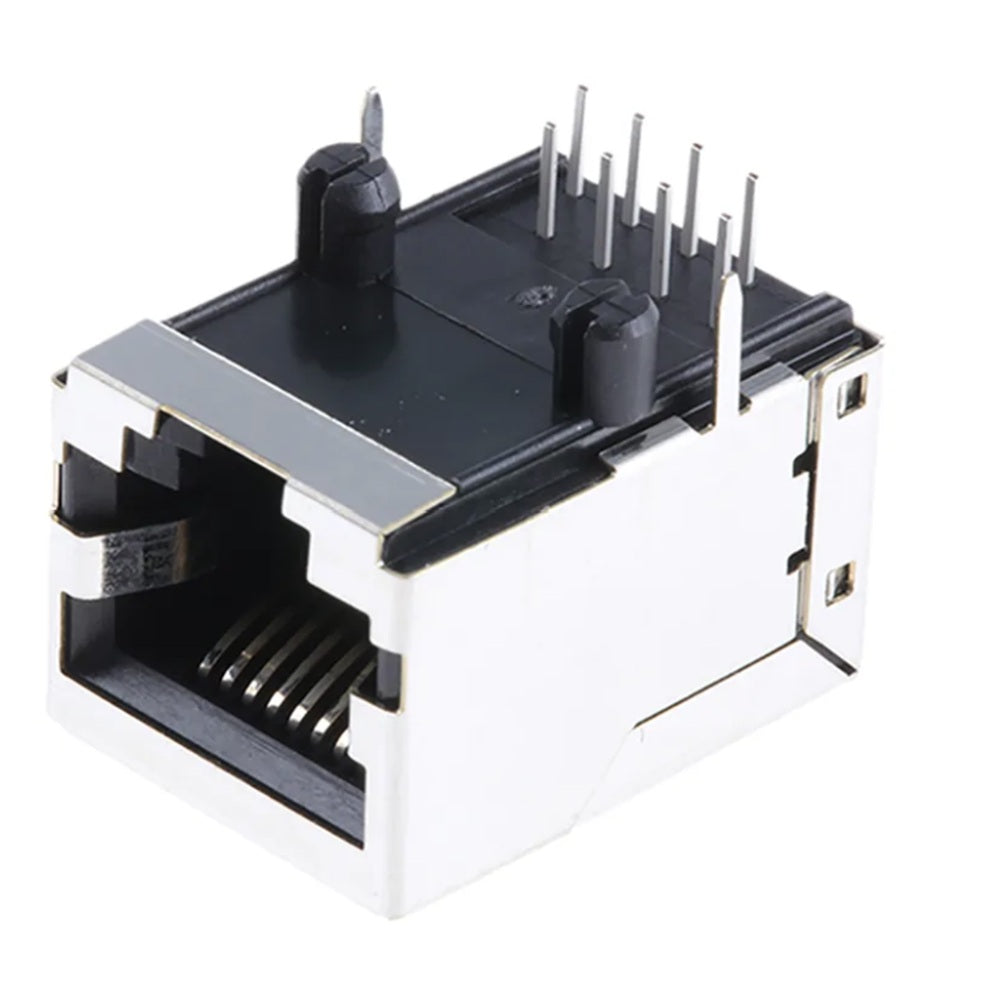

| Communications | RS485 included (confirmed by the manufacturer, Aug 2026); optional RS232 / RJ45 / GPRS / Bluetooth / Zigbee |
| Lightning protection | Yes |
| Efficiency | 92% or better |
| Static loss | Under 5 W |
| Working temperature | -20°C to +40°C |
| Working humidity | 0-90% RH (non-condensing) |
| Noise | 65 dB or less |
| Cooling / installation | Natural cooling, wall-mounted, IP42 |
| Controller size / weight | 300 × 375 × 145 mm, 10 kg |
| Dump load box | Separate box, 300 × 400 × 210 mm, 9 kg |
| Packing | Two cartons, 495 × 380 × 255 mm each; 23 kg gross |
| Warranty | 1 year |
Payment & Security
Payment Methods
Your payment information is processed securely.
We do not store credit card details or have access to your credit card information.
Wind Turbine FAQs
-
Start with two questions: how much wind does your site actually get, and how much room do you have.
Vertical turbines (X-300, T-500W, and the H12 and HPRO series) start turning in about 2 m/s and take wind from any direction, so they suit rooftops, suburban blocks and anywhere the wind swirls and shifts. They run from 300 W up to 2000 W.
Horizontal turbines (S-400W, M-600W, M-800W, and the L1, L2 and G series) want cleaner, steadier wind and a clear run at it. They scale further — 400 W up to 5000 W — and most of them survive heavier weather.
Match the turbine to your battery bank, not to the biggest number. 12 V suits a camper, 4WD or tinnie; 24 V a van, cabin or boat; 48 V a shed or remote block. The largest models run at 220 V, and the L2-3000, G-3000 and G-5000 are ground-mount only — they need a 10–15 m mast and are not rooftop units.
Rated power is measured at 10–12 m/s. What you get at your place depends on your wind, your mast height and the season — not on a number on our website.
-
No.Wind turbines generate "wild" 3-phase AC power that changes voltage constantly with the wind speed. Connecting it directly to a battery or a standard solar inverter will instantly destroy your equipment. Youmustwire the turbine into a dedicatedWind/Solar Hybrid MPPT Controller with an integrated Dump Load Resistor. The controller converts the power to stable DC to charge your batteries safely.
-
You must match the turbine and its hybrid controller to the exact voltage of your existing battery bank:
- 12V: Best for compact mobile setups like caravans, 4WDs, and camper trailers.
- 24V: Great for medium-sized setups like off-grid sheds, cabins, and motorhomes.
- 48V: The gold standard for full off-grid home systems. Higher voltage means less energy loss through your wires and allows you to use thinner, safer cables.
-
When your battery bank becomes 100% fully charged, it stops accepting power. If a heavy wind storm hits at night when your batteries are full, a turbine with nowhere to send its power will "free-spin" out of control and physically fly apart. A hybrid controller fixes this by automatically diverting that excess power into the dump load resistor, which burns it off safely as heat and acts as an electronic brake to slow the turbine down.
-
No,that is the main benefit of the vertical design. Traditional horizontal "propeller" turbines create a high-pitched, annoying "chopping" noise. Our ST Tulip and Flower series utilise advanced omnidirectional maglev-style bearings, making them virtually silent and completely vibration-free, all you will hear is the wind. They are perfect for suburban blocks, tight caravan parks, and areas close to neighbours.
-
It will turn, but turning is not charging. The blades start rotating at about 1.5 m/s — a light breeze. Charging starts once the wind clears the cut-in speed of about 3.5 m/s, and output climbs from there — the rated figure is measured at 13 m/s (about 47 km/h). A gentle breeze keeps the turbine ticking over; it takes real wind to push real power into your batteries.
-
You should connect the wind turbine to a battery bank first, via a dedicated charge controller, rather than directly to an inverter. Connecting a wind turbine directly to a standard inverter will damage the equipment or cause the system to fail.
🔋 The Correct Wiring SequenceTo safely capture and use the power, your setup must follow this exact order:
- Wind Turbine: Generates wild, fluctuating 3-phase AC power as wind speeds change.
- Hybrid/Wind Charge Controller: Converts the unstable AC power into steady DC power. It also protects the turbine from over-speeding by applying an electronic brake during high winds.
- Battery Bank (12V/24V/48V): Acts as a buffer to store the energy. It absorbs sudden power spikes from wind gusts and provides a steady source of energy.
- Off-Grid Inverter: Connects to the battery, converting the stored DC battery power into standard AC power for your household appliances.
⚠️ Why You Cannot Skip the Battery
- Unstable Voltage: Wind speeds change second by second. Without a battery to absorb and smooth out these massive fluctuations, a direct-connect inverter would constantly turn off and error out.
- Turbine Destruction: When a battery is full or disconnected, a wind turbine loses its "load" (resistance). Without that resistance, the blades can spin out of control in high winds and physically destroy the unit. The charge controller uses the battery connection to safely dump excess power and slow the turbine down.
-
Wiring & Installation Requirement:This wind turbine generates 3-phase AC power andcannotbe connected directly to a battery, solar controller, or home inverter. To operate safely, it must run through a dedicatedWind/Solar Hybrid MPPT Controller with an integrated Dump Load Resistor. The dump load prevents the turbine from over-speeding and destroying itself in high winds once your batteries are fully charged.
-
It is almost always one of three common installation issues. Check them in order:
1. Your multimeter is set to DC (the most common mistake).
- The issue: measuring the three turbine wires with the meter set to DC volts.
- The reality: wind turbines generate 3-phase AC power directly from the stator.
- The fix: switch your multimeter to AC volts (V~). Testing these wires on a DC setting gives a false reading near zero.
2. The turbine is stalling because of a short.
- The issue: the blades turn heavily and slowly, or lock up.
- The reality: if any of the three AC output wires touch each other, or the controller’s internal braking diodes have short-circuited, it acts as a magnetic brake — the turbine can never spin fast enough to build voltage.
- The fix: completely disconnect the turbine from the controller. If it suddenly frees up and spins much faster, the problem is a short in the wiring or a faulty controller.
3. Voltage drop from thin cables.
- The issue: thin wire run a long way from the tower to the battery shed.
- The reality: thin solar or automotive cable over a long run (20 metres or more) loses the power as heat in the wire before it reaches the controller.
- The fix: use heavy cable between the mast and the controller on long runs — minimum 8 AWG, ideally 6 AWG.
-
Because the number on the box is a peak rating, not a promise. A turbine’s rated output is measured at a specific wind speed — for these models that is 13 m/s, about 47 km/h — and most sites see far less most of the time. Your display shows what the wind is delivering right now, so it will sit well below the rated figure and move second by second with the wind. That is physics, not a fault.
Where these turbines earn their keep is time: they keep charging through the night and through weather that shuts solar down. If the display shows 0 W while the blades are spinning, that is a different issue — see the 0 W question below.
-
Not necessarily — this is one of the most common questions we get, and it's rarely a faulty unit. It's usually a quick settings check, or (on a first-time install) how the wiring and start-up sequence were done. See our full Wind Turbine 0W Troubleshooting & Installation Guide for the complete walkthrough, or contact us and we'll help you sort it out.
-
Short answer: wire your bus bar and breakers before and after the controller, then power up in the right order — battery first, then solar, then wind. Getting the sequence right prevents almost all wiring issues, including the common “spinning but 0 W” problem.
Correct installation comes down to isolation and the right sequence:
- Fit a breaker before the controller (turbine/solar side) and after it (battery side), landing on a DC bus bar
- Keep the turbine-to-controller cable run to 2–10 metres to limit voltage drop
- Power up in this order: battery breaker first, then solar, then wind turbine last
See our full How to Install & Start Up guide for the complete step-by-step walkthrough and wiring diagram.
