Electrical IP65 Junction Switch Box Waterproof Dustproof
IP65 stops rain and hose spray, not immersion.
Every off-grid system ends up with joins in it. The turbine cable meets the controller cable, the solar run meets the bus bar, and somewhere out past the shed there is a connection sitting in the weather. Left in the open, that join is where the trouble starts — water tracks down the outside of the cable, sits in the joint, and the copper goes green. A corroded joint adds resistance, resistance adds heat and voltage drop, and you lose charge you already paid for. Insulation tape and a plastic bag buys you a season at best.

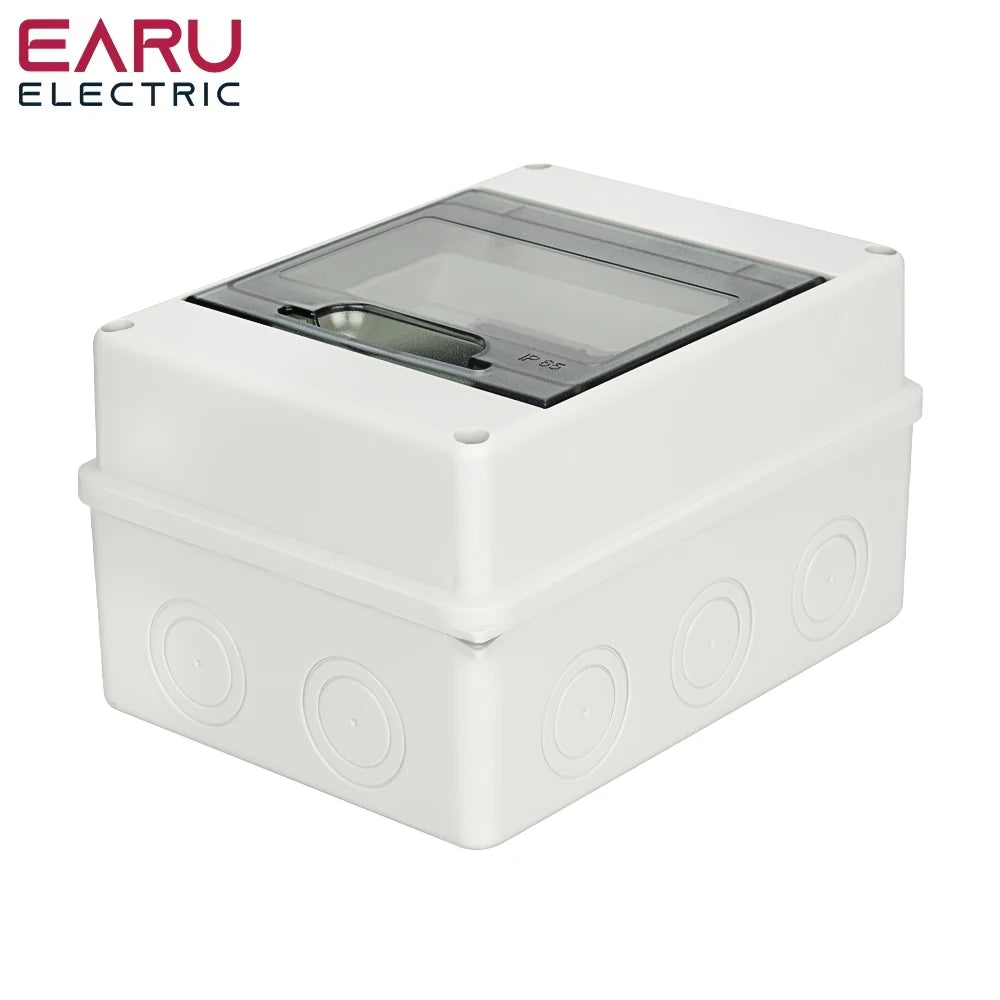

This is the box that join belongs in. It is a sealed ABS enclosure rated IP65, with a sealing ring running round the lid and knockout holes in the walls so you make your own entries where you want them. Inside there is a guide rail for rail-mount gear — breakers, isolators, terminal blocks — so the box can be a proper distribution point rather than a bag of wire nuts. Seven sizes are sold, from HT-2 up to HT-24.

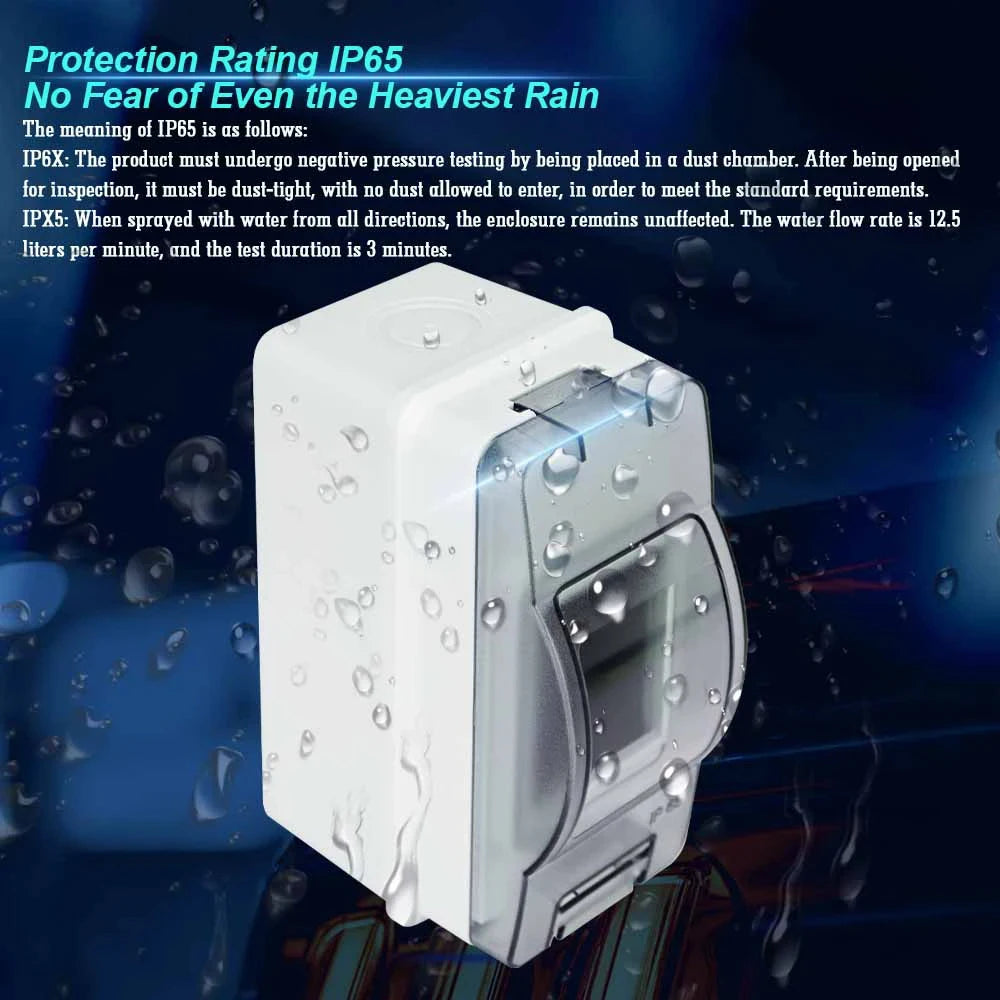

Be straight about what IP65 means, because it is the number people get wrong. The 6 is dust: fully dust-tight. The 5 is water: protected against a jet of water from a nozzle, from any direction. That is rain, hose-down and wind-driven spray. It is not IP67 and it is not IP68, so it is not rated to sit under water. If the site floods, or the box ends up in a bilge or a wheel arch that submerges, this is the wrong enclosure. It also only holds that rating if you seal your cable entries properly — the knockouts are blank until you fit a gland, and an unglanded hole is an open hole.
What It Solves
- The join out at the pole: the turbine or solar run has to meet the controller cable somewhere, and that somewhere is usually halfway across a paddock in the weather.
- Farm and site power: a pump shed, a bore or a portable site setup needs one tidy point where circuits split out, and it needs to survive being hosed down.
- Van and camper builds: underbody and rear-bar wiring cops road spray and dust every trip. A sealed box beats a wad of heatshrink cable-tied to the chassis.
- Boat and shack fitouts: salt air finds every bare terminal. Getting the joins inside a sealed enclosure slows that down.
- Somewhere to put the breakers: the guide rail lets you mount isolation gear at the point where the circuits split, instead of running everything back to the house.

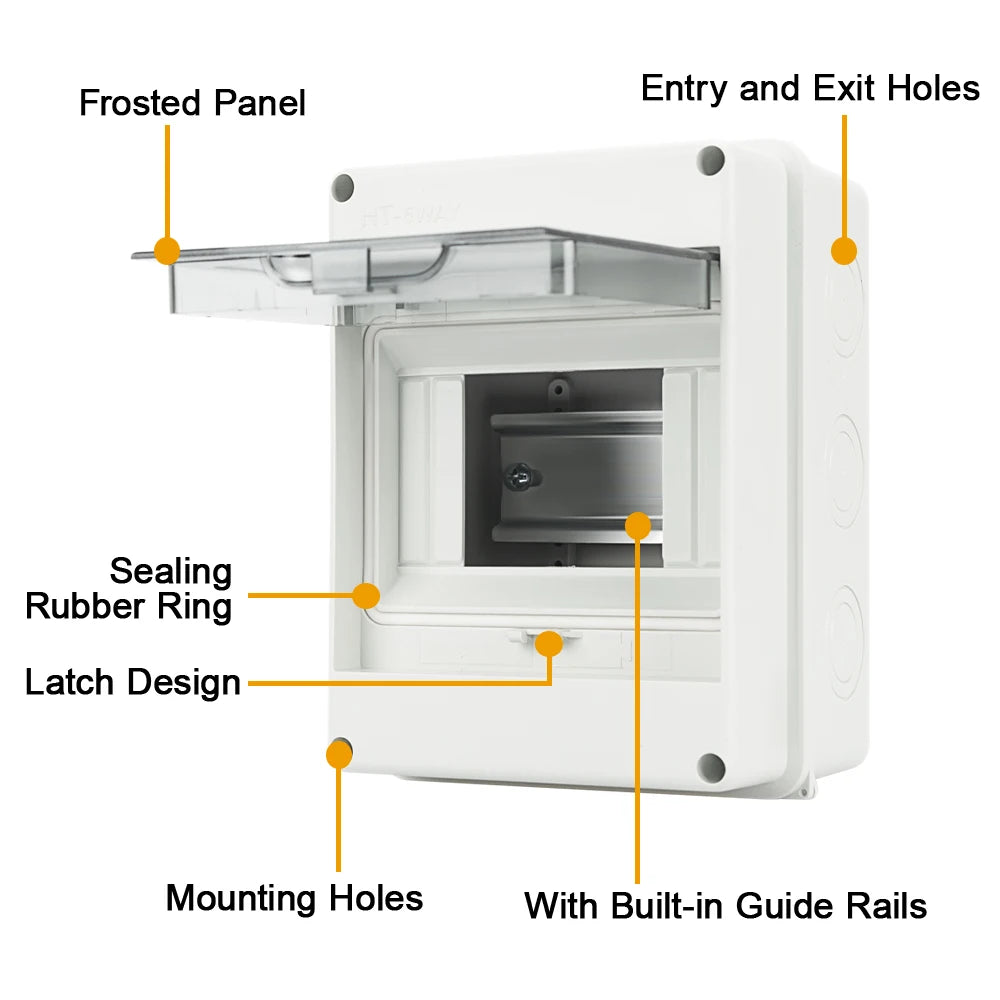

Key Features

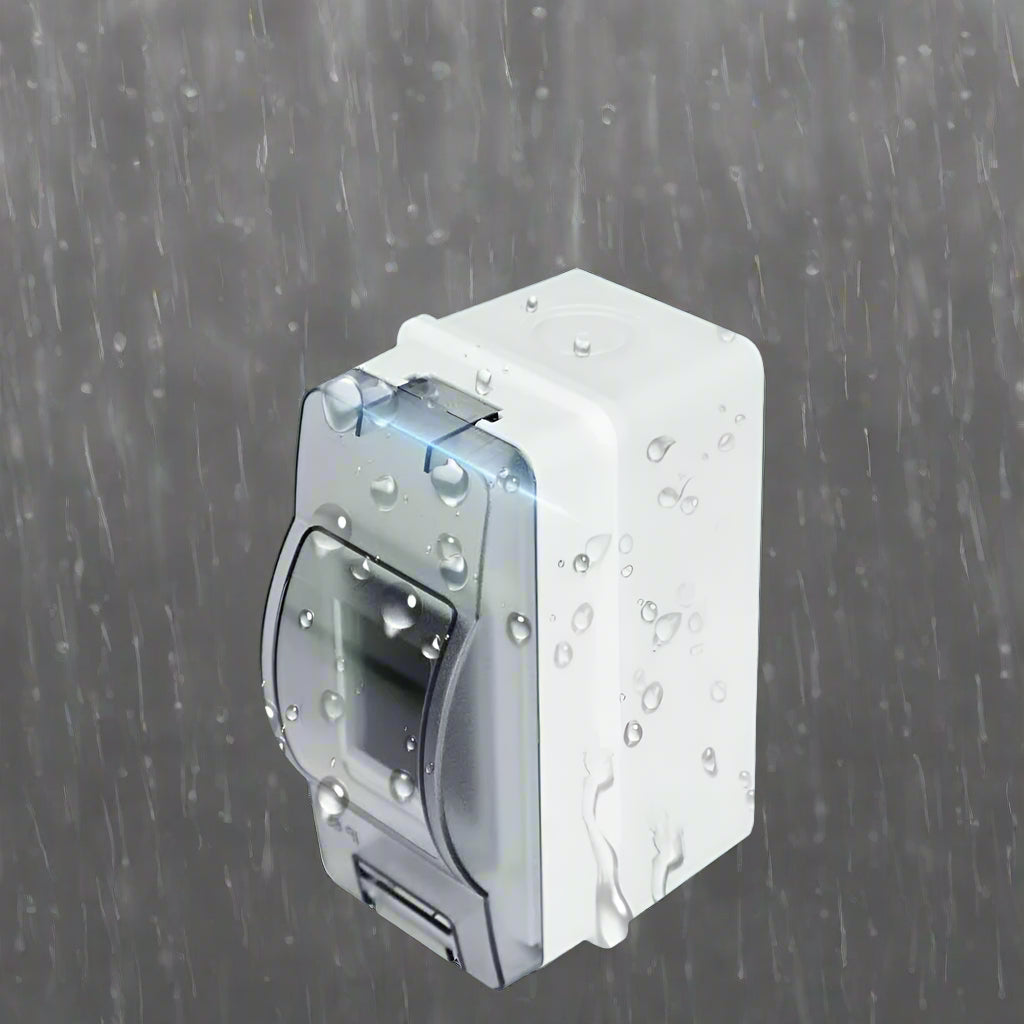

- IP65 rated: dust-tight, and protected against water jets from any direction. Good for rain and hose-down, not for immersion.
- ABS shell: non-conductive and it does not corrode, which matters more than metal strength on a coastal or dusty site.

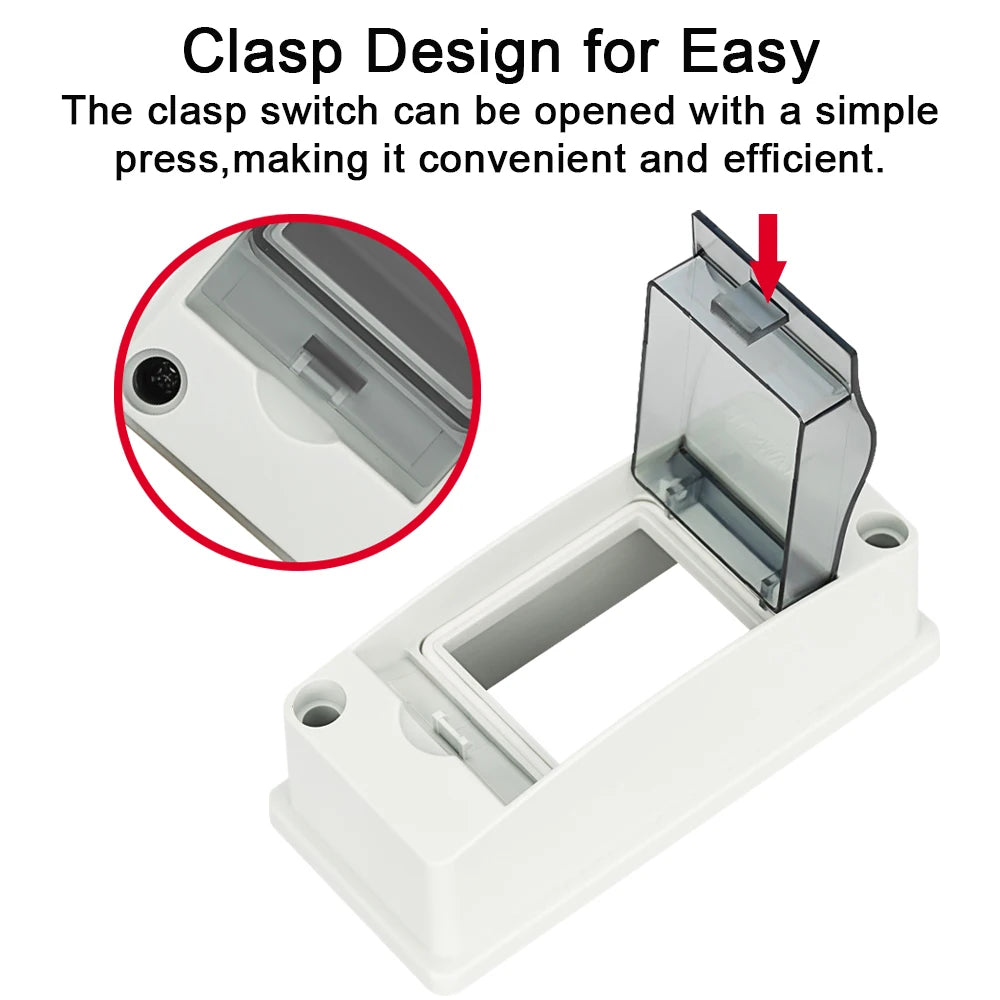

- Sealing ring in the lid: the seal is built in, so the rating does not depend on you running a bead of silicone round the joint.
- Flame-retardant panel: the supplier states the panel material is flame-retardant. No grade is published — see the Specs tab.
- Knockout holes: blanked entries you punch out where you actually need them, so cable comes in from the side or the bottom rather than wherever the moulding decided.

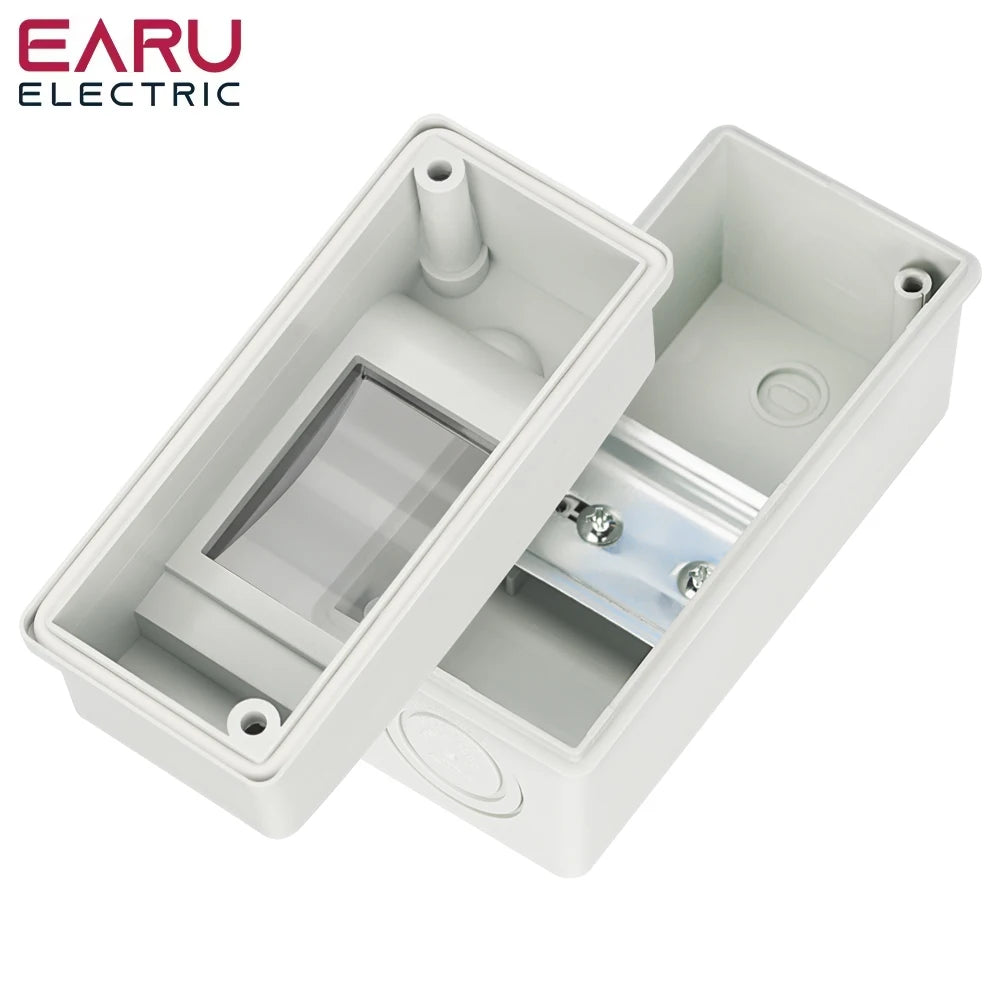

- Internal guide rail: takes rail-mount devices such as breakers, isolators and terminal blocks. The rail standard is not published, so measure before you order gear to fit it.

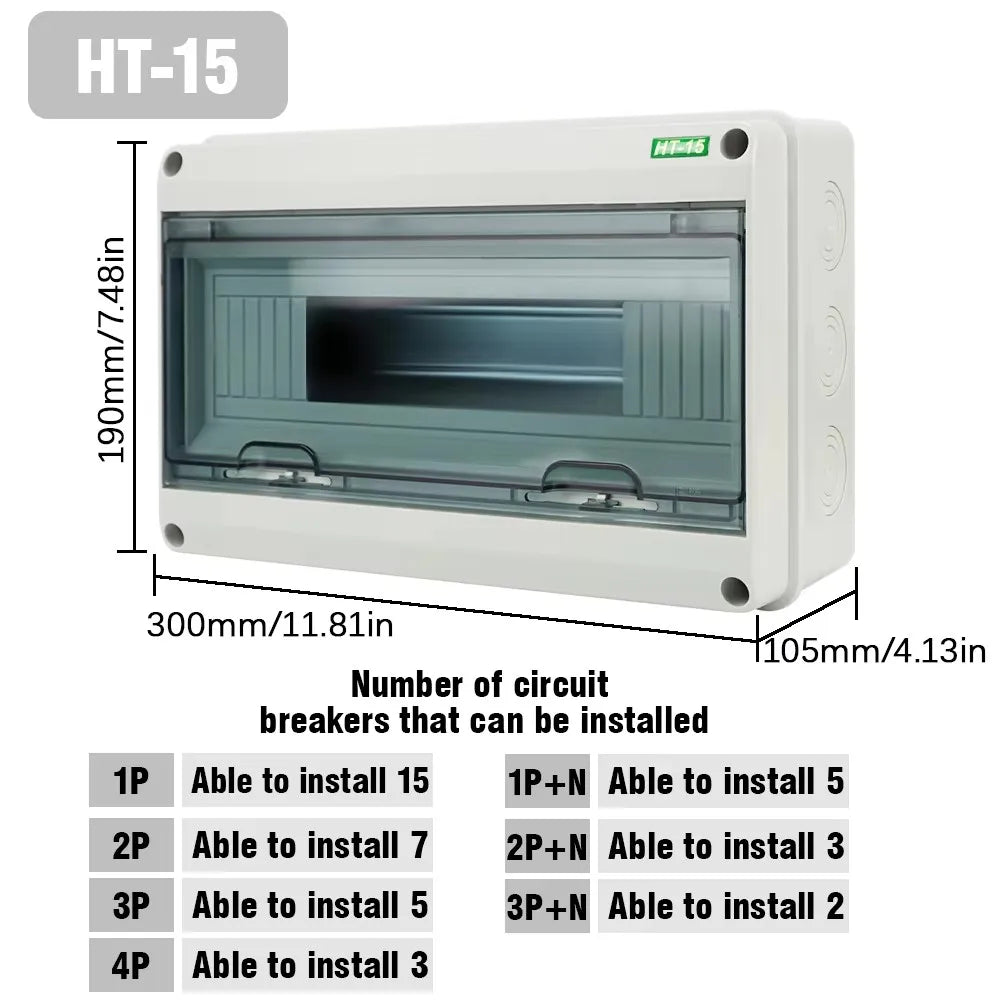

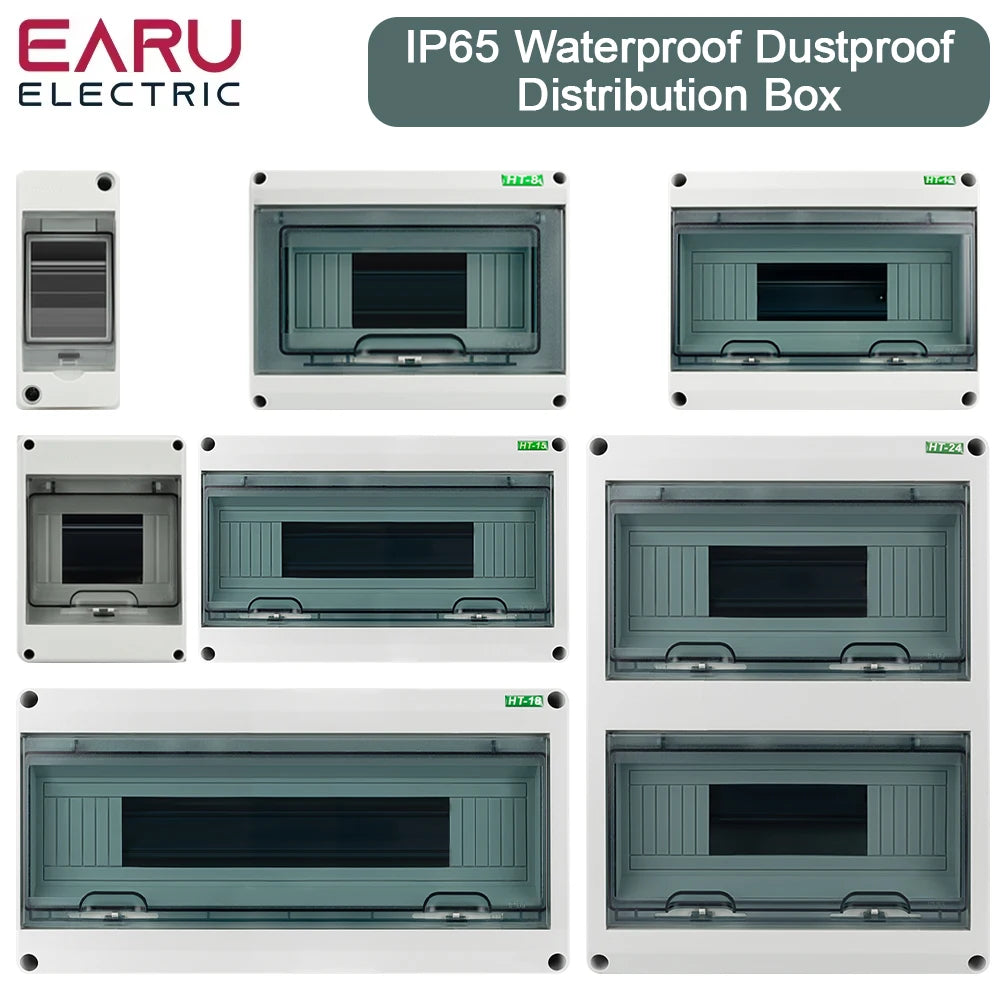

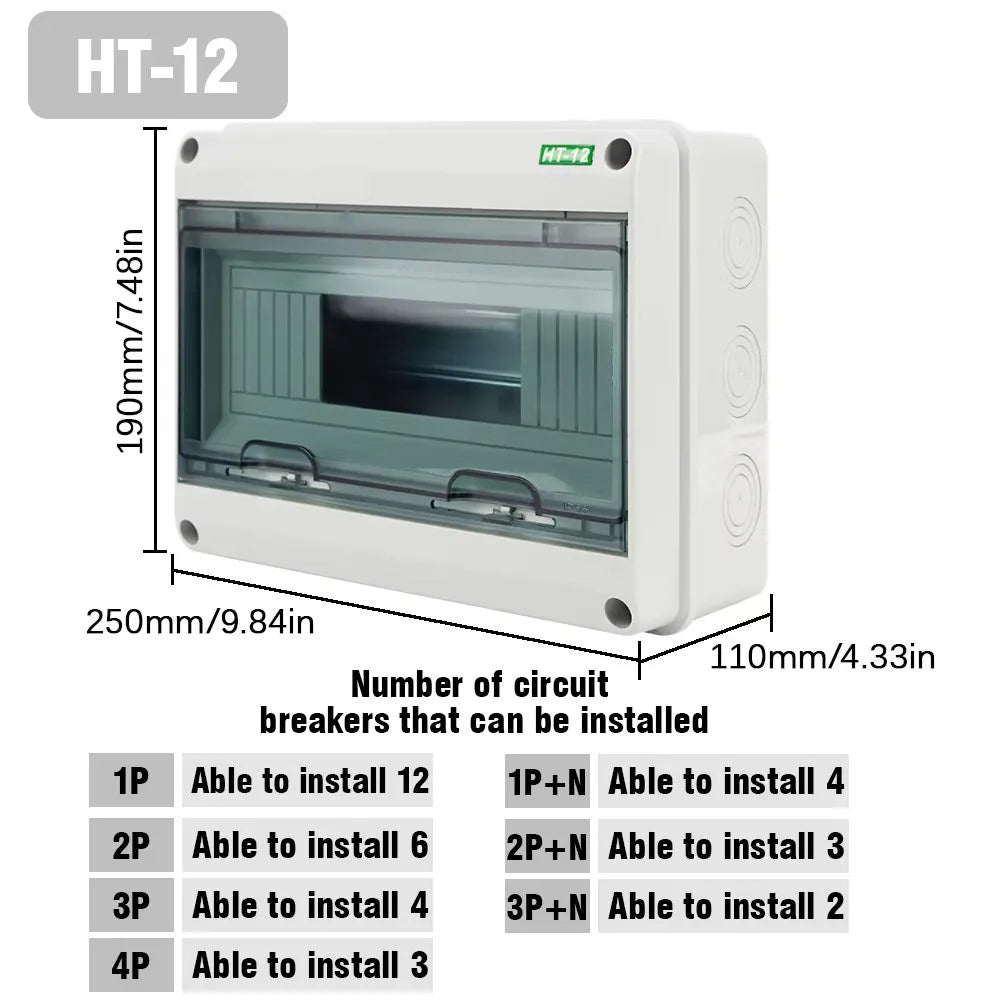

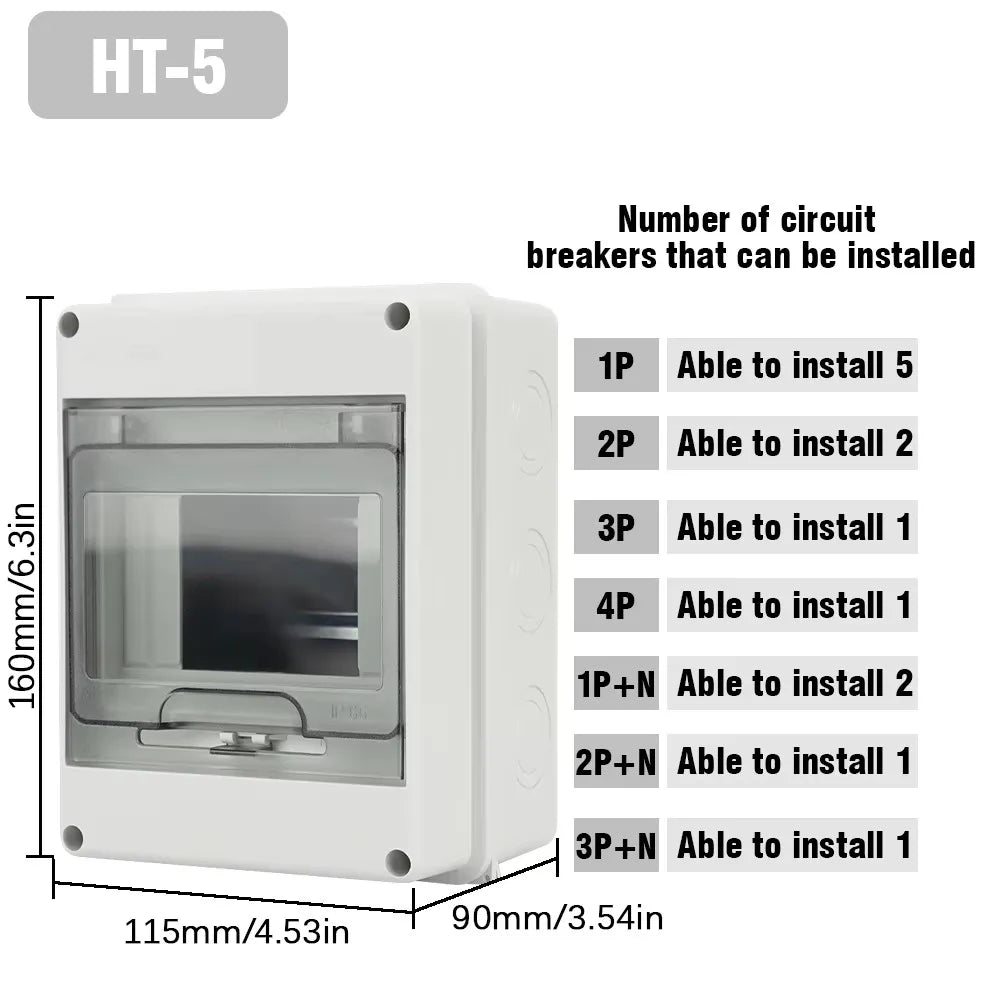

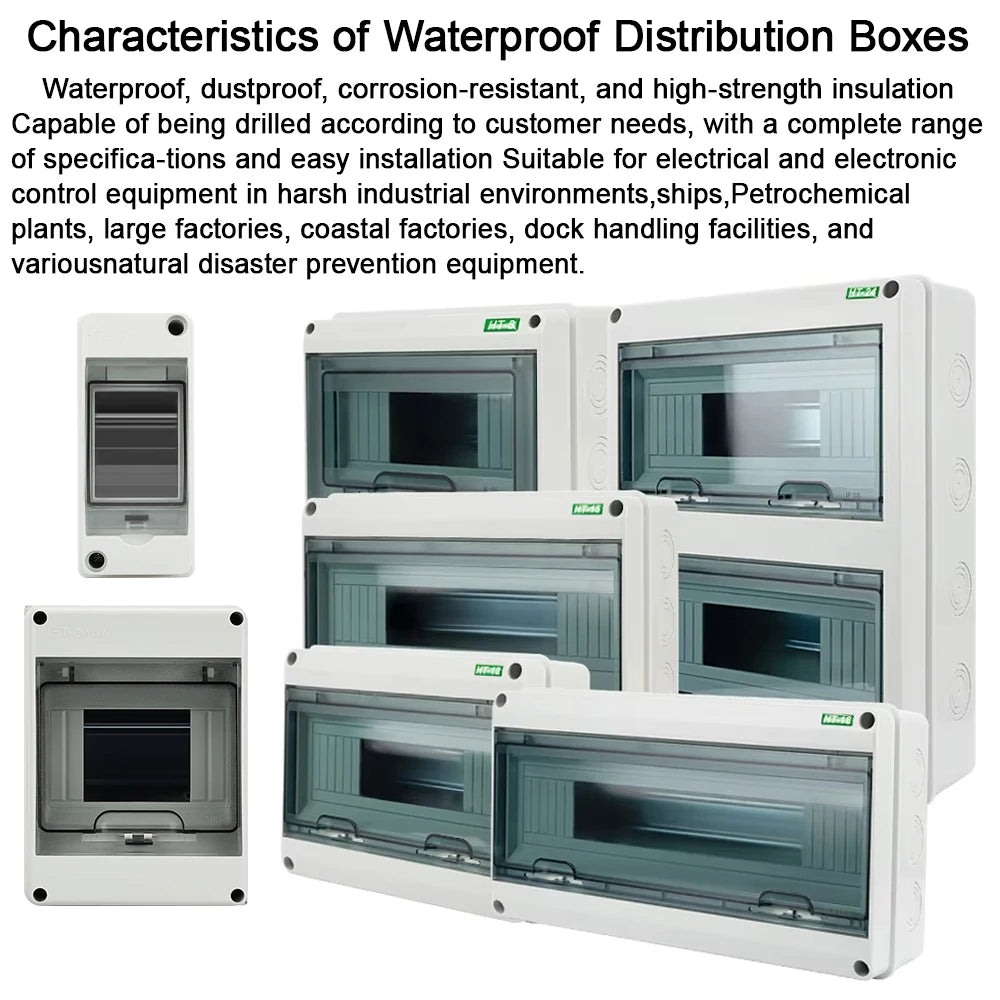

- Seven size codes: HT-2, HT-5, HT-8, HT-12, HT-15, HT-18 and HT-24. The number is the supplier's size code — they have not published what it counts, so treat it as a size ladder, small to large.
- White or black: two colours are listed against the product. White runs cooler in full sun, which is worth having if it is mounted on a north wall.

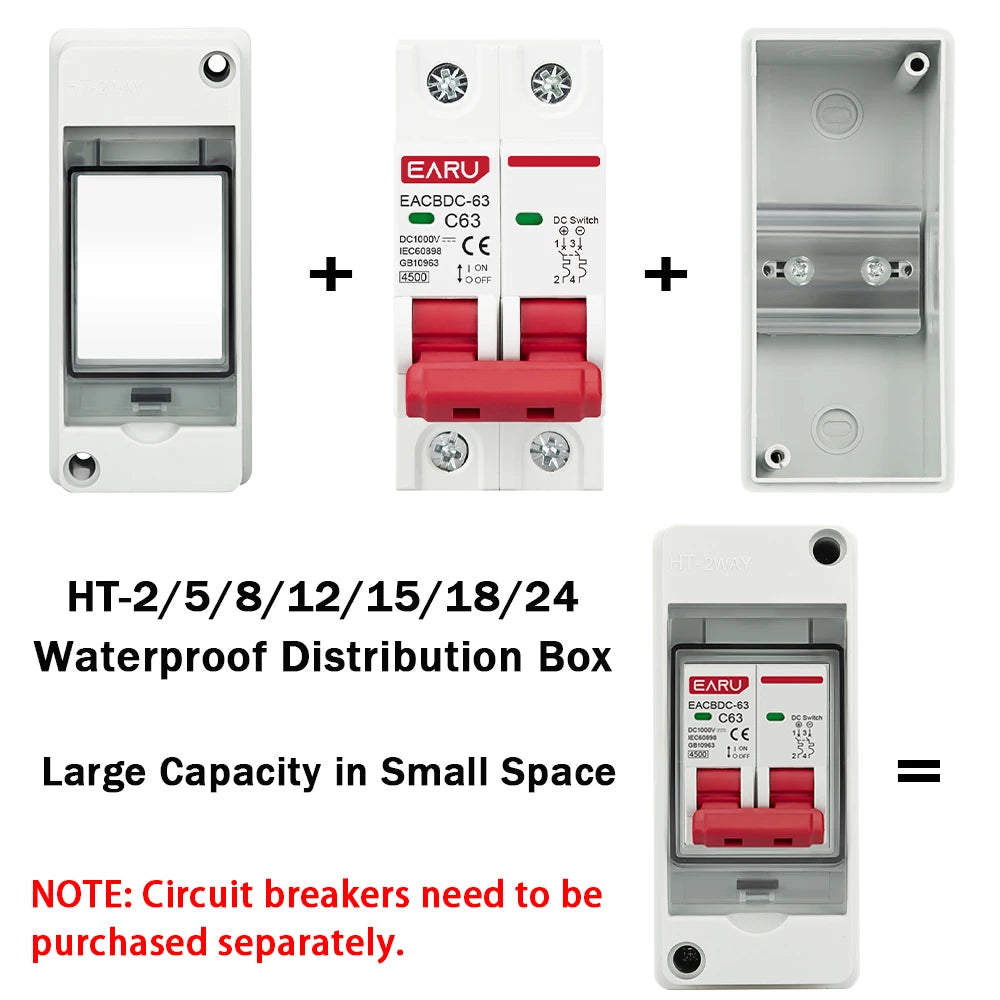

- Sold as the enclosure only: glands, breakers, terminals and mounting screws are not included unless the listing says otherwise.
Where This Fits
This is one part of the gear that sits between a wind turbine and your battery bank. Here's the whole picture:
- Wind turbines: vertical axis turbines from 1kW to 10kW — quiet enough to put near the house, and they charge overnight when your solar can't.
- Hybrid MPPT controllers: you can't wire a turbine straight to a battery. The controller rectifies the output, manages the charge, and brakes the turbine when the bank is full.
- The rest of the electrical range: bus bars, breakers, isolators, cable, lugs and Anderson plugs.
Every input and output wants a breaker or isolator on it, so you can safely shut down and isolate the turbine before you touch anything. That protects you, and it stops a surge damaging your new turbine or the rest of your power system. Cable sizing depends on your run length, voltage and current — if you're building 12V or 24V, check the sizing against your own run or ask your sparky.
Q & A

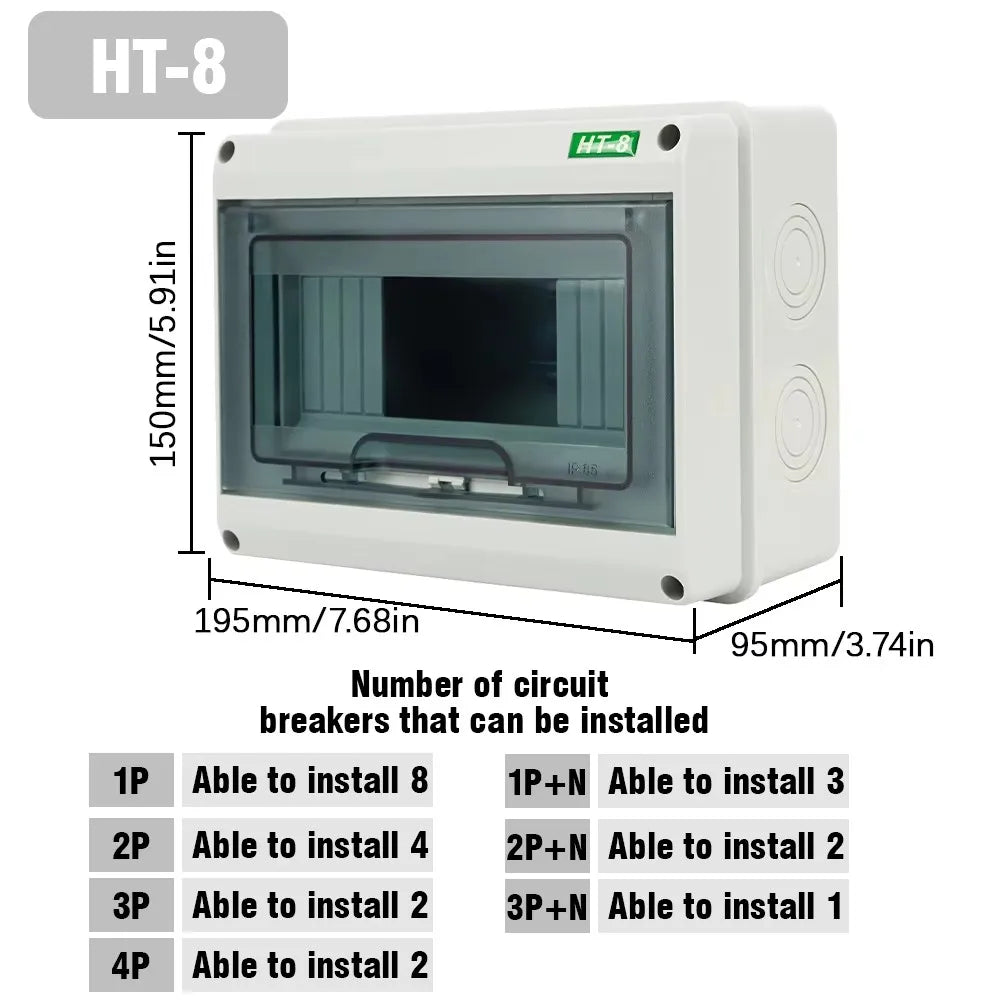

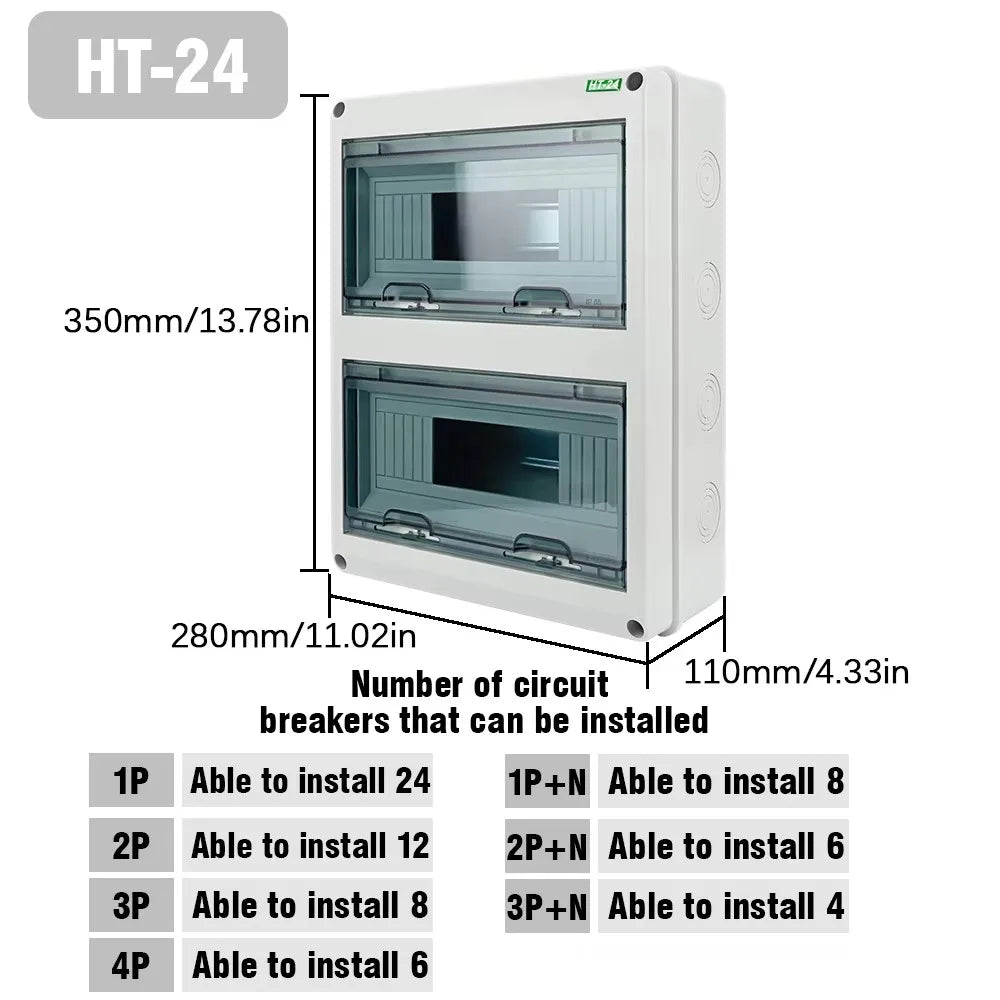

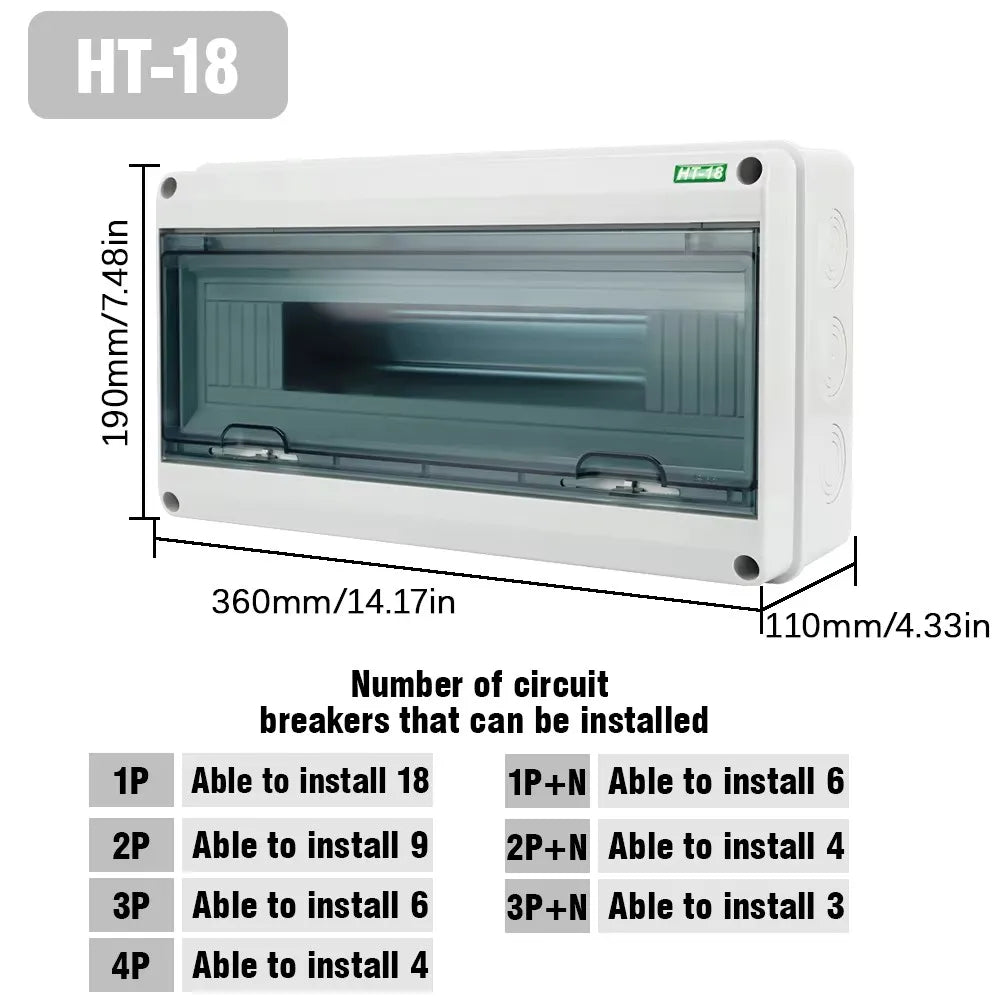

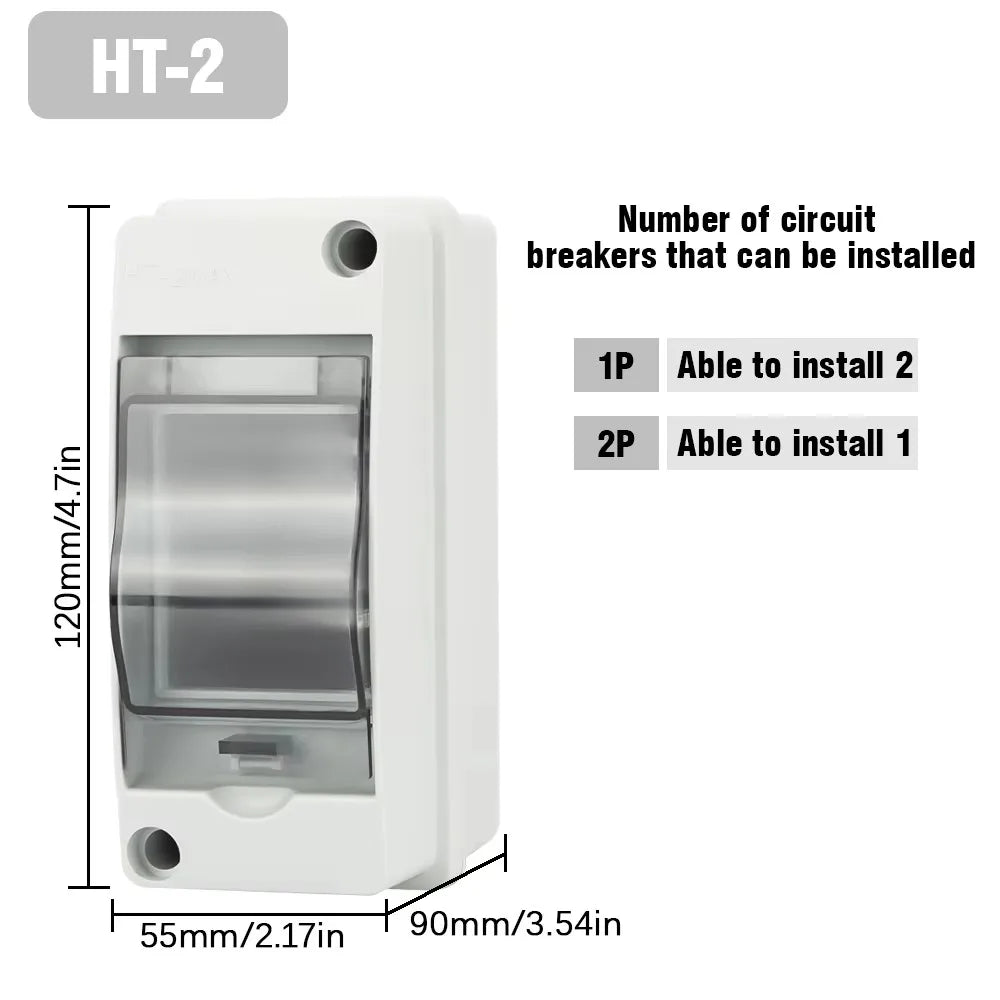

What do the numbers in HT-2, HT-8 and HT-24 mean?
They are the supplier's size codes, running smallest to largest. On enclosures of this style the number often refers to how many rail modules the box holds, but the supplier has not published that and we are not going to guess it for you.
How big is each size, in millimetres?
Not specified by supplier. No external or internal dimensions have been published for any of the seven codes. That is a real gap and we are chasing it.
Can I bury it, or put it somewhere that floods?
No. IP65 covers water jets, not immersion. Anything below ground, in a bilge, in a sump or in a wheel arch that goes under water needs IP67 or IP68. Mount this one above the flood line, and mount it so the cable entries face down — water runs down a cable, and a downward entry with a gland on it drips clear instead of filling the box.
What size cable glands does it take?
Not specified by supplier. The knockout sizes have not been published, so we can't tell you whether they suit M20, M25 or something else. Punch one out and measure it before you buy glands.
Will standard DIN rail breakers fit the guide rail?
Probably, but the supplier hasn't stated the rail standard, so we're not going to promise it. If you're buying the box specifically to hold particular breakers, tell us which ones and we'll check the rail before we ship.
Can I use this for 240V mains wiring?
No voltage rating has been published for this enclosure, and in Australia fixed 240V work is licensed electrician territory regardless of the box. For extra-low-voltage DC — 12V, 24V and 48V off-grid wiring — it's a sensible enclosure. If mains is involved, hand it to your sparky.
Does it hold IP65 once I've drilled it?
Only if every entry is properly glanded and the lid seal is clean and seated. A drilled hole with a cable pushed through it is an open hole, and it will let in exactly what you bought the box to keep out. Use a gland rated for the cable diameter, and blank off any knockout you punched by mistake.
Specs
| Specification | Detail |
|---|---|
| Product type | Electrical junction / switch enclosure |
| Ingress protection rating | IP65 — dust-tight, protected against water jets. Not rated for immersion |
| IP test standard | Not specified by supplier |
| Enclosure material | ABS plastic |
| Material grade | Not specified by supplier |
| Panel flame-retardant grade | Not specified by supplier — supplier states the panel is flame-retardant but gives no grade |
| Colour | White, black |
| Sizes sold | HT-2, HT-5, HT-8, HT-12, HT-15, HT-18, HT-24 — supplier size codes, smallest to largest |
| What the size number counts | Not specified by supplier |
| External dimensions | Not specified by supplier |
| Internal dimensions | Not specified by supplier |
| Way / module capacity | Not specified by supplier |
| Weight | Not specified by supplier |
| Lid seal | Built-in sealing ring. Material not specified by supplier |
| Lid fixings | Not specified by supplier |
| Internal rail | Guide rail fitted. Rail standard and width not specified by supplier |
| Cable entries | Knockout holes. Quantity and diameters not specified by supplier |
| Cable glands included | Not specified by supplier — assume not supplied |
| Mounting method | Not specified by supplier |
| Voltage rating | Not specified by supplier |
| Operating temperature range | Not specified by supplier |
| UV stability | Not specified by supplier |
| Certifications | Not specified by supplier |
| Country of origin | Not specified by supplier |
| Delivery | Free delivery to Australia and New Zealand, no minimum spend. 10 to 14 days from order date, allow up to 3 weeks |

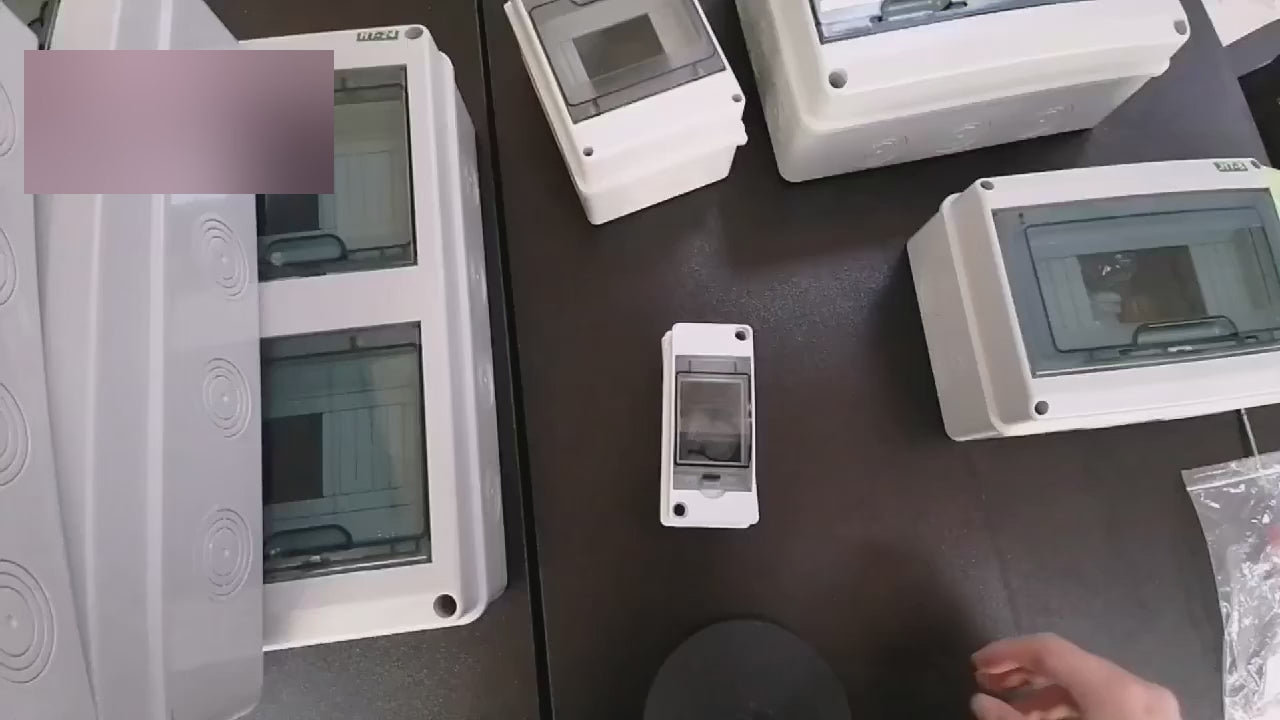

Watch Me
