Solar does not stop just because you want it to.
A panel in daylight is live. There is no off switch on it, and you cannot safely break a DC circuit with an ordinary AC switch — DC arcs and keeps arcing, where AC self-extinguishes a hundred times a second. That is the whole reason a dedicated DC isolator exists, and why an underrated switch in a solar string is a fire waiting for a sunny day.

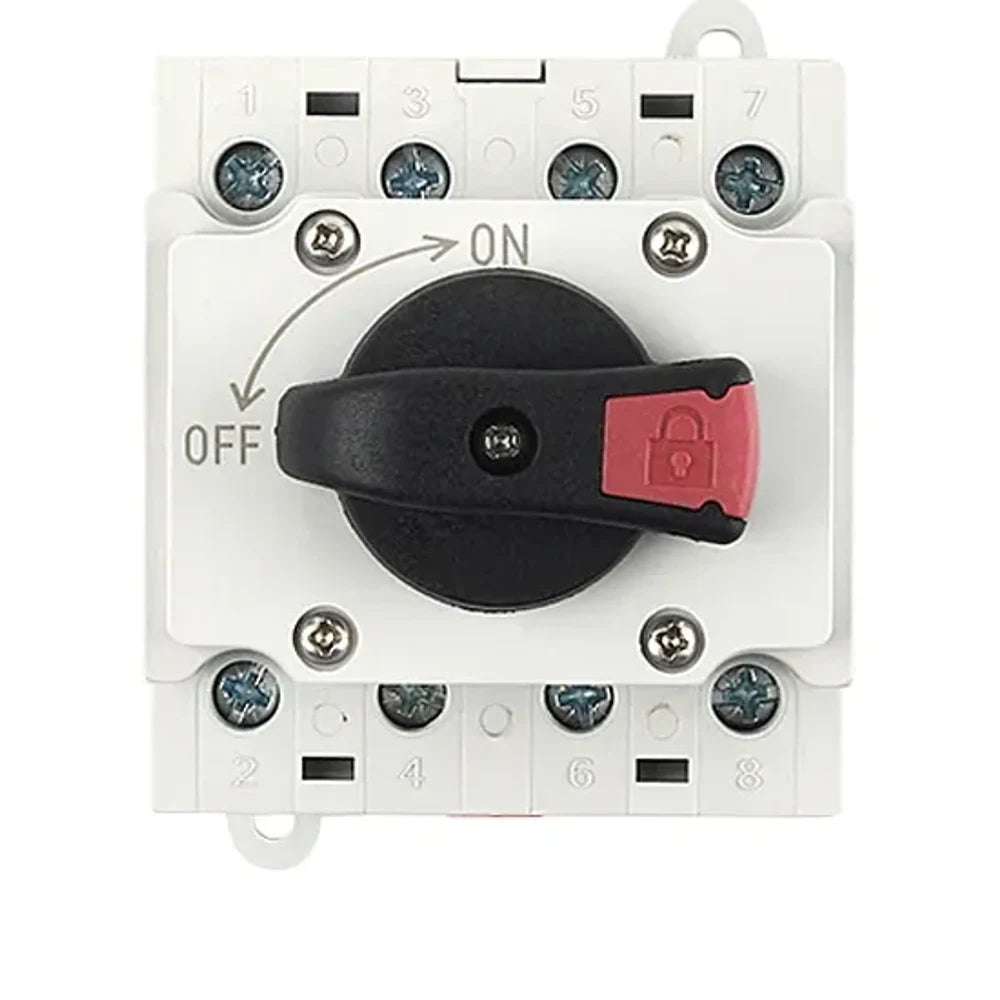

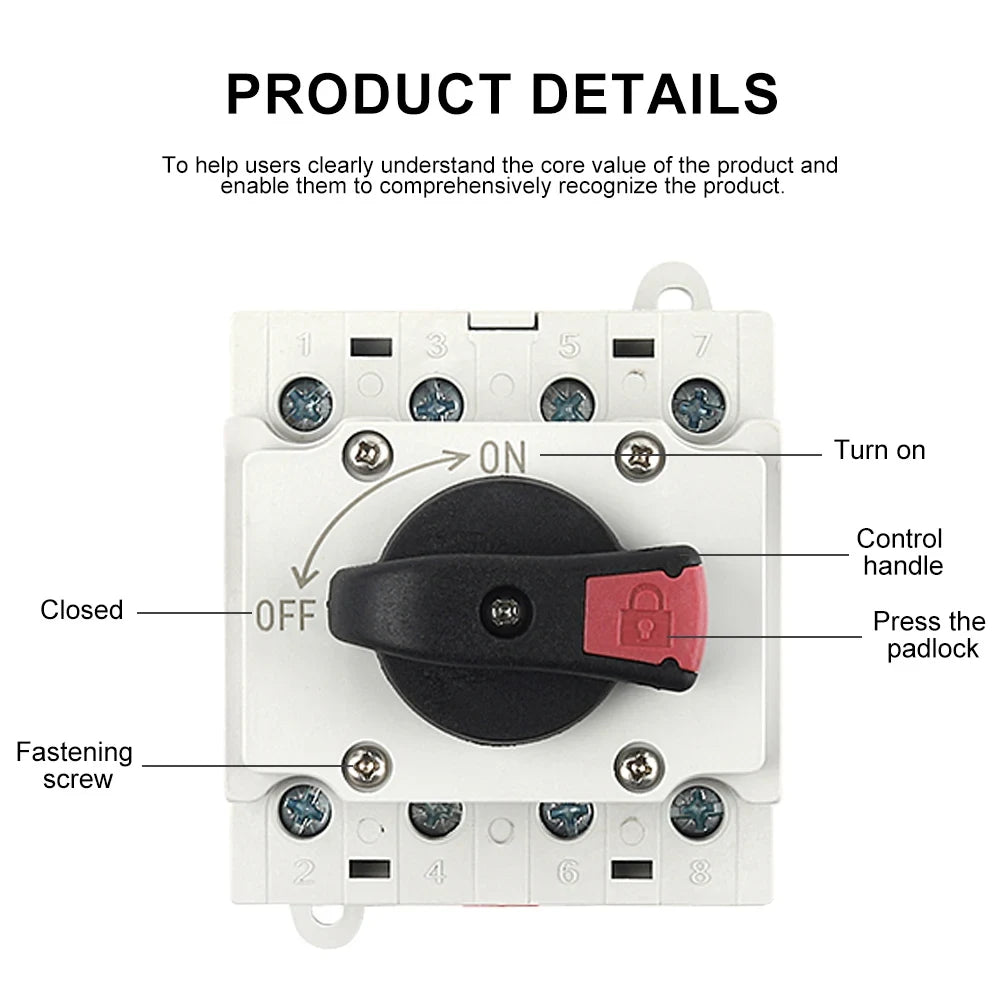

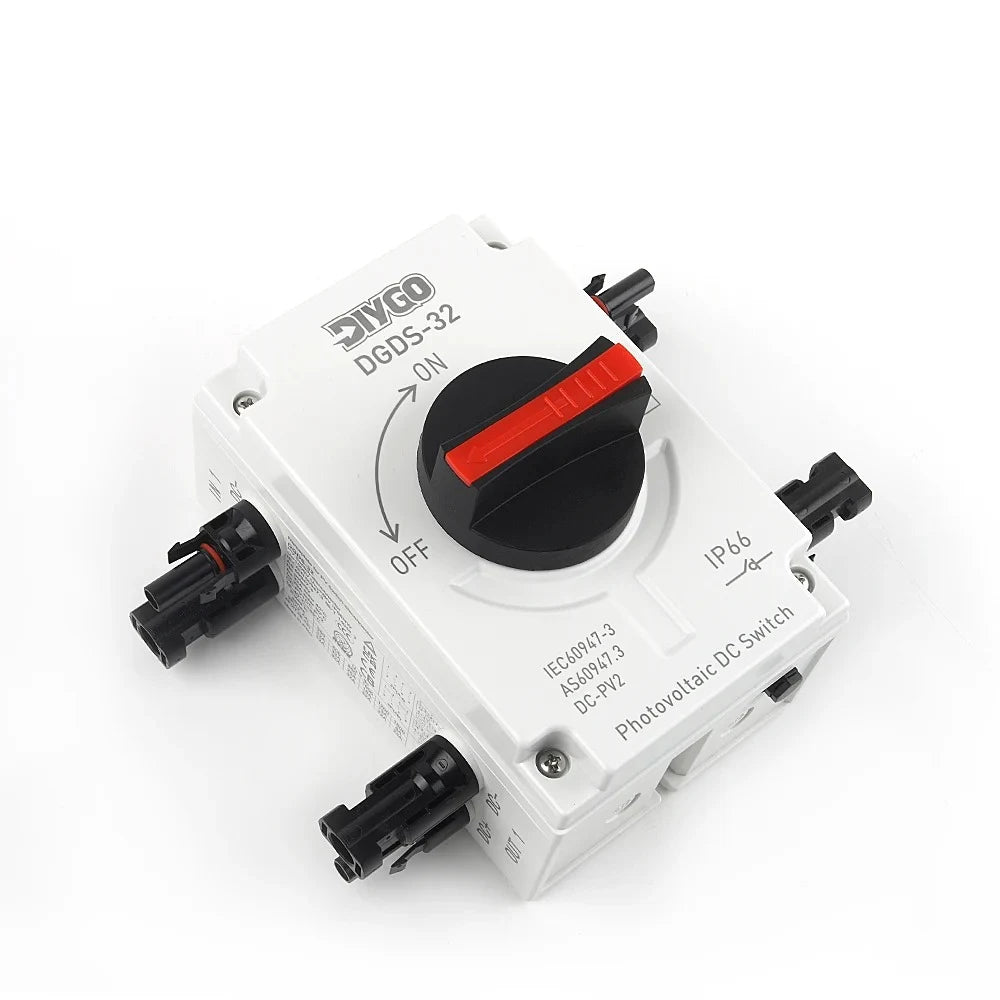

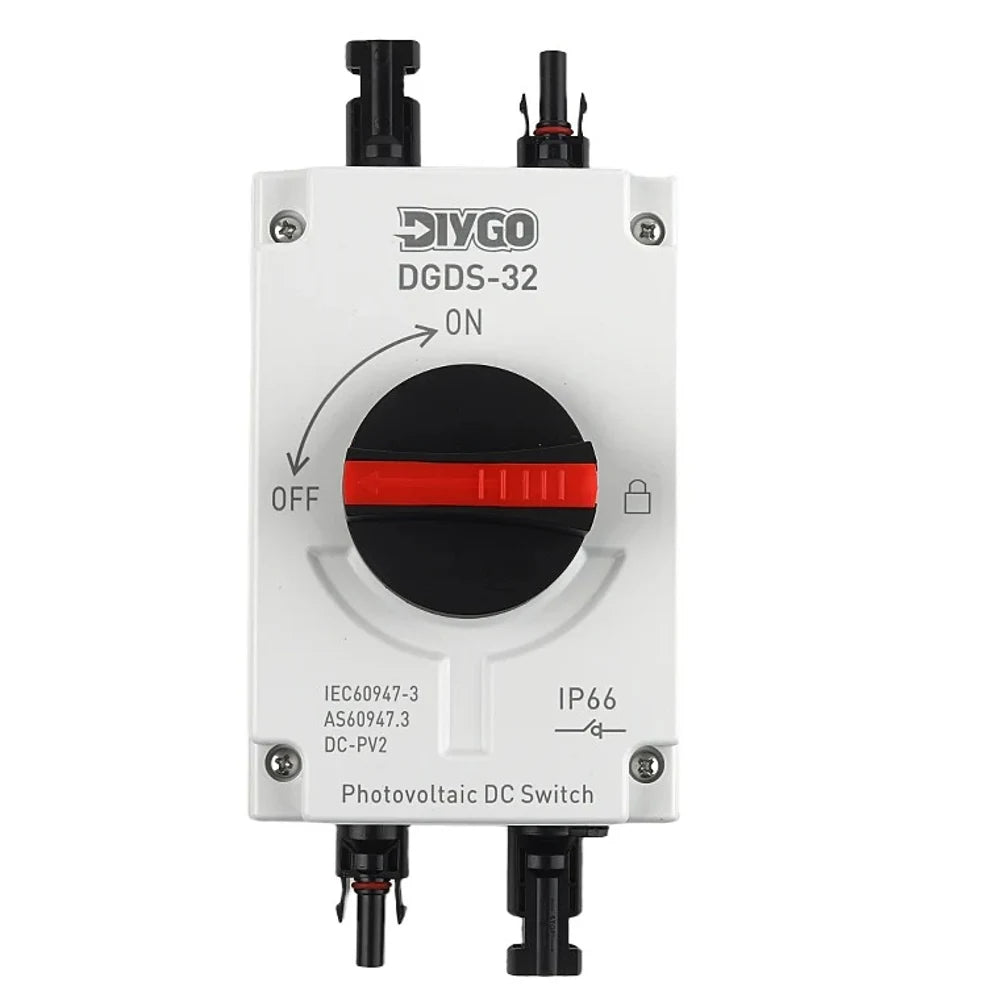

This is a proper DC isolator: 32A at 1200V, four pole, in an IP66 housing with copper conductors. Turn the knob and the string is broken, so you can work on a controller, an inverter or a junction box without the array still feeding it.
It is a switch, not a fuse. An isolator disconnects on purpose, when you turn it. It does not trip on overcurrent, so it does not replace fusing or breakers — it sits alongside them.
What It Solves
- Work on the controller without the array live: break the string at the isolator first, and what you are holding is dead instead of carrying a few hundred volts.
- Shut down fast in an emergency: one knob, and the solar side is isolated. A visible, obvious switch is what you want when something is smoking.
- Stop using the wrong switch: an AC-rated switch in a DC string will arc across the contacts and weld or burn. This is rated for DC and certified to IEC/EN 60947-3 for it.
- Leave it outside and forget it: IP66 and rated −40°C to +85°C, so it copes with a WA summer on a north wall or a winter on a boat.
- Isolate the RV or the boat at the panel: wall mounted, so it goes where you can reach it rather than buried behind the batteries.

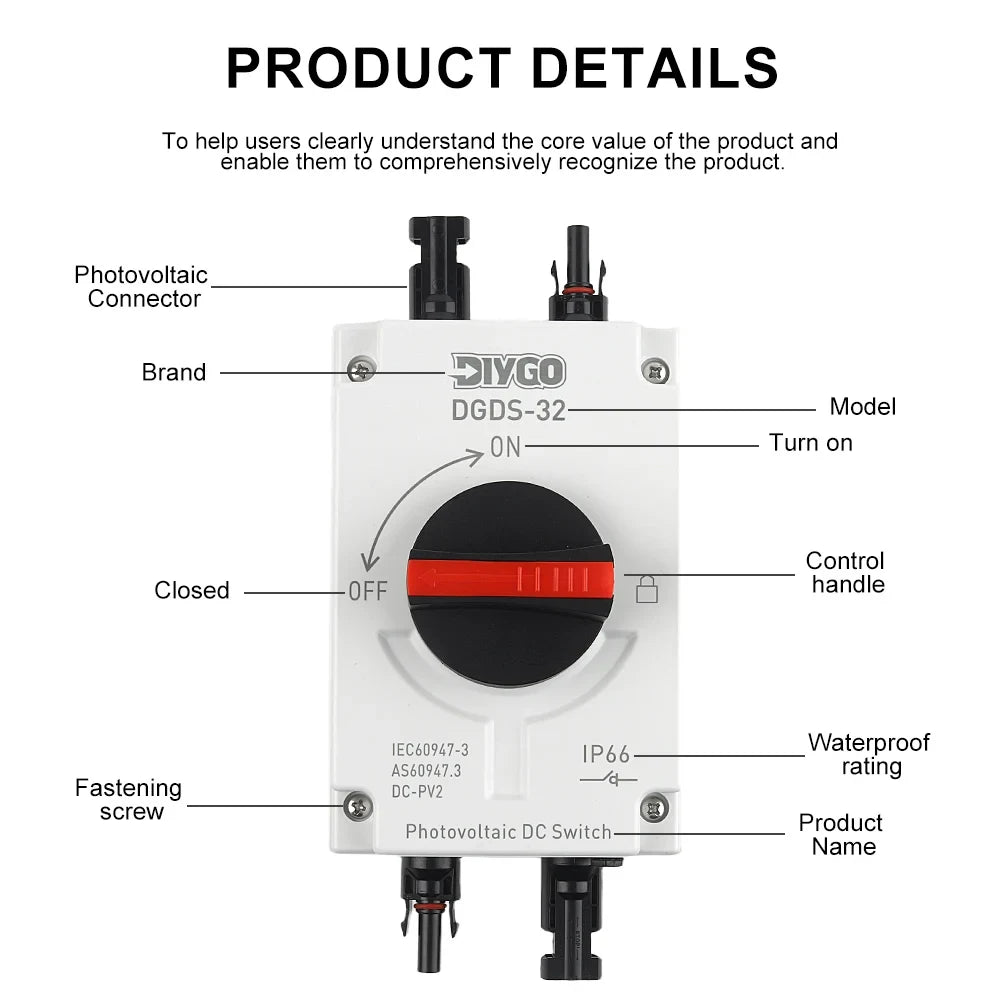

Key Features
- Rated 1200V DC: enough headroom for a long string, where open-circuit voltage climbs in the cold.
- 32A rated current: suits typical residential and small commercial PV strings.

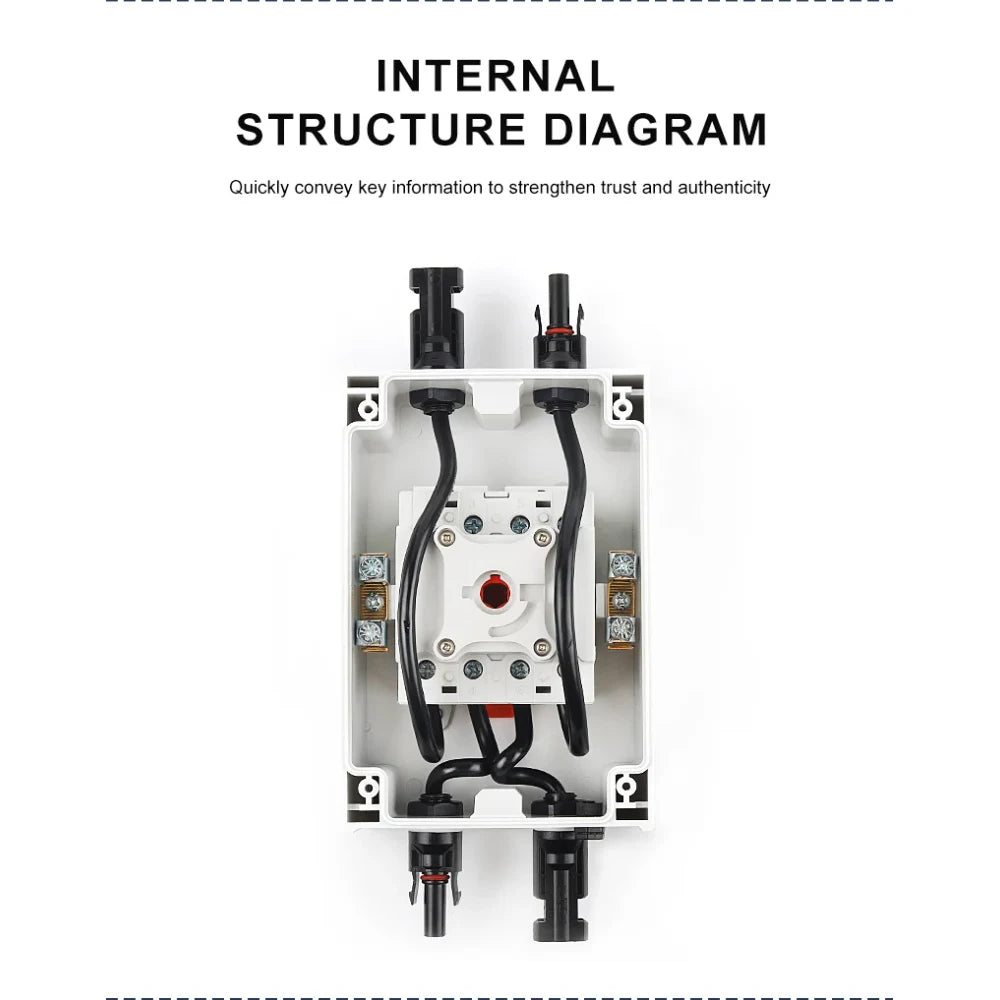

- Four pole: breaks both conductors with two poles in series on each, which is how DC switching capacity is achieved.
- IP66 housing: dust tight and rated against powerful water jets, in a polycarbonate enclosure.
- Copper conductors: not plated steel, which is where cheap isolators lose their rating.
- 20,000 mechanical cycles: and 6,000 electrical operations, so it outlasts the array.
- Certified to IEC/EN 60947-3: the correct standard for a DC switch disconnector, with TUV, CE, CB, UKCA, CCC, RoHS and ISO9001 stated by the supplier.

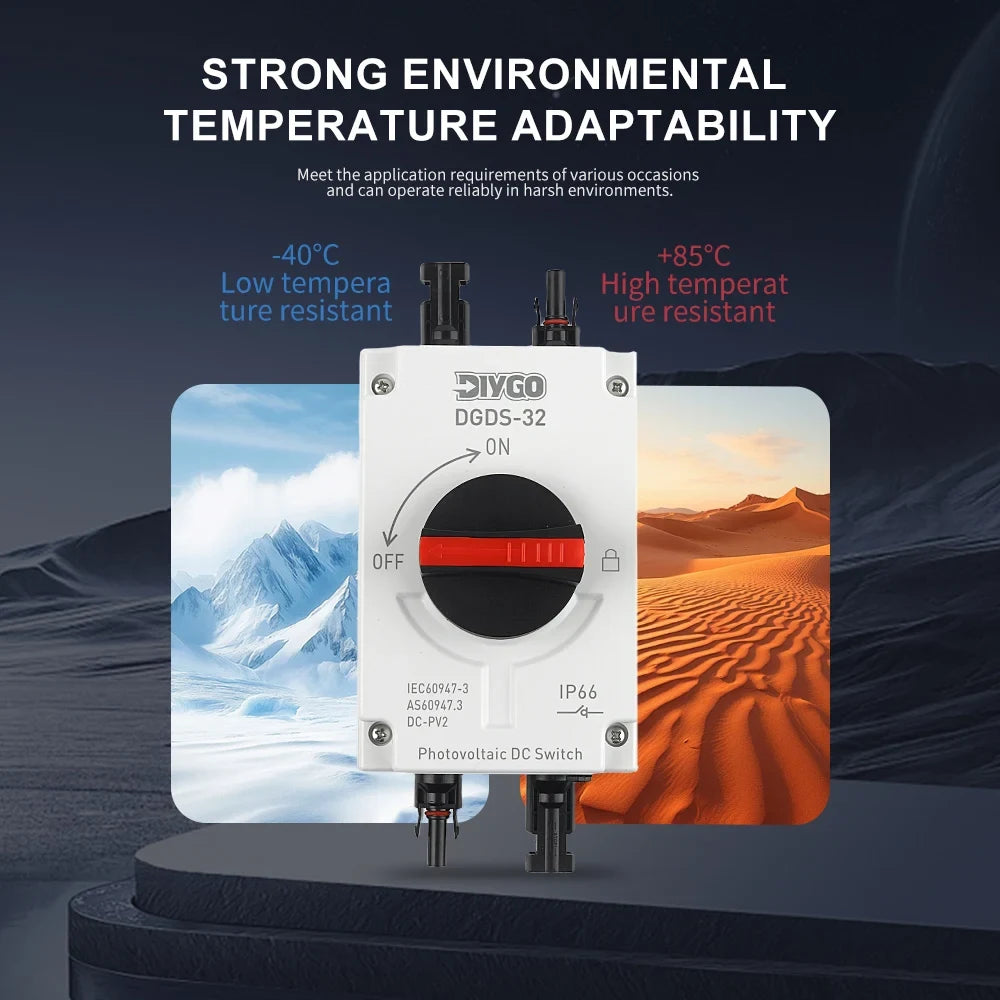

- −40°C to +85°C: alpine cold through to a tin roof in February.
Where This Fits

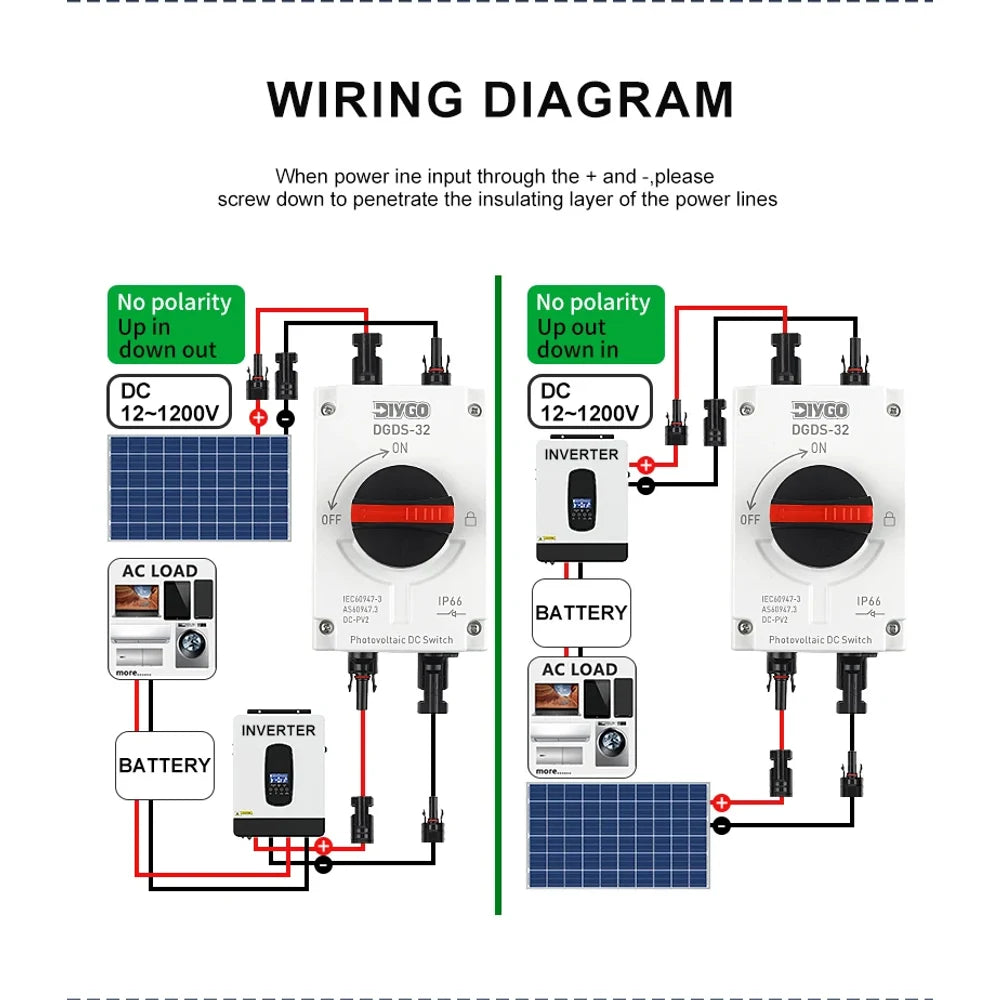

The isolator goes on the solar side, between the array and whatever it feeds. Here is the whole picture:
- Hybrid MPPT controllers: the isolator lets you disconnect the solar input before you touch a controller. Check the controller's maximum PV input voltage before you size a string.
- Breakers, bus bars, cable and lugs: an isolator switches, it does not protect. You still need fusing and breakers on the circuit.
- Wind turbines: if solar alone is not covering you, a turbine charges overnight and through weather when panels cannot.
Every input and output wants a breaker or isolator on it, so you can safely shut down and isolate before you touch anything. Solar work in particular needs a licensed electrician in Australia — and keep the invoice, because our warranty on electrical items asks for proof of professional installation.
Q & A
Can I use a normal AC isolator instead?
No, and this is the important one. DC does not cross zero volts the way AC does, so an arc drawn across opening contacts keeps burning instead of self-extinguishing. An AC-rated switch in a DC string can weld shut or catch fire. Use a switch rated for DC and certified to IEC/EN 60947-3, which this is.
Why four poles for two wires?
Because DC switching capacity comes from putting poles in series. Two poles per conductor stretch and break the arc over a longer gap. It is not four separate circuits — it is two circuits done properly.
Does it protect against overcurrent?
No. An isolator is a switch you operate deliberately. It does not trip on a fault. You still need fuses or breakers sized to the string.
Will 1200V be enough for my array?
Almost certainly for a domestic or off-grid string. Remember that panel open-circuit voltage rises as temperature falls, so size against the coldest morning you get, not the average. Add your panels' Voc, apply the temperature coefficient, and stay well inside the rating.
Can I mount it outside?
Yes. IP66 is dust tight and rated against powerful water jets, and it is rated −40°C to +85°C. Mount it where you can reach it in a hurry — the point of an isolator is being able to get to it.
What are the 1PV and 2PV options?

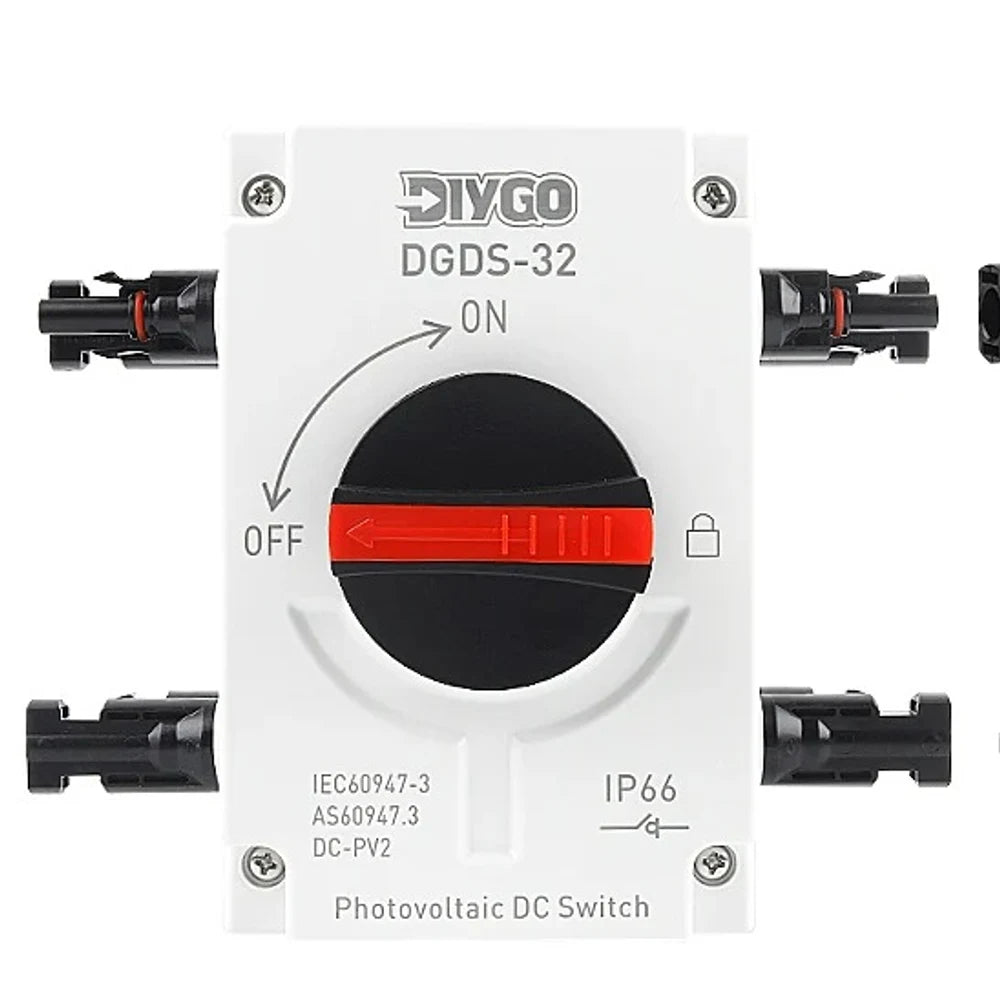

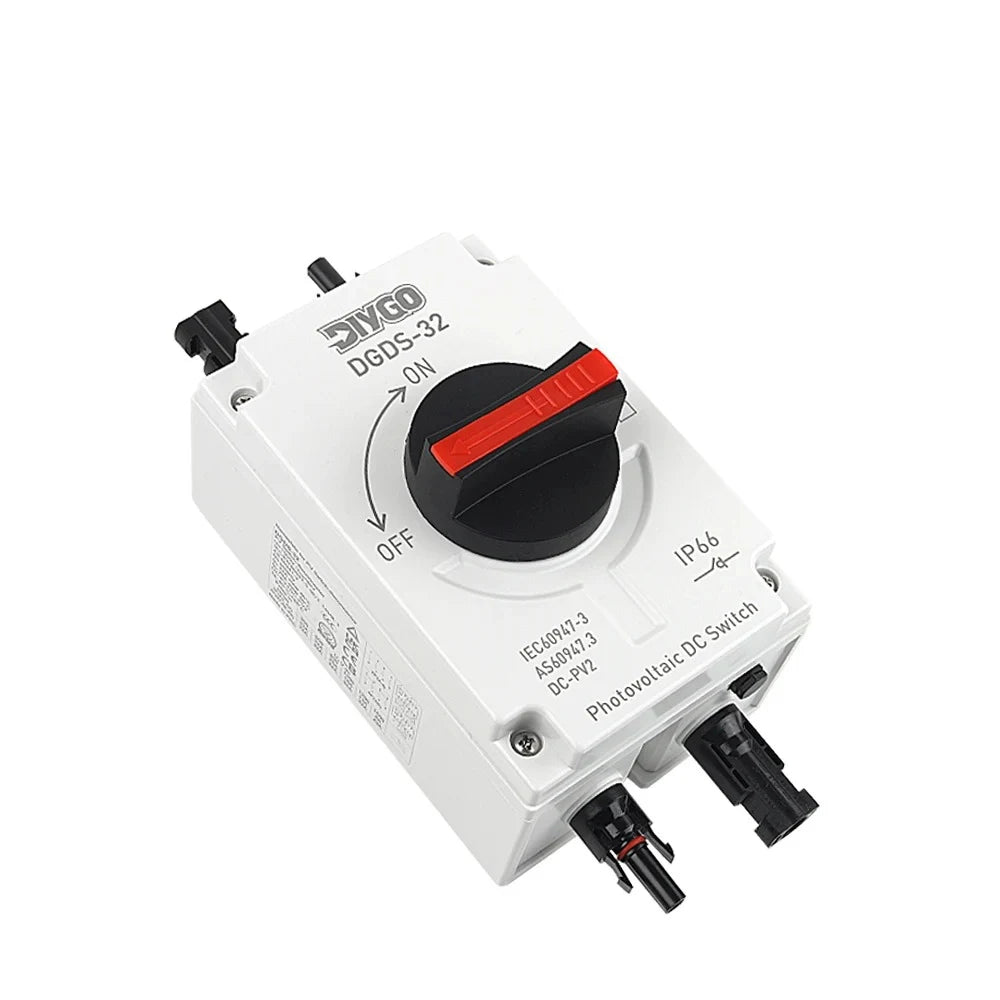

The number of PV strings the unit is configured for. Choose 1PV for a single string, 2PV where two strings need isolating.
Can I install it myself?
Solar installation work in Australia requires a licensed electrician. Beyond the legal position, this is a part whose job is to make things safe — fitted wrong it gives false confidence. Get a sparky, and keep the invoice for warranty.
Specs
| Product type | DC switch disconnector (PV isolator) |
| Brand | CNLonQcom |
| Rated current | 32A |
| Rated voltage | 1200V DC |
| Poles | 4P |
| Standard | IEC/EN 60947-3, GB/T 14048.3 |
| Ingress protection | IP66 |
| Housing material | Polycarbonate (PC) |
| Conductor material | Copper |
| Mechanical life | 20,000 cycles |
| Electrical life | 6,000 cycles |
| Operating temperature | −40°C to +85°C |
| Installation | Wall mounting |
| Options | Isolator switch, 1PV, 2PV |
| Certification | TUV, CE, CB, UKCA, AZ, CCC, ISO9001, RoHS — stated by supplier |
| Overcurrent protection | None — this is a switch, not a fuse or breaker |
| Dimensions | Not specified by supplier |
| Weight | Not specified by supplier |
