WW Series Pure-Wind MPPT Wind Turbine Controller - 1 kW to 5 kW @48 V

$1,050.00 AUD
Matched Turbine Size
Monitoring Port
Delivery

Delivering Outside Australia or New Zealand? We quote delivery to your door before you order — email quotes@bushline.com.au. Your quote tells you whether import duty, customs charges and tax on arrival are included or payable by you.

Ask About This Product

Tracking

Keep an Eye on your Gear

Simply enter the tracking number sent to your email to see exactly where your package is and when it is estimated to arrive.

Note: It may take 24-48 hours for tracking information to update after your order has been dispatched.

Track my Order

Windy Night Overcharging your 48 V Battery Bank?

A wind turbine on its own is a wild thing. The voltage on its cable rises and falls with every gust, it will happily overcharge a battery bank on a windy night, and with nothing to load it up in a storm the rotor just keeps accelerating. The controller is the half of the system that does the thinking: it rectifies the turbine's three-phase output, tracks the rotor for the best harvest, holds the battery at a safe charge, burns the surplus in a dump load, and brakes the machine when the wind gets stupid.

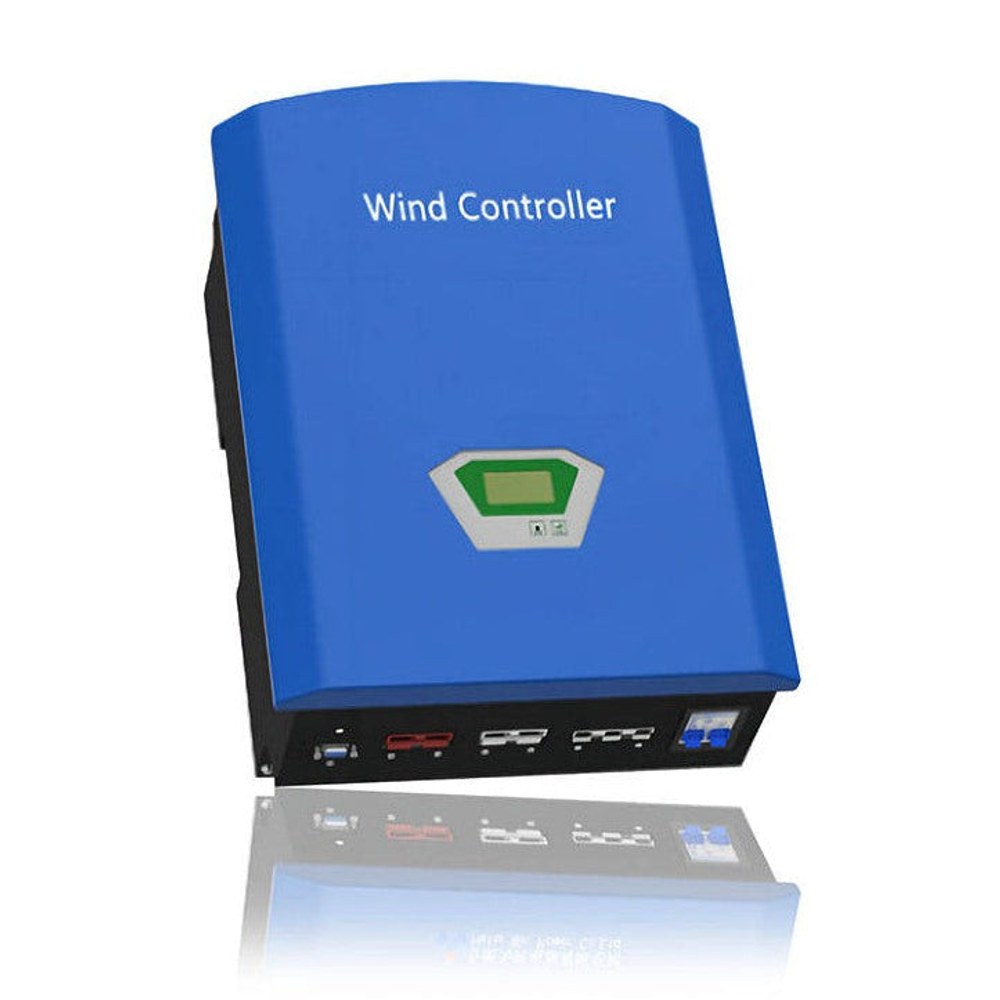

The WW series is the heavy-duty end of our controller range — pure-wind MPPT units for 1 kW to 5 kW turbines charging a 48 V battery bank. Four models: the WW10-48-48 (1 kW, step-up input), the WW20-48-48 (2 kW, step-up input), the WW30-48-240 (3 kW, step-down from a 280 V-class turbine) and the WW50-48-240 (5 kW, same step-down input, heavier output stage). Every one ships with its matched dump-load box.

Straight Up About the Numbers: the 1, 2, 3 and 5 kW in the names are the turbine sizes these controllers are built to sit behind, not power they generate — a controller makes nothing on its own, and what reaches your batteries is whatever the wind gives the turbine. What these units do have, unusually, is a real published output current for every model: 21 A, 42 A, 63 A and 105 A maximum output, straight off the manufacturer's own model pages. Most wind controller listings cannot honestly print that figure. These can.

What it Solves
  • The Overcharged Bank: the controller holds the 48 V bank inside its charge window, with temperature compensation, instead of letting a windy week cook it.
  • The Runaway Rotor: manual brake button, over-current dump, over-voltage dump, and optional wind-speed and rotor-speed brake triggers — the turbine gets loaded up and slowed before it damages itself.
  • The Wasted Gust: MPPT tracking loads the rotor at the point where it actually makes the most power, rather than dragging it or letting it freewheel.
  • The Surplus with Nowhere to Go: a matched dump-load resistor box is included — when the batteries are full the energy goes into heat, not into your battery plates.
  • The Mystery Box on the Wall: an LCD shows what the turbine and battery are doing, RS485 comms are built in, and lightning protection is on board.
Key Features
  • Published Output Currents: 21 A (WW10), 42 A (WW20), 63 A (WW30), 105 A (WW50) maximum output — real per-model figures from the manufacturer, not numbers derived from wattage.
  • Pure-Wind MPPT: built for wind and nothing else. No PV input at all — if you want one box to run panels too, look at the HCM hybrid series instead.
  • Dump-Load Box Included: a separate matched resistor box ships with every controller — 2.8 kg, 9 kg, 13 kg or 19 kg of it depending on model.
  • Layered Braking: manual full-dump button (hold 5 seconds), over-current brake, over-voltage brake, plus optional over-wind-speed and over-rotor-speed triggers, all adjustable.
  • High-Voltage Step-Down Input: the WW30 and WW50 take a 60–320 V DC wind input, which is how a 220 V-class turbine ends up charging a 48 V bank.
  • Monitoring on Board: LCD display, lightning protection, RS485 built in, and a factory-fitted WiFi or RJ45 Ethernet port as an option — one or the other, chosen when you order.
  • Efficiency Worth Having: ≥92% on the WW10, WW20 and WW30, ≥95% on the WW50, with standby losses under 8 W.
Which Model for Which Turbine

Match the controller to the turbine, not to ambition. The manufacturer pairs them this way:

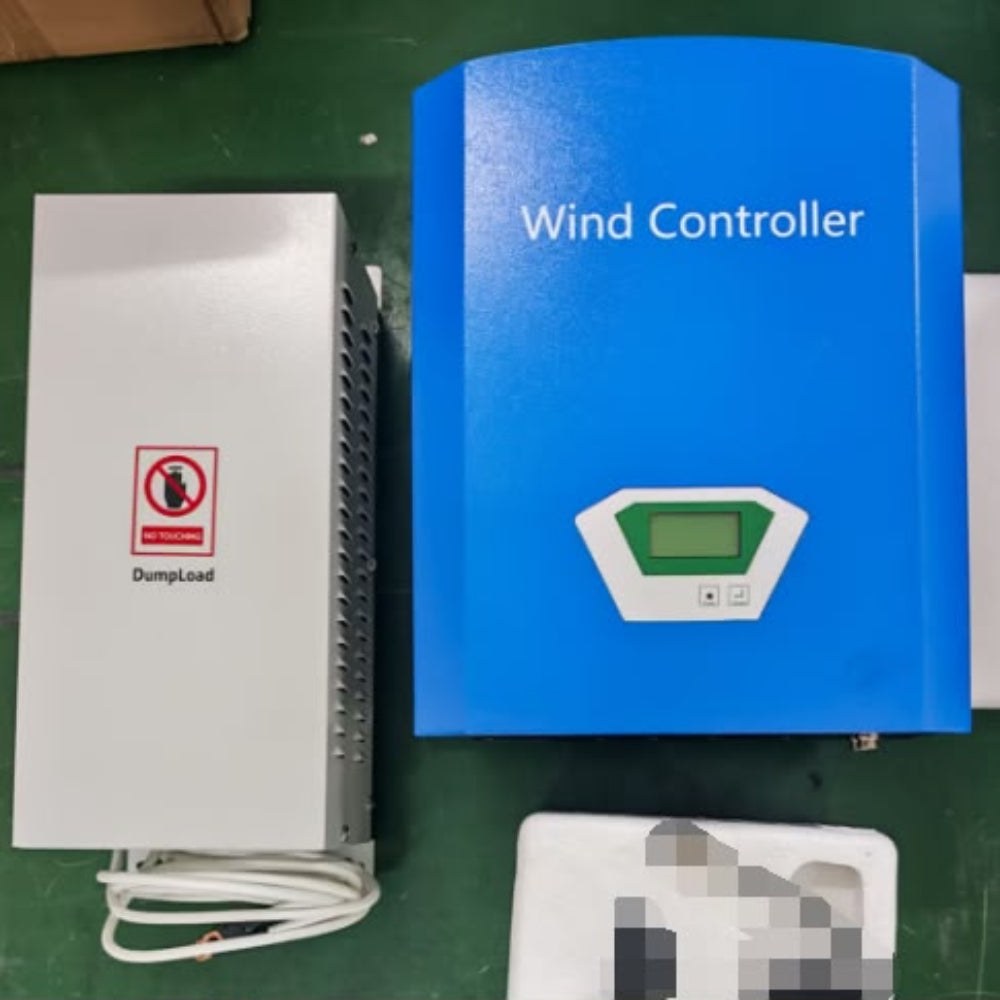

  • WW10-48-48 (1 kW): L1-1000 horizontal and H1000 vertical — 48 V-class turbines, step-up input.

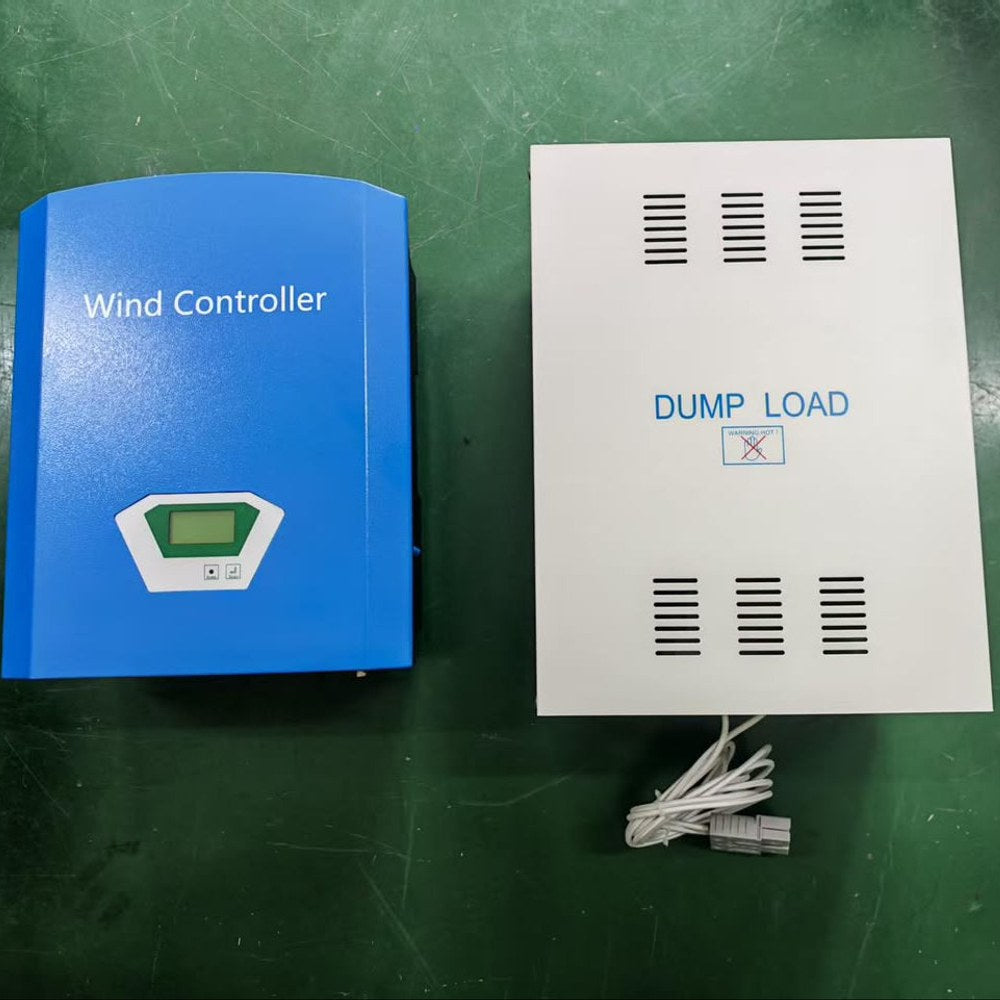

  • WW20-48-48 (2 kW): L1-1500, L1-2000 and L2-2000 horizontals and H2000 vertical — 48 V-class turbines, step-up input.

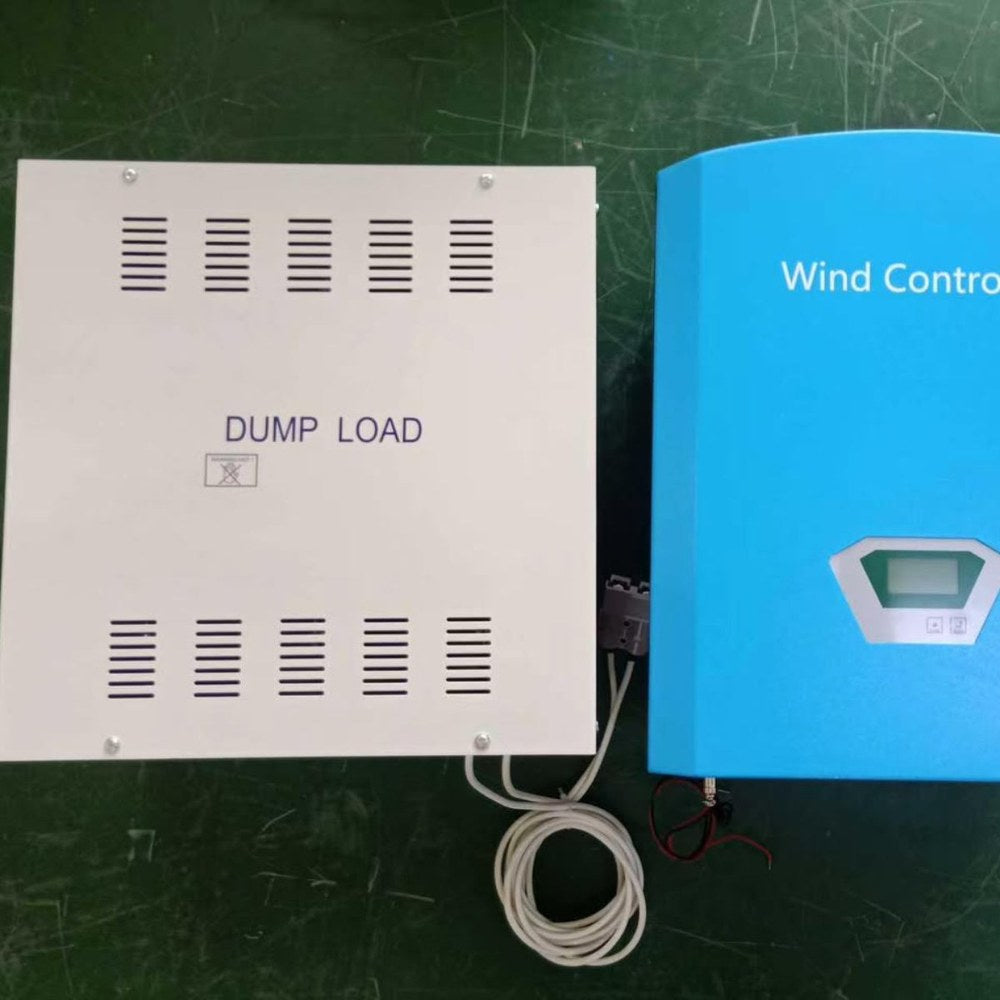

  • WW30-48-240 (3 kW): L2-2500, L2-3000 and G-3000 — 220 V-class turbines stepped down to the 48 V bank.
  • WW50-48-240 (5 kW): G-5000 — the biggest machine in the range.

Running a turbine that is not on that list? Ask us before you buy. A mismatched controller is the most expensive way to find out what a dump load is for.

What Else you'll Need

A controller is the middle of a system, not the whole of one. Either side of it you need cable sized for the run, breakers and an isolator, and a 48 V battery bank worth protecting. Cable sizing at these currents — up to 105 A on the battery side of the WW50 — is your electrician's call, not a line on a product page. Browse bus bars, breakers and wiring in the Electrical Supplies collection, and the wind turbine range here.

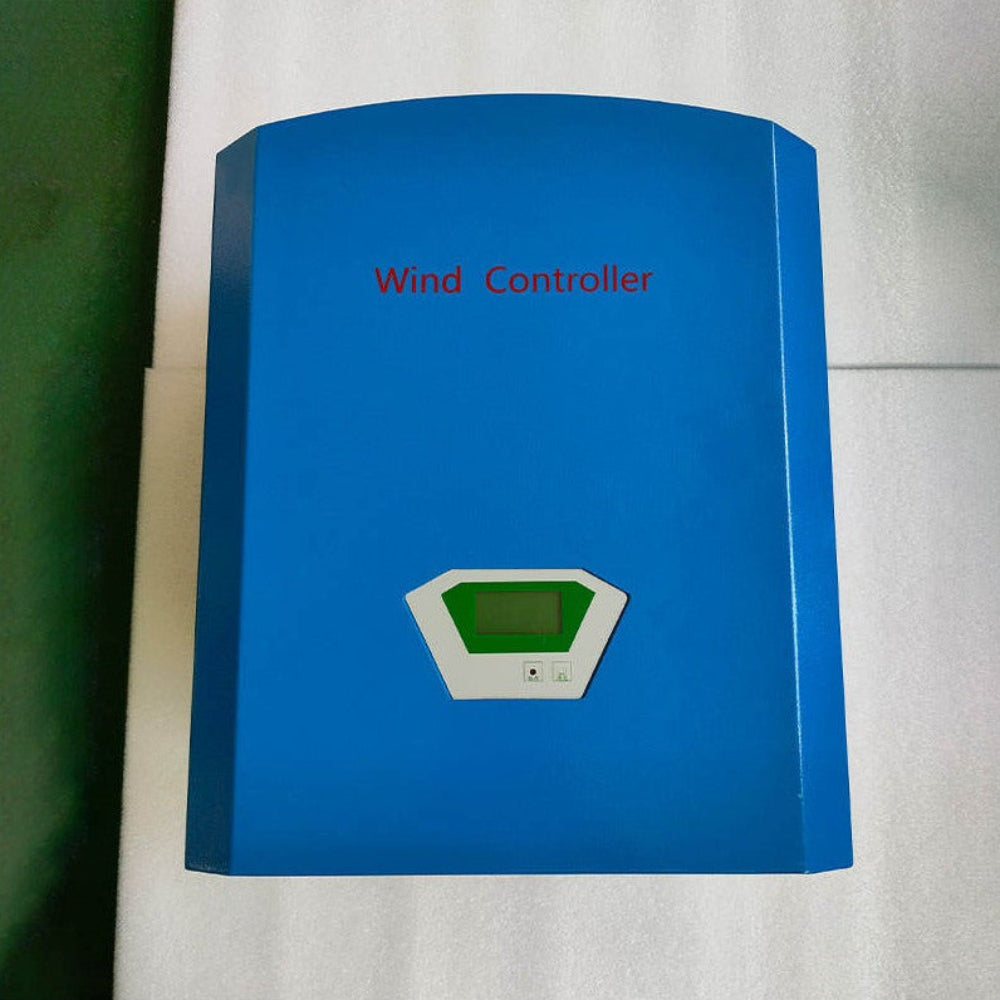

Photos: pick a size and the gallery shows that model’s own controller and dump-load box; the dump load gets bigger as the model does. The other photos show the WW case in general. The WW10-48-48, WW20-48-48, WW30-48-240 or WW50-48-240 you receive is this design, at the sizes in the spec table.

Q & A

Other Wind Controllers on This Site Say the Charging Current is "Not Specified by Supplier". Why does This One Print Amps?

Because the WW series is the one controller range where the manufacturer publishes a maximum output current for each individual model — 21 A, 42 A, 63 A and 105 A, printed on each unit's own datasheet page. We publish an amp figure when the manufacturer does, and say so plainly when they don't. Size cable and breakers with your electrician from these published figures, never from the wattage in a product title.

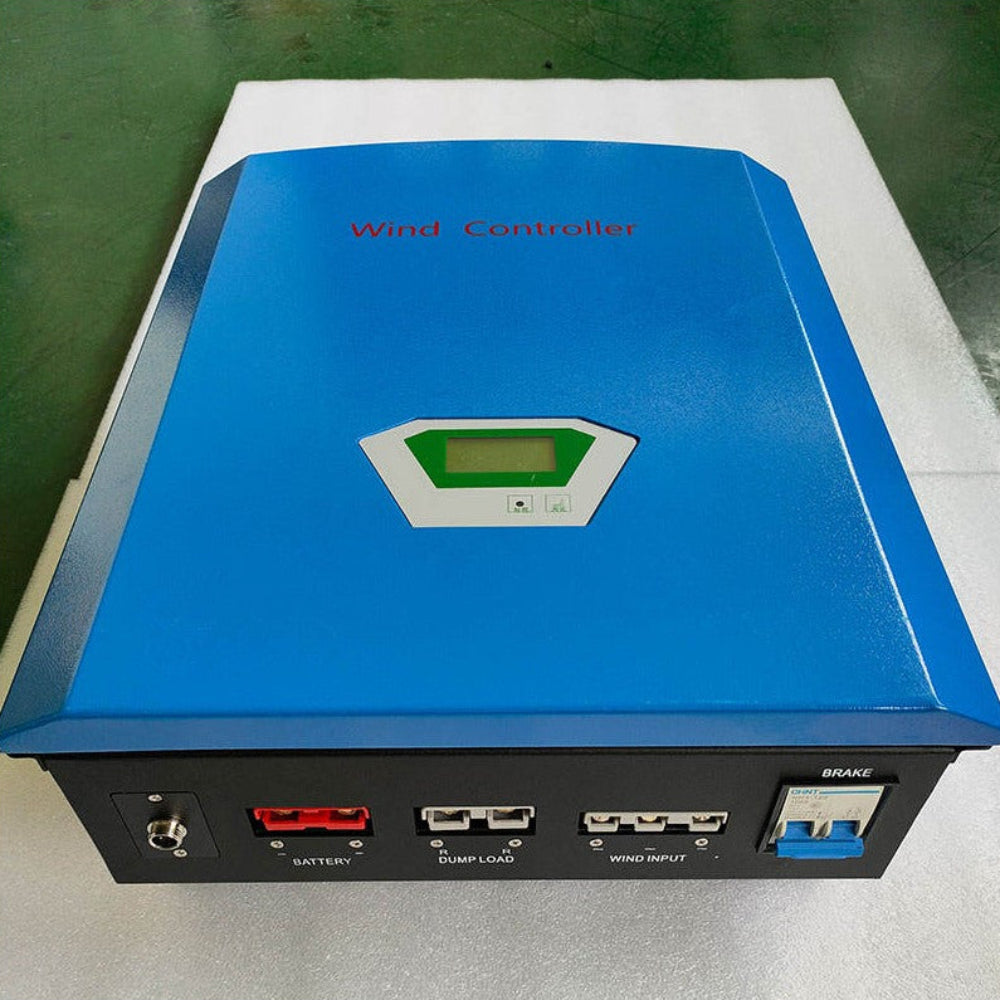

Is the Cable from the Turbine AC or DC?

AC. The turbine generates three-phase AC, and the rectifier inside the controller converts it to DC to charge the battery. A generator is not a battery: the voltage on that cable rises with rotor speed, which is exactly why the WW30 and WW50 are rated to accept up to 320 V on the wind input while feeding a 48 V bank. Cable selection and protection on both sides are your electrician's job.

Can I Wire Solar Panels into it?

No. These are pure-wind controllers with no PV input at all. If you want one box that runs a turbine and a solar array together, that is the HCM wind-solar hybrid series — a different product, also in our controller range.

Will it Charge a 12 V or 24 V Battery Bank?

No. All four models are 48 V battery units. If your bank is not 48 V, this is the wrong controller for it and we would rather say so.

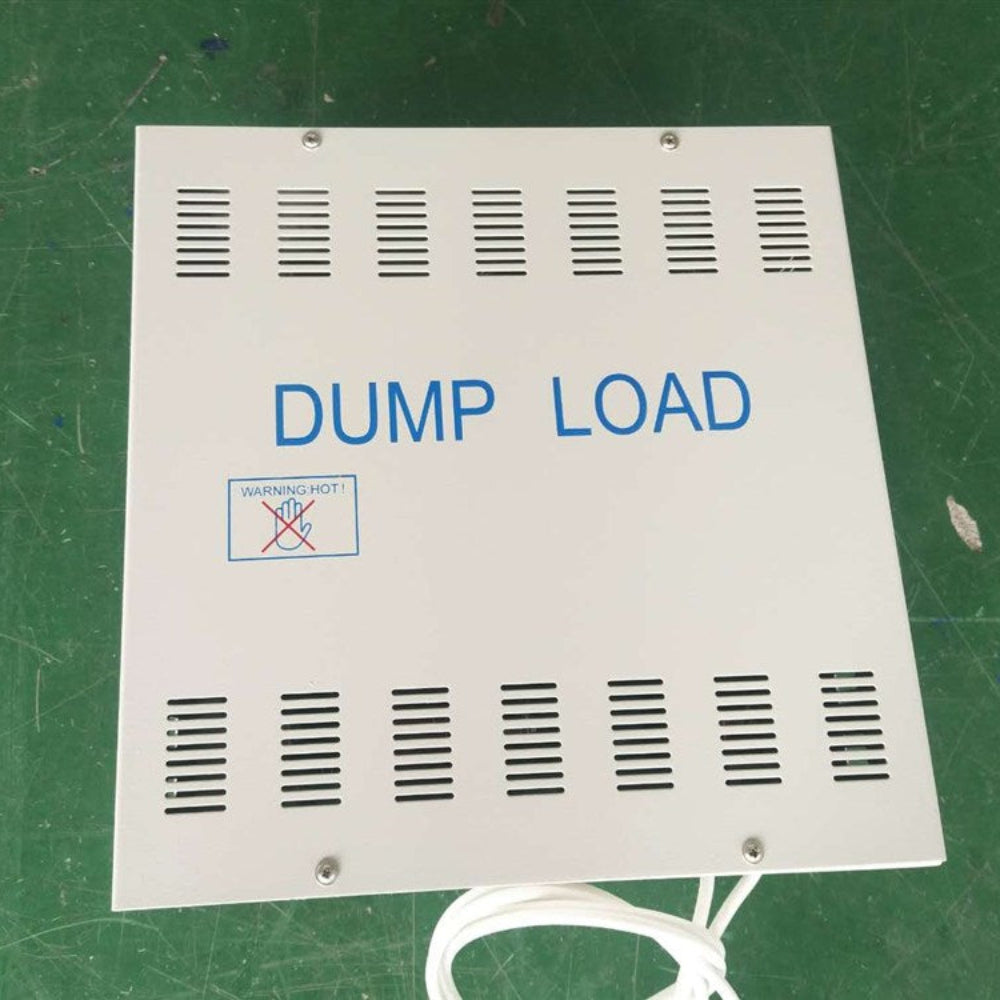

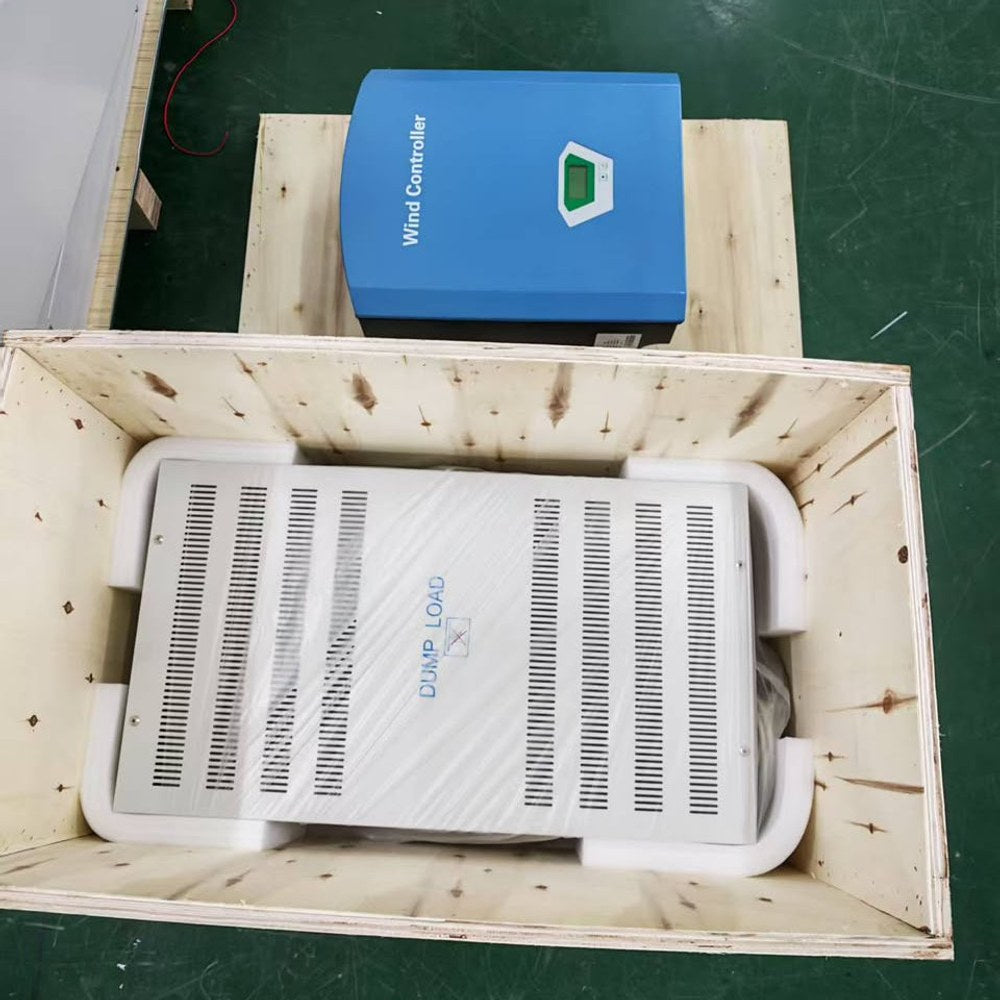

Is the Dump Load Included, and What is it for?

Included — every model ships with its matched external dump-load resistor box. When the batteries are full, or the controller needs to brake the turbine, the energy has to go somewhere: it goes into the resistors as heat. The box gets hot in service by design, so mount it clear of anything that minds.

What is the Warranty Position?

Twelve months from the manufacturer, on all four models.

How Long Until it Arrives, and What Turns Up?

Built to order and shipped from the factory. Air freight to your door in Australia and New Zealand: 2 weeks (allow up to 3 for WA and regional). Not in a hurry? Pick Sea Saver above: the same order by sea for less, 4 to 6 weeks (allow up to 7 for WA and regional). The WW10 is a 10 kg controller with a 2.8 kg dump-load box (the supplier has not published its carton sizes or gross weight); the WW20 arrives as two cartons (controller and dump-load box, 23 kg the pair); the WW30 and WW50 each arrive as a single wooden crate at 38.6 kg and 46.5 kg respectively — plan for two people or a trolley at the delivery end.

What Monitoring does the Controller Have, and What is Not in the Box?

Every WW-series controller (WW10 to WW50) has its own display screen and a built-in RS485 port as standard. The manufacturer states the RS485 port is for on-site use with a computer through an RS485-to-USB adapter (any brand; not included). Remote monitoring is a factory-fitted option on every WW-series controller from 1 kW to 5 kW: WiFi, or RJ45 for a cabled router connection — one or the other, chosen when you order, and it cannot be added later. The customer uses a computer app with no account and no ongoing fee; the manufacturer states it can see the controller's data and can adjust its settings remotely, so a settings change does not need a site visit. Pick Ethernet (RJ45) or WiFi in the Monitoring Port option when you order. The manufacturer also states the controller charges on battery voltage alone, so it works alongside a lithium battery's own management system without a data link. In the box: the manufacturer states the controller ships with its Anderson plugs and the cables to connect the dump load. Not in the box: the battery cables and the turbine-to-controller cable — your electrician supplies those to suit the run, or the manufacturer can supply the turbine cable on request (ask us when you order). The plug rating is not yet specified by the supplier.

Specs

Downloads: WW10-48-48 controller user manual (PDF) · WW20-48-48 controller user manual (PDF) · WW30-48-240 controller user manual (PDF) · WW50-48-240 controller user manual (PDF) · G-series turbine installation instructions (PDF, 18 pages)

All figures below are from the manufacturer's per-model datasheet pages. Where a value differs between models it is shown per column.

Specifications WW10-48-48 WW20-48-48 WW30-48-240 WW50-48-240
Controller Type Pure-Wind MPPT (No PV Input at All)
Topology Step-Up Step-Up Step-Down Step-Down
Rated Input Power (Matched Turbine Size) 1 kW 2 kW 3 kW 5 kW
Rated Input Voltage 48 Vdc 48 Vdc 280 Vdc 280 Vdc
Wind Input Voltage Range 0–64 Vdc; 12 V Default Start-Charge Voltage (Settable 8–64 V) 12–64 Vdc (model page); the series table prints 0–64 Vdc with a 12 V default start-charge voltage (settable 8–64 V) — both as printed 60–320 Vdc; Cut-in 60 Vdc Factory Setting, Adjustable 60–320 Vdc; Cut-in 60 Vdc Factory Setting, Adjustable
Rated Input Current 21 A 42 A 13 A 21 A
Maximum Output Current (Battery Side) 21 A 42 A 63 A 105 A
Battery Voltage 48 Vdc
Rated Output Voltage 48 Vdc
Output Over-Voltage Protection Lower limit 56 Vdc factory setting (adjustable 44–64 Vdc); upper limit 60 Vdc factory setting (lower limit +4 V)
Temperature Compensation -3 mV/°C/2V

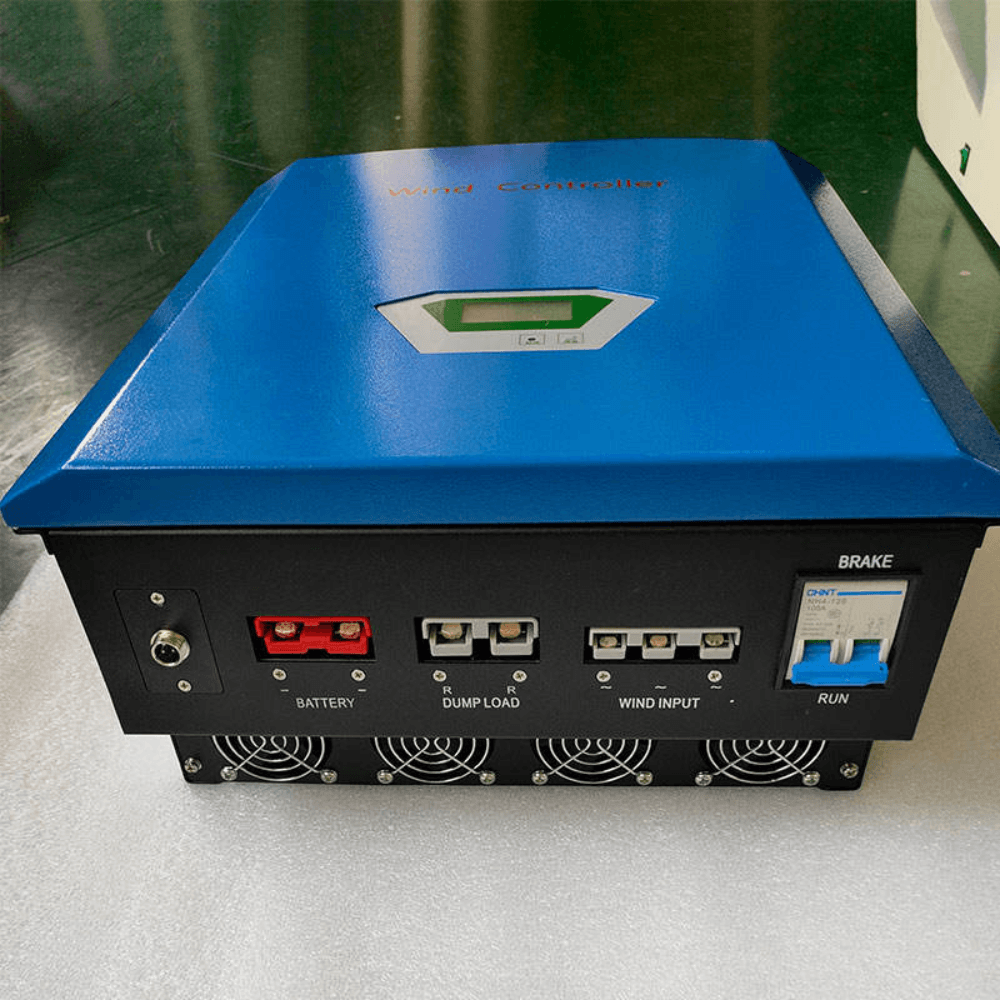

Manual Brake Press and hold button for 5 s to fully dump; manual recovery required; three-phase AC short circuit when air switch is closed
Over-Current Brake 25 A factory setting; adjustable 0–25 A; full dump and recovery after 10 min 50 A factory setting; adjustable 0–50 A; full dump and recovery after 10 min 15 A factory setting; adjustable 0–15 A; full dump and recovery after 10 min 25 A Factory Setting
Over-Voltage Brake Controlled by Output Over-Voltage Protection Controlled by Output Over-Voltage Protection 320 Vdc Factory Setting; Adjustable 220–320 Vdc 320 Vdc Factory Setting; PWM Step-Down Dump
Optional Over-Wind-Speed Brake 18 m/s (64.8 km/h) factory setting; adjustable 0–30 m/s (0–108 km/h); recovery below 15 m/s (54 km/h) after 10 min
Optional Over-Speed Brake 500 rpm factory setting; adjustable 0–1000 rpm; recovery after 10 min
Rectification Uncontrolled Rectification
Display LCD
Communications RS485 built in (supplier-confirmed); optional WiFi or RJ45 Ethernet, factory-fitted — one or the other, cannot be added later (manufacturer)
Lightning Protection Yes
Efficiency ≥92% ≥92% ≥92% ≥95%
Static Loss Less than 2 W Less than 5 W (catalogue); the manual prints less than 2 W — both as printed Less than 5 W Less than 6 W (model page); the series continuation prints less than 8 W — both as printed
Working Temperature -20°C to +40°C
Working Humidity 0–90% RH (Non-Condensing)
Noise 65 dB or Less

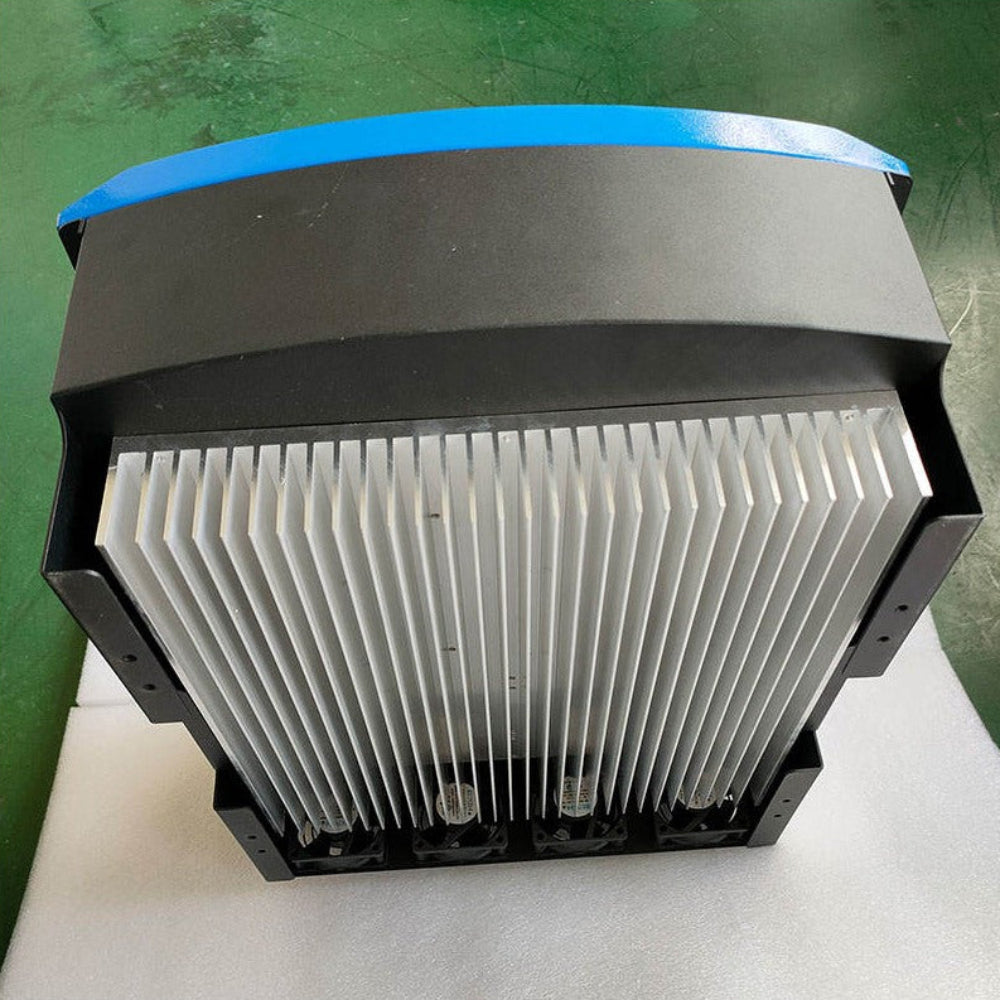

Cooling Forced Air Cooling Forced Air Cooling Forced Air Cooling The manufacturer prints both "fan cooling" (model page) and "natural cooling" (series table); we publish as printed. Allow ventilation either way.
Installation Wall-Mounted
Protection Level IP42 — Indoor or Sheltered Mounting, Not Weather-Exposed
Controller Size 300 × 375 × 145 mm 300 × 375 × 145 mm 360 × 440 × 195 mm 360 × 440 × 195 mm
Controller Net Weight 10 kg 10 kg 15.5 kg 15.5 kg
Dump-Load Box (Included) 360 × 80 × 120 mm, 2.8 kg 300 × 400 × 210 mm, 9 kg 400 × 390 × 210 mm, 13 kg 680 × 390 × 182 mm, 19 kg
Shipping Not Specified by Supplier 2 cardboard boxes, 495 × 380 × 255 mm each; 23 kg gross 1 wooden crate, 540 × 490 × 565 mm; 38.6 kg gross 1 wooden crate, 820 × 495 × 550 mm; 46.5 kg gross
Warranty 1 Year

Payment & Security

Payment Methods

  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • Google Pay
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Visa

Your payment information is processed securely.

We do not store credit card details or have access to your credit card information.

Wind Turbine FAQs

    • Start with two questions: how much wind your site actually gets, and how much room you have.
    • Vertical turbines (the X-300, H1000 and H2000) start turning at 2 to 2.5 m/s and take wind from any direction, so they keep working where the wind swirls and shifts — around buildings, trees and rooflines. They run from 300 W up to 2000 W.
    • Horizontal turbines (M-400, M-600, M-800, and the L1, L2 and G series) want cleaner, steadier wind and a clear run at it. In clean, steady wind a horizontal of the same rating is usually the better harvester, and they scale further — 400 W up to 5000 W.
    • Match the turbine to your battery bank, not to the biggest number. 12 V suits a camper, 4WD or tinnie; 24 V a van, cabin or boat; 48 V a shed or remote block.
    1. The largest models run at mains voltage, and the L2-3000, G-3000 and G-5000 are ground-mount only — they need a 10–15 m mast and are not rooftop units.
    2. Rated power is measured at 10–14 m/s, depending on the model. What you get at your place depends on your wind, your mast height and the season — not on a number on our website.
    1. No. Wind turbines generate "wild" 3-phase AC power that changes voltage constantly with the wind speed.
    2. Connecting it directly to a battery or a standard solar inverter will destroy your equipment.
    • You must wire the turbine into a dedicated wind charge controller (pure-wind or wind-solar hybrid) with a dump-load resistor.
    • The controller converts the power to stable DC to charge your batteries safely.

  • Match the turbine and its controller to the voltage of your existing battery bank:

    • 12 V: compact mobile setups — caravans, 4WDs and camper trailers.
    • 24 V: medium setups — off-grid sheds, cabins and motorhomes.
    • 48 V: most of this range, and the sensible choice for a full off-grid system. Higher voltage means less current in the cable, so less loss over a long run and lighter cable.
    • When your battery bank is fully charged it stops accepting power.
    1. If a storm hits at night with the batteries full, a turbine with nowhere to send its power will free-spin out of control and can physically fly apart.
    • The controller prevents that by diverting the excess into the dump load resistor, which burns it off safely as heat and acts as an electronic brake to slow the turbine down.
    • Yes, you need one.
    • Usually quieter, but not silent — no turbine is.
    • Why a Horizontal is Louder: its blade tips travel several times faster than the wind, and blade noise climbs steeply with tip speed. The whoosh rises and falls as each blade comes round — a rhythmic swish that carries through wind noise more than a steady hiss does.
    • Why a Vertical is Usually Quieter: its blades turn more slowly, so there is less of that whoosh.
    1. What we won't Tell you: that it's silent. Every turbine gets louder as the wind picks up. The wind often covers much of it in a strong blow, but a close neighbour can still hear one in light to moderate wind.
    2. The manufacturer publishes no noise figure for the turbines themselves (the "65 dB or less" on some Specs tabs is the controller's), so we don't quote one.
    • On a building, use vibration isolators — a turbine bolted to a structure carries its sound into the rooms — and check your council's rules on noise, height and placement before you order a mast.
    • It will turn, but turning is not charging. The blades start turning at 2 to 2.5 m/s (about 7 to 9 km/h) — a light breeze.
    • Charging starts at the cut-in speed: 3 m/s (about 11 km/h) on every model except the X-300, which starts and charges from 2 m/s. Output then climbs steeply with wind speed.
    1. The rated figure is measured much higher — 10 to 14 m/s depending on the model, a 36 to 50 km/h wind, not a normal afternoon. Each product page's spec table gives that model's own numbers.
    • A gentle breeze keeps the turbine ticking over; it takes real wind to push real power into your batteries. Every horizontal model has its measured power curve published on its product page — work from that, not from the number in the product name.
    • No — small turbines are built to spin fast. The smaller the rotor, the faster it has to turn to keep its blade tips up with the wind: the M-400's 1.35 m rotor runs at about 800 rpm, the M-600 and M-800 at about 500, the big G-series at 300.
    • In the manufacturer's words, the high rpm is a design necessity, not a defect. A slower generator would need a bigger stator and more magnets and copper — heavier and dearer.
    • They start turning at 2 to 2.5 m/s and make power right across the wind range — just less when the wind is light. What you get depends on your site and how high you mount it.
    • Yes — connect the turbine to a battery bank first, through a dedicated charge controller.
    1. Never straight to an inverter. Connecting a wind turbine directly to a standard inverter will damage the equipment or cause the system to fail.

    The Correct Order:

    • 1. Wind Turbine — generates wild, fluctuating 3-phase AC as the wind changes.
    • 2. Hybrid or Wind Charge Controller — converts it to steady DC, and protects the turbine from over-speeding with an electronic brake.
    • 3. Battery Bank (12 V, 24 V or 48 V) — absorbs the gusts and provides a steady source of energy.
    • 4. Off-Grid Inverter — connects to the battery, converting stored DC into AC for your appliances.

    Why you Cannot Skip the Battery:

    1. Unstable Voltage: wind changes second by second. Without a battery to smooth it out, a direct-connected inverter would constantly cut out.
    2. Turbine Damage: when a battery is full or disconnected, the turbine loses its load. Without that resistance the blades can spin out of control in high wind and destroy the unit. The controller uses the battery connection to dump excess power and slow it down.
    1. This turbine generates 3-phase AC power and cannot be connected directly to a battery, a solar controller or a home inverter.
    • It must run through a dedicated wind charge controller (pure-wind or wind-solar hybrid) with a dump-load resistor. The dump load stops the turbine over-speeding and destroying itself in high winds once your batteries are full.
    • Installation and commissioning must be carried out by a suitably qualified and licensed electrician.
    • Cable, breakers, isolators and all protective devices are selected to suit your site and are the electrician's call, not ours.

  • It is almost always one of three installation issues. Check them in order.

    Quick Checks — Tick as You Go

    • Is the Meter Set to AC Volts (V~)?
    • Does it Spin Freely Once Disconnected from the Controller?
    • Is the Cable from the Mast Heavy Enough for the Run?

    1. The Multimeter is Set to DC — The Most Common Mistake.

    1. Measuring the three turbine wires with the meter set to DC volts gives a false reading near zero.
    • Wind turbines generate 3-phase AC directly from the stator. Switch the meter to AC volts (V~).

    2. The Turbine is Stalling Because of a Short.

    1. The blades turn heavily and slowly, or lock up: if any of the three AC output wires touch each other, or the controller's braking diodes have short-circuited, it acts as a magnetic brake — the turbine can never spin fast enough to build voltage.
    • Disconnect the turbine from the controller. If it frees up and spins much faster, the problem is a short in the wiring or a faulty controller.

    3. Voltage Drop from Thin Cable.

    1. Thin solar or automotive cable over 20 metres or more loses the power as heat before it reaches the controller.
    • Use heavy cable between the mast and the controller on long runs — minimum 8 AWG, ideally 6 AWG. Final sizing is your electrician's call.
    • The number in the name is a peak rating, not a promise.
    • A turbine's rated output is measured at a specific wind speed — 10 to 14 m/s depending on the model, which is about 36 to 50 km/h — and most sites see far less than that most of the time.
    • Your display shows what the wind is delivering right now, so it will sit well below the rated figure and move second by second as the wind changes. That is physics, not a fault.
    • As an example, the L2-2500 is rated 2,500 W at 11 m/s. On a decent steady coastal breeze of 7 m/s the manufacturer's own curve gives about 813 W. That is why we publish the full power curve on every horizontal turbine's product page.
    • Where these machines earn their keep is time: they keep charging through the night and through the weather that shuts solar down.
    1. If the display shows 0 W while the blades are spinning, that is a different problem — see the 0 W question.
    • Not necessarily — this is one of the most common questions we get, and it is rarely a faulty unit.
    • It is usually a quick settings check, or (on a first-time install) how the wiring and start-up sequence were done.
    • See our full Wind Turbine 0W Troubleshooting Guide for the complete walkthrough, or the Set-Up Guide — or contact us and we will help you sort it out.
    • Wire your bus bar and breakers before and after the controller, then power up in the right order. Getting the sequence right prevents almost all wiring issues, including the common "spinning but 0 W" problem.
    • Fit a breaker before the controller (turbine/solar side) and after it (battery side), landing on a DC bus bar.
    • Keep the turbine-to-controller cable run to 2–10 metres to limit voltage drop.
    • Power up in this order: battery breaker first, then solar, then wind turbine last.
    • See our full How to Install & Start Up guide for the complete step-by-step walkthrough and wiring diagram.

You Might Also Need

  • Free Delivery

    Excluding Some Wind Turbines

  • 10–14 Days From Order

    Allow Up to 3 Weeks for Remote Areas

  • Simple & Easy Tracking

    Updates to Your Phone

  • A Real Person Replies

    Covered by Australian Consumer Law

Compare /10
