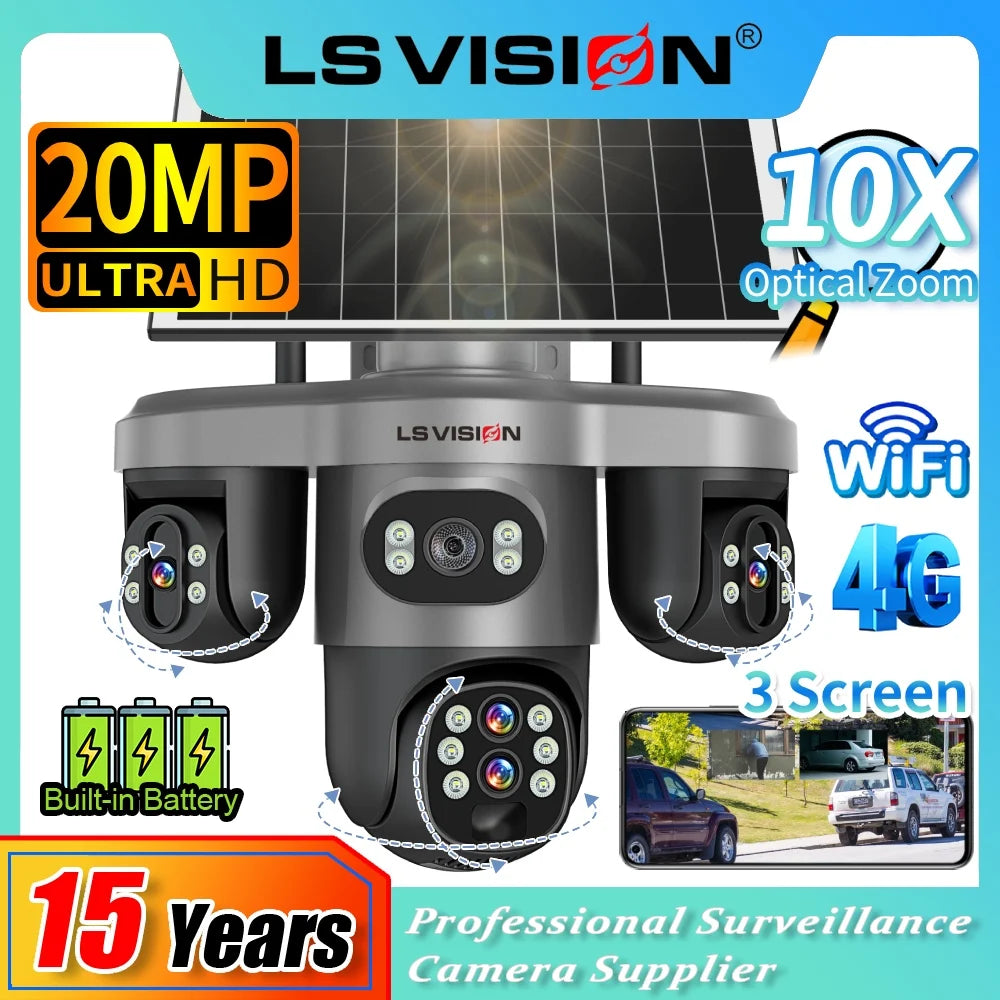

Solar Security Camera WI-FI Auto Tracking
Eyes on the yard with no power run to it.
The gear that walks is never the gear you are watching. It is the pump at the back gate, the fuel drum behind the shed, the trailer parked up at the block you only get to on weekends. There is no mains out there, no sparky booked, and by the time you notice something is missing the tracks have washed out and you are guessing.
Guessing turns into a police report with nothing in it, an insurer asking for evidence you do not have, and the same thing happening again next month because nobody knows who did it. A camera that needed a cable run was never going to get installed out there, so nothing ever got installed at all.

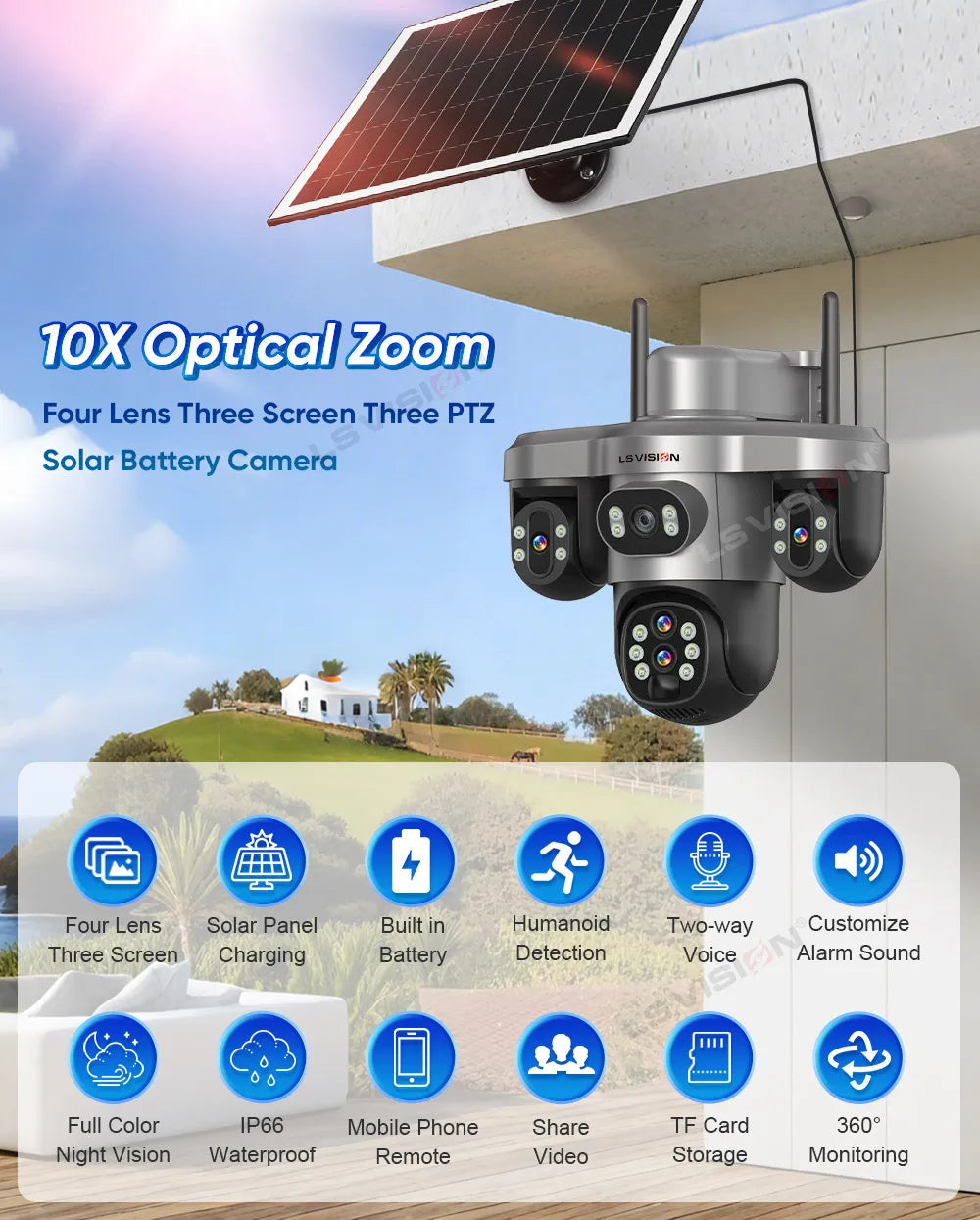

This one carries its own panel and its own battery. It bolts to a shed wall, a fence post or a pole, the panel goes on its own bracket where the sun is, and a 1.8 m lead joins the two. Four lenses feed three views to the V380 Pro app on your phone — a fixed wide-angle across the top, and three separate motorised heads you drive yourself from the app. A 128 GB card comes in the box, so it records to something from day one.
It is a record and a deterrent. It is not a guard, and it is not a 24-hour DVR — the honest detail on that is in the Limits tab, and it is worth reading before you buy.
What It Does
- Watches a site with no power: the panel and the built-in battery are the whole supply. No trenching, no electrician, no extension lead through the mud.
- Sweeps instead of staring: three separate motorised heads, driven from your phone. The bottom head swings 355° and tilts 100°; the two side heads each swing 270° and tilt 90°.

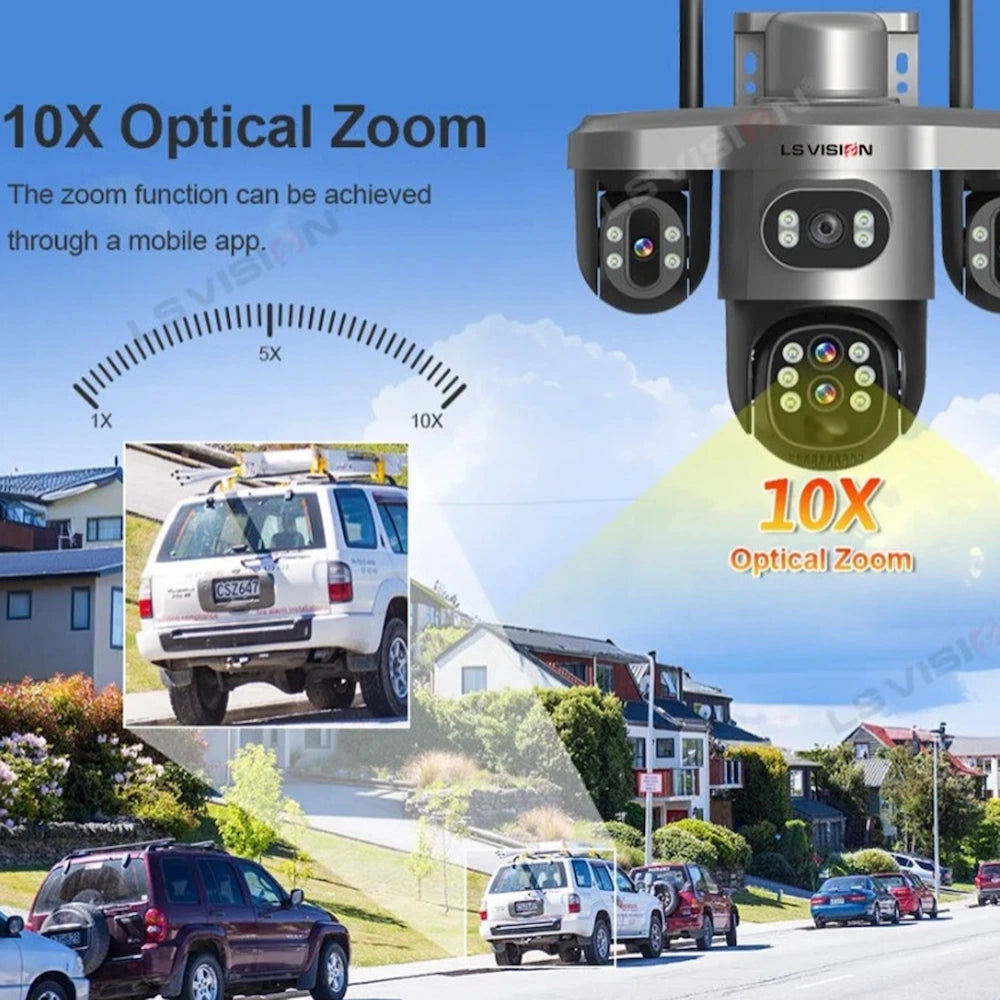

- Reads a plate at the gate: 10x optical zoom on the app, so you can push in on a vehicle at the far fence instead of squinting at a smear of pixels.

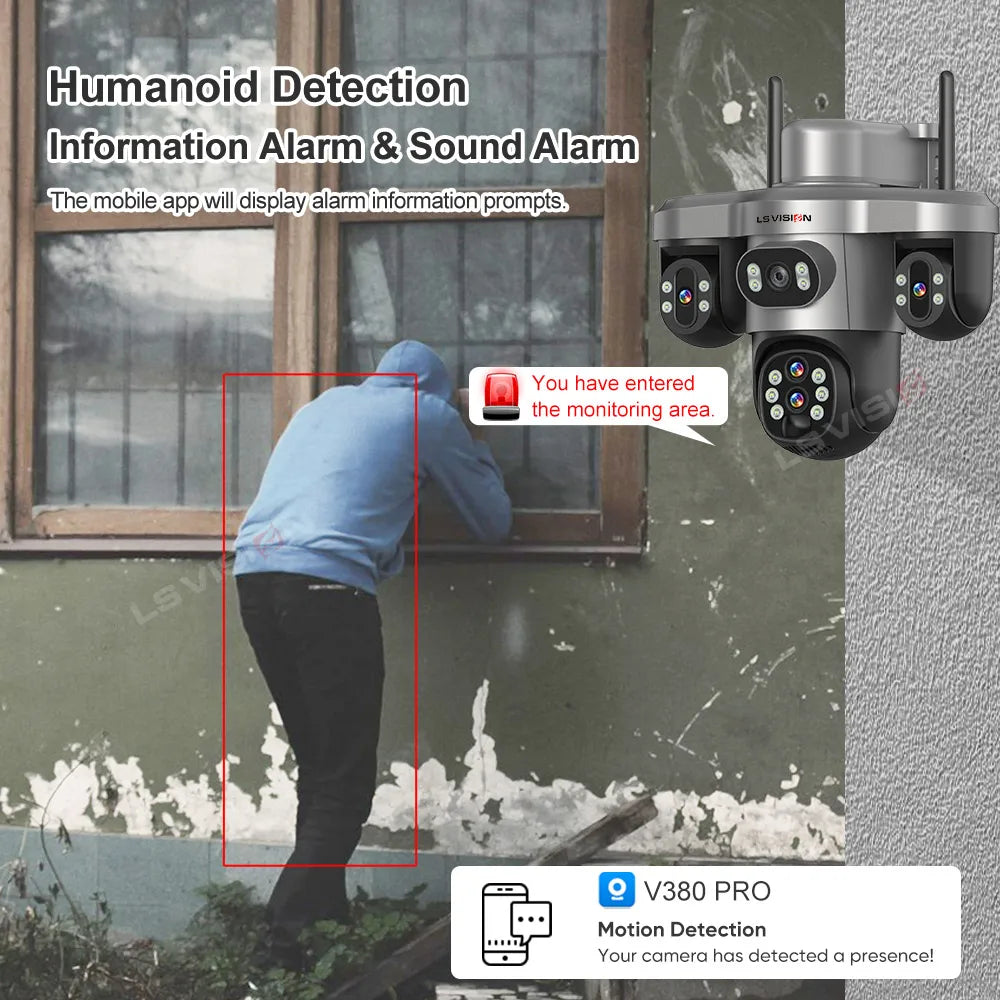

- Tells the difference: humanoid detection pings your phone when a person walks in, and you can paint the alarm area on a grid so the driveway triggers it and the tree line does not.

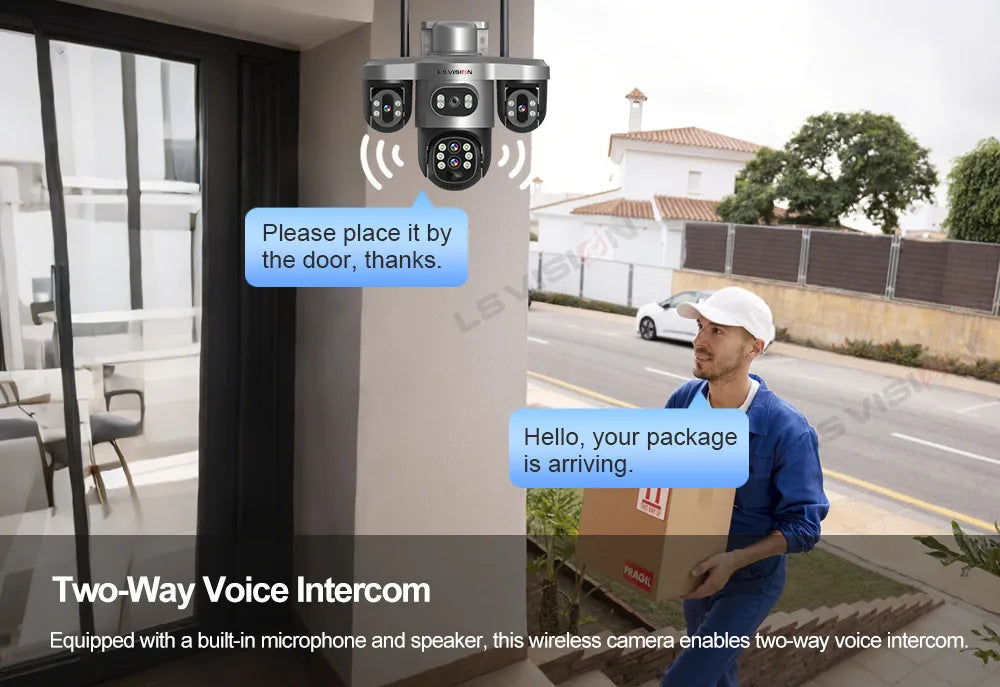

- Talks back to the yard: built-in microphone and speaker, so you can direct a delivery driver or tell someone they are on camera without leaving the ute.

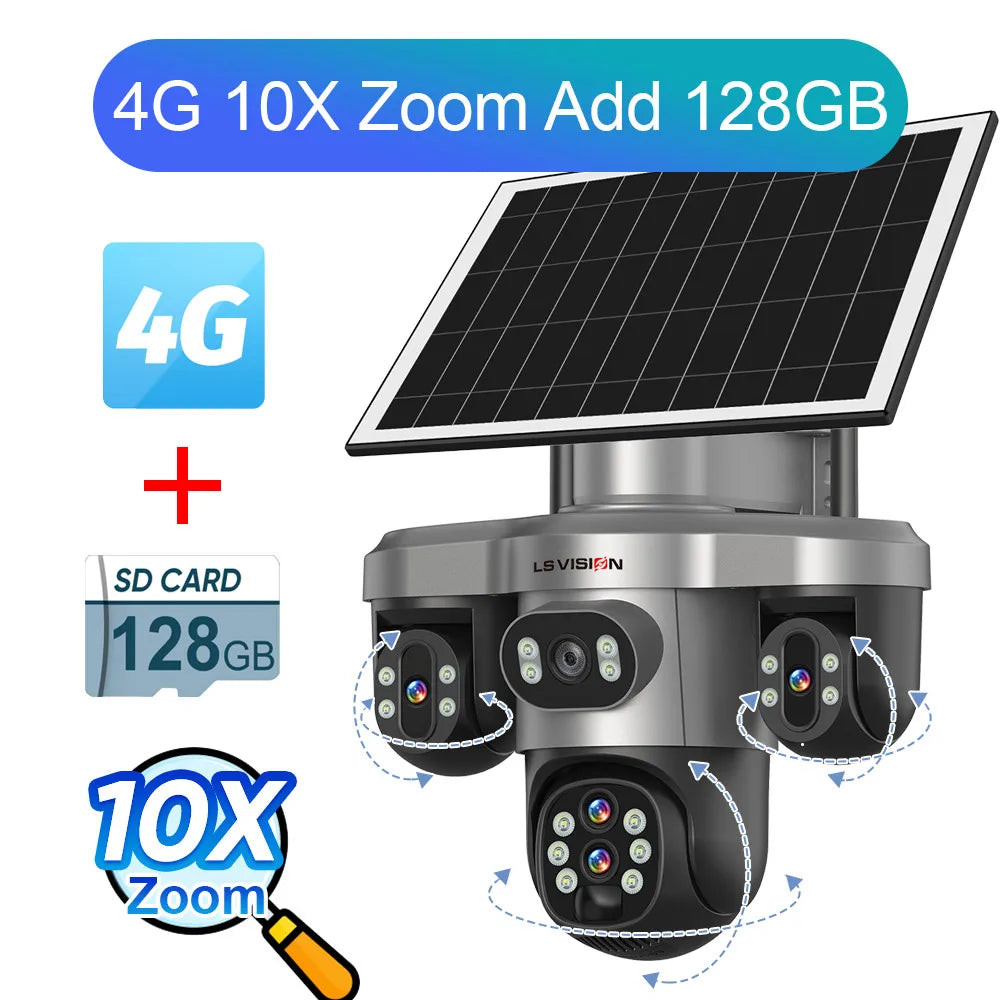

- Works where there is no Wi-Fi: the 4G version takes your own SIM and runs off the mobile network. The Wi-Fi version does not — pick the right one for the site.
Key Features

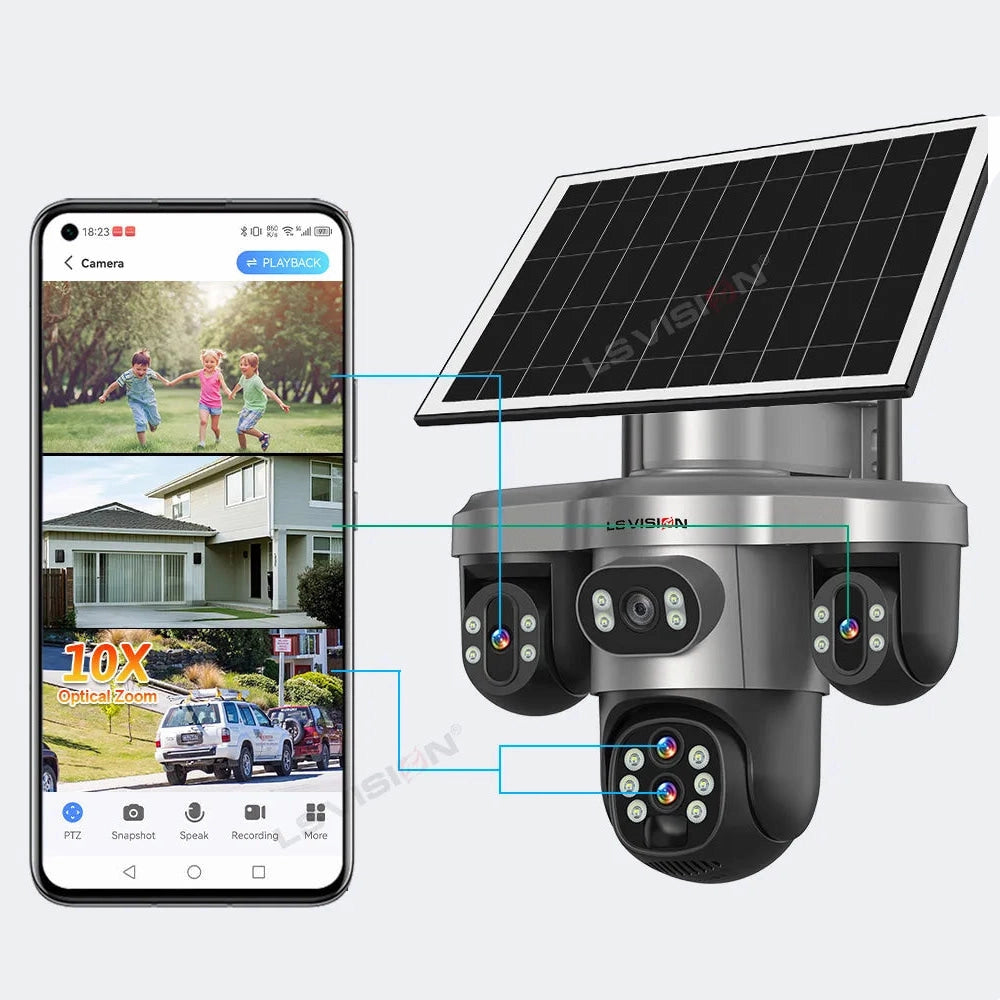

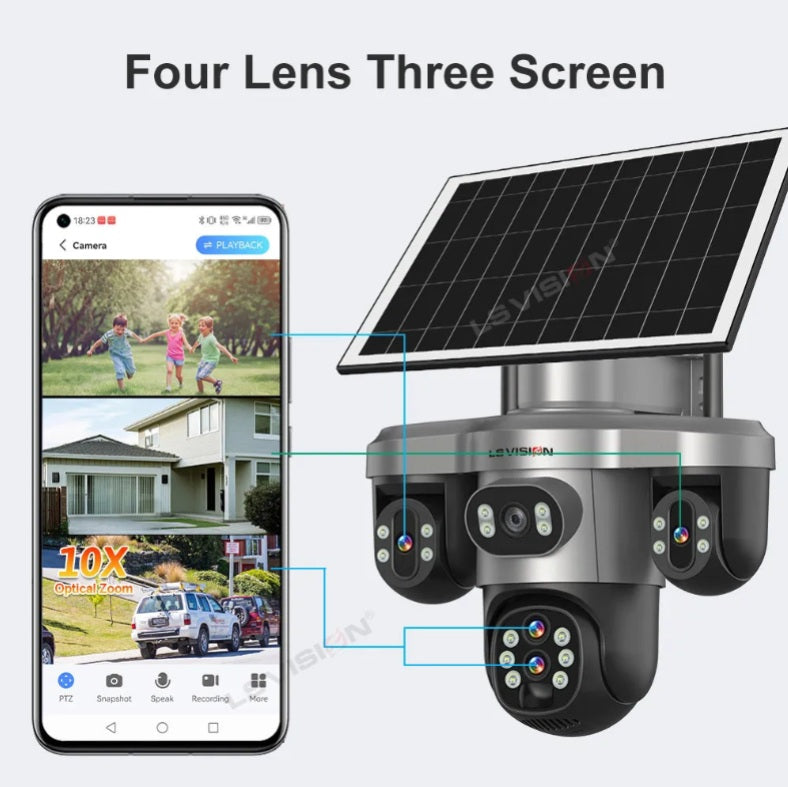

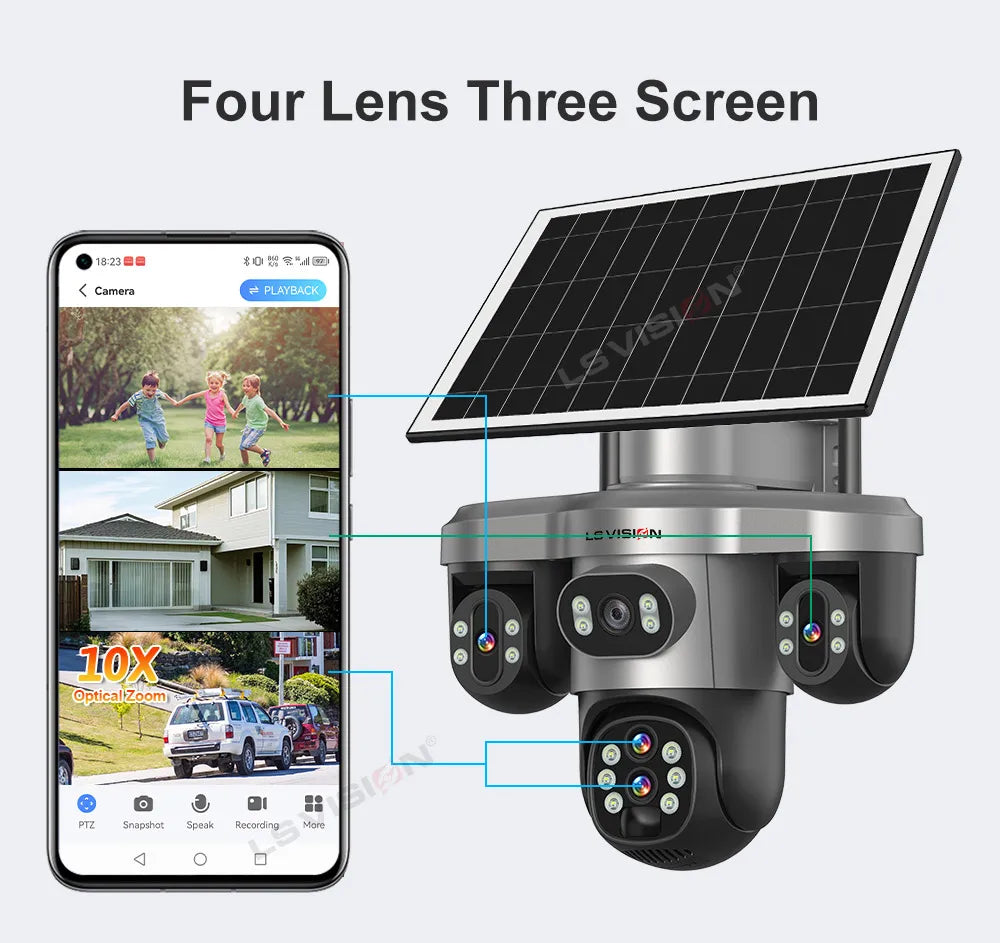

- Four lenses, three views: a fixed wide-angle lens across the top plus three motorised PTZ heads, shown as three panes at once in the app.

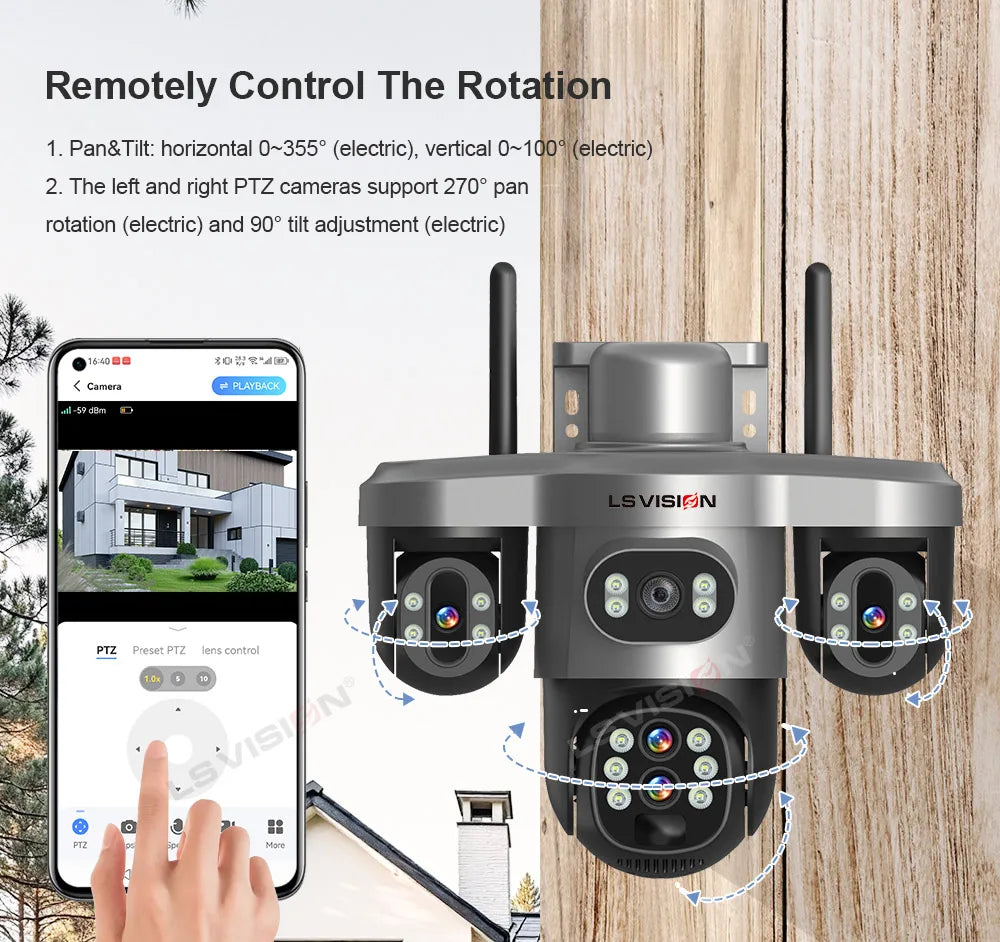

- Full motorised control: pan and tilt are electric on all three heads, and all three hold preset positions you can jump straight to.

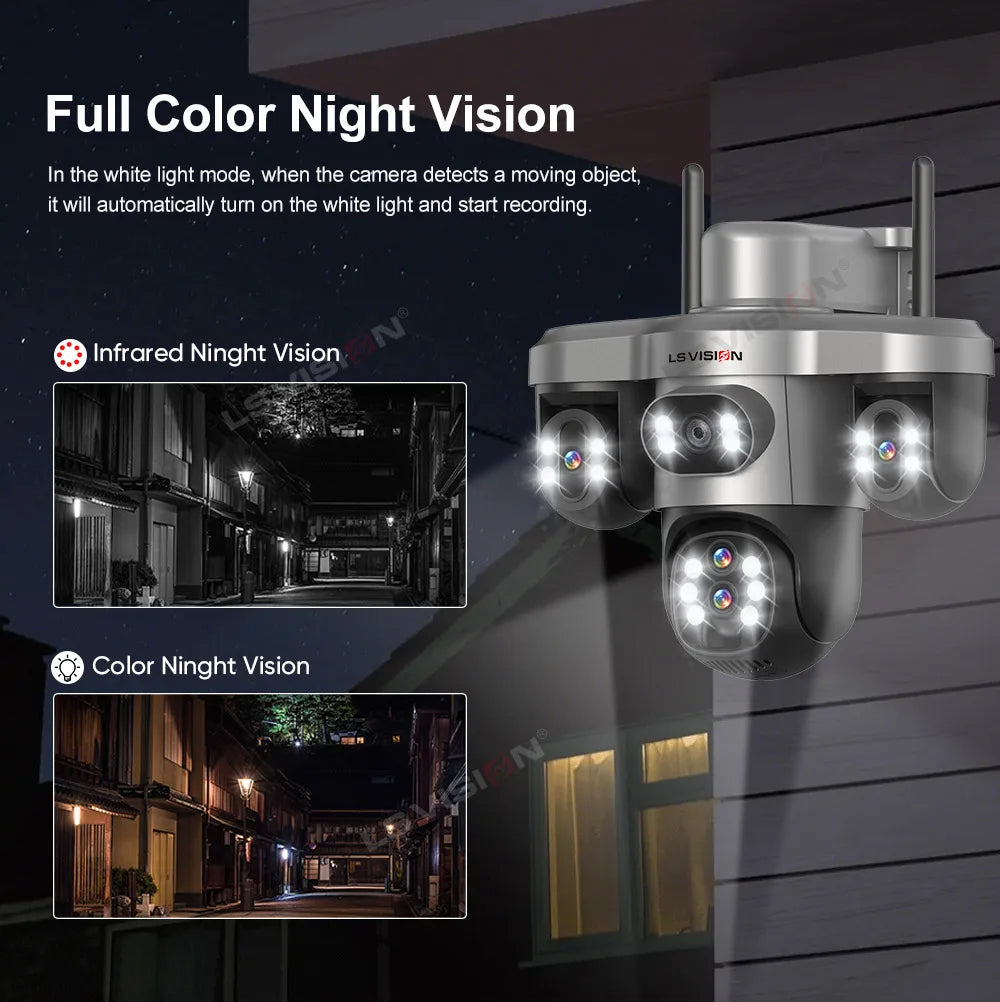

- Two night modes: infrared for a black-and-white picture, or white-light LEDs that switch on when something moves and give you colour.

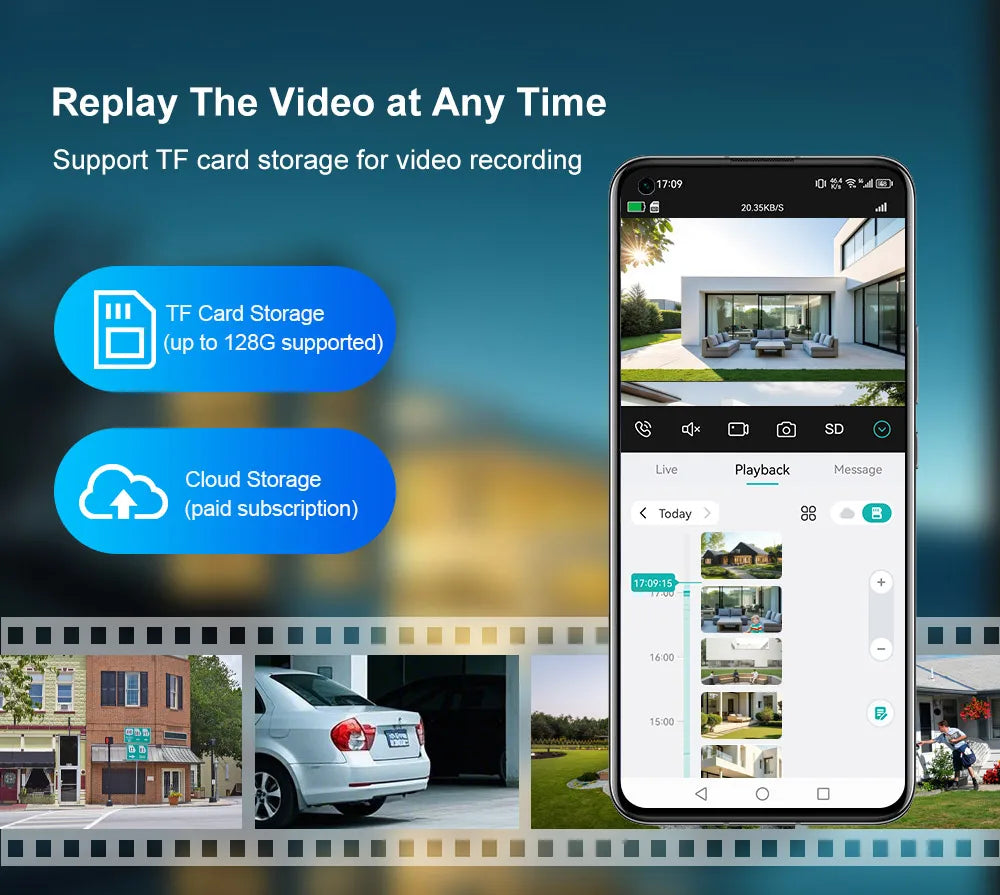

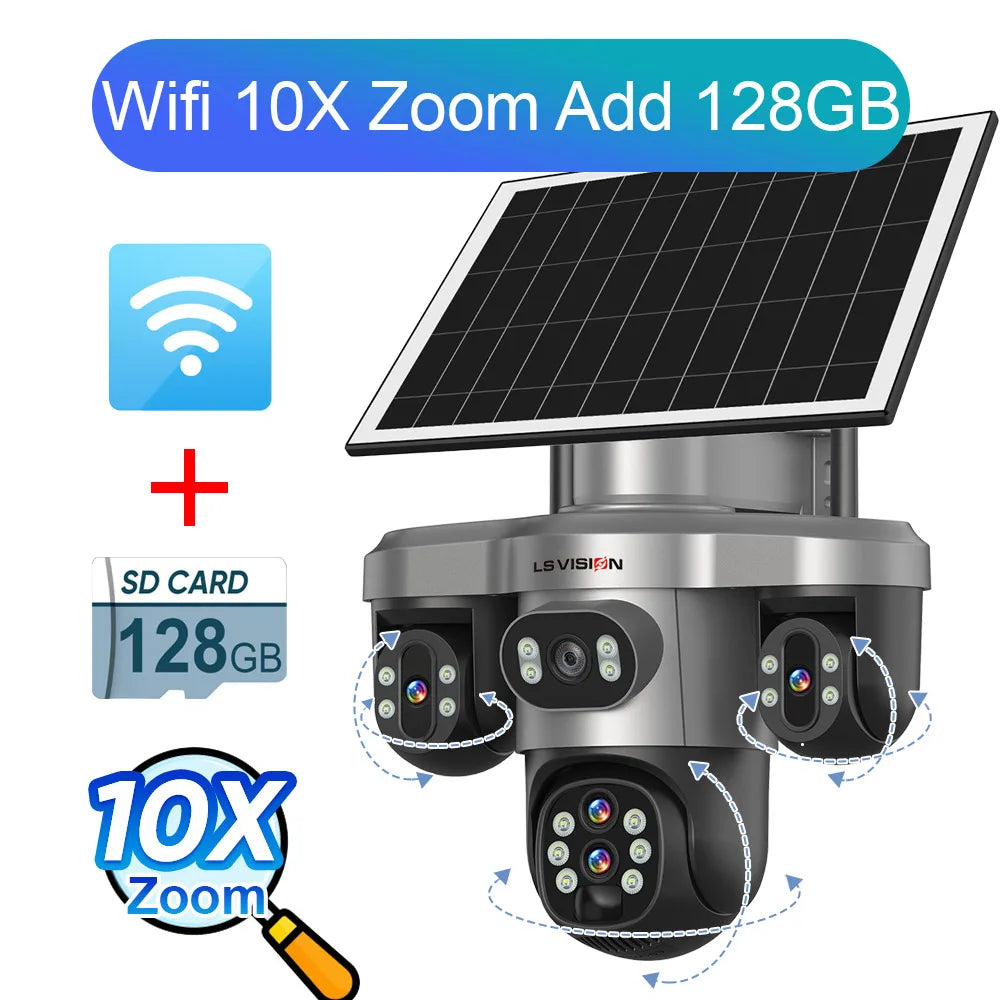

- 128 GB card included: a 128 GB microSD card ships with both versions, and the slot is rated to 128 GB. Cloud storage exists as a paid subscription if you want it.

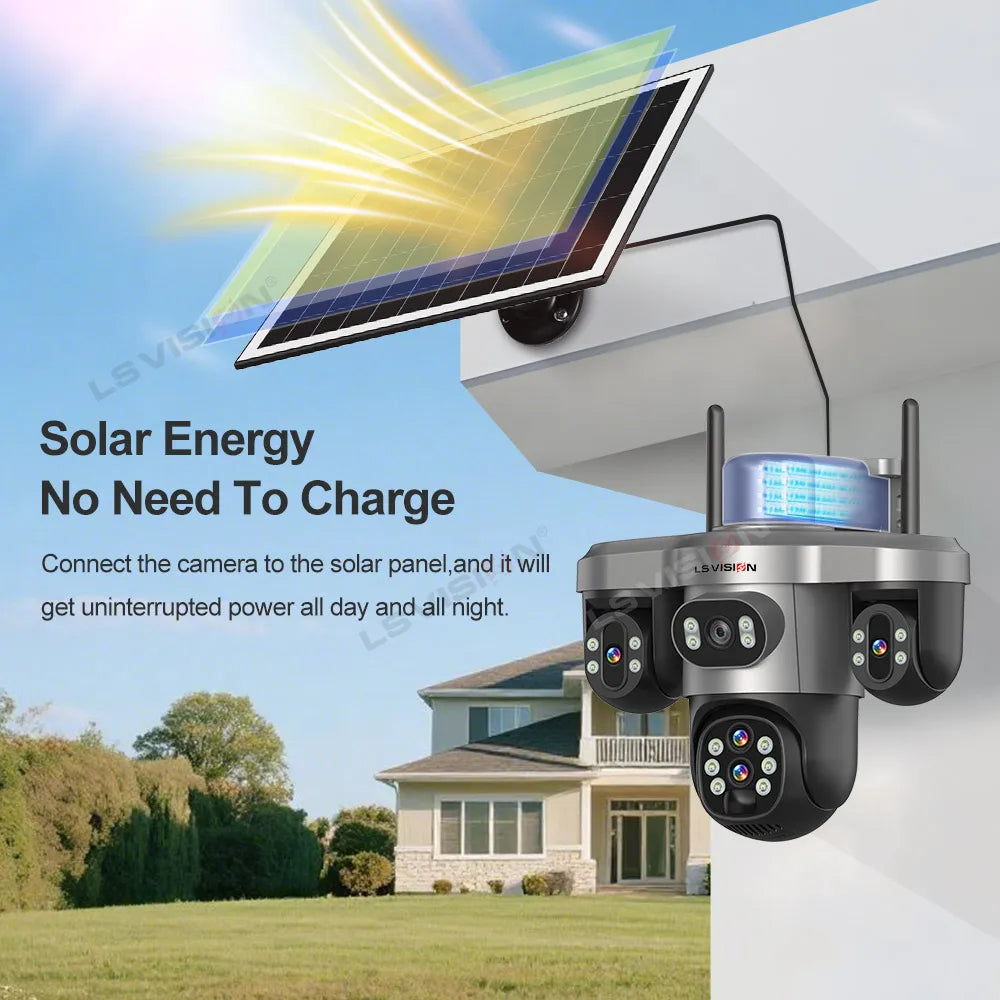

- Own solar supply: a 235 x 172 mm panel on its own adjustable bracket, joined to the camera by a 1.8 m lead so the panel can sit in sun the camera is not in.

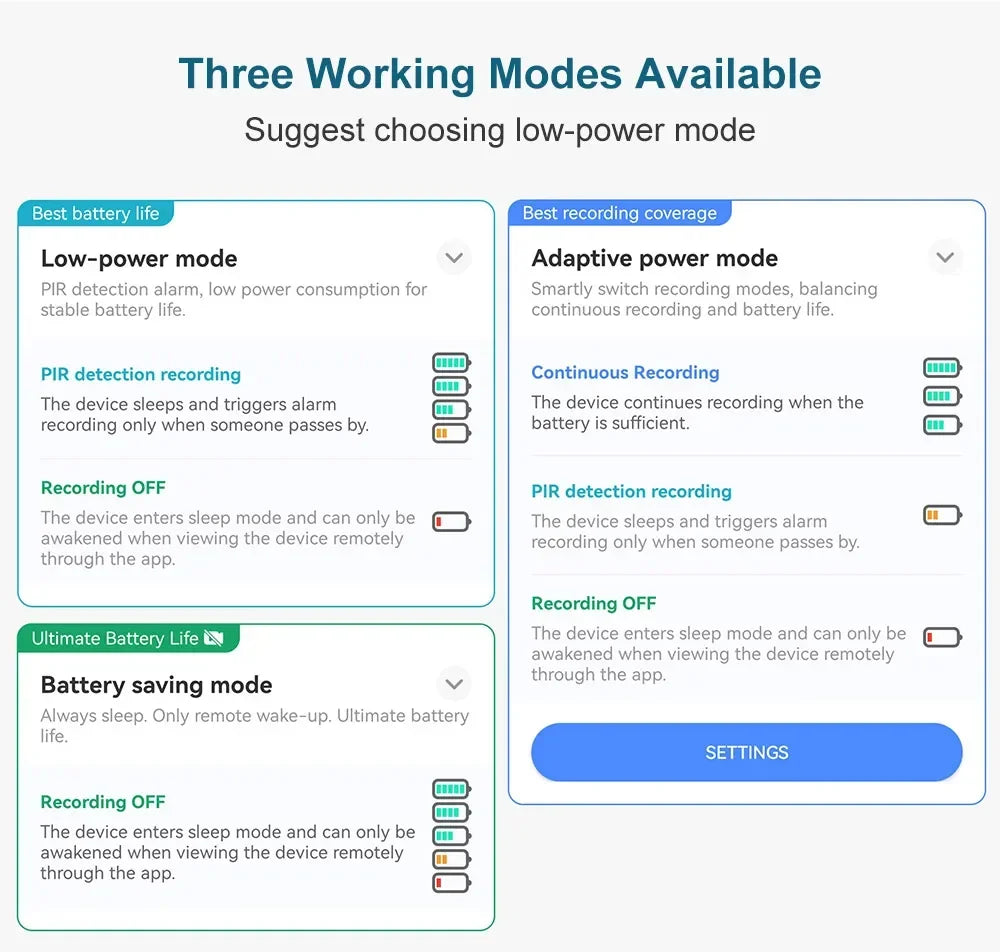

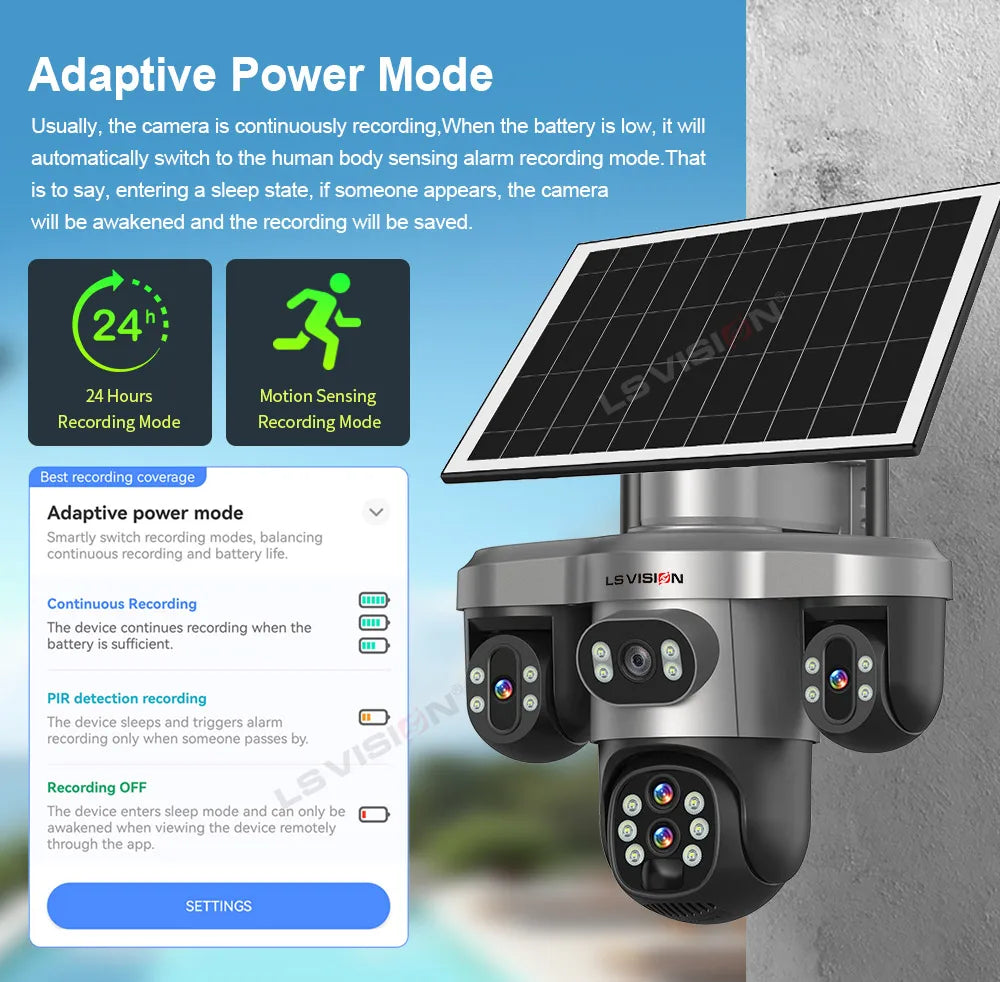

- Three power modes: adaptive, low-power and battery-saving, chosen in the app to trade recording coverage against how long the battery lasts.

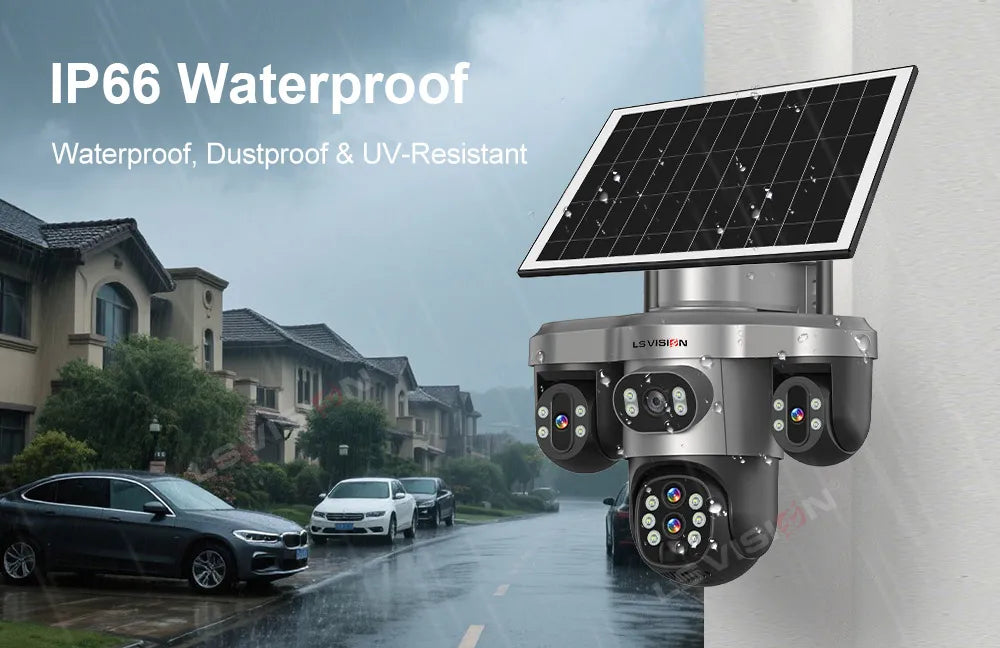

- IP66 housing: the supplier rates it for dust and heavy rain, and calls it UV-resistant. That is a weather rating, not an immersion rating.

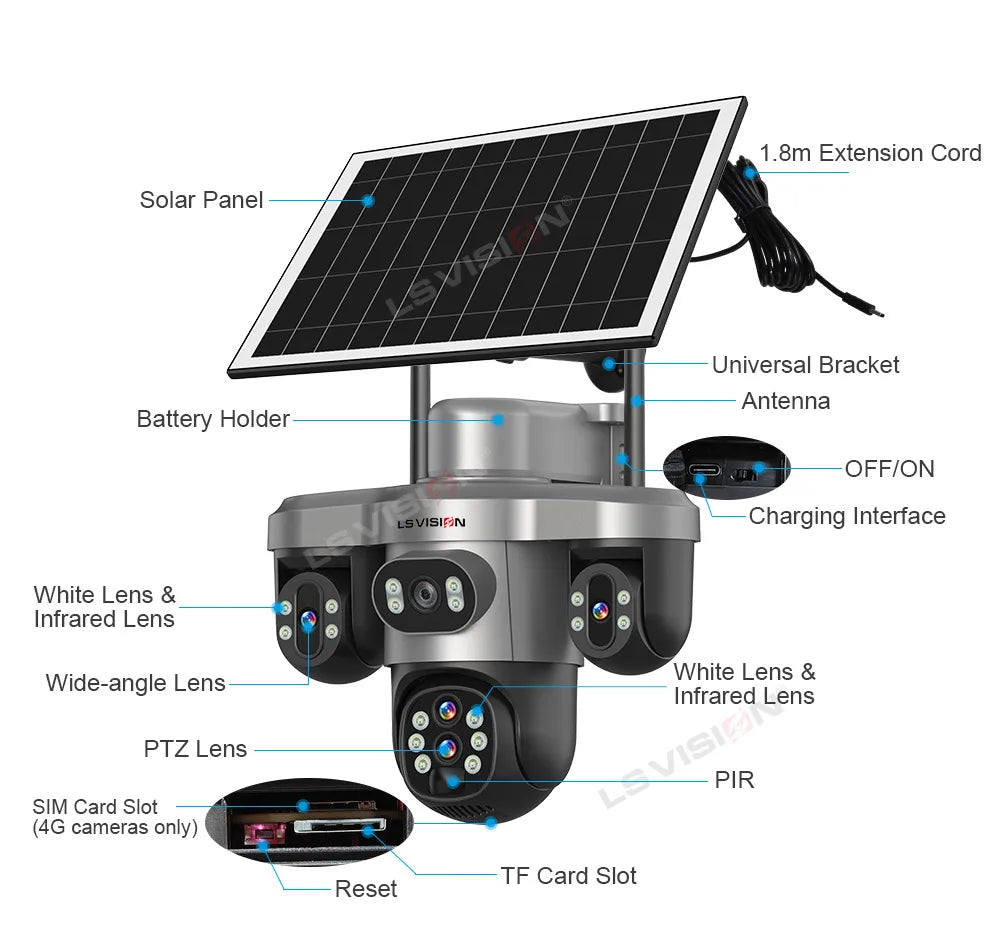

- Physical controls on the body: an off and on switch, a USB-C charging port, a reset button, a TF card slot, and a SIM slot on the 4G version only.
- Shares to the household: set it up on one account, then share the camera to other phones by scanning a code.
- Mounts to what you have: universal bracket, wall plugs and screws in the box, plus a separate bracket for the panel.
Limits
This is the section most listings for this camera leave out, so read it before you spend the money.
- It is not a 24-hour DVR: the supplier's own panel says continuous recording runs only while the battery is sufficient. Once it drops, the camera falls back to recording on PIR triggers, and lower again it sleeps until you open the app. Anyone selling this as round-the-clock recording is quoting the best case and stopping there.
- Auto-tracking is one lens: the supplier states plainly that only one lens follows a moving target. The other heads stay where you left them. It does not track with all four at once.
- There is a blind spot: the bottom head turns 355°, not a full circle, and the two side heads turn 270°. Nothing sees through the wall it is bolted to. Mount it on the corner, not flat on the middle of a long wall.
- No runtime figure exists: the supplier does not publish the battery capacity or the panel's wattage, so nobody can honestly tell you how many days it runs without sun. A shaded mount, a run of overcast days or a camera left in continuous recording will flatten it. If you need it up no matter what, run it on mains through the charging port.
- No published night range: the supplier shows infrared and white-light night vision but states no distance for either. We are not going to print a number we cannot source. Judge it on the sample frames in the gallery.

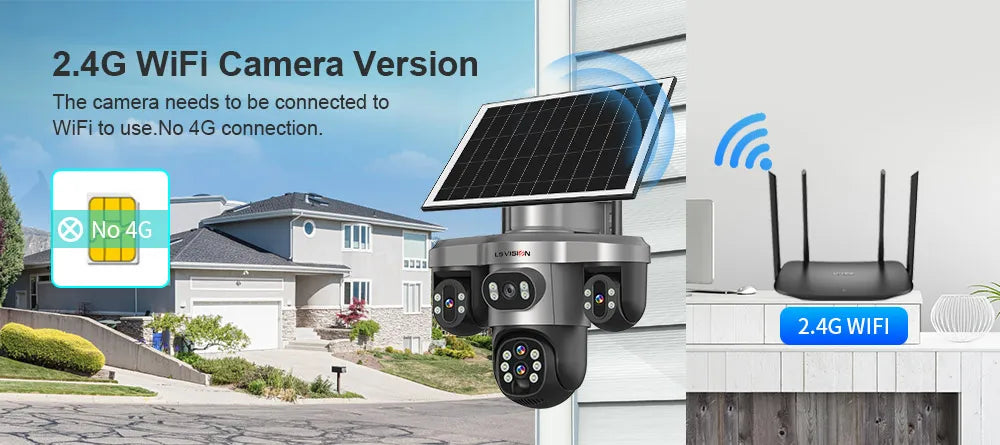

- The Wi-Fi version has no 4G: it is 2.4 GHz Wi-Fi only, it will not join a 5 GHz network, and its SIM slot does nothing. The 4G version needs a SIM and a data plan you supply, and it needs mobile coverage at the mounting point — not at the house, at the pole.
- IP66 is not immersion: IP66 covers dust and heavy water jets. It is not IP67 or IP68, there is no depth rating, and no certificate has been sighted. Do not submerge it, do not mount it where it will sit under water in a downpour.
- Resolution is a total, not a stream: the supplier's 20MP figure is the four lenses added together. The per-lens resolution is not published, so treat 20MP as a headline number rather than what any single view records at.
- It will not stop anyone: a siren and a voice through a speaker move some people on and not others. This gives you a record and a warning. It does not replace a lock, a gate or insurance.
Q & A
Which version do I want, 4G or Wi-Fi?
Wi-Fi if the camera will sit inside range of a 2.4 GHz network you control — a shed near the house, a yard behind the workshop. 4G if there is no network out there at all. The two are different hardware: the Wi-Fi one cannot be converted later, so pick on where it is going, not on price. They are the same price anyway.
Does a SIM card come with it?
No. The 4G version has the slot and you supply the SIM and the data plan. Check there is usable mobile coverage at the exact spot you are mounting it before you commit to that version — coverage at the house does not mean coverage at the back fence.
Is the memory card included?
Yes. Both versions ship with a 128 GB microSD card, and 128 GB is the largest the slot takes. Cloud storage is offered separately as a paid subscription and is nothing to do with us.
How long does it run on the battery?
We do not know, and we are not going to make a number up. The supplier publishes neither the battery capacity nor the panel wattage. What is published is that the camera manages its own power in three modes and drops to motion-triggered recording as the battery falls. In sun, on the low-power setting, it is designed to look after itself. In continuous recording through a cloudy week, it will not.
Can I run it off mains instead?
There is a USB-C charging port on the body and an off and on switch beside it. The supplier does not state a charger specification or a continuous-power mode, so treat mains as charging rather than as a documented permanent supply.
How long will it take to arrive?
Allow 10 to 14 days from the day you order, and up to three weeks if you are regional or remote. Shipping is free to anywhere in Australia and New Zealand. If it turns up faulty or not as described, tell us and we will sort it out.
Specs
| Specification | Detail |
|---|---|
| Type | Solar and battery powered outdoor PTZ security camera |
| Lens configuration | Four lenses, three views — one fixed wide-angle lens plus three motorised PTZ heads |
| Stated resolution | 20MP total across the four lenses (supplier's figure). Per-lens resolution not specified by supplier |
| Zoom | 10x optical, controlled from the app |
| Pan and tilt — bottom head | Pan 0–355°, tilt 0–100°, both electric |
| Pan and tilt — side heads | Pan 270°, tilt 90° each, both electric |

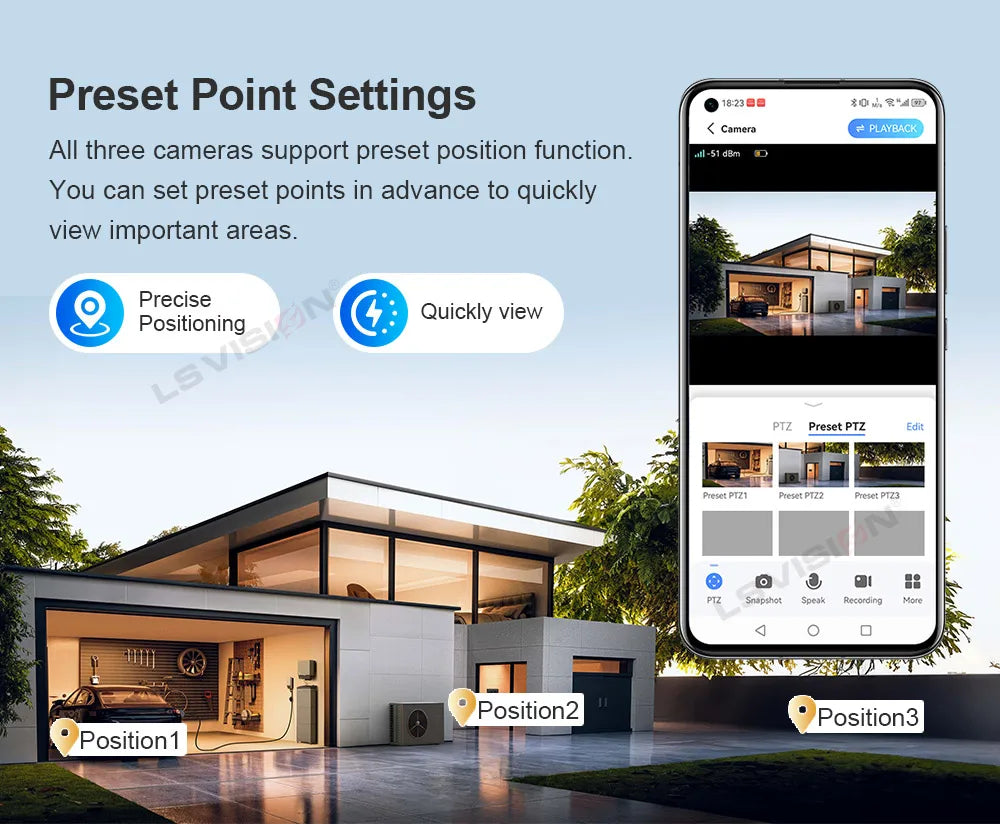

| Preset positions | Supported on all three PTZ heads |
| Auto-tracking | One lens only — the supplier states the other heads do not track |
| Night vision | Infrared and white-light LEDs; white light triggers on movement. Range not specified by supplier |

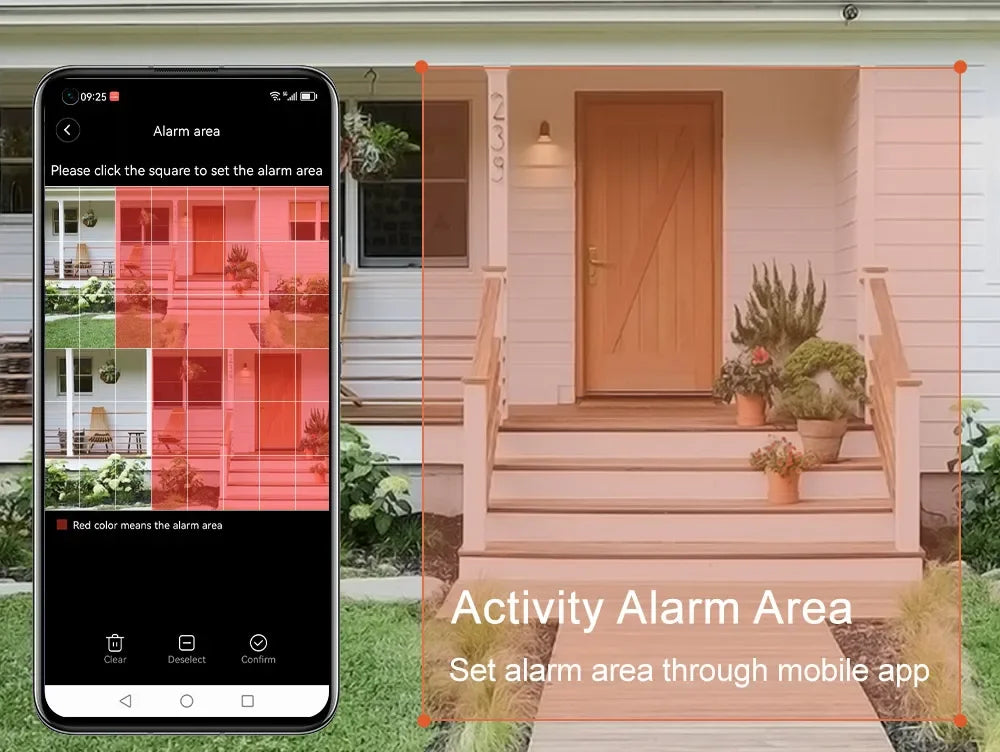

| Motion detection | PIR sensor plus app-defined alarm area. Detection range not specified by supplier |
| Alarm | App notification and customisable alarm sound |
| Audio | Two-way intercom, built-in microphone and speaker |
| Connectivity | Two versions: 2.4 GHz Wi-Fi only (no 4G), or 4G mobile with SIM slot. 5 GHz Wi-Fi not supported |
| SIM card | Slot on the 4G version only. SIM and data plan not supplied |
| App | V380 Pro, iOS and Android |
| Storage | microSD / TF up to 128 GB. A 128 GB card is included with both versions. Cloud storage available as a paid subscription |
| Power | Solar panel plus built-in rechargeable battery, USB-C charging port, off and on switch |
| Battery capacity | Not specified by supplier |
| Solar panel output | Not specified by supplier |

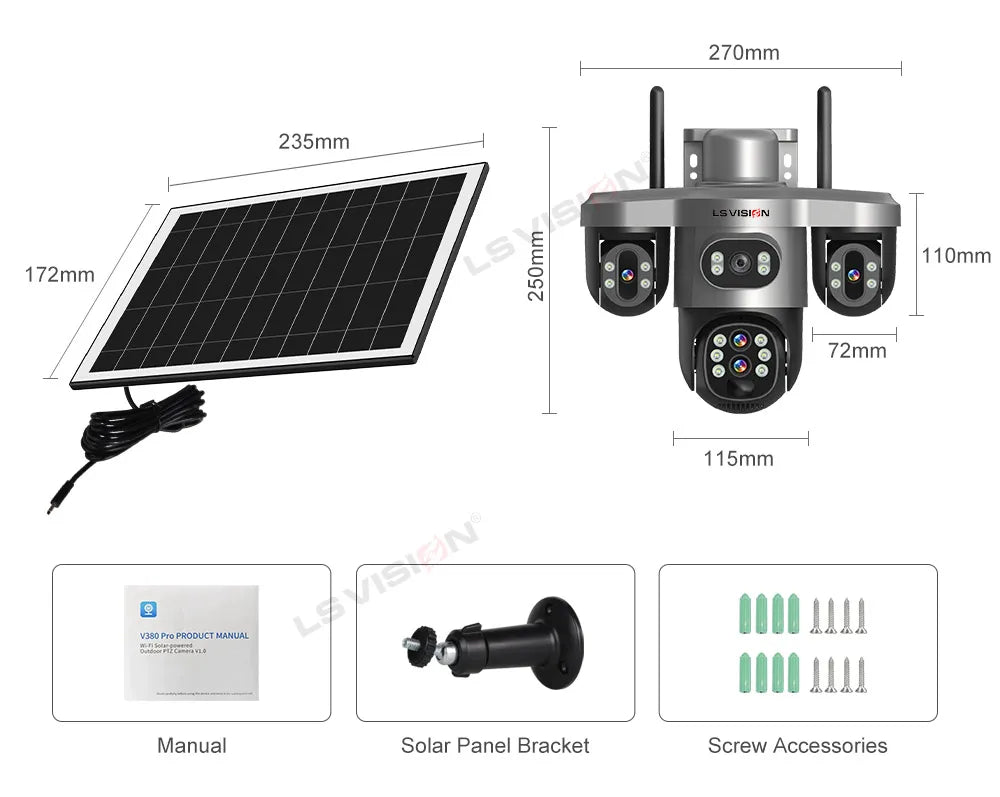

| Solar panel size | 235 x 172 mm |
| Solar lead length | 1.8 m extension cord |
| Camera dimensions | 270 mm wide x 250 mm high overall; side PTZ heads 110 x 72 mm; bottom PTZ head 115 mm |
| Weight | Not specified by supplier |
| Housing material | Not specified by supplier |
| Weather rating | IP66 — dust and heavy rain. Not IP67 or IP68, no depth rating, no certificate sighted |
| Operating temperature | Not specified by supplier |
| Mounting | Universal bracket for the camera, separate adjustable bracket for the panel |
| In the box | Camera, solar panel, panel bracket, universal bracket, 128 GB microSD card, screws and wall plugs, manual |
| Shipping | Free to Australia and New Zealand. Allow 10 to 14 days from the day you order, up to three weeks regional and remote |
