Wind Turbine Permanent Magnet Dynamo 12V 24V 48V
A 5kW dynamo makes 5kW at 750 RPM, not at idle.
The generator is the part of a home-built turbine most people get wrong. Blades, a tail and a tower you can fabricate in a shed. A gearless alternator that still makes useful charge at the speed a rotor actually turns is the bit you have to buy.

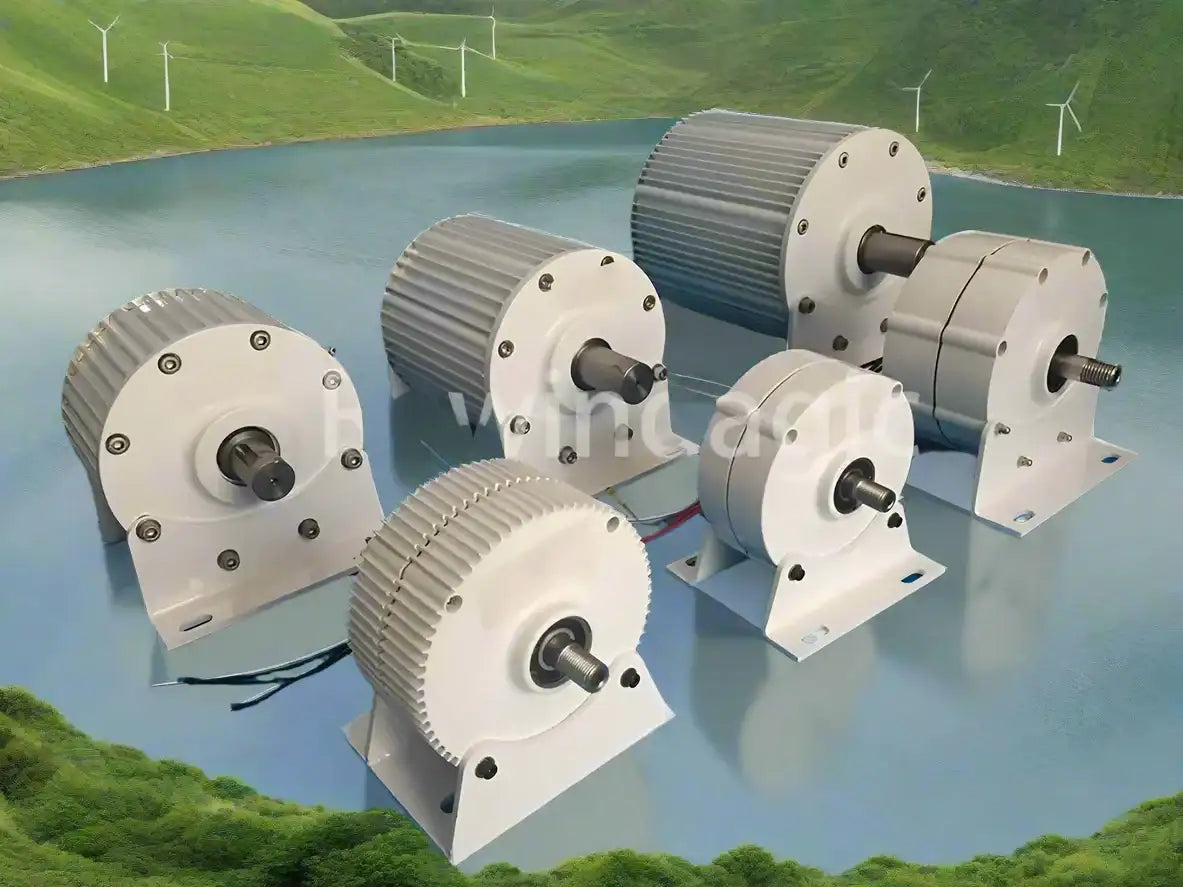

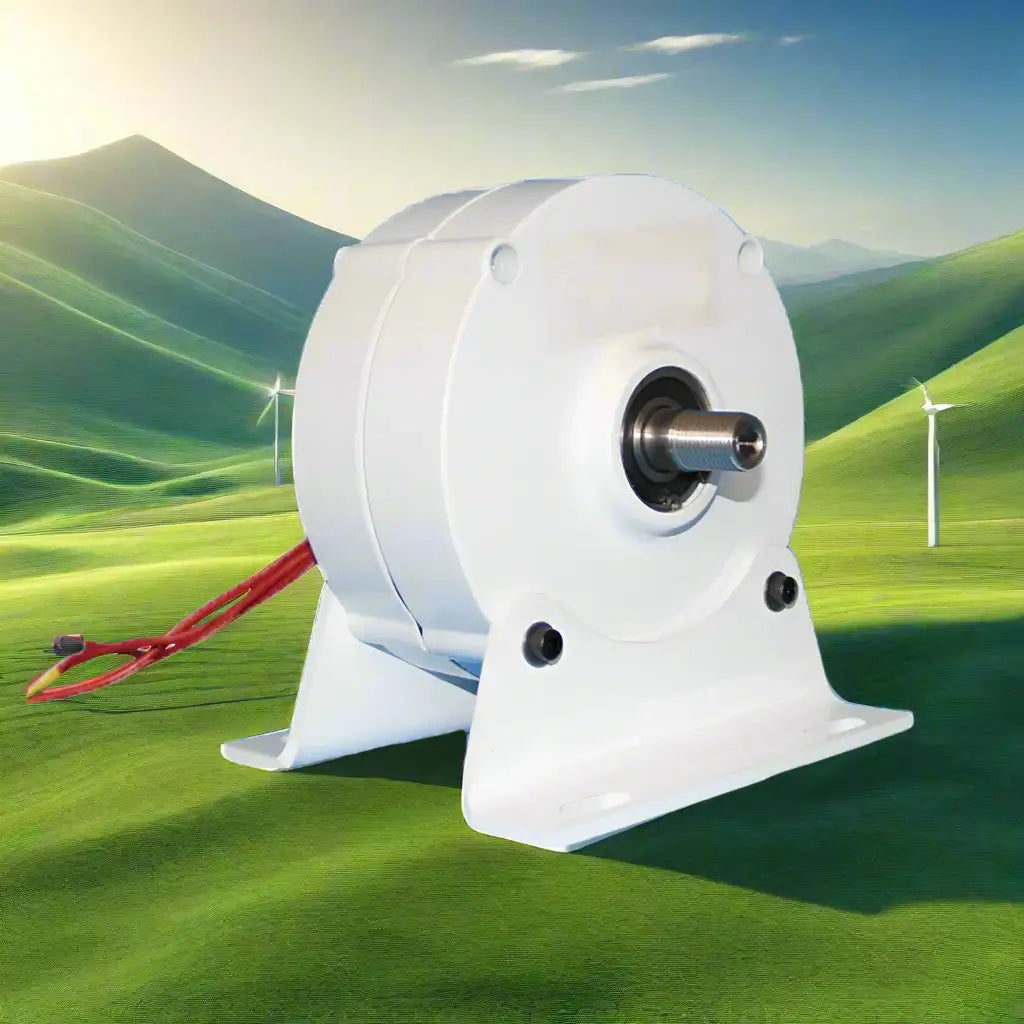

This is a three-phase permanent magnet generator (PMG). The field comes from magnets in the rotor, so there is no excitation winding to energise and no gearbox or brushes to service. It is rated at 750 RPM and sold in five outputs — 2000W, 3000W, 5000W, 6000W and 7000W — each wound for a 12V, 24V or 48V bank. Pick the winding that matches the bank you already have, because it is set at the factory and can't be changed later.
Be clear on what it is not. There are no blades, no tail, no tower and no controller in the box. The output is unregulated three-phase AC that rises and falls with rotor speed, so it has to go through a rectifier and a hybrid charge controller before it reaches a battery. The rated wattage is what it makes at 750 RPM — spin it slower and you get a fraction of that. If your rotor won't reach rated speed in the wind or water flow you actually have, size down rather than up.
What It Solves
- Home-built wind turbine: you've got a rotor and a tower sorted and need a direct-drive head that charges without a gearbox in the way.
- Creek-fed micro-hydro: a station or farm with year-round flow can turn this off a pelton wheel or water wheel and charge day and night, not just when the sun's up.
- Shed and workshop supply: a work site or farm shed a long way from the meter box, where running mains out is the expensive option.
- Shack, hut or mooring: somewhere you only visit some weekends, where the bank needs topping up while nobody's there to run a generator.
- Repowering an old turbine: the tower and blades are fine but the original head is finished, and you want to keep the same battery voltage.
Key Features
- Permanent magnet field: the magnets sit in the rotor, so nothing has to be fed current to excite the field. It makes power from the first turn.
- Gearless direct drive: the rotor bolts to the shaft with no step-up gearbox between them, which removes the parts that normally need oil and replacement.
- Rated at 750 RPM: the quoted wattage is the figure at that speed. Match it against what your rotor will actually do before you order.
- Five output sizes: 2000W, 3000W, 5000W, 6000W and 7000W. There is no 4000W option in this range.
- Three system voltages: 12V, 24V and 48V windings, chosen at order. The winding is fixed — you can't reconfigure it on site.
- Three-phase output: three AC leads out to a rectifier or a hybrid controller, which is what turns it into DC your bank can take.
- Aluminium alloy housing: the shell is aluminium alloy over an iron core and shaft.
- Mounting base included: an iron base comes with it, so it can be bolted down without fabricating a cradle first.
- Two purchase options: generator on its own, or generator supplied with a matched electric motor.
Where This Fits
This is one part of the gear that sits between a wind turbine and your battery bank. Here's the whole picture:
- Wind turbines: vertical axis turbines from 1kW to 10kW — quiet enough to put near the house, and they charge overnight when your solar can't.
- Hybrid MPPT controllers: you can't wire a turbine straight to a battery. The controller rectifies the output, manages the charge, and brakes the turbine when the bank is full.
- The rest of the electrical range: bus bars, breakers, isolators, cable, lugs and Anderson plugs.
Every input and output wants a breaker or isolator on it, so you can safely shut down and isolate the turbine before you touch anything. That protects you, and it stops a surge damaging your new turbine or the rest of your power system. Cable sizing depends on your run length, voltage and current — if you're building 12V or 24V, check the sizing against your own run or ask your sparky.
Q & A
Can I wire this straight to my battery bank?
No. It puts out unregulated three-phase AC that varies with rotor speed, so it needs a rectifier and a hybrid charge controller in between. Have a look at the hybrid MPPT controllers — the controller also brakes the turbine once the bank is full, which the generator can't do on its own.
Which voltage should I order — 12V, 24V or 48V?
Match the bank you're charging. The winding is set at the factory, so this isn't a switch you flick later. Bear in mind the current: 5000W into a 12V bank is over 400A on the DC side, which means cable and breakers most people don't want to pay for. Above about 2kW, 48V is the easier system to wire.
Will it actually make its rated wattage?
At 750 RPM, that's the figure. Below that it falls away, and a rotor in light wind spends a lot of its life well below rated speed. Treat the wattage as a ceiling, not an average, and size your bank on what you realistically expect over a day.
What size is the shaft, and will my hub bolt to it?
The supplier doesn't publish shaft diameter, keyway or the mounting bolt pattern, and we're not going to guess a figure you'd machine to.
Is it weatherproof enough to sit on a tower?
Don't assume it will shrug off weather on its own. Plan on a nacelle or housing that keeps direct rain off it and lets it drain and breathe, the same as you would for any generator head.
Can I use it for micro-hydro instead of wind?
Yes — it doesn't care what turns it. The question is whether your head and flow will hold it near 750 RPM through a pelton wheel or water wheel. Steady flow suits it better than wind does, because the speed stays put.
What's the difference between the two purchase options?

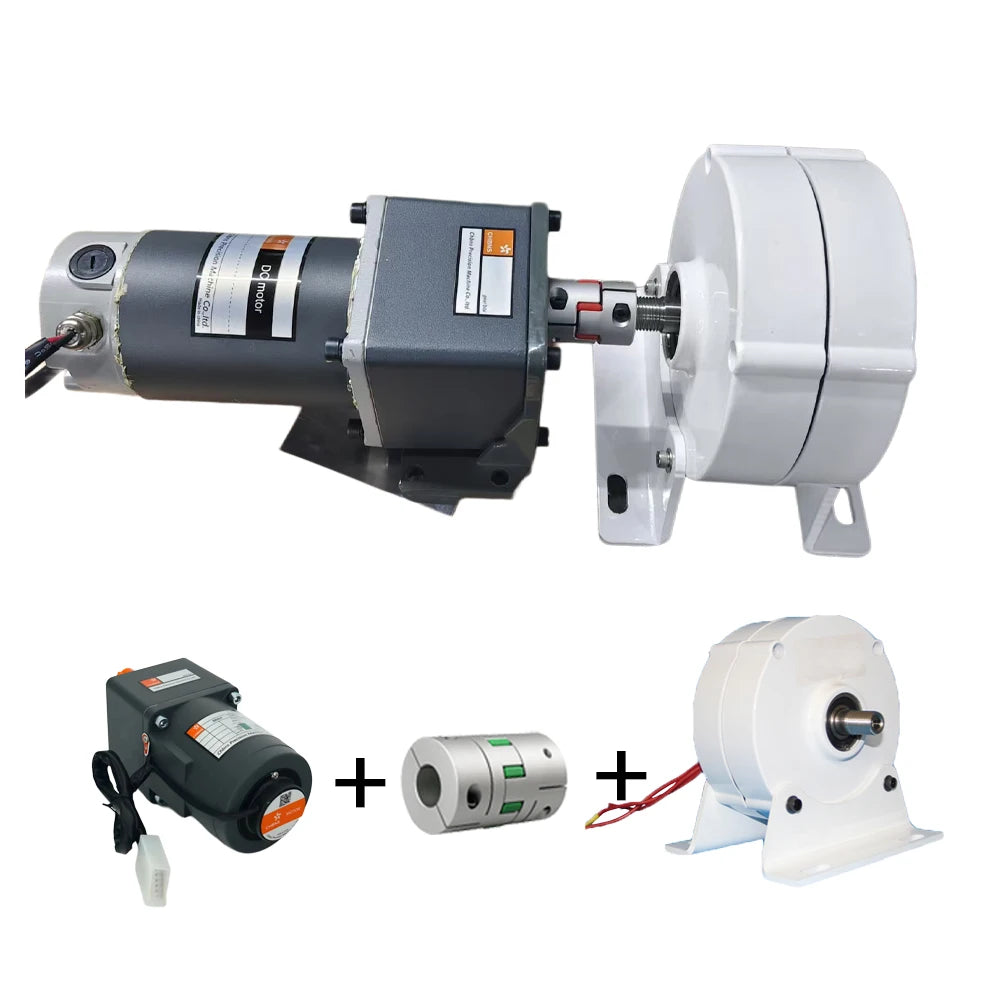

"Only Generator" is the generator on its own. "Generator & Electric Motor" adds a matched motor and a shaft coupling, which is what people use for bench testing or for a motor-generator setup. If you're building a turbine or a hydro rig, the generator on its own is the one you want.
Specs
| Specification | Detail |
| Generator type | Three-phase permanent magnet generator (PMG), gearless direct drive |
| Power output options | 2000W, 3000W, 5000W, 6000W, 7000W (no 4000W) |
| System voltage options | 12V, 24V or 48V — winding set at order, not switchable |
| Rated speed | 750 RPM |
| Output type | Unregulated three-phase AC — requires a rectifier or hybrid charge controller |
| Cut-in speed | Not specified by supplier |
| Starting torque | No more than 0.15 Nm at 2000W, 0.2 Nm at 3000W and 0.75 Nm at 5000W, as stated by the supplier. No figure published for 6000W or 7000W |
| Rated torque | 2.3 Nm at 2000W, 5.7 Nm at 3000W and 6.2 Nm at 5000W, as stated by the supplier. No figure published for 6000W or 7000W |
| Rated output current | Not specified by supplier |
| Housing | Aluminium alloy |
| Core and shaft | Iron |
| Magnet material | NdFeB (neodymium iron boron) rare-earth magnets, as stated by the supplier |
| Mounting | Iron mounting base included |
| Shaft diameter and keyway | Not specified by supplier |
| Mounting bolt pattern | Not specified by supplier |
| Dimensions | Not specified by supplier |
| Weight | Not specified by supplier |
| Output leads and connector | Three flying leads, bare ends, no plug or connector fitted, going by the supplier's photographs. Lead length not specified |
| Ingress protection (IP) rating | Not verified. Treat the generator as unprotected and keep direct rain off it |
| Operating temperature range | -40°C to +80°C, as stated by the supplier |
| Certification | None stated by supplier |
| Purchase options | Generator only, or generator with a matched electric motor and shaft coupling |
| In the box | Generator and mounting base. No blades, tail, tower or controller |
| Delivery | Free delivery to Australia and New Zealand, no minimum spend. 10 to 14 days from order date, allow up to 3 weeks |
Turbine Spinning But Showing 0W?
It is almost never a faulty turbine or controller. Read the 0W troubleshooting & correct installation guide before you assume something is broken.
