18650 Rechargeable Li-Ion Battery | 3.7V, Protected
Tracking
Tracking
Keep an eye on your gear.
Simply enter the tracking number sent to your email to see exactly where your package is and when it is estimated to arrive.
Note: It may take 24-48 hours for tracking information to update after your order has been dispatched.
18650 Rechargeable Li-Ion Battery | 3.7V, Protected
The torch dies when you need it most.
It is always the same story. You reach for the head torch at the back of the shed, or the night vision on a pig hunt, and the cells are flat or swollen. Cheap 18650s die in a season, and the good gear they power is worth more than the batteries in it.

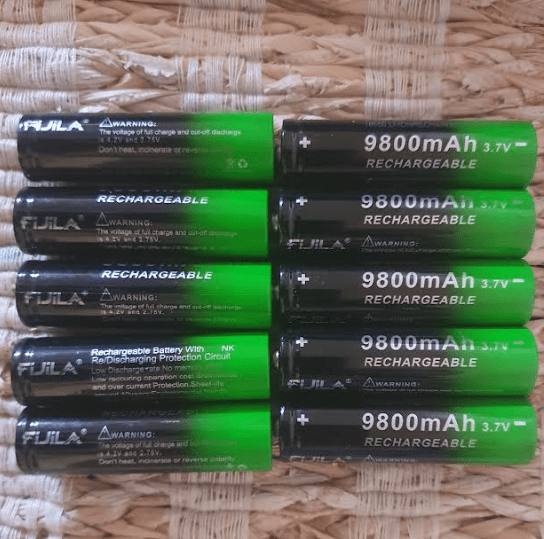

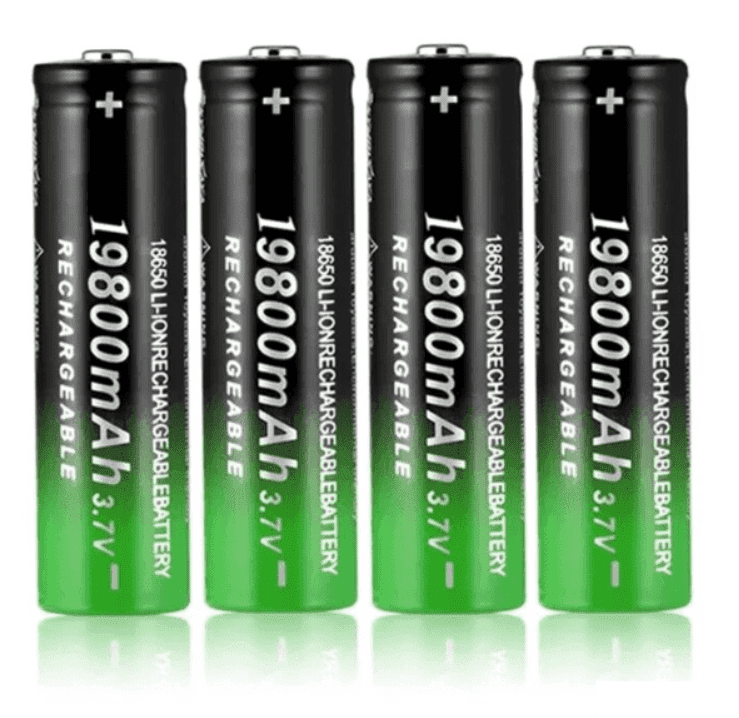

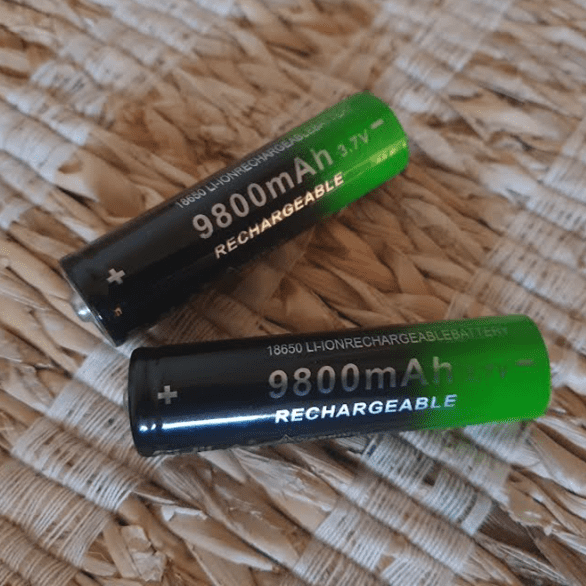

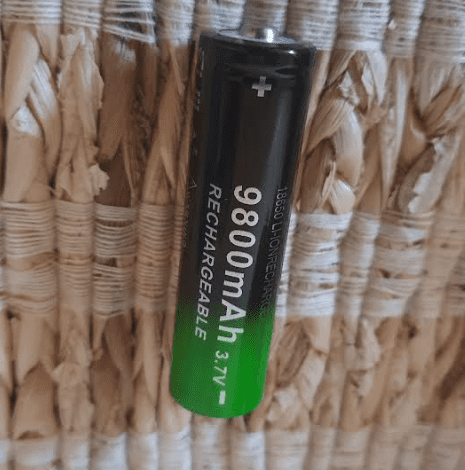

These are standard 18650 lithium-ion cells with a protection circuit built in, sold in packs of four or ten so you can rotate a set through the charger and keep a spare set in the kit.
What It Does
Drops straight into anything that takes a 3.7V 18650 cell — high-lumen torches, head torches, night vision optics and a lot of off-grid electronics. The protection circuit sits between your gear and the cell, cutting out on over-current, over-discharge and short circuit.
Key Features
- Built-in protection circuit: over-current, over-discharge and short-circuit protection, so a fault in the torch does not take the cell with it.
- No memory effect: top them up whenever you like. Part-charging does not shorten their working life the way old nickel cells did.
- Standard 18650 size: 18 mm by 65 mm, the industry standard, so it is a drop-in for most gear that already runs them.
- Packs of four or ten: enough to run one set and charge another, instead of waiting on a single cell.
- 3.7V nominal: the standard lithium-ion cell voltage these devices are built around.
Limits
We do not publish a capacity figure, and here is why. The supplier quotes a milliamp-hour number we cannot stand behind. Anything much above about 3,500 mAh is not physically achievable in an 18650 cell, so a bigger number on the wrapper is a bigger number on the wrapper and nothing else. We would rather print no figure than a fake one.
- Rated capacity is not specified: if your device needs a known mAh to work properly, this is not the cell to guess with.
- CE is the supplier's claim, not ours: they state CE compliance. We have not sighted a certificate or an issuing body, so we pass it on as their word.
- Check your device first: some torches are built for unprotected cells and a protected cell can be a tight fit. Check what yours takes.
- Lithium cells need respect: do not carry them loose in a pocket or a toolbox where they can short across metal, and do not charge them unattended.
Q & A
Will these fit my torch?
If it takes a 3.7V 18650, almost certainly. Check whether yours is built for protected or unprotected cells — protected cells carry a small circuit at one end.
Why will you not tell me the capacity?
Because the number we were given is not real. An 18650 tops out near 3,500 mAh. We publish "not specified" rather than repeat a figure that would help you size nothing.
Can I use them in a solar or off-grid pack?
People do, but building a pack is your call and your risk. Without a verified capacity you cannot balance a pack properly, so we would not recommend it for that job.
Four or ten?
Four suits one torch with a spare set. Ten suits a household or a work kit where several devices run them.
Specs
| Specification | Detail |
|---|---|
| Battery type | Lithium-ion (Li-ion), rechargeable |
| Model size | 18650 |
| Dimensions | 18 mm x 65 mm |
| Nominal voltage | 3.7 V |
| Rated capacity | Not specified by supplier |
| Protection | Over-current, over-discharge and short-circuit protection circuit |
| Memory effect | None |
| Certification | CE stated by supplier; no certificate sighted |
| Pack quantity | 4 or 10 cells |
| Storage | Cool, dry place |
