SX2-2000w Vertical Axis Wind Turbine 12V 24V 48V
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
"Delivery Straight to Your Doorstep"
We know you can't wait to receive your order, and that's why we offer free shipping to all our customers in Australia. Our standard shipping service ensures that you get your package delivered to your doorstep without any hassle.
We take up to 24 hours to pick and pack your order weekends not included, so please bear with us.
Once your package is ready, it should be in your hands in just 8-10 working days. As soon as your order is shipped, you'll receive a shipping confirmation email with a tracking number.
Sit Back, Relax, & get ready to receive your Order.
Your satisfaction and positive feedback is very important to us. Please leave positive feedback and 5 stars if you are satisfied with our items and services.
We kindly request that you please do not leave negative feedback or open any case before contacting us, if you have not received the package for some time or you are not satisfied with your order after receiving it. Please contact us. We will try our best to provide a timely solution.
We Aspire to High Standards of Excellence & Strive for 100% Customer Satisfaction.
Description
Description
Features
2000W Wind Turbine Generator With Off Grid MPPT Charge Controller combine with Lifepo4 Battery & 240V Inverter for RV Yacht Farm Caravan off-grid & Home Use
Unlock greater peace of mind and financial freedom and choose independence with the 2000W Wind Turbine Free Energy Windmill. The combination of 2kW or 2000watt 12V-24V-48V vertical axis permanent magnet levitation wind turbines offer a reliable self-sufficient energy source that will keep you safe during power outages. Live off-grid and feel the satisfaction of being self-sufficient.
Low start up speed, high wind energy utilisation
Easy Installation.
Blades using new art of precision injection molding, matched with optimised aerodynamic shape and structure which enhance the wind energy utilization and annual output.
Body of casting aluminum alloy, with 2 bearings swivel, making it survive stronger wind and run more safely
Patented permanent magnet ac generator with special stator, effectively reduce torque, well match the wind wheel and generator, and ensure the performance of whole system.
Watch Me
This Video is of 5000W Vertical they are basically the same as 1200W, 1500W & 2000W Turbines all built to the same standards.
Specs
Controller, inverter can be matched (optional) according to customers' specific needs

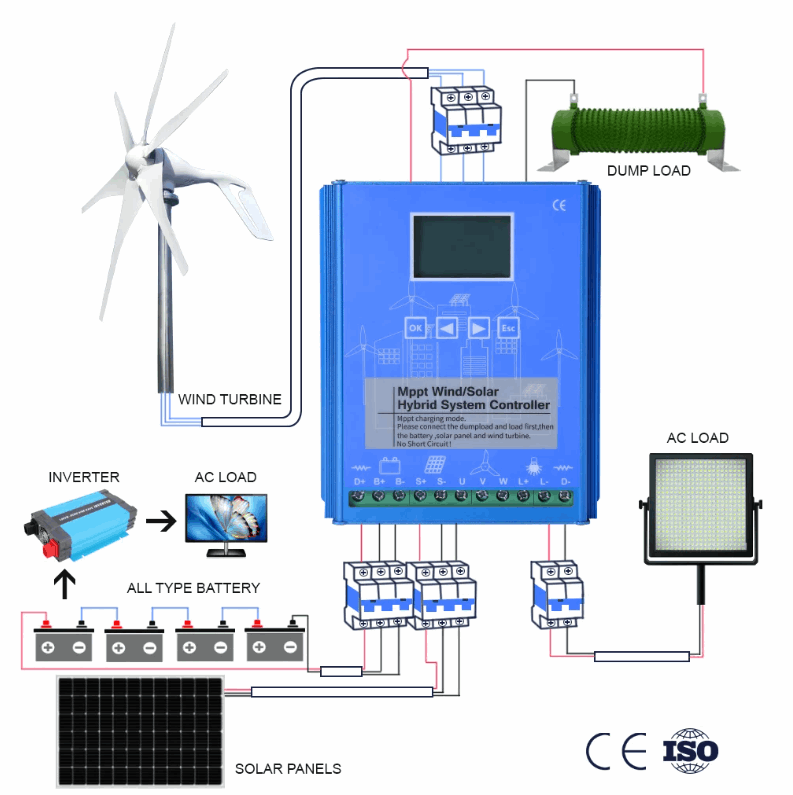

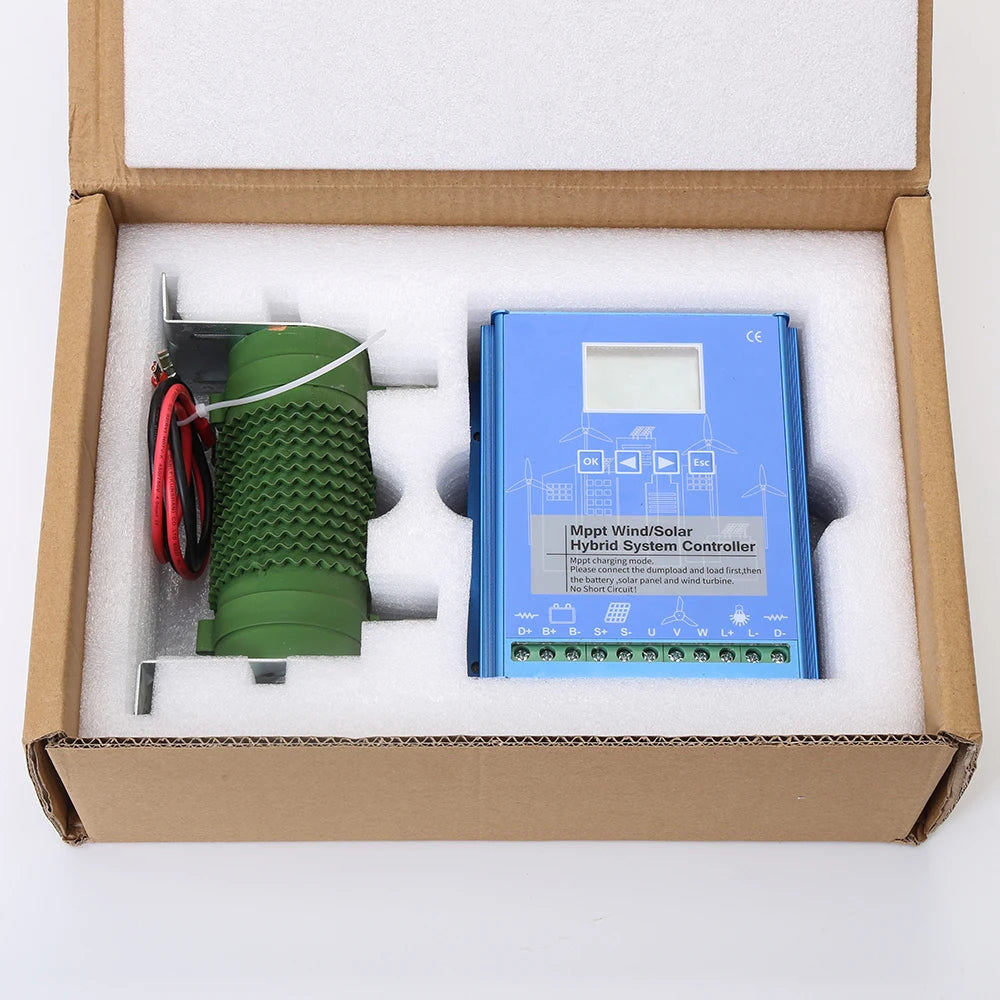

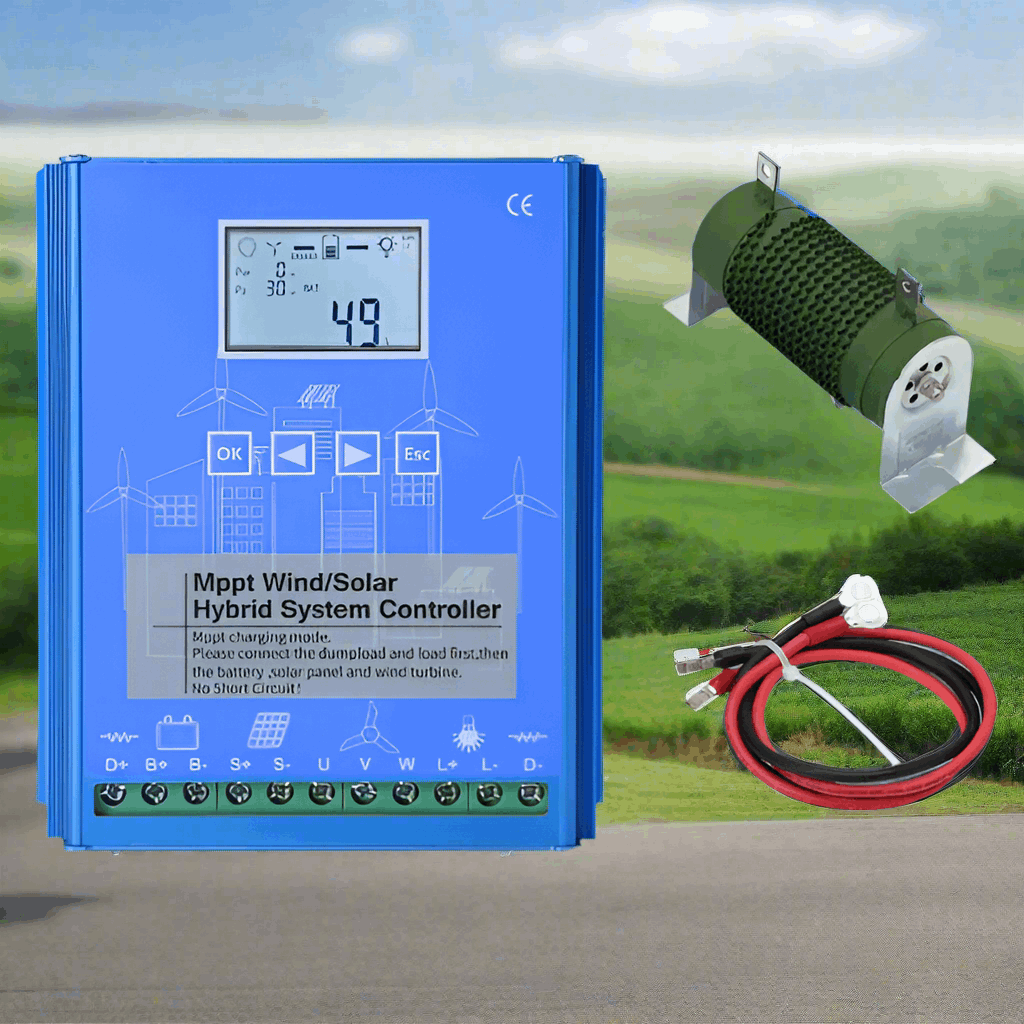

MPPT Boost Wind & Solar Hybrid Controller
Voltage：12/24V AUTO
Rated Wind Power：100W-1500W
Rated PV Power：100W-600W
Max input Voltage：≤50V
Current (DC):≤0.05A
Control Mode: Wind generator MPPT boost, PWM dump load, PWM Over current Limiting function
Output Working Mode (Mode):
Display: LCD display,
Protection Type: Solar Reversed Charging protection, Battery open circuit protection, Battery anti-reverse connection protection, Over current and over voltage auto, Brake protection, Over load protection, etc.
Cooling Mode: aluminum profiles Heat dissipation and self-cooling
Working temperature: -25℃~+80℃
Weight: 2.35kg
Controller Size/167mm x 145.5mm x 61.8mm
MPPT Boost Wind Turbine Controller
Model: CWT-12/24
Working voltage: 12v/24 automatic identification
Maximum current: 40A
Protection: over current, overload
Function: MPPT BOOST voltage control
12V 100Ah Lifepo4 Battery
Nominal Voltage: 12.8V
Nominal Capacity: 100Ah 0.2C
Built-in BMS: 4S100A
Energy: 1280Wh
Cycle Life: ＞4000 cycles at 0.2C; End of life 70% capacity.
Charge Voltage: 14.6±0.2V
Charger Current: 20A
Max. Charge Current: 50A
Max. Continuous Current: 100A
Max. Pulse Current: 200A (＜3S)
Discharge Cut-off Voltage: 10.0V
Charge Temperature: 0 to 45℃ (32 to 113℉)
Discharge Temperature: -20 to 60℃ (-4 to 140℉)
Storage Temperature: 0 to 45℃ (32 to 113℉)
Water Dust Resistance: IP5
Case Material: ABS
Dimension (L/W/H): 330*138*208 mm
Weight: Approx. 13.2kg
Terminal Type: M8
2000W Inverter
Model: ZX-2000
Rated power: 1000W
Maximum power: 2000W
Input voltage: 12v/24v
Output voltage: 220V
Output frequency: 50hz/60hz
Waveform: pure sine wave
Size: 300 x 98 x 55mm
Weight: 1.2kg
