PV Solar Photovaltaic Disconnect Switch Isolator
Features

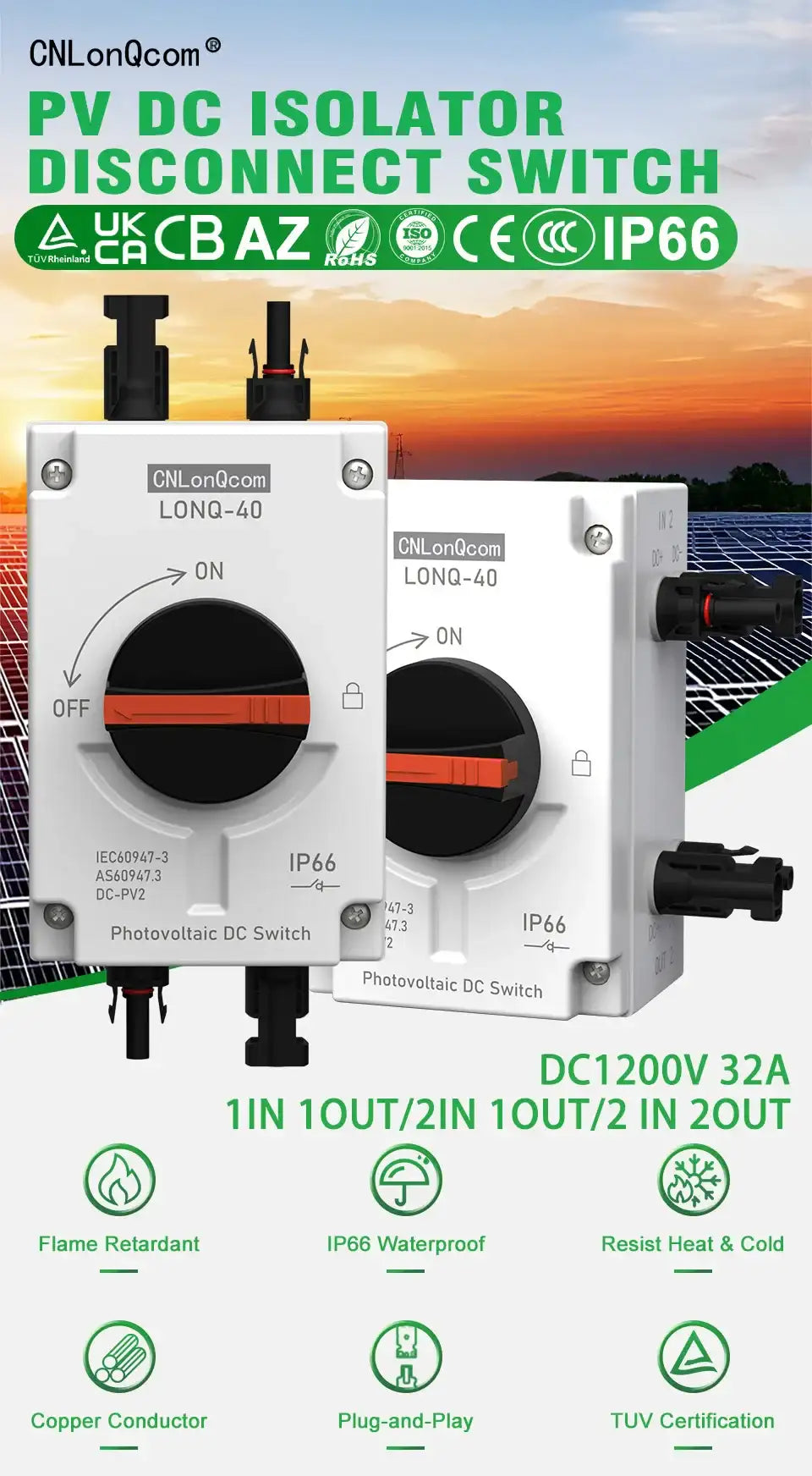

The CNLonQcom PV Solar Disconnect Switch is a robust DC isolator designed for photovoltaic systems, RVs, and boats.
Certified by TUV, CE, UKCA, CB, AZ, IP66, ROHS, and ISO9001.

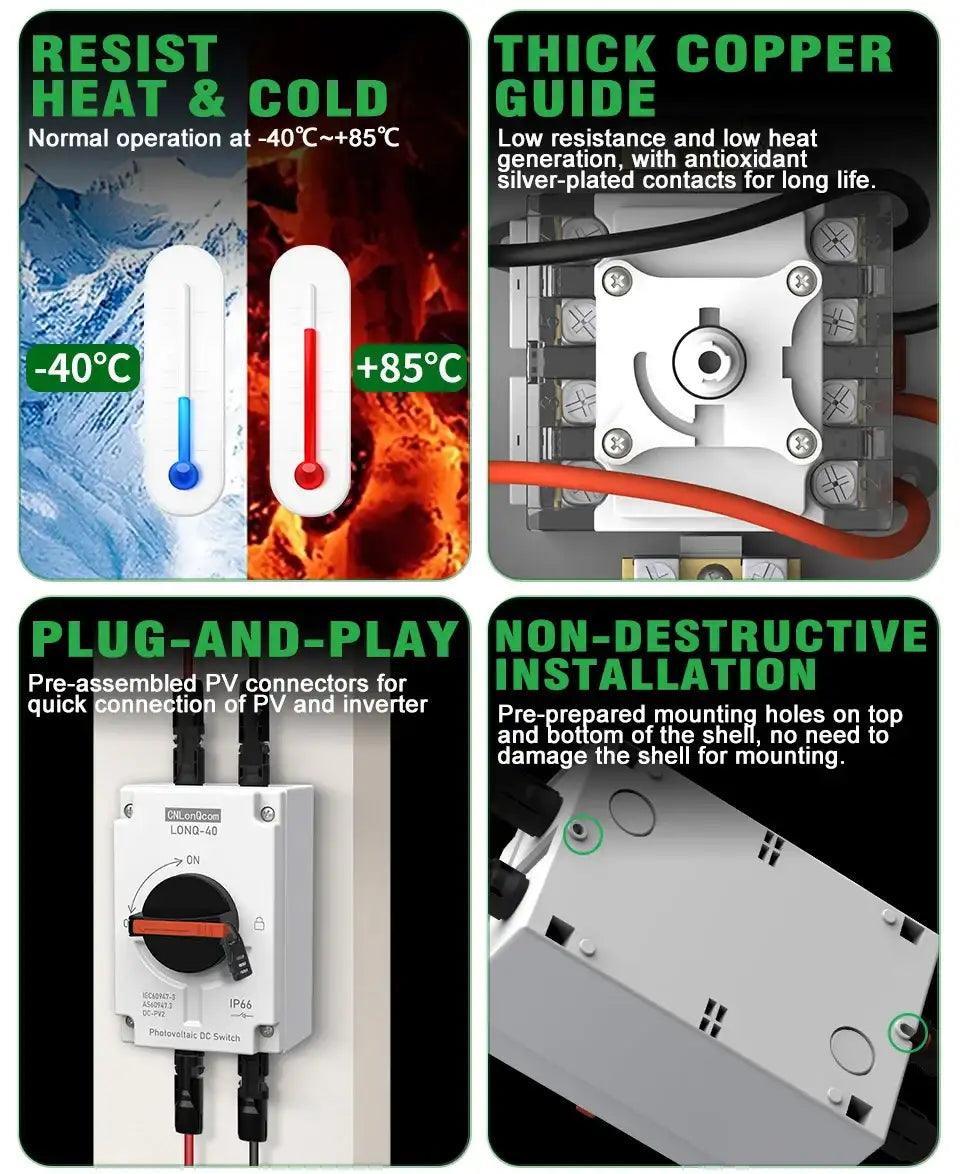

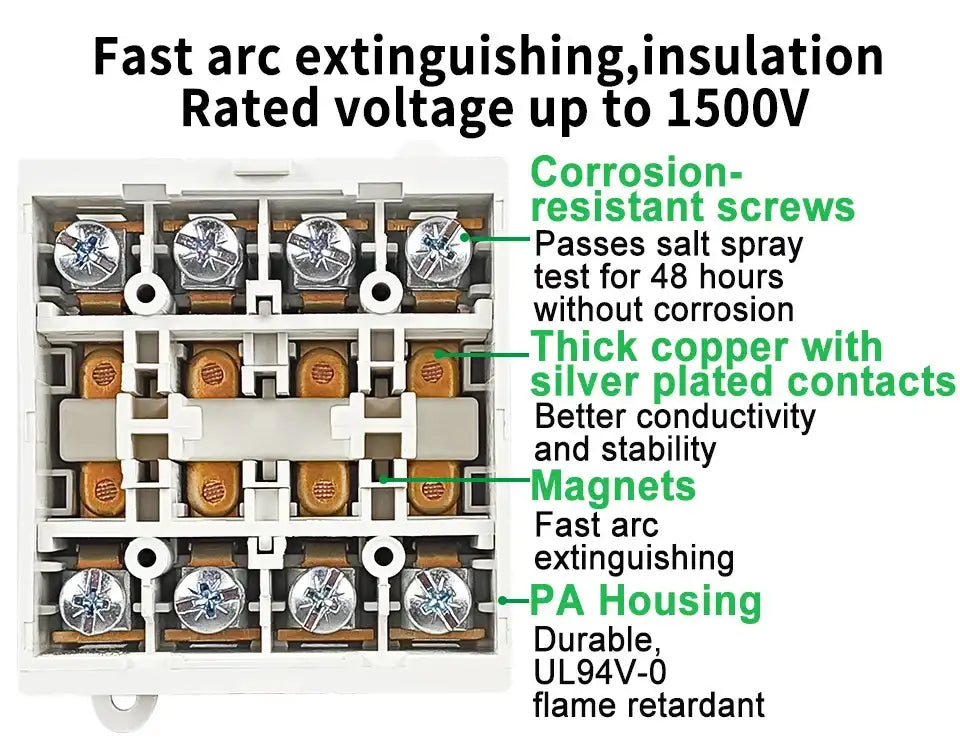

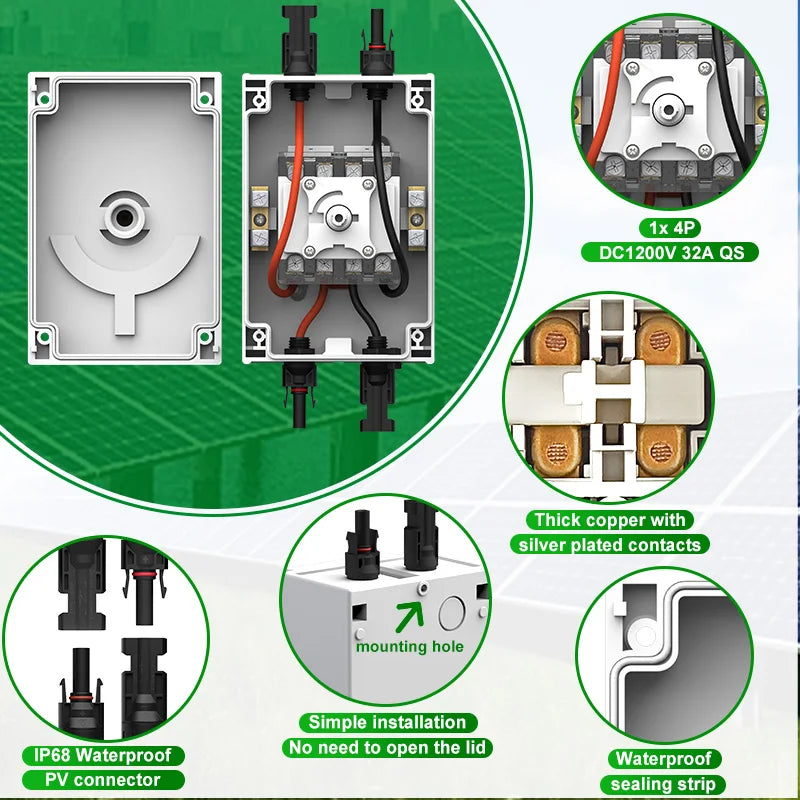

Features a durable plastic body with copper conductors. Rated for 32A and 1200V, it operates reliably between -40℃ and +85℃.

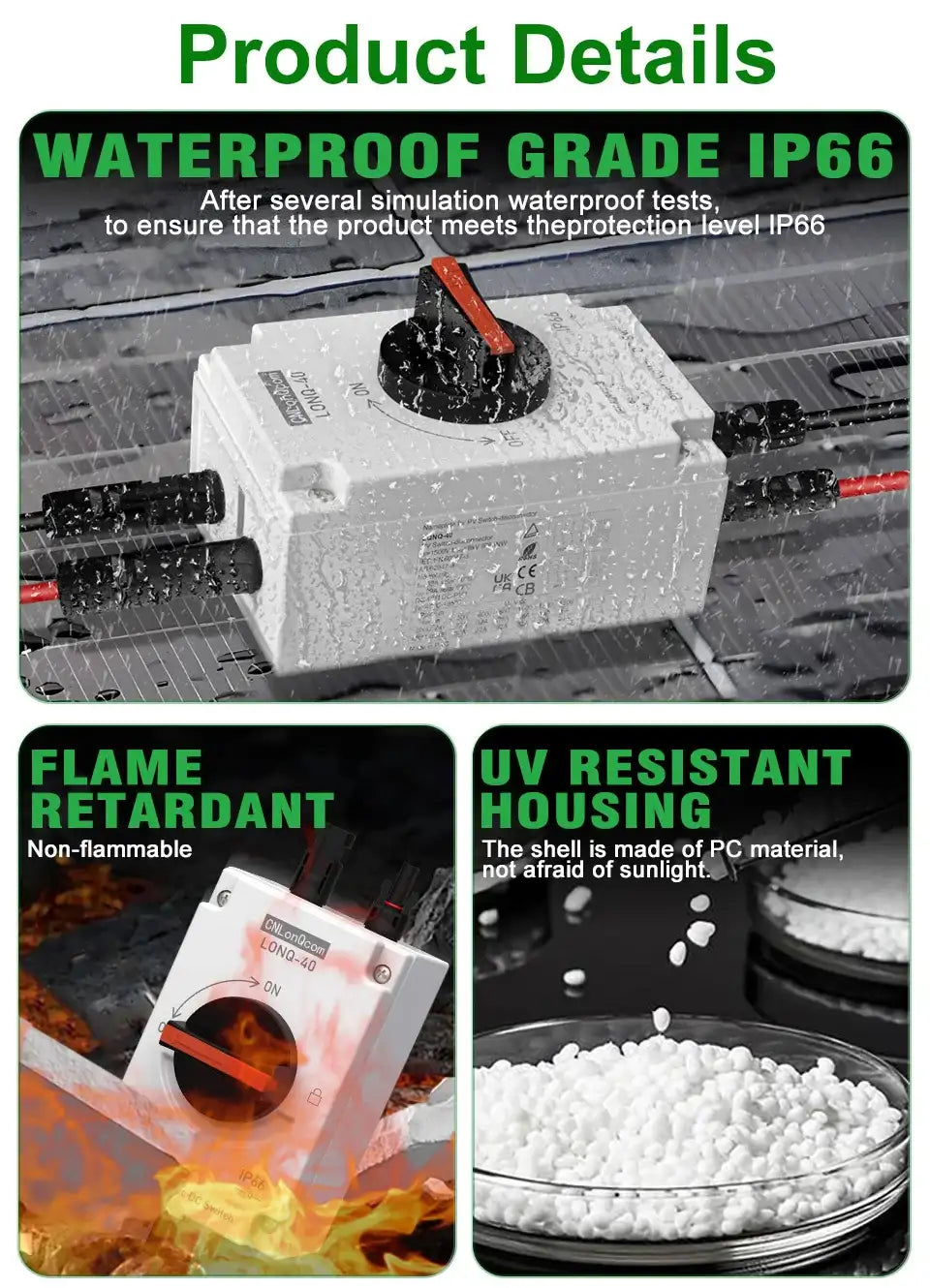

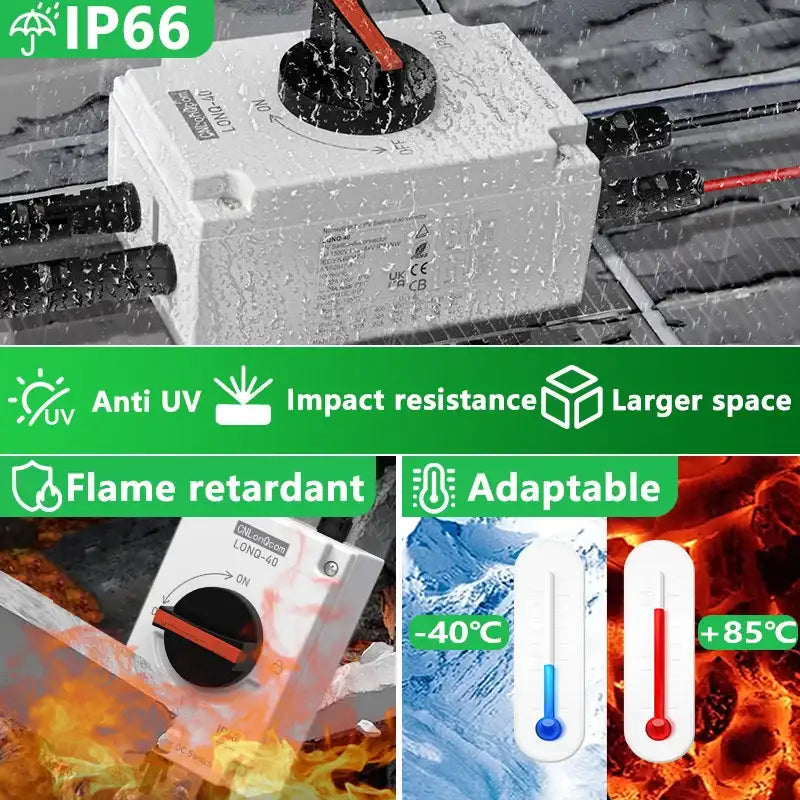

The switch offers a mechanical lifespan of 20,000 cycles and an electrical lifespan of 6,000 cycles. With a 4-pole knob switch design and IP66 waterproof protection, it ensures safe and efficient disconnection in harsh outdoor environments. Installation is wall-mounted for convenience.
Specs
|
Technical Data |
||
|
Model |

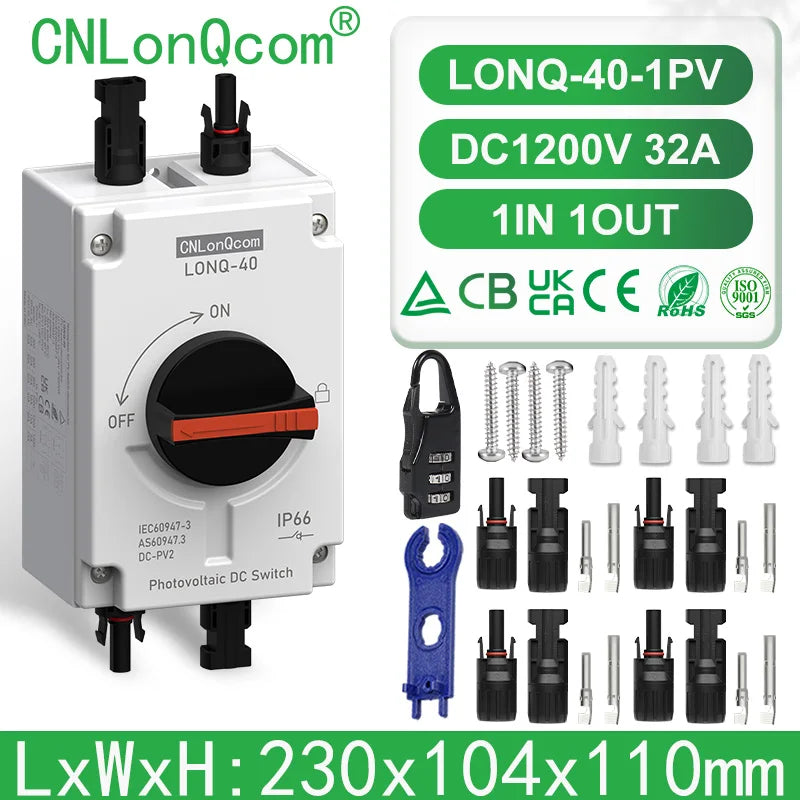

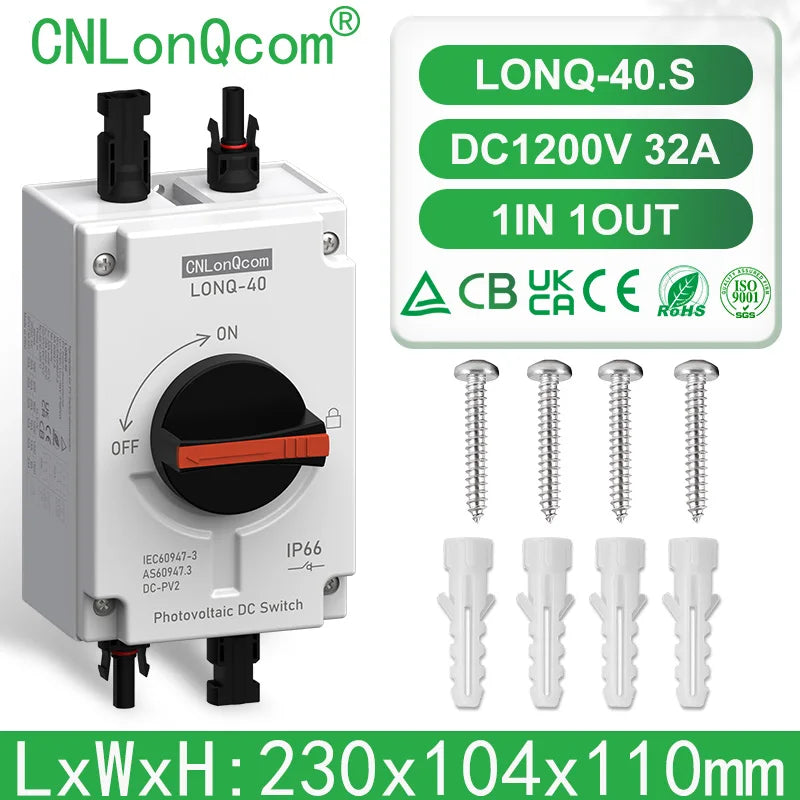

LONQ-40-1PV |

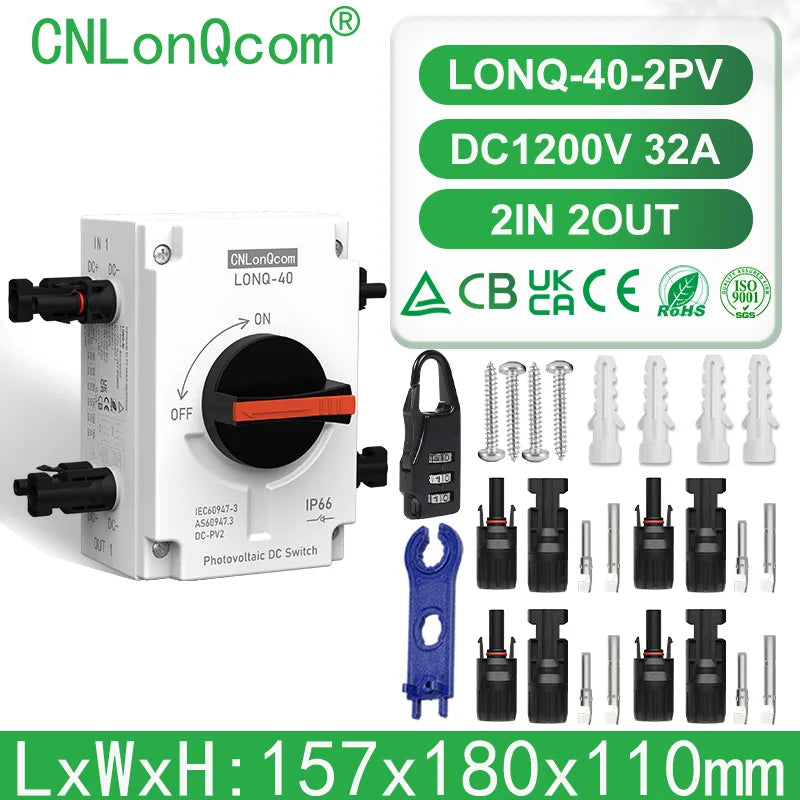

LONQ-40-2PV |
|
Connector |
PV connector |
PV connector |
|
String |
1IN 1OUT |
2IN 2OUT |
|
Rated Current in(A) |
32 |
|
|
Rated Voltage Ue(V) |
1200 |
|
|
Ui (V) |
1500 |
|
|
Pole |
4P |
|
|
Uimp (kV) |
8 |
|
|
lcw (kA) |
1 |
|
|
Standard |
IEC/EN60947-3 GB/T 14048.3 |
|
|
Insolation Feature |
Yes |
|
|
Levels of Protection |
IP66 |
|
|
Housing Material |
PC |
|
|
Conductor Material |
Copper |
|
|
Quality Certificate |
TUV、CE、CB、UKCA、AZ、CCC、ISO9001、ROHS、IP66 |
|
|
Mechanical Life (times) |
20000 |
|
|
Electrical Life (times) |
6000 |
|
|
Knob Positions |
OFF at 9 hr , ON at 12 hr |
|
|
Operating Temperature |
-40°℃ ~ +85℃ |
|
|
Humidity |
≤95% |
|
|
Altitude |
2000m |
|
|
Installation |
Wall Mounting |
|
|
Size L*W*H(mm) |
230*104*110 |
180*157*110 |
|
Weight (kg) |
0.709 |
0.728 |
