2400W-800W Hybrid Wind Solar Controller

$390.00 AUD

Watts
Rated Voltage

Delivery and Shipping

free shipping

"Delivery Straight to Your Doorstep"

We know you can't wait to receive your order, and that's why we offer free shipping to all our customers in Australia. Our standard shipping service ensures that you get your package delivered to your doorstep without any hassle.

We take up to 24 hours to pick and pack your order weekends not included, so please bear with us.

Once your package is ready, it should be in your hands in just 8-10 working days. As soon as your order is shipped, you'll receive a shipping confirmation email with a tracking number.

Sit Back, Relax, & get ready to receive your Order.

Your satisfaction and positive feedback is very important to us. Please leave positive feedback and 5 stars if you are satisfied with our items and services.

    We kindly request that you please do not leave negative feedback or open any case before contacting us, if you have not received the package for some time or you are not satisfied with your order after receiving it. Please contact us. We will try our best to provide a timely solution.

    We Aspire to High Standards of Excellence & Strive for 100% Customer Satisfaction.

Description

Features

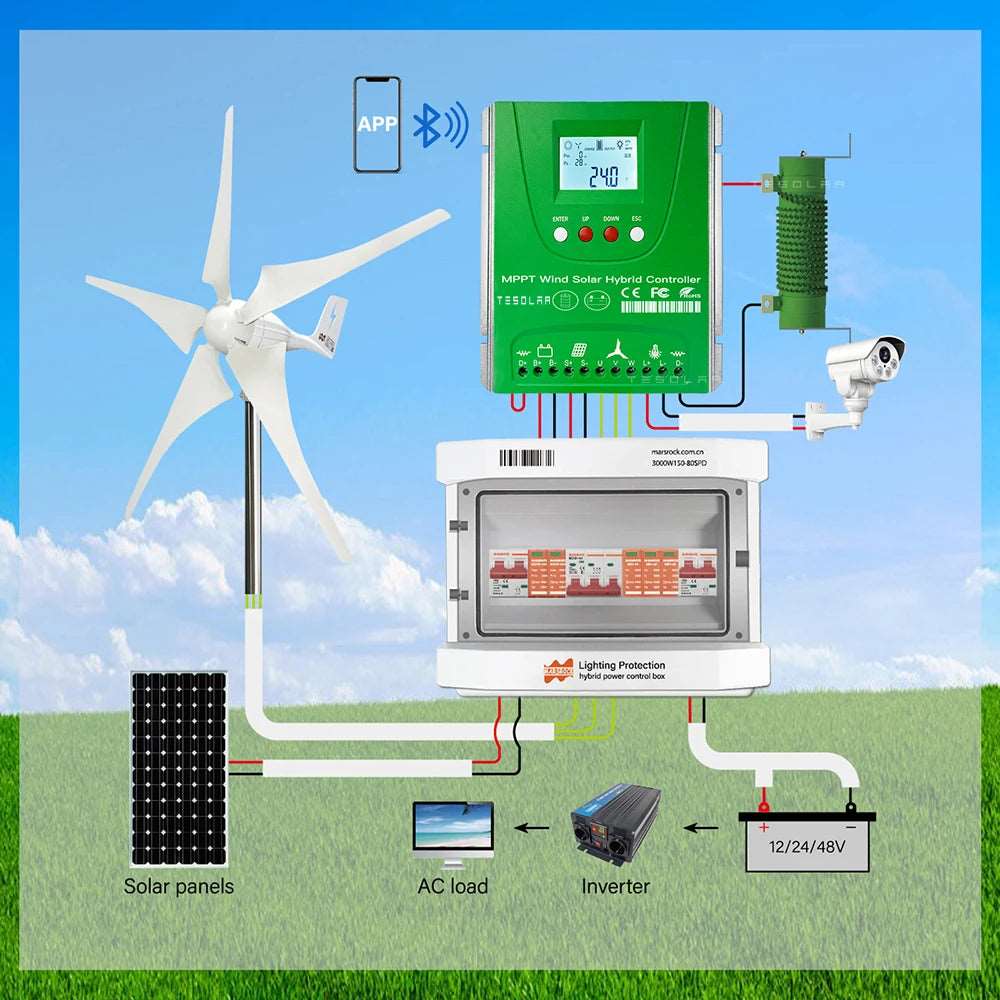

800W to 2400W Hybrid Controller Wind & Solar

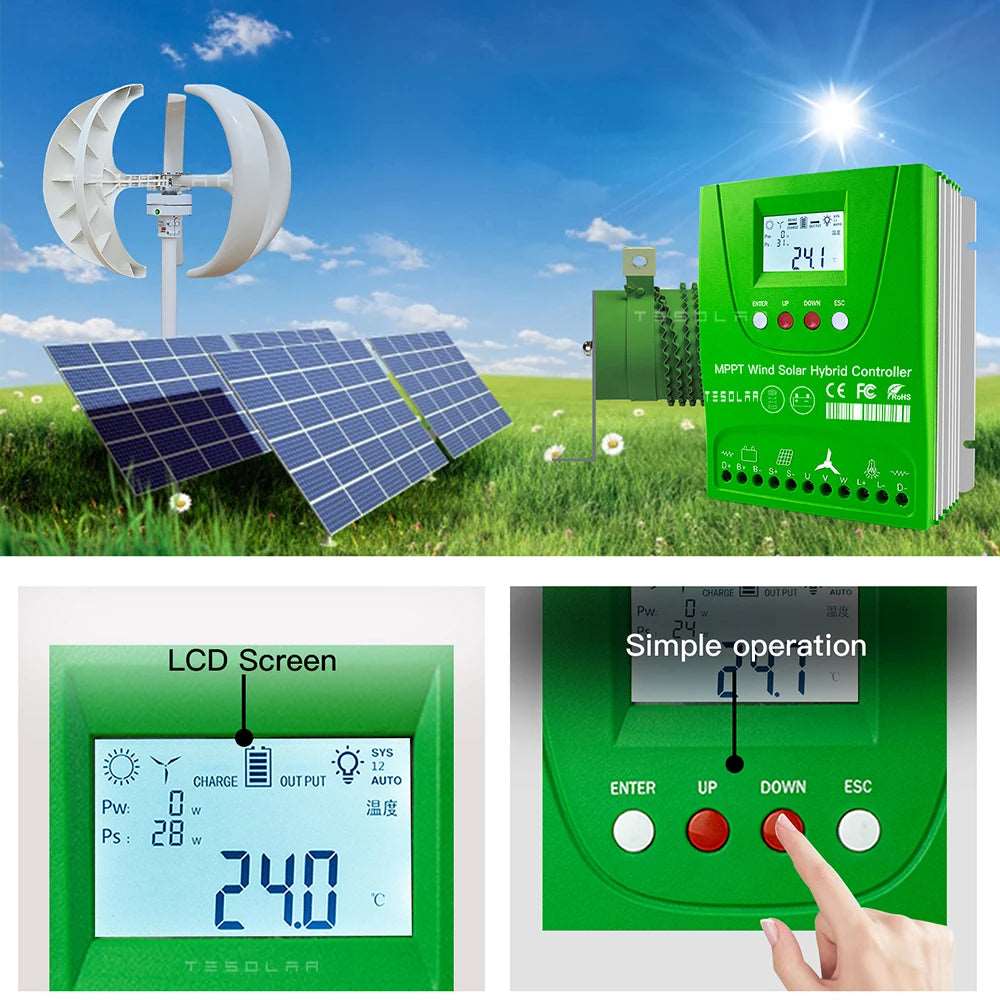

It is special designed for hybrid wind solar power system charge for low-power street lamp, monitoring etc. system. And it is workable for Lithium , GEL, Lead-acid battery with full charge and discharge protection. Large size LCD screen is convenient for parameter query and adjustment but low power consumption. It can be flexibly installed in cruise ships, RVs, and land indoors. Powerful functions and light size but very good heat dissipation are its outstanding features.
.

Perfect Protection
Solar Reversed Charging protection Battery open circuit protection battery anti-reverse connection protection protection Over current and over voltage auto brake protection Over load protection, etc.
.
Product Features

High performance and stable chip control;
Automatically match with 12V/24V sealed battery voltage;
Workable for battery: 1. Sealed( Lead-acid, GEL); 2. Lithium(Ternary Lithium, Lithium iron);

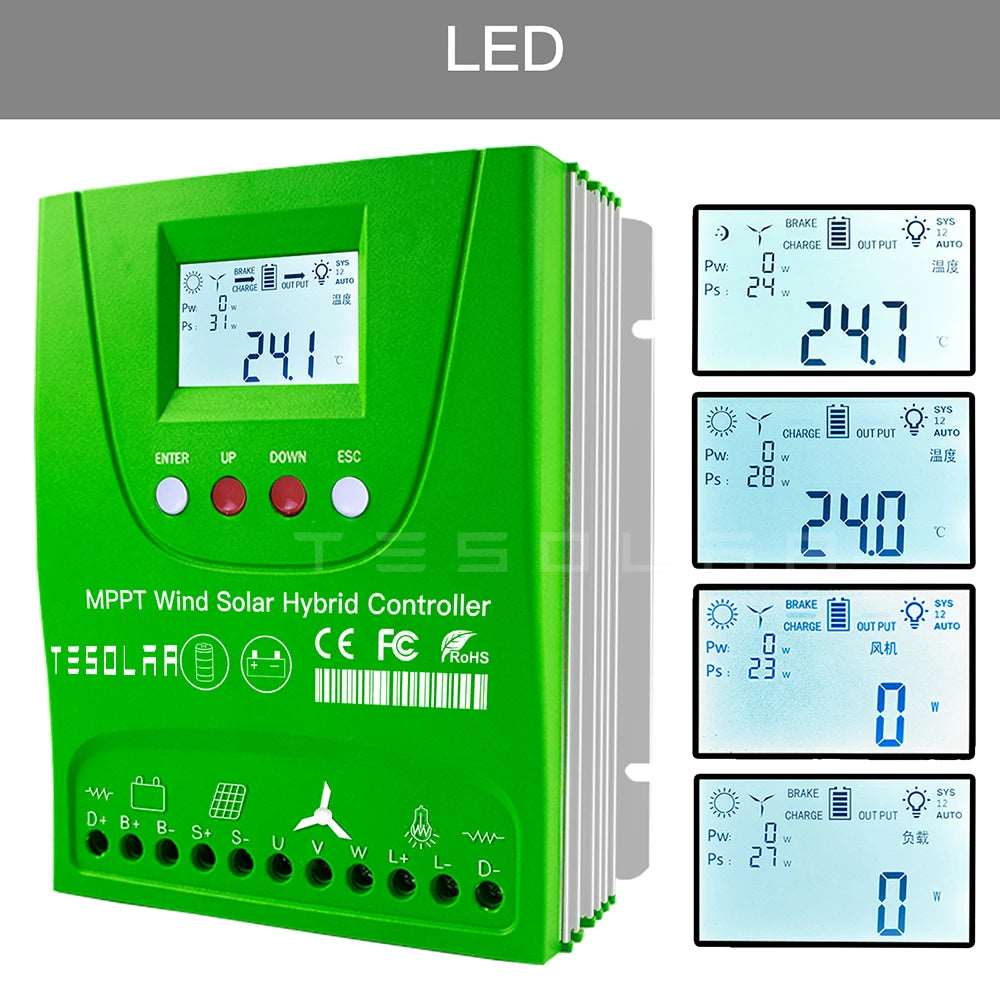

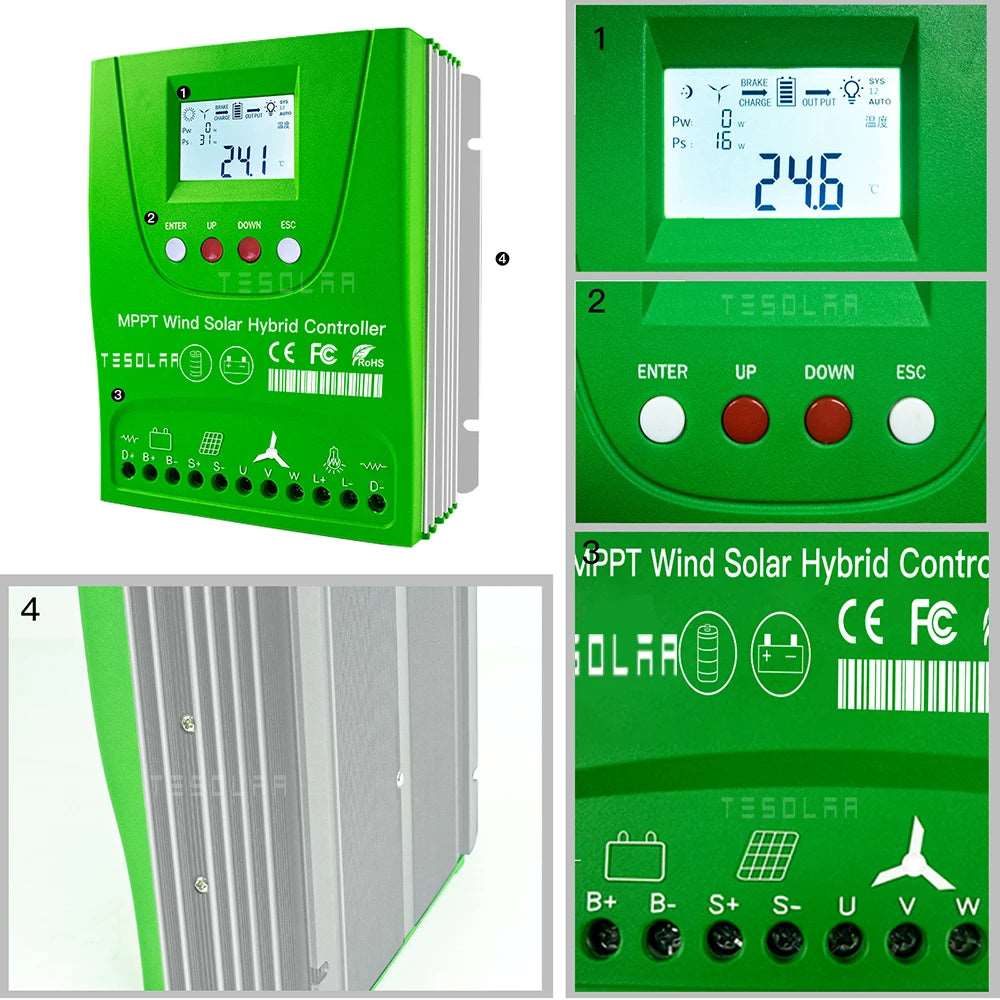

LCD displays voltage and current of wind, solar and load parameter;
The inner circuit board of the controller is sprayed to prevent dust, moisture and static electricity.

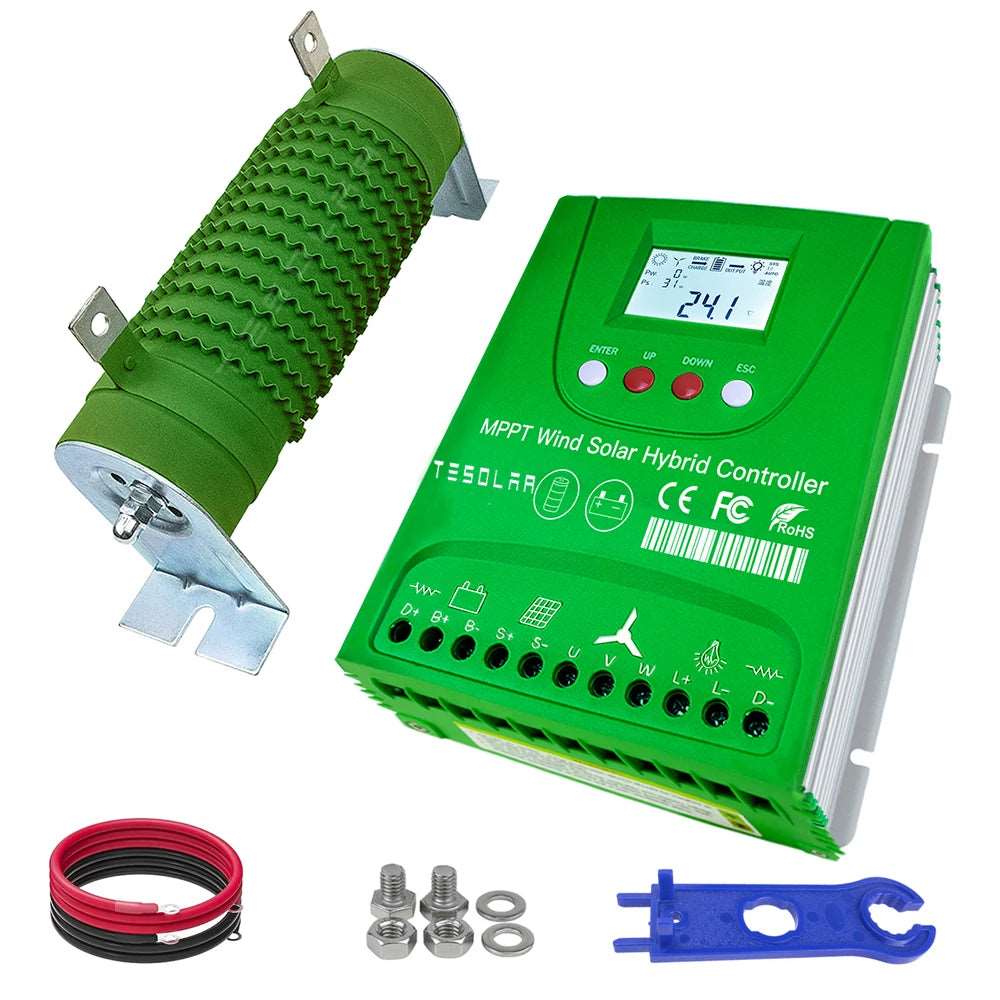

Wind adopts MPPT boost charging; external dump-load resistance, intelligent disconnection of Solar charging.
.
Highlight

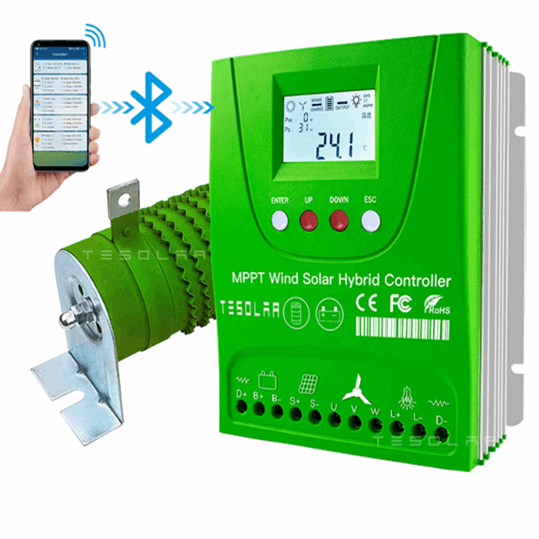

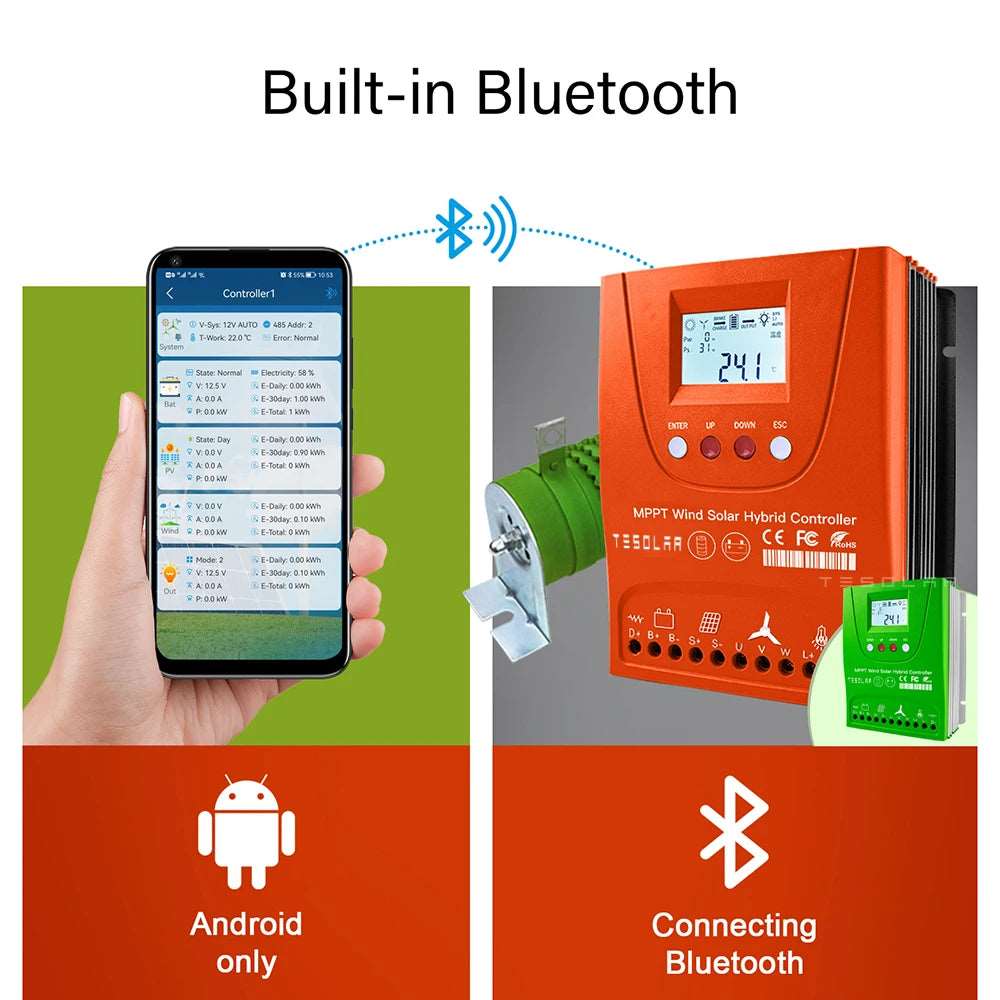

Built-in Bluetooth device which supports real-time viewing of charging and dis-charging status through APP on Android smartphone. There is no need to access INTERNET, no need to access user’s home router, no need to enter an account and password, as long as the mobile phone Bluetooth matches. Simple and easy to operate.

Specs

Brand Name: VESDAS
Model Number: 2400W120-1224/2448GR(-BT)
is_customized: Yes
Is Smart Device: YES
Application: Charger Controller
Application: Voltage Controller
Application: Wind Controller
Application: Solar System Controller
Video of Bluetooth connection

Product Parameters

1. System Parameter






Model

1200W60

1600W80

2000W100

2000W100

3000W150

System Rated Voltage

12/24V(Auto)

24/48V(Auto)

Wind Turbine

Rated Voltage

24VAC

48VAC

MPPT(Boost Up)

17VAC

34VAC

Max Current

25A

33.3A

41.7A

20.8A

31.25A

Workable Power

0~600W

0~800W

0~1000W

0~1000W

0~1500W

AC Rectify DC

33.6VDC

67.2VDC

Charge Current

17.9ADC

23.8ADC

29.8ADC

14.9ADC

22.3A

Brake

Start Voltage

30VAC(42VDC)

60VAC(84VDC)

Recover Voltage

27VAC

54VAC

Max Current

35ADC

35ADC

Solar Module

Voc

36V~55.2VDC

72~105VDC

Vmp

30V~44VDC

60~88VDC

Charge Current

20A

26.7A

33.3A

16.7A

25A

Workable Power

0~600W

0~800W

0~1000W

0~1000W

0~1500W

DC Load

Out Put Power

0~240W

0~480W

Rated Voltage

24VDC

48VDC

Max Current

10A

10A

Environment

Temperature

1) Working:-2055; 2)Storage:-4080

Humidity (°C)

10%90% No condensation

Protection Grade

IP30

Others

Communication

Bluetooth(Point to Point, only workable for Andriod Smartphone)

Conversion Efficiency

98%

Operation Mode

Default to streetlight mode



2. Battery Parameter



System Voltage

12V

24V

48V

(b0)Customer Type

FULL

Over Charge

14.7V

Adjustable

29.4V

Adjustable

58.8V

Adjustable

LOW

Over Discharge

10.2V

Adjustable

20.4V

Adjustable

40.8V

Adjustable

RLOW

Over Discharge Return

11.5V

Adjustable

23.0V

Adjustable

46.0V

Adjustable

Special Note: No one-key restore function, please do not modify preset parameters.

(b1)Lead acid battery

FULL

Over Charge

14.4V

Default

28.8V

Default

57.6V

Default

LOW

Over Discharge

10.2V

Default

20.4V

Default

40.8V

Default

RLOW

Over Discharge Return

11.5V

Default

23.0V

Default

46.0V

Default

(b2)Ternary lithium battery

FULL

Over Charge

12.6V

Default

25.2V

Default

50.4V

Default

LOW

Over Discharge

9.0V

Default

18.0V

Default

36.0V

Default

RLOW

Over Discharge Return

11.0V

Default

22.0V

Default

44.0V

Default

(b3)Lithium Iron Phosphate LiFePO4

FULL

Over Charge

14.4V

Default

28.8V

Default

57.6V

Default

LOW

Over Discharge

10.0V

Default

20.0V

Default

40.0V

Default

RLOW

Over Discharge Return

11.0V

Default

22.0V

Default

44.0V

Default
