4.2kW 6.2kW Hybrid Solar Inverter 24V 48V Lightning Protection

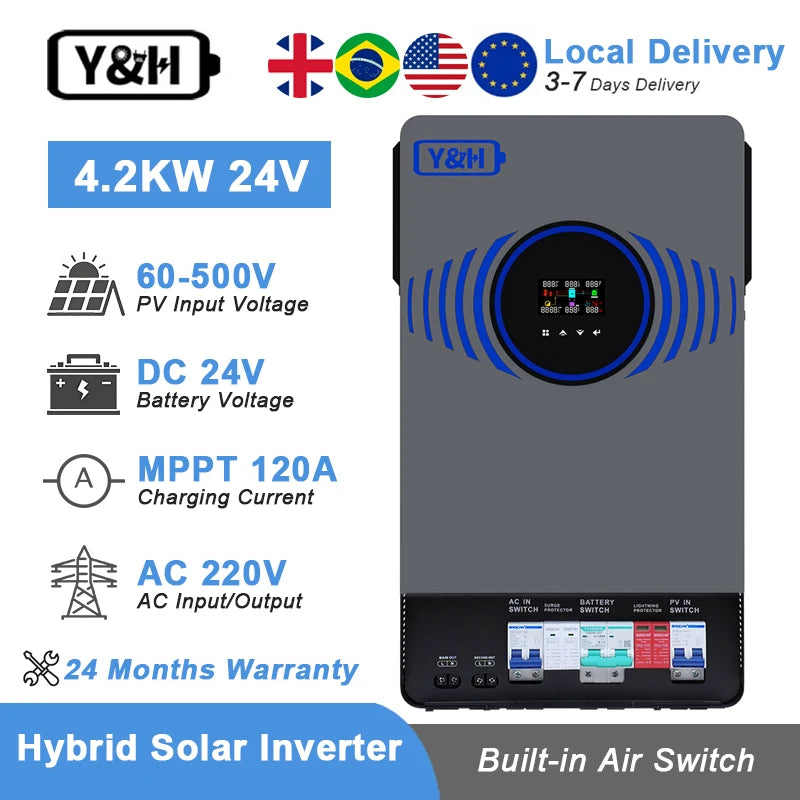

Features

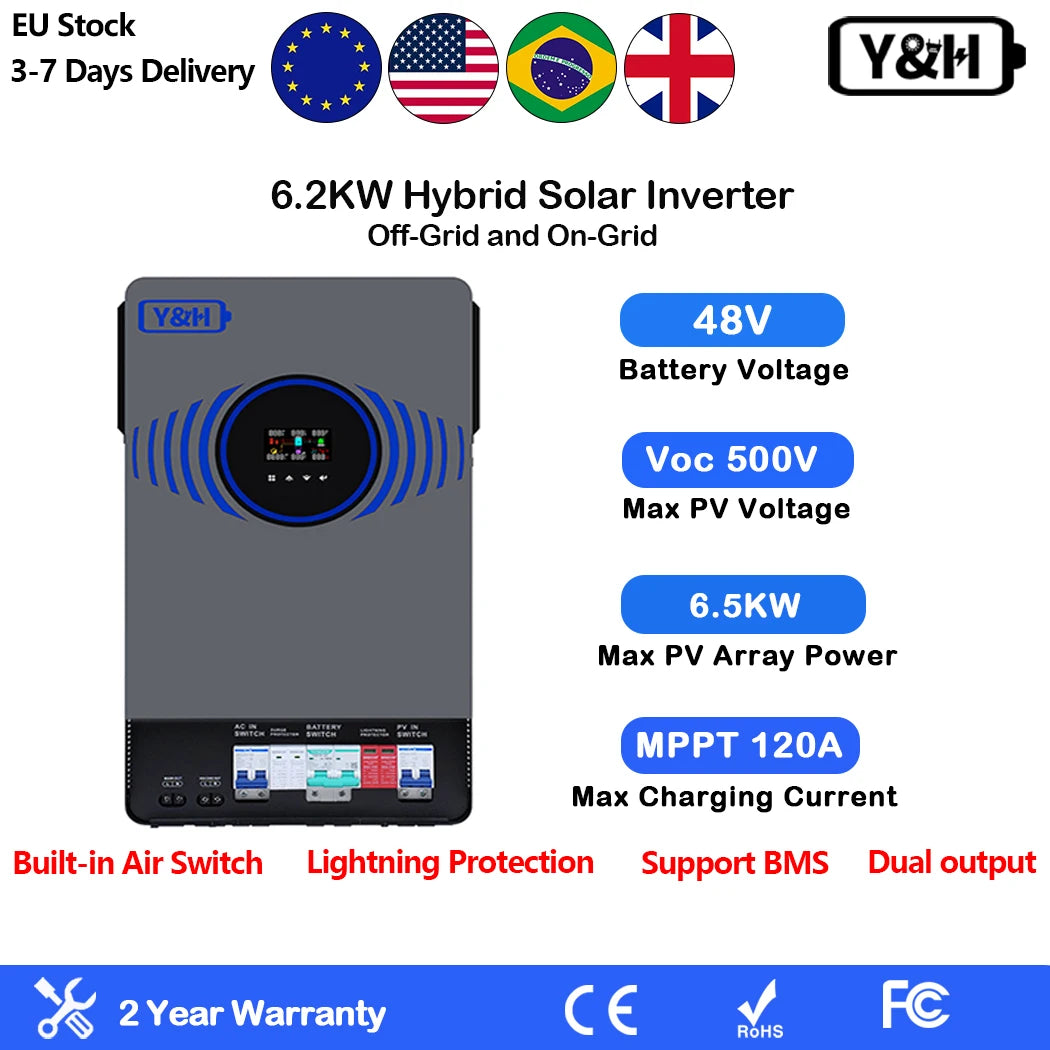

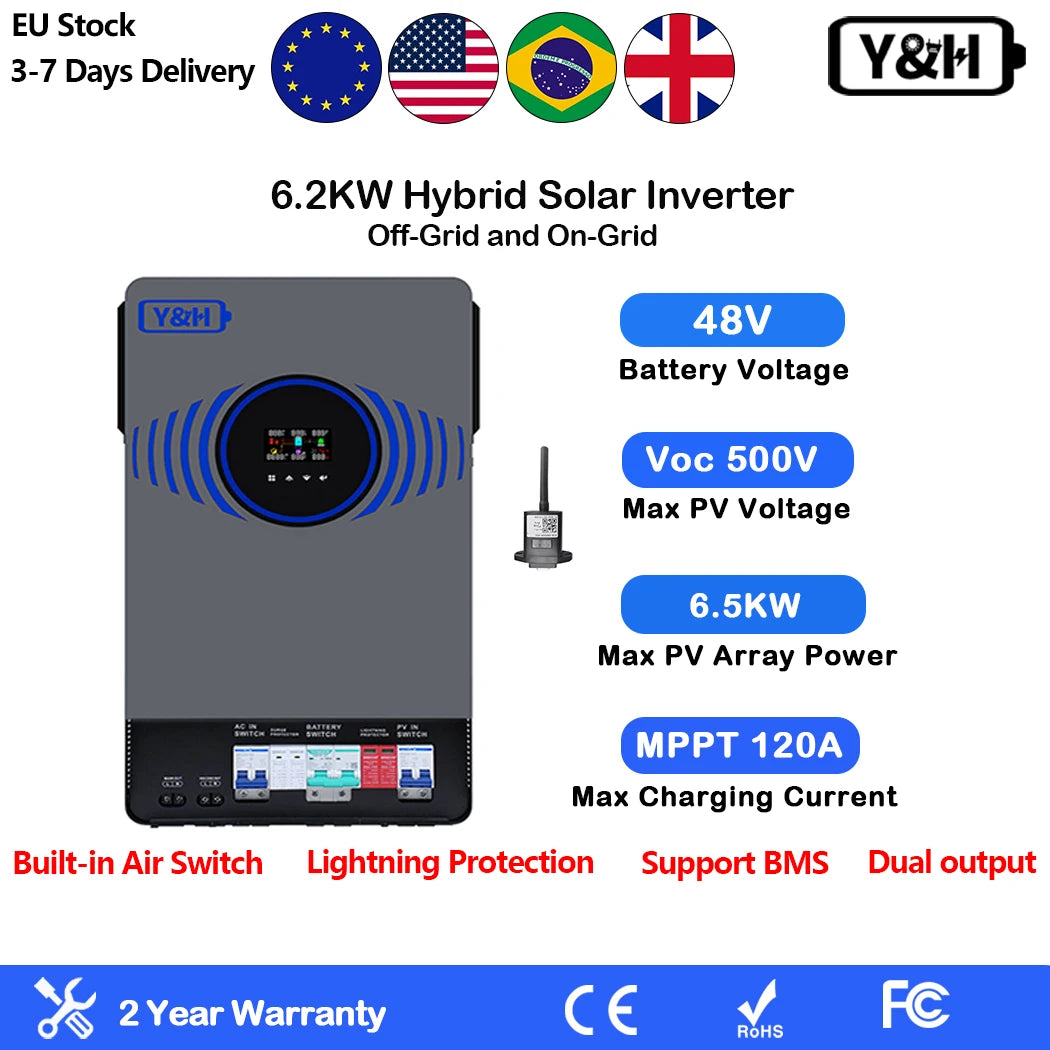

6.2KW with Surge Capacity of 12.4KW (5 seconds)
Harness solar energy efficiently with this 4.2KW or 6.2KW hybrid solar inverter with or without Wi-Fidesigned for 24V and 48V battery systems.
It supports up to 6.5KW PV array power and offers a pure sine wave output at 220V, ensuring stable and clean electricity for your home or business.
With smart device compatibility and lightning protection, this inverter provides reliable on/off-grid switching and integrated solar charge control.
Its compact design (665 x 415 x 215 mm) and automatic frequency adjustment (50Hz/60Hz) make it a versatile choice for maximizing your solar investment.

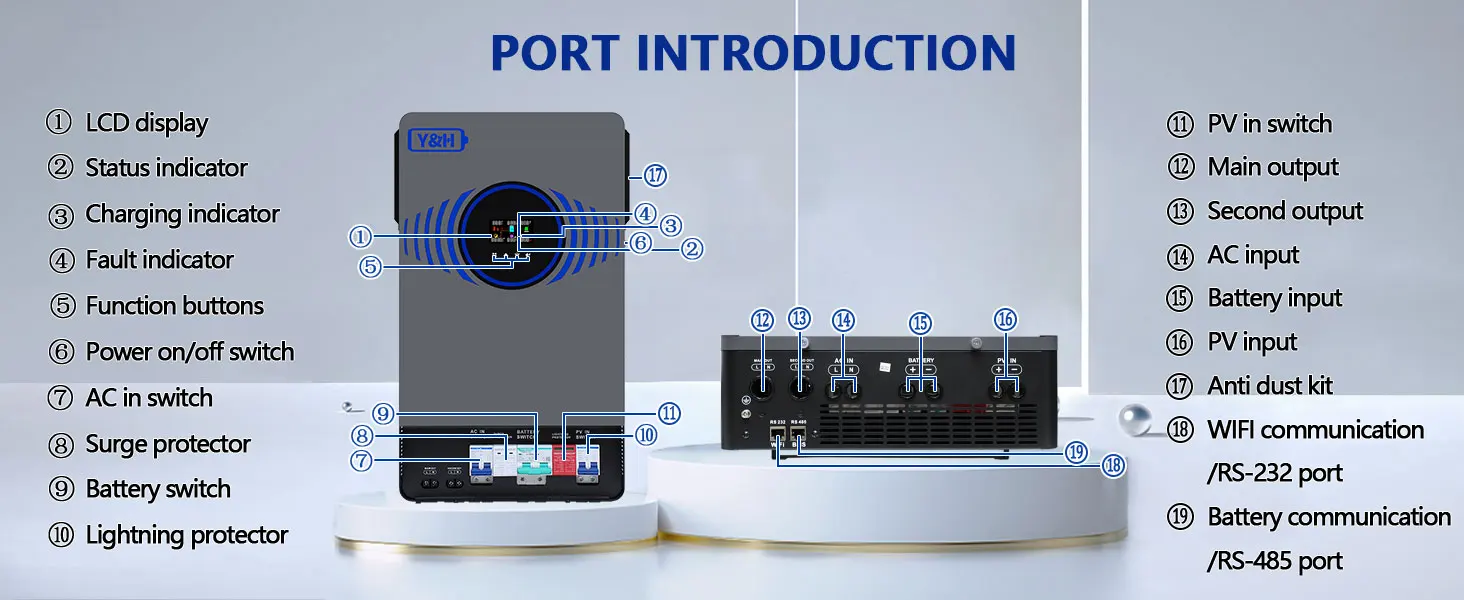

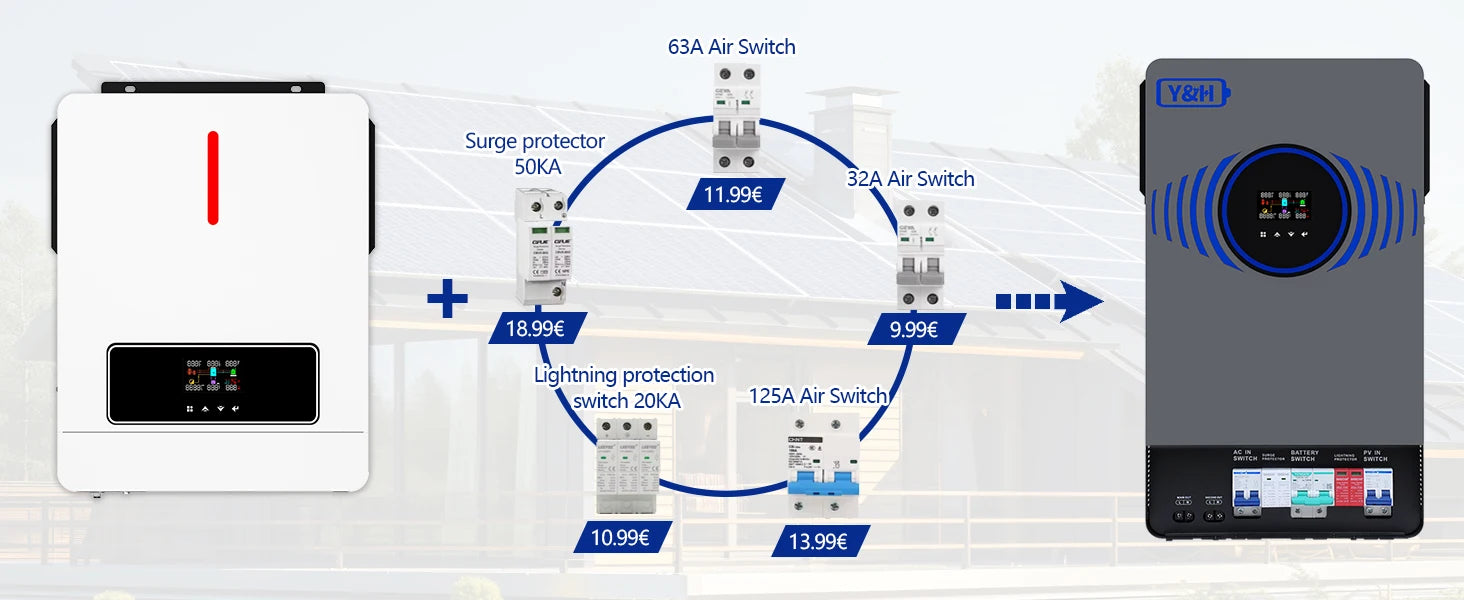

AC input has built-in air switch and lightning arrester、Battery input is equipped with air switch、Pv input has built-in lightning arrester

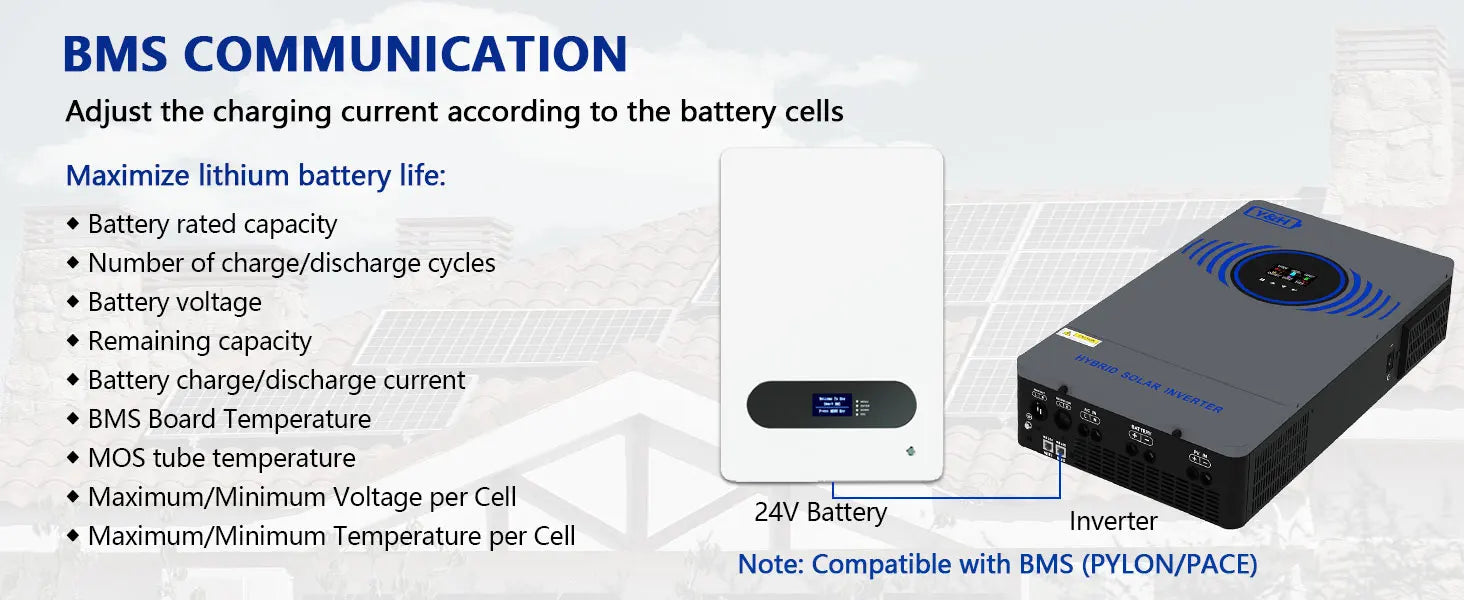

WIFI+BMS Dual communication and Dual Output.
On-grid/off-grid working mode, you can use the inverter as an energy storage device without a grid (off-grid). Maybe you also want to use it to reduce your household electricity bill (on-grid).
Built-in 120A MPPT Solar charge 、max 6200W(for 4.2KW),max6500W(for 6.2KW)、High PV input voltage range(60~500VDC)、Output power factor 1.0.
One-key restoration to factory Settings、Built-in Lithium battery automatic activation、WIFl & GPRS available for lOS and Android.
Description

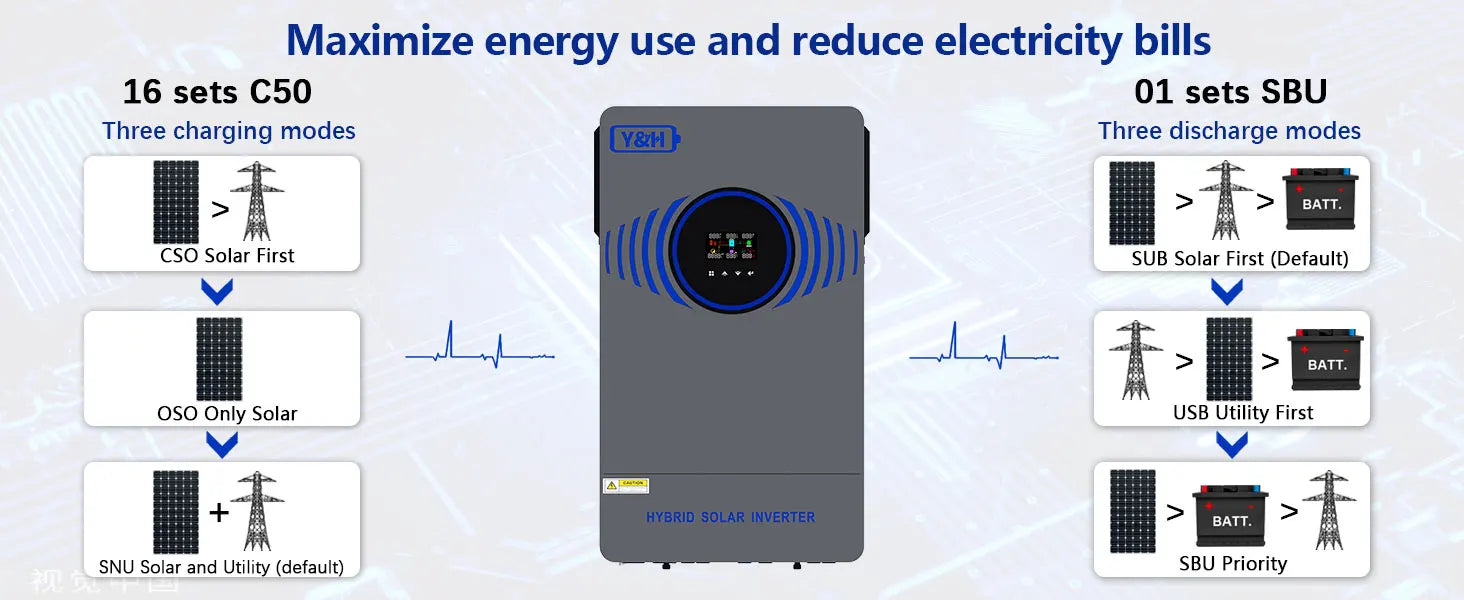

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

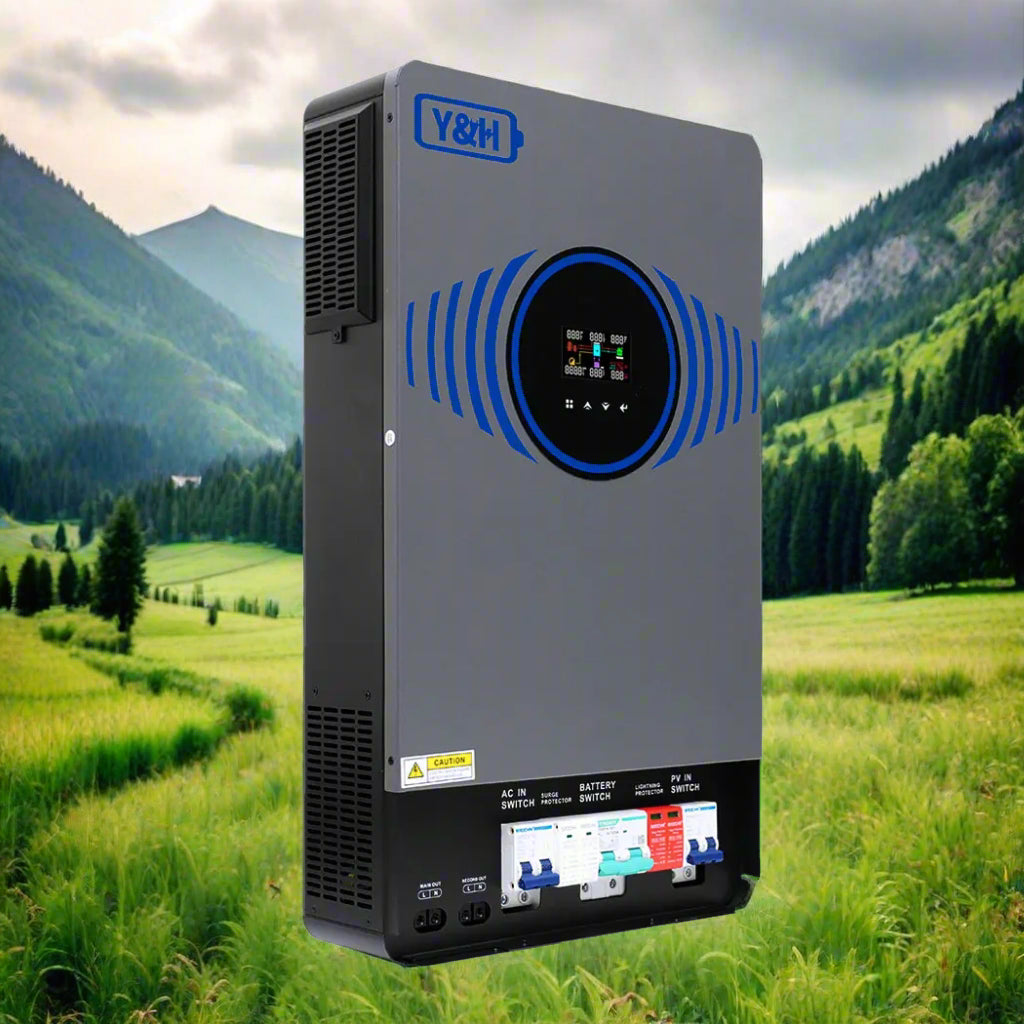

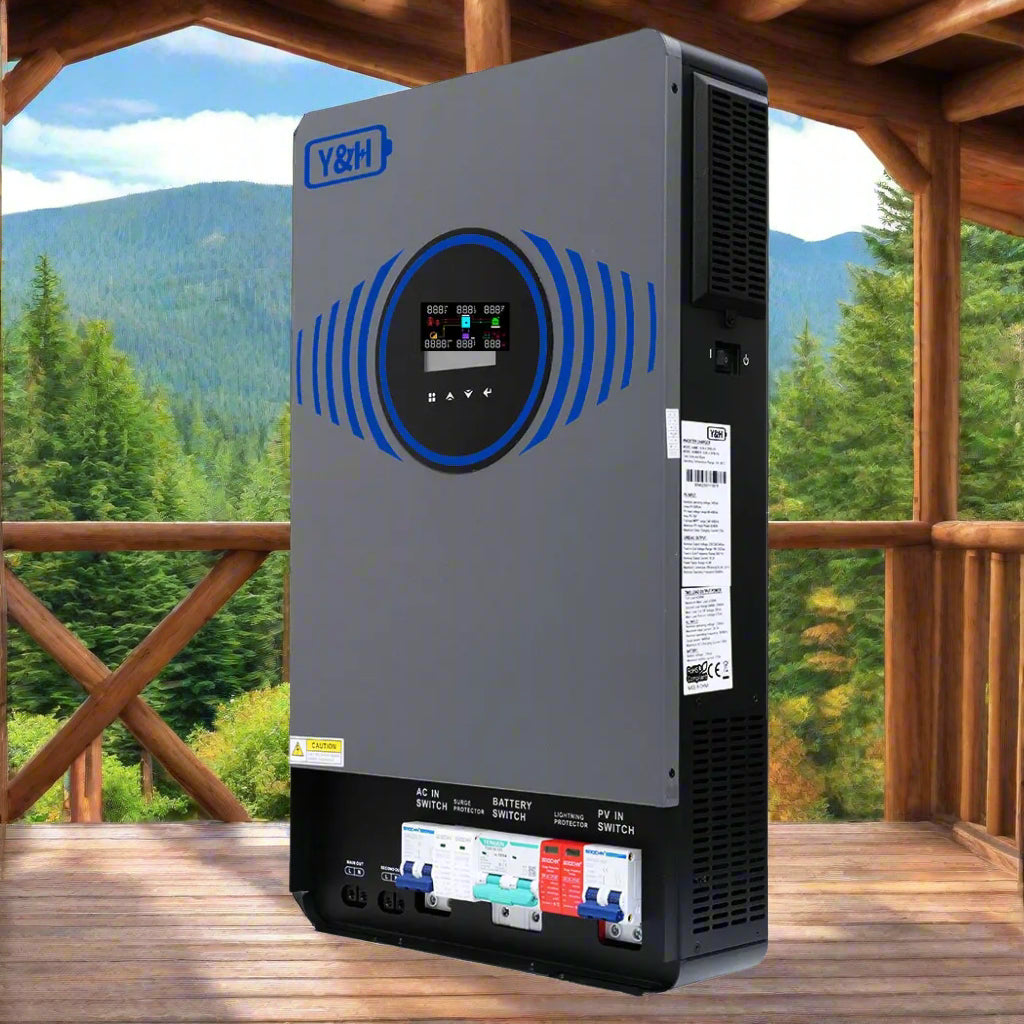

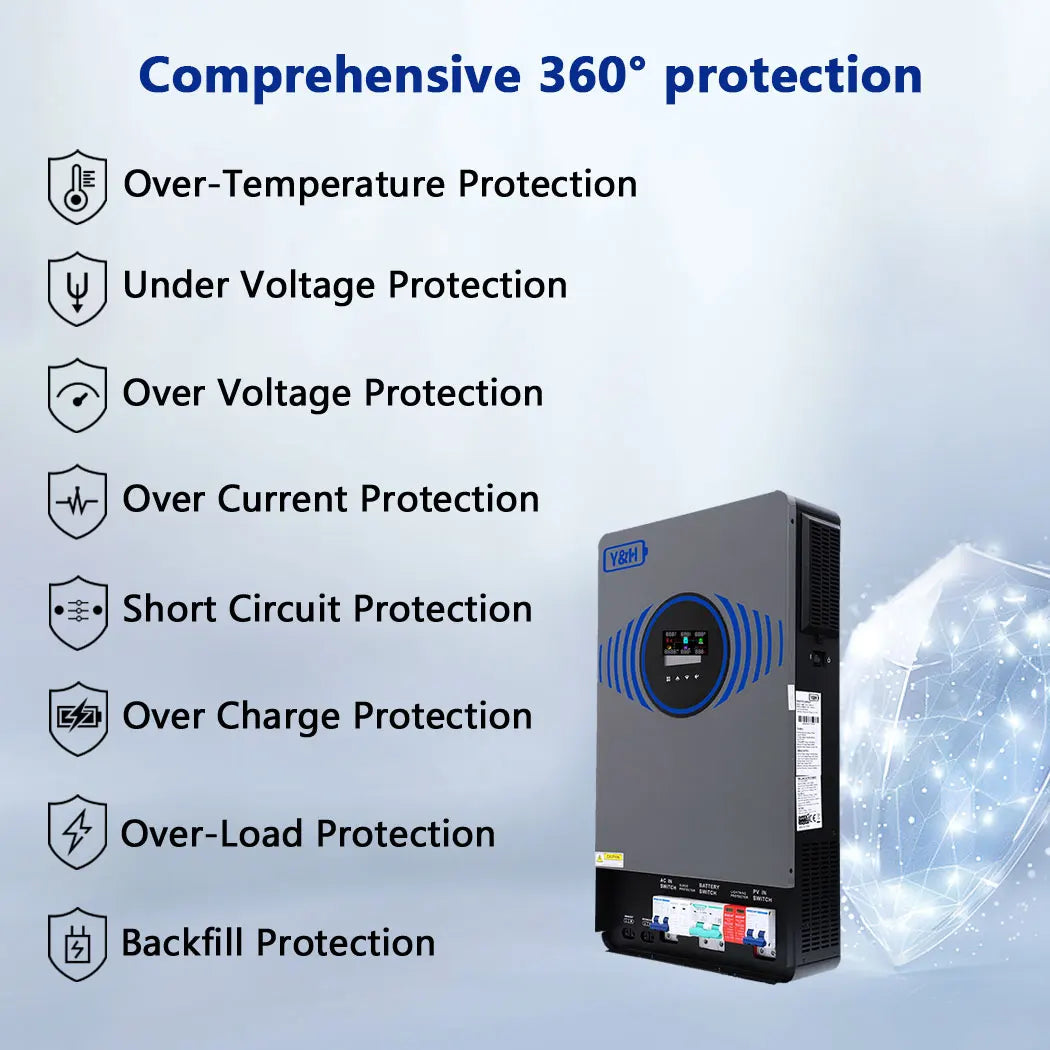

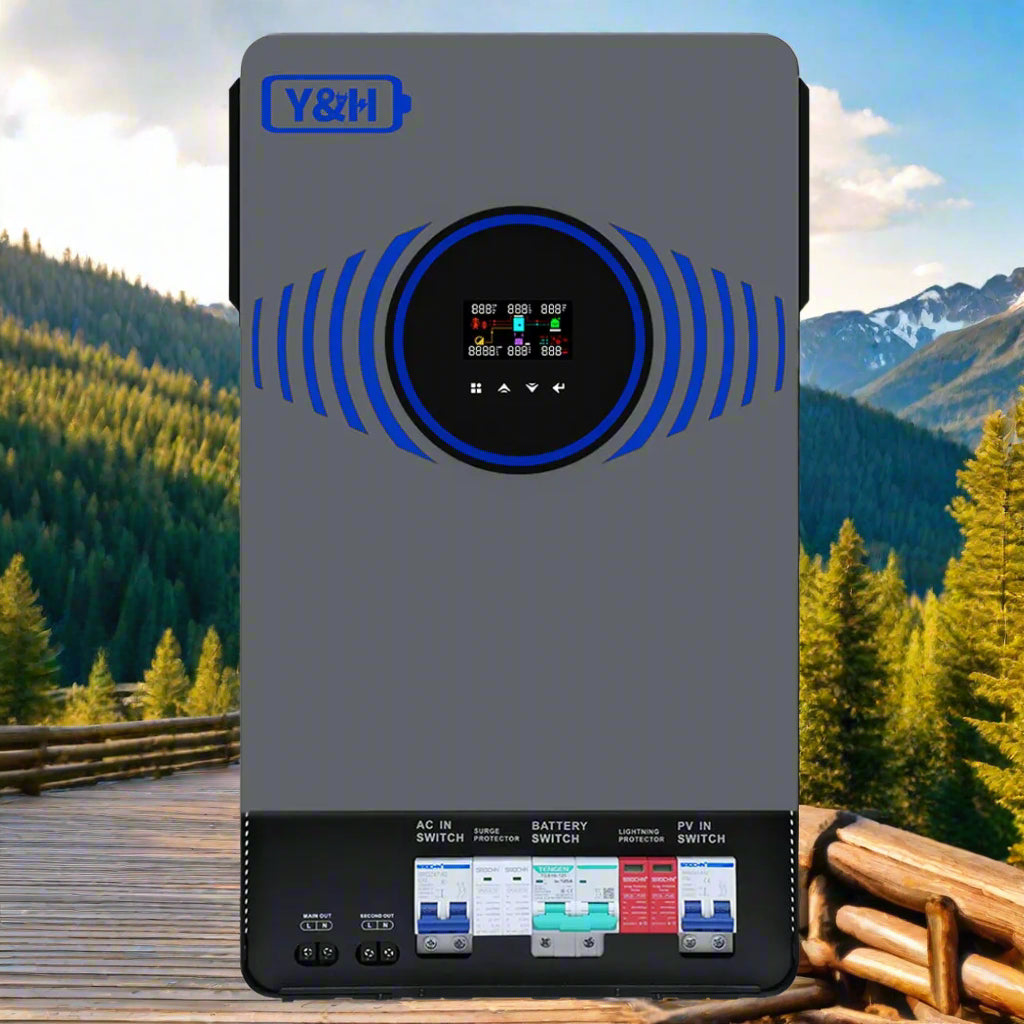

AC input & battery input built-in Circuit Breaker
1: The circuit breaker can quickly disconnect the power supply when the circuit is overloaded or shorted.
2: It can manually disconnect specific circuits when maintenance or troubleshooting is required.
3: Avoiding accidental current back-up or operating errors.
AC Input Configuration Surge Protector
1: Grid fluctuations, lightning strikes prevent transient overvoltage damage to equipment:
2: Reduce the surge caused by the aging of electronic components to extend the service life of the equipment
3: PV input built-in lightning protection device
Prevent lightning strikes from causing system current and voltage fluctuations and improve stability.
Reduce lightning-induced overvoltage, thus extending equipment life
On Grid/Off-Grid Solar Inverter Features
1: Pure sine wave solar inverter(on/off Grid)
2: Output power factor 1.0
3: WIFl&GPRS available for lOS and Android
4: Inverter can run without battery
5: One-key restoration to factory Settings
6: Built-in Lithium battery automatic activation

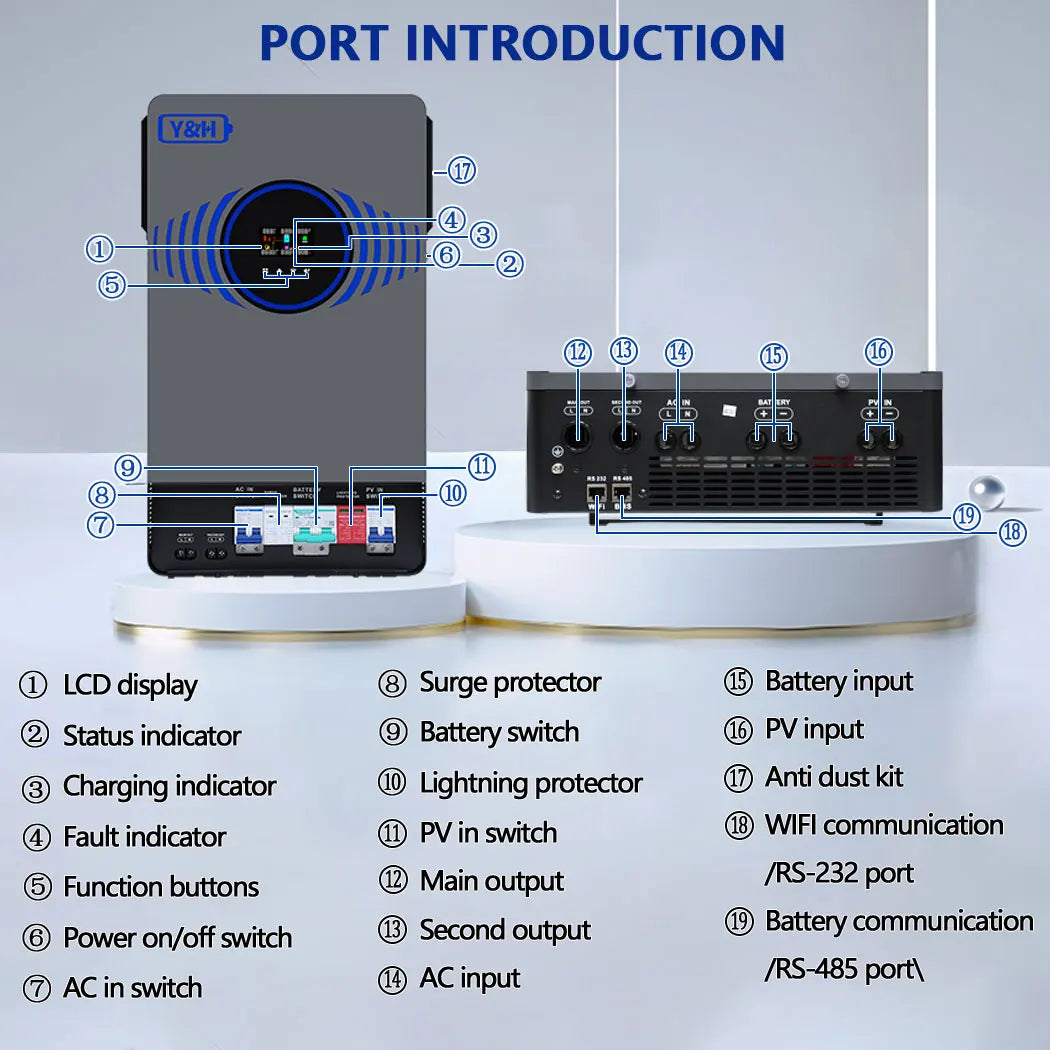

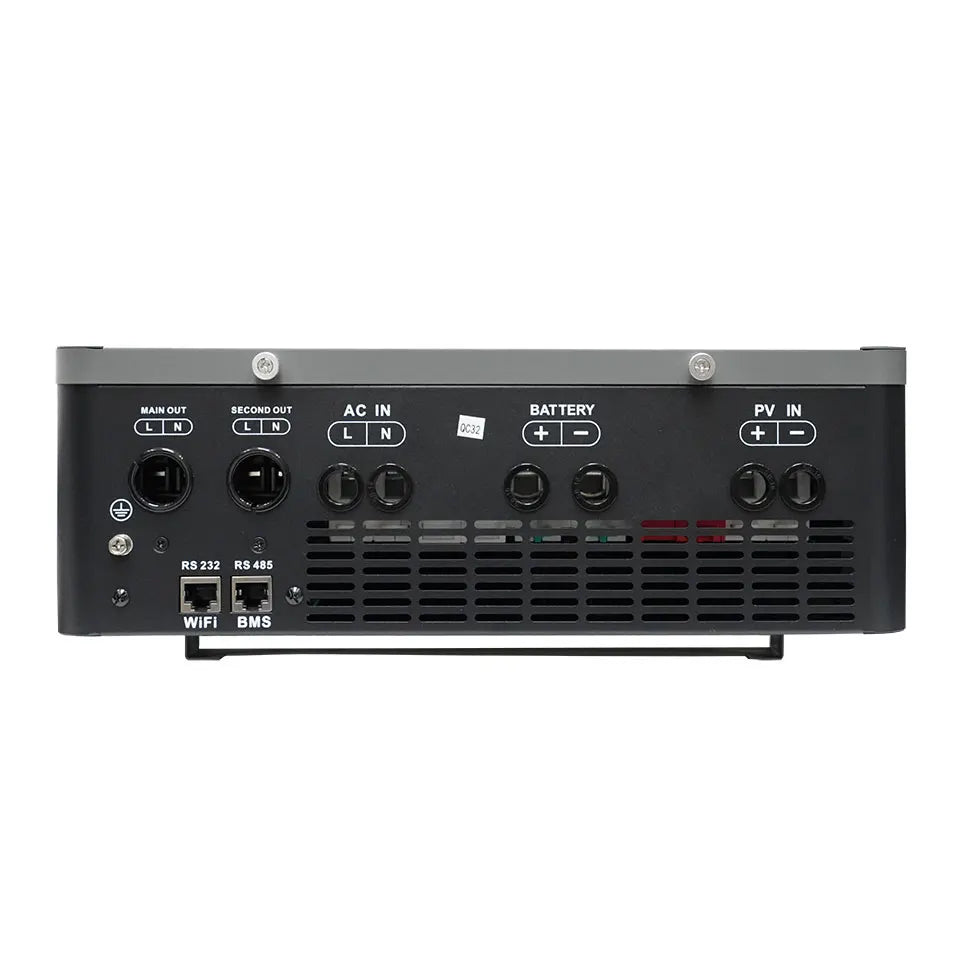

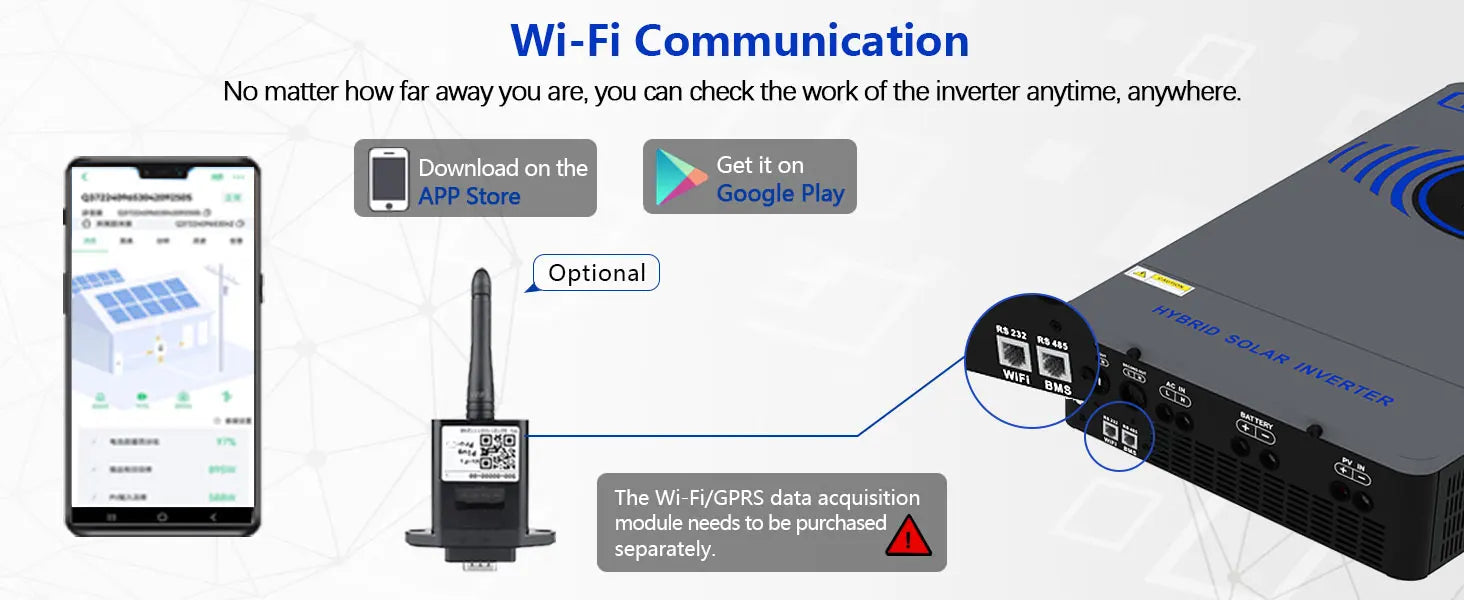

7: Dual communication ports for Battery communication and Wifi communication
8: Built-in 120A MPPT Solar charge
9: High PV input voltage range(60~500VDC)
10: Built-in anti-dust kit for harsh environment
11: Smart battery charge design to optimize battery life

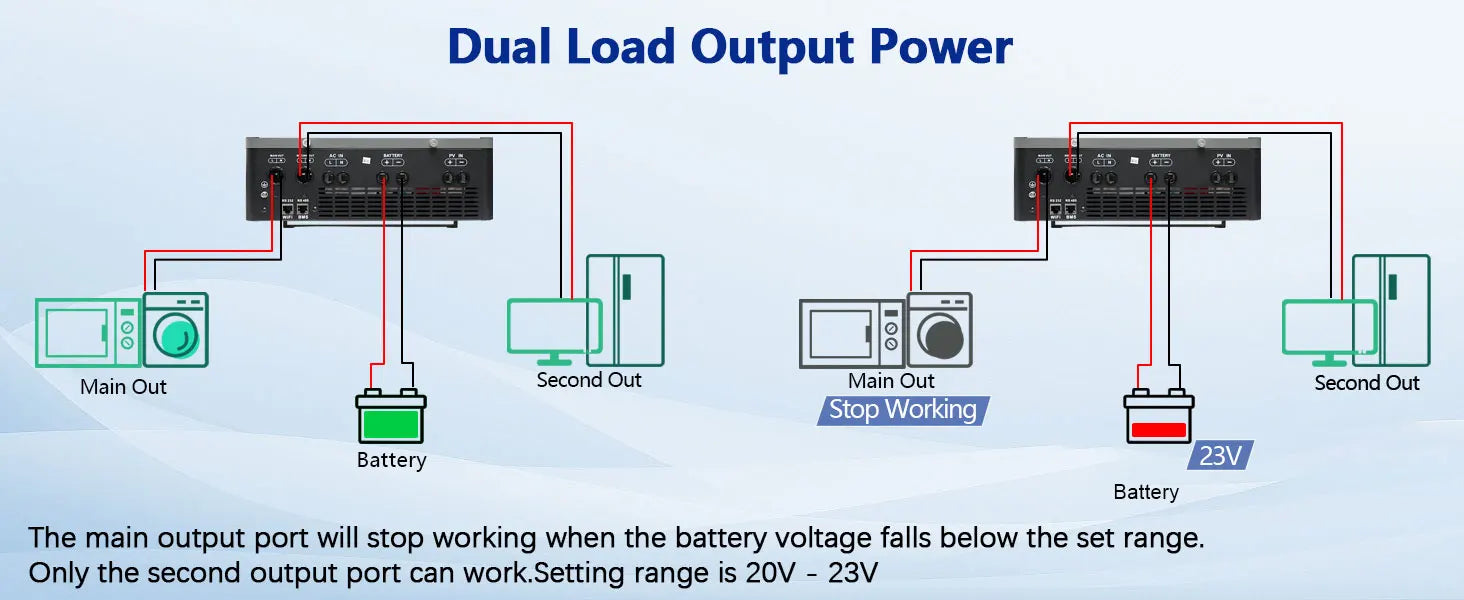

12: Dual output (the second load output power can be set from 20% to 70%)
Specs

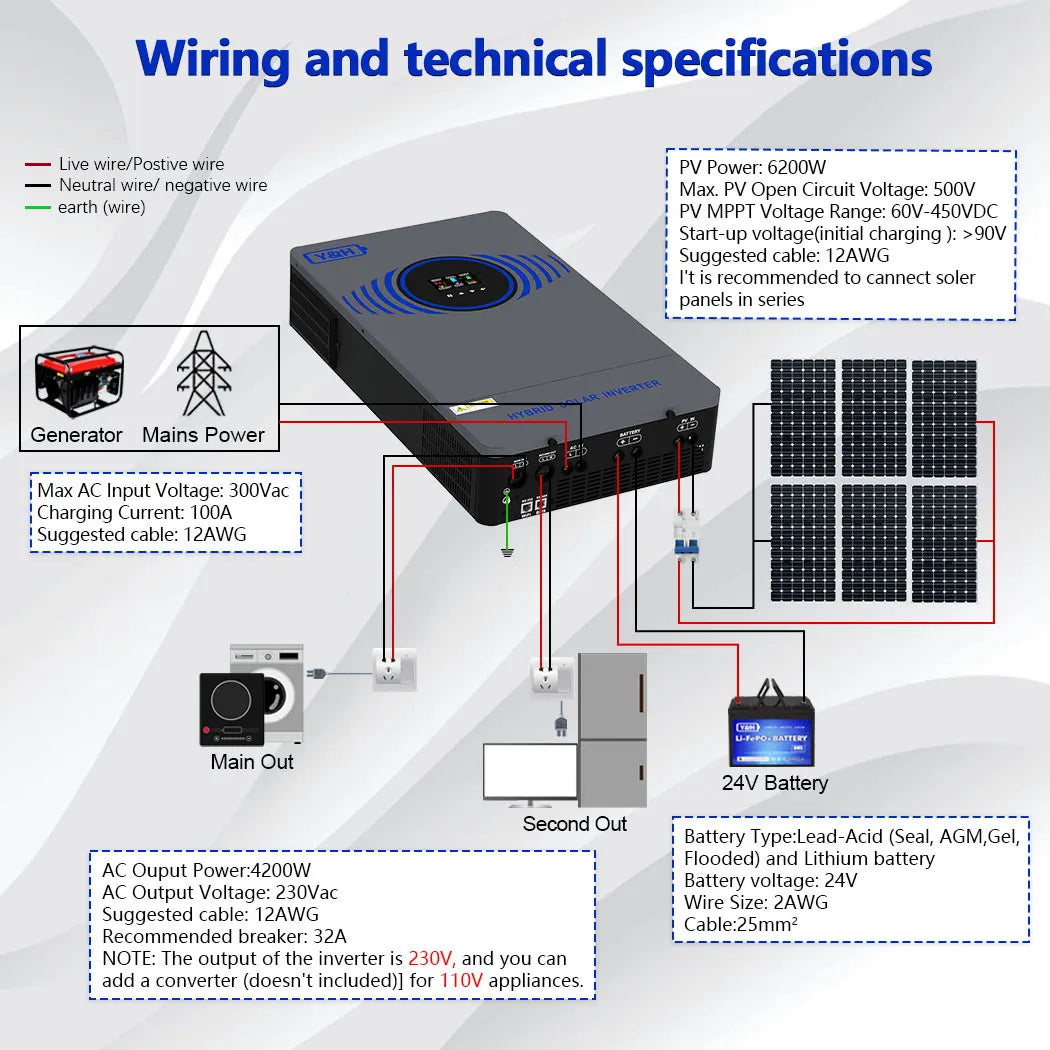

Do not turn on each input at the same time. It is recommended to wait for 3 minutes between steps so the inverter is working optimal and stable
Inverter Start-up sequence:
1: Battery 2: AC input or PV input 3: Load
Inverter Shut-down sequence:
1: Load 2: AC input or PV input 3: Turn off the inverter Exit battery
|

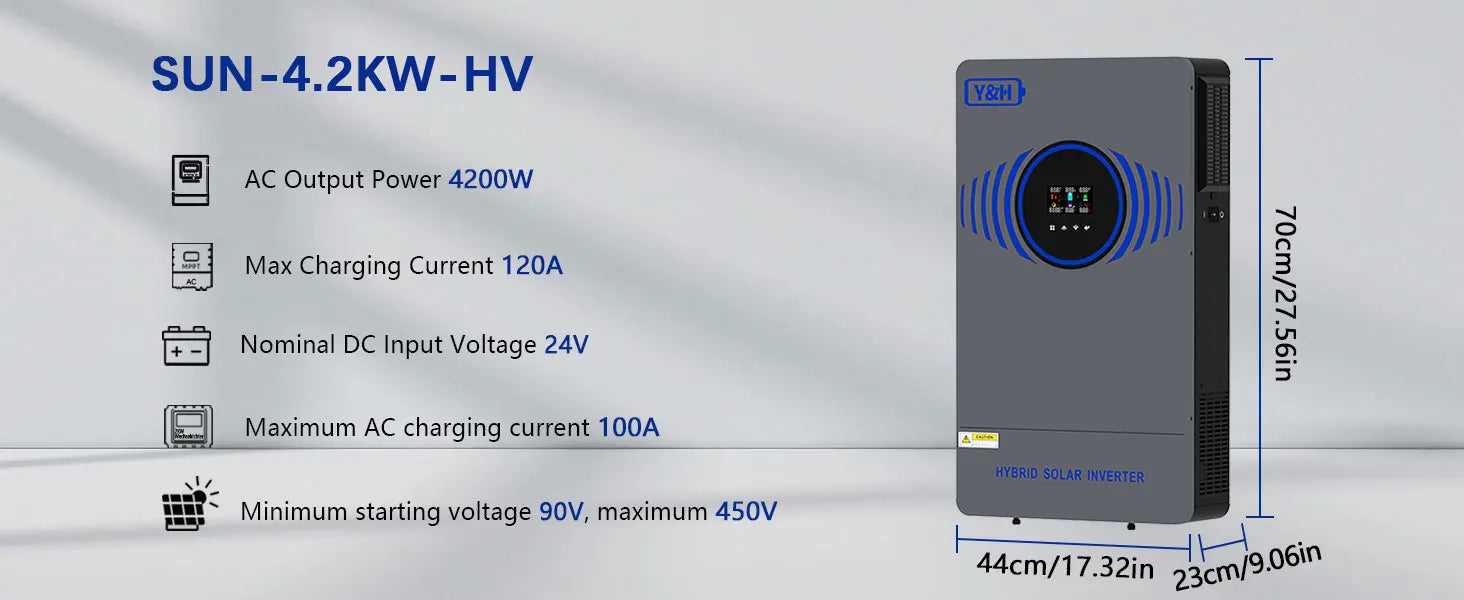

Product Data Sheet |
||
|
MODEL |
SUN-4.2kW-HV |
SUN-6.2kW-HV |
|
Phase |
1-phase |
|
|
Max PV Input Power |
6200W |
6500W |
|
Rated Output Power |
4200W / 4200VA |
6200W / 6200VA |
|
Max Solar Charging Current |
120A |
|
|
GRID-TIE OPERATION |
||
|
PV INPUT(DC) |
||
|
Nominal DC Voltage/Max DC Voltage |
360 / 500VDC |
|
|
Start-up Voltage/initial Feeding Voltage |
60VDC / 90VDC |
|
|
MPPT Voltage Range |
60-450VDC |
|
|
Max Input Current |
1/18A |
1/22A |
|
GRID OUTPUT(AC) |
||
|
Nominal Output Voltage |
220 / 230 / 240VAC |
|
|
Output Voltage Range |
195~253VAC |
|
|
Nominal Output Current |
18.2A |
27.0A |
|
Power Factor |
＞0.99 |
|
|
EFFICIENCY |
||
|
Max Conversion Efficiency(DC/AC) |
98% |
|
|
TWO LOAD OUTPUT POWER |
||
|
Full Load |
4200W |
6200W |
|
Max Main Load |
4200W |
6200W |
|
Max Second Load(battery mode) |
power can be set from 20% to 70% |
|
|
Max Load Cut Off Voltage |
26VDC |
52VDC |
|
Max Load Return Voltage |
27VDC |
54VDC |
|
OFF-GRID OPERATION |
||
|
AC INPUT |
||
|
AC Start-up Voltage/Auto Restart Voltage |
120-140VAC / 180VAC |
|
|
Acceptable Input Voltage Range |
90~280VAC or 170-280VAC |
|
|
Frequency Range |
49~51±1HZ / 59~61±1HZ |
|
|
Max AC input Current |
24.7A |
36.4A |
|
PV INPUT(DC) |
||
|
Nominal DC Voltage/Max DC Voltage |
360 / 500VDC |
|
|
MPPT Voltage Range |
60 ~ 450VDC |
|
|
Max Input Current |
1/18A |
1/22A |
|
BATTERY MODE OUTPUT(AC) |
||
|
Nominal Output Voltage |
220 / 230 / 240VAC |
|
|
Output Wave Form |
Pure sine wave |
|
|
Efficiency (DC to AC) |
94% |
|
|
BATTERY & CHARGER |
||
|
Nominal DC Voltage |
24VDC |
48VDC |
|
Max Solar Charging Current |
120A |
120A |
|
Max AC Charging Current |
100A |
100A |
|
Max Solar + AC Charging Current |
120A |
120A |
|
HYBRID OPERATION |
||
|
PV INPUT(DC) |
||
|
Nominal DC Voltage/Max DC Voltage |
360 / 500VDC |
|
|
Start-up Voltage/Initial Feeding Voltage |
90VDC / 120VDC |
|
|
MPPT Voltage Range |
60~450VDC |
|
|
Max Input Current |
1/18A |
1/22A |
|
GRID OUTPUT(AC) |
||
|
Nominal Output Voltage |
220 / 230 / 240VAC |
|
|
Output Voltage Range |
195~253VAC |
|
|
Nominal Output Current |
18.2A |
27.0A |
|
AC INPUT |
||
|
AC Start-up Voltage/Auto Restart Voltage |
120-140VAC / 180VAC |
|
|
Acceptable Input Voltage Range |
90-280VAC or 170-280VAC |
|
|
Max AC Input Current |
24.7A |
36.4A |
|
Max Charging Current |
100A |
|
|
GENERAL |
||
|
PHYSICAL |
||
|
Dimensions: HxWxD(mm) |
602 x 358 x 113 |
|
|
Cartoon Dimension ,H*W*D(mm) |
665 x 415 x 215 |
|
|
Net Weight (kg) |
12.9 |
13.3 |
|
Gross Weight(kg) |
14.5 |
14.9 |
|
INTERACE |
||
|
Communication Port |
RS232 / RS485 / WIFI / GPRS / LITHIUM BATTERY |
|
|
ENVIRONMENT |
||
|
Humidity |
5% to 95% Relative Humidity (Noncondensing) |
|
|
Operating Temperature |
-10℃ ~ 50℃ |
|
|
STANDARD |
||
|
Compliance Safety |
CE, RoHS, FC |
|
